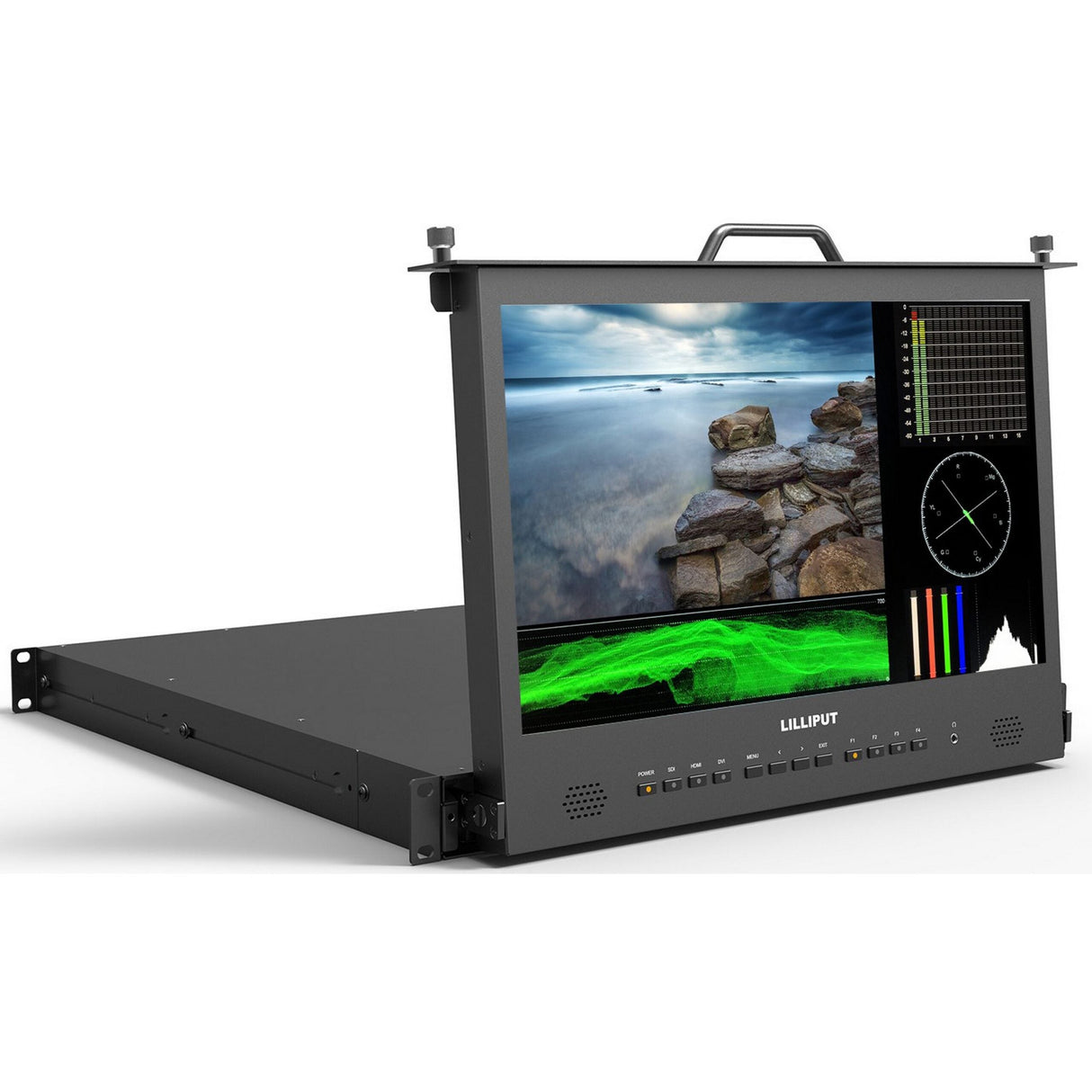

Lilliput RM1730S 17.3-Inch Full HD Pull-Out Rack Monitor

The Lilliput RM-1730S is a 17.3-inch, Full HD pull out rack mounted monitor with Waveform and Vectorscope. This 16:9 IPS panel features 1920x1080 full HD resolution, 700:1 high contrast, 300 cd/m2 high brightness and 178 degree viewing angles all in a unique 1RU pull out design. Super slim and light weight with metal housing for extra strength the RM-1730S is perfect for tight studios, Broadcast Vans, fly racks, anywhere space is at a premium. Intelligently designed RM-1730S has full HDMI/SDI cross conversion, Column YRGB Peak, Time Code, Waveform, Vectorscope, audio level metering and more. The Lilliput RM-1730S has all the tools needed for great results!

Key Features

• 1920x1080, Full HD resolution,
• 300cd/m2 high brightness,
• 700:1 high contrast,
• 1RU pull-out drawer type,
• 3G-SDI, HDMI, DVI, Audio & Tally inputs,
• SDI and HDMI cross conversion,
• Waveform PIP mode, vector,
• Column (YRGB peak), time code

Technical Specifications

Display
Display Screen
17.3” IPS
Physical Resolution
1920 x 1080
Aspect Ratio
16:9
Brightness
300cd/m2
Contrast
700:1
Viewing Angle
178 Degrees / 178 Degrees (H/V)
Input
3G-SDI
1
HDMI
1
DVI
1
Audio
2 (L/R)
Tally
1
Output
3G-SDI
1
HDMI
1
Audio
2 Speaker, 1 Ear Phone Slot
SDI Format
SMPTE-125M
480i (59.94), 1080i (60/59.94/50), 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
720p (60/59.94/50/30/29/25/24/23.98)
SMPTE-372M
720p (60/59.94/50), 1080i (29.97/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M-AB
Level A & Level B: 1080p (60/59.94/50), 1080i (60/59.94/50), 720p (60/59.94/50/30/29.97/25/24/23.98)
ITU-R BT.656: 576i (50)
HDMI Format
Full HD ~ HD
1080p, 1080i, 720p, 576p, 576i, 480p, 486i
Power
Current
2.8A
Input Voltage
DC 10-18V
Power Consumption
32W
