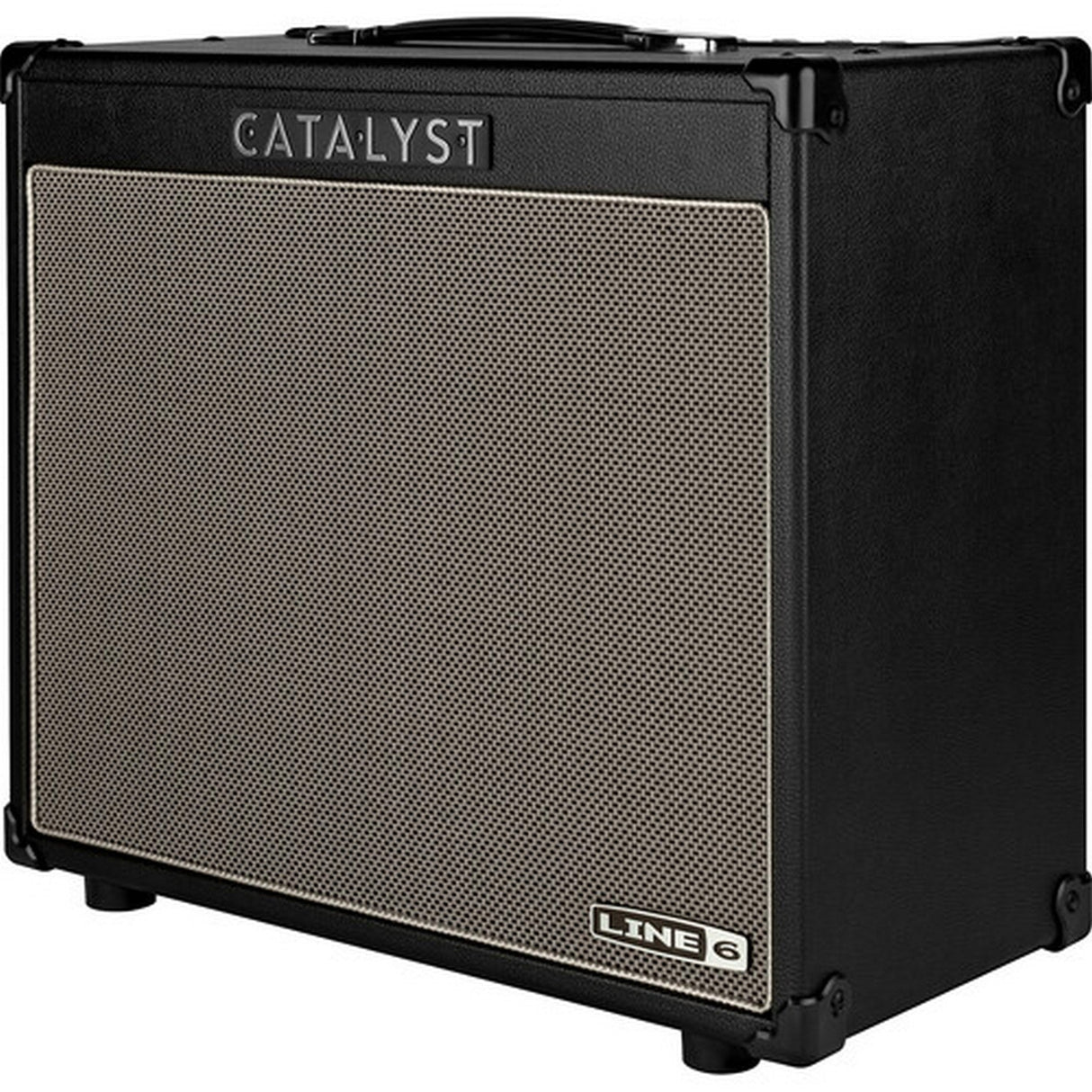

Line 6 Catalyst CX Modeling Guitar Amp - 60W

Line 6 Catalyst CX Modeling Guitar Amp

The Line 6 Catalyst CX Modeling Guitar Amp family combines traditional combo-amplifier controls with 12 amp voicings and 24 effects derived from Helix processors. Available in 60W, 100W, and 200W configurations, the series provides two channels, 36 presets, adjustable power output, USB audio connectivity, and dedicated controls for shaping guitar tones.

Players can choose the Catalyst CX 60 for practice, recording, and smaller stages, step up to the Catalyst CX 100 for rehearsals and larger performance demands, or select the Catalyst CX 200 with dual 12-inch speakers for the highest output and broader stage coverage. Each model provides adjustable gain boost, three-band EQ, presence, channel volume, reverb, tap tempo, and a chromatic tuner.

Catalyst CX amplifiers support up to two simultaneous effects from 24 delay, modulation, pitch, and reverb options. An effects loop can switch to Power Amp In mode for external modelers, while USB-B connects to Catalyst Edit and the four-channel 24-bit audio interface. The 100W and 200W versions also provide a 5-pin MIDI input for integration with compatible controllers and processing equipment.

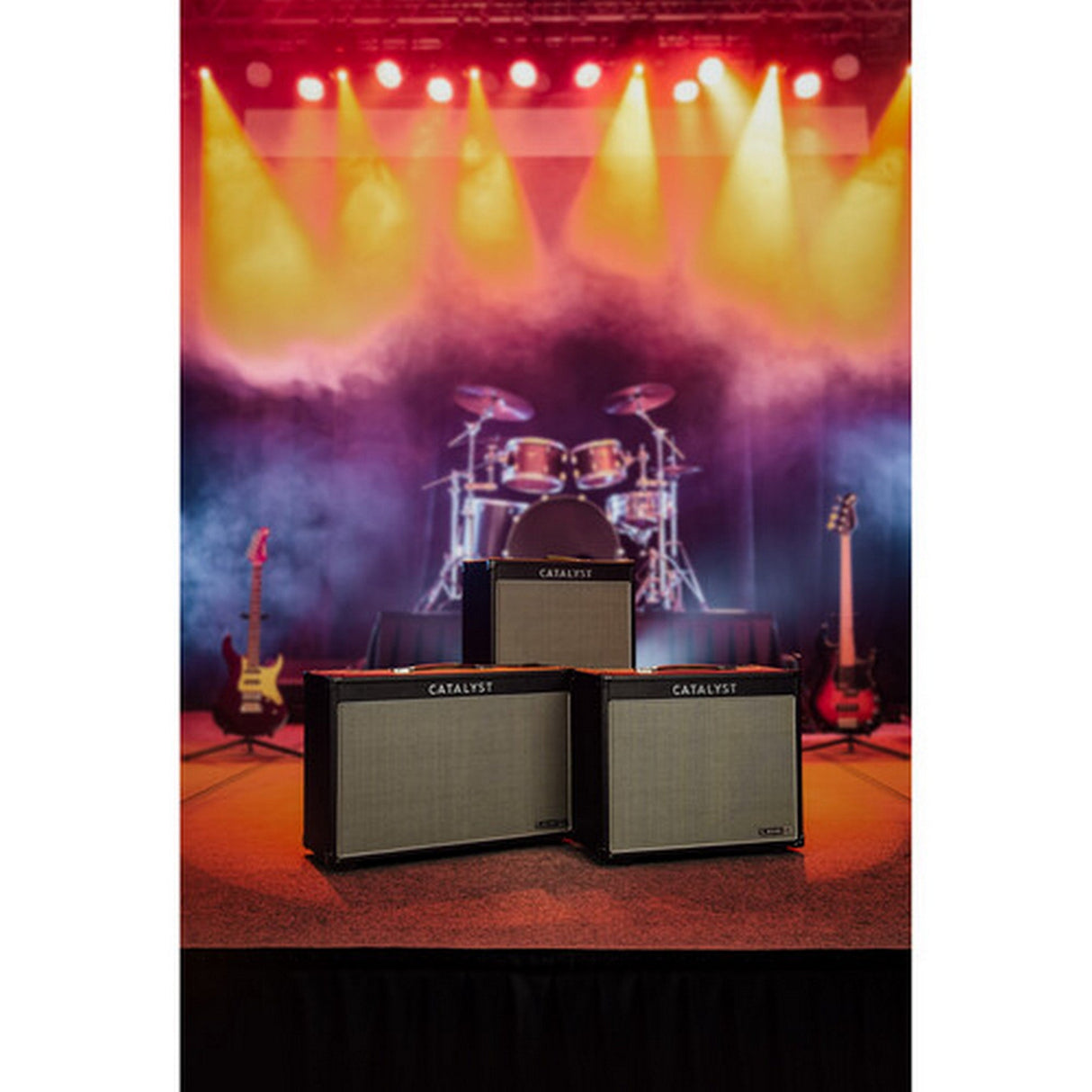

Available Wattage Variants

• Catalyst CX 60: 60W RMS output with one 12-inch speaker and selectable 60W, 30W, 0.5W, and Mute operating levels.
• Catalyst CX 100: 100W RMS output with one 12-inch speaker and selectable 100W, 50W, 0.5W, and Mute operating levels.
• Catalyst CX 200: 200W RMS output with two 12-inch speakers and selectable 200W, 100W, 0.5W, and Mute operating levels.

Key Features

• 12 Amp Voicings: Helix-derived amplifier models cover clean, driven, and high-gain guitar sounds from one combo platform.
• 24 Built-In Effects: Select from reverb, delay, modulation, and pitch effects with support for two simultaneous effects.
• Two-Channel Operation: Two channels plus Manual mode provide quick access to stored and directly controlled amplifier settings.
• 36 Presets: Store and recall amplifier and effect configurations for rehearsals, recording sessions, and live performances.
• Adjustable Output Power: Full-power, half-power, 0.5W, and Mute settings adapt the amplifier to stage, studio, and low-volume applications.
• Power Amp Input: Switch the effects return into Power Amp In mode to use Catalyst CX with external amp modelers and processors.
• USB Audio Interface: USB-B provides four-channel audio operation at 24-bit with 44.1 or 48 kHz sample rates.
• Catalyst Edit Support: Compatible software for macOS, Windows, iOS, and Android provides deeper parameter adjustment and firmware updates.

Technical Specifications

• Series: Catalyst CX
• Amplifier Type: Modeling combo guitar amplifier
• Amplifier Technology: Solid-state
• Channels: 2
• Presets: 36
• Amp Voicings: 12
• Built-In Effects: 24
• Effect Types: Delay, modulation, pitch/octave, reverb
• Simultaneous Effects: Up to 2

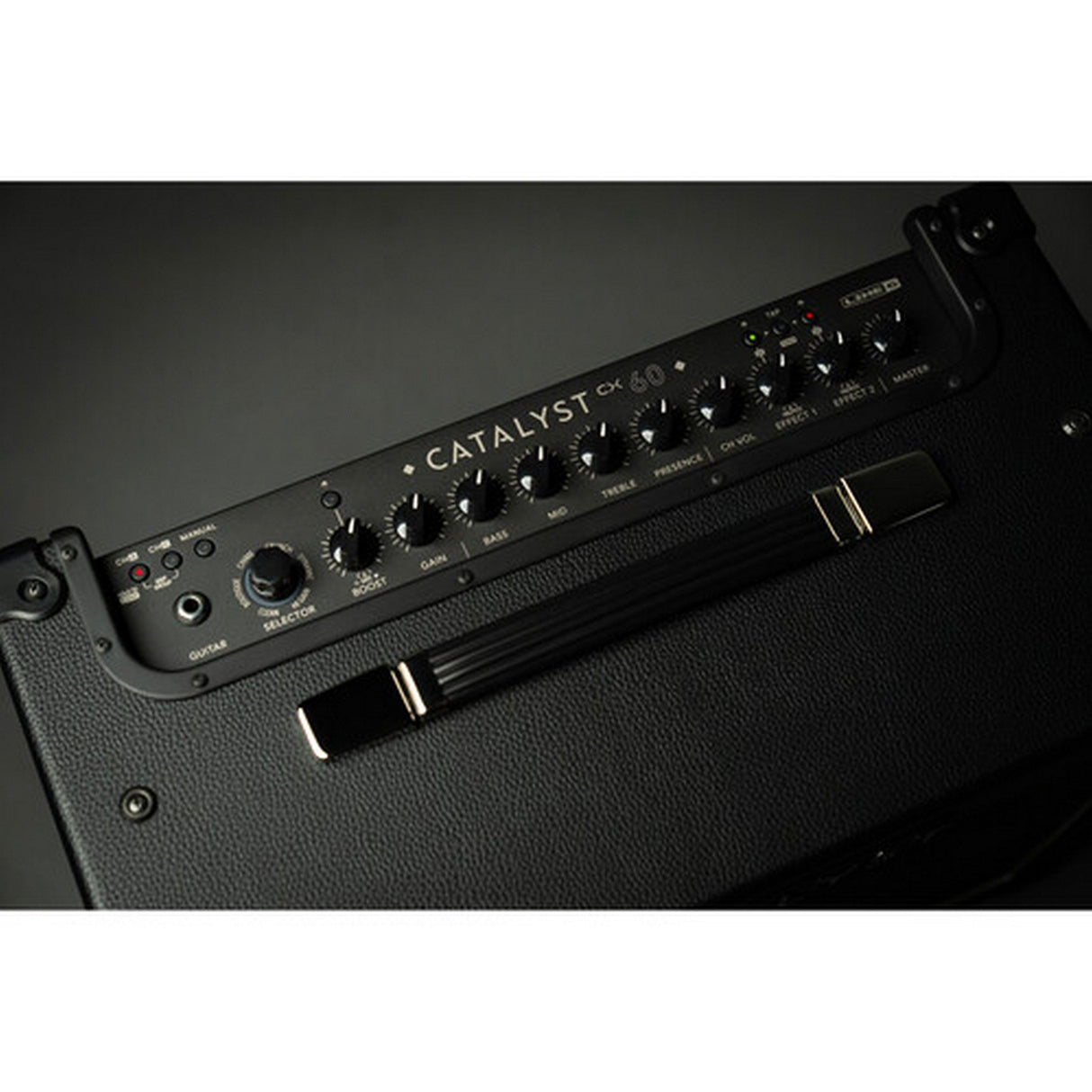

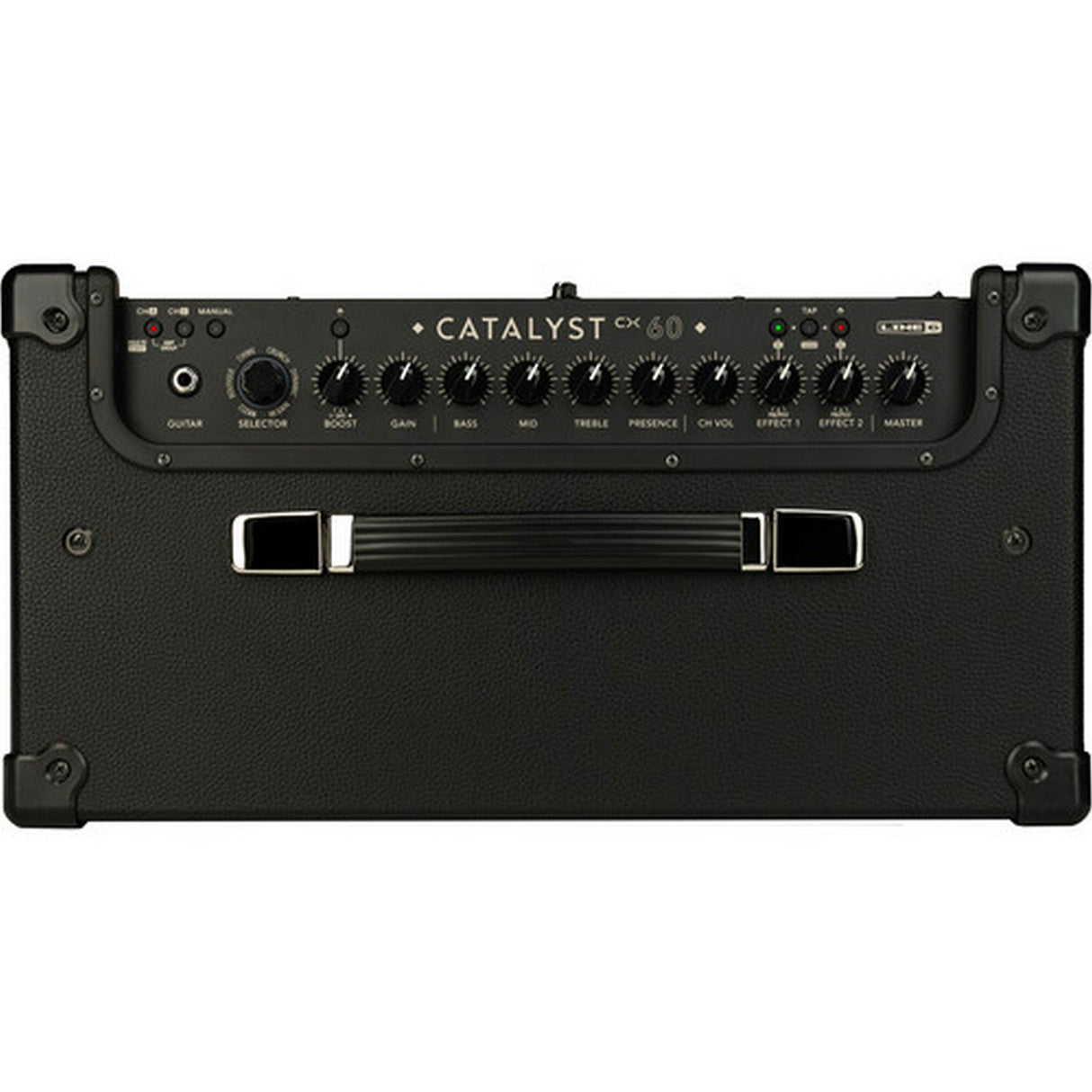

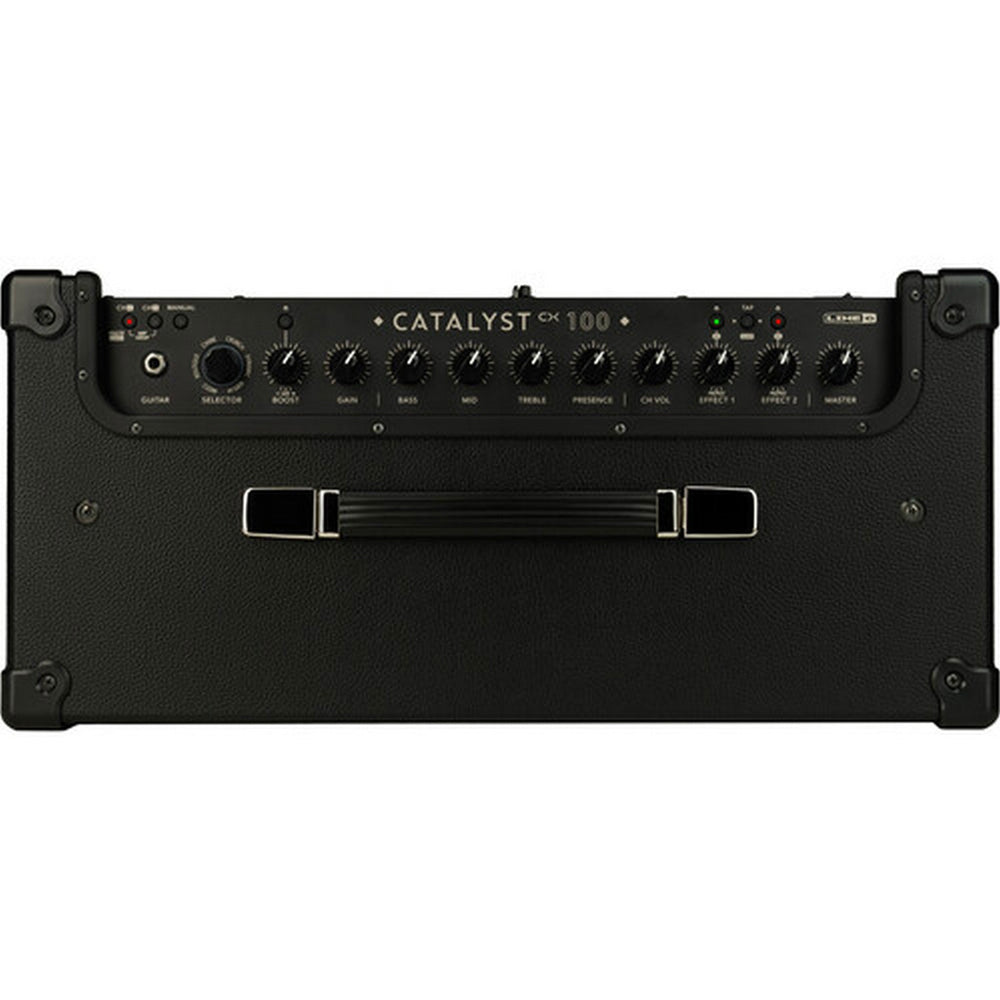

• Tone Controls: Gain, Bass, Mid, Treble, Presence, Channel Volume, Master Volume
• Boost: Adjustable dedicated boost circuit
• Additional Functions: Tap tempo and chromatic tuner
• Instrument Input: 1 x 1/4-inch TS
• Auxiliary Input: 1 x 3.5mm TRS
• Footswitch Input: 1 x 1/4-inch
• Line Output: 1 x 3-pin XLR
• Headphone Output: 1 x 1/4-inch TRS
• Effects Loop Send: 1 x 1/4-inch TS
• Effects Loop Return: 1 x 1/4-inch TS
• USB: 1 x USB-B
• USB Audio Interface: 4 channels, 24-bit, 44.1 or 48 kHz
• Mobile App Compatibility: Android and iOS
• Software: Catalyst Edit
• Wireless: No
• Cabinet Type: Straight, open-back, mono
• Input Power: 100-240 VAC, 50/60 Hz
• Covering: Tolex/Vinyl

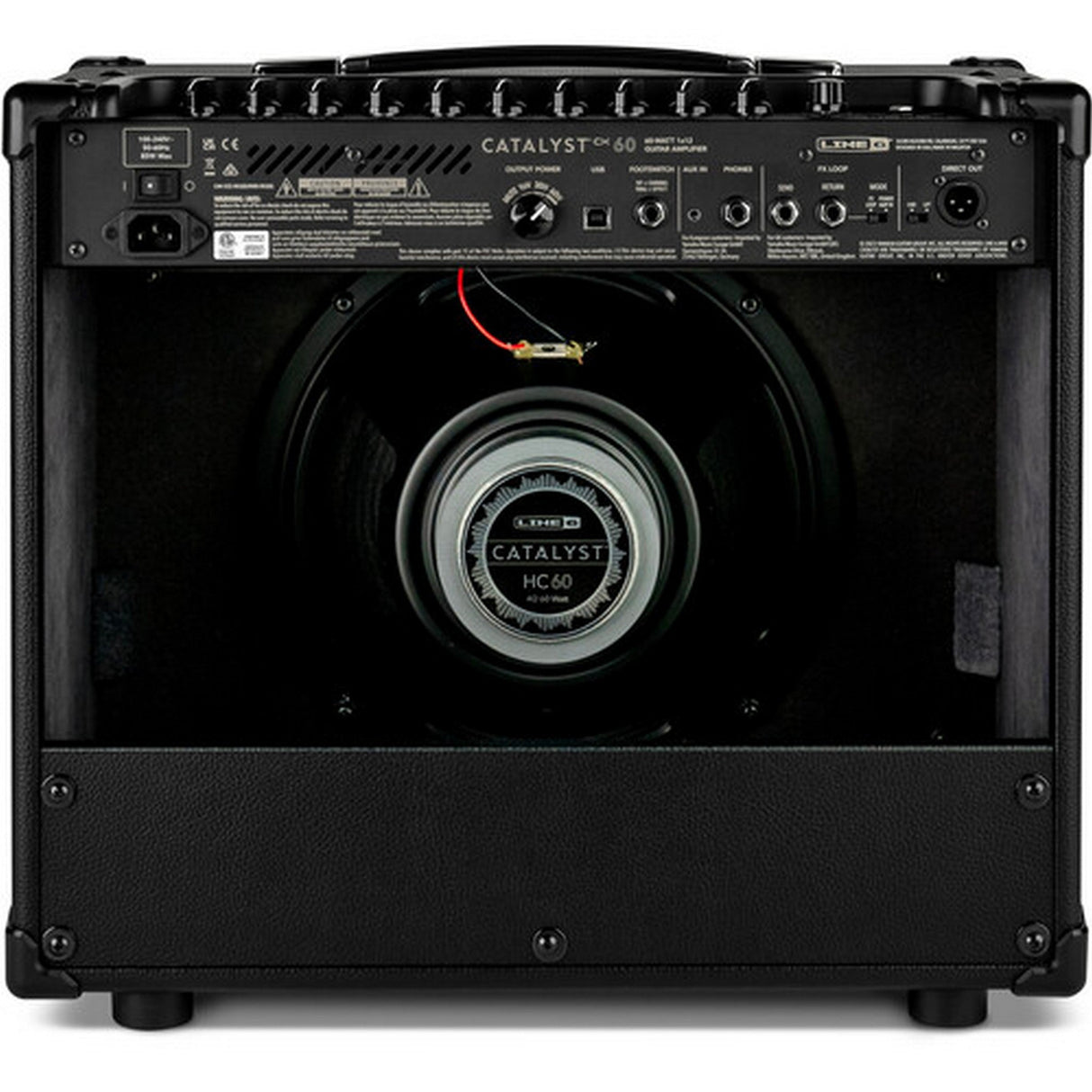

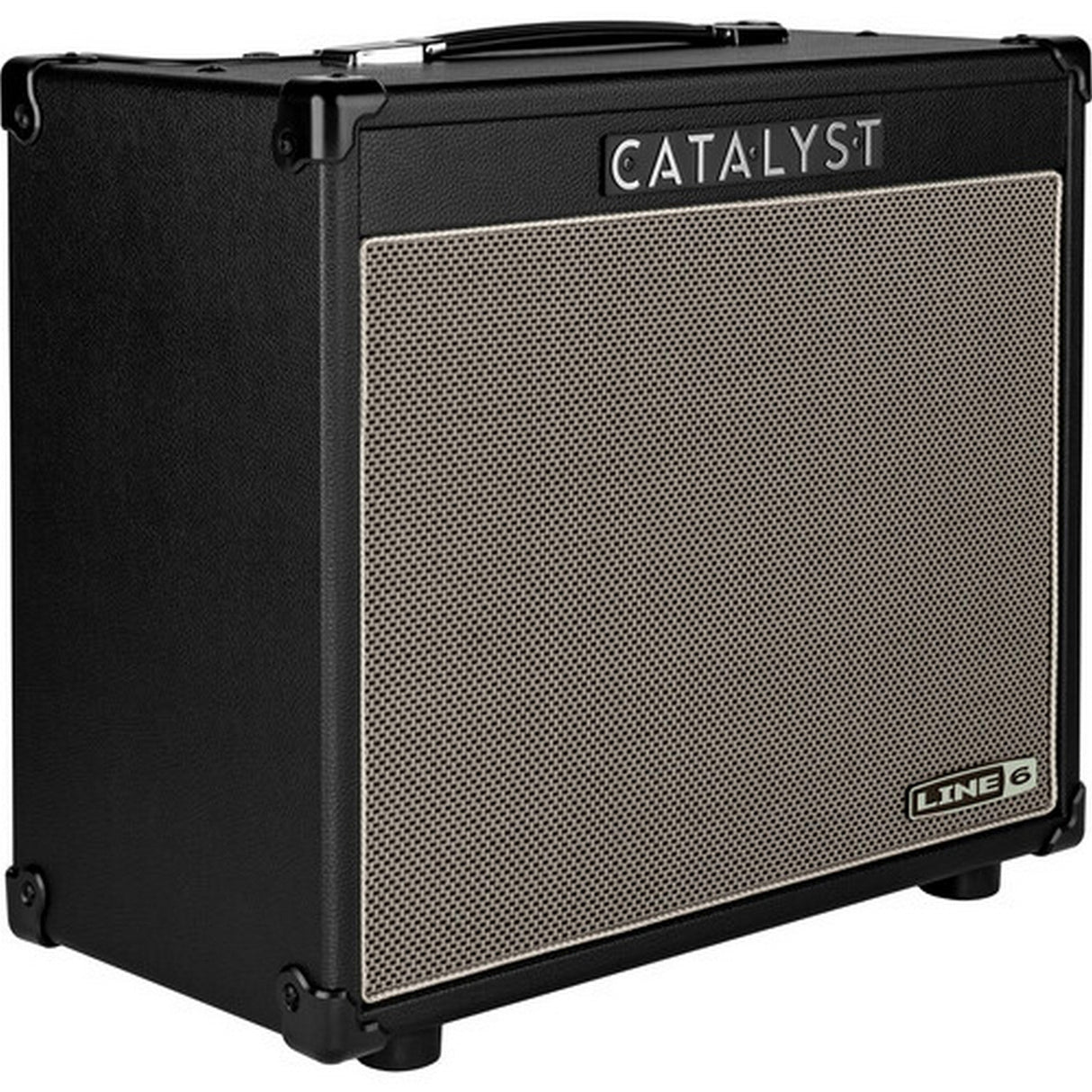

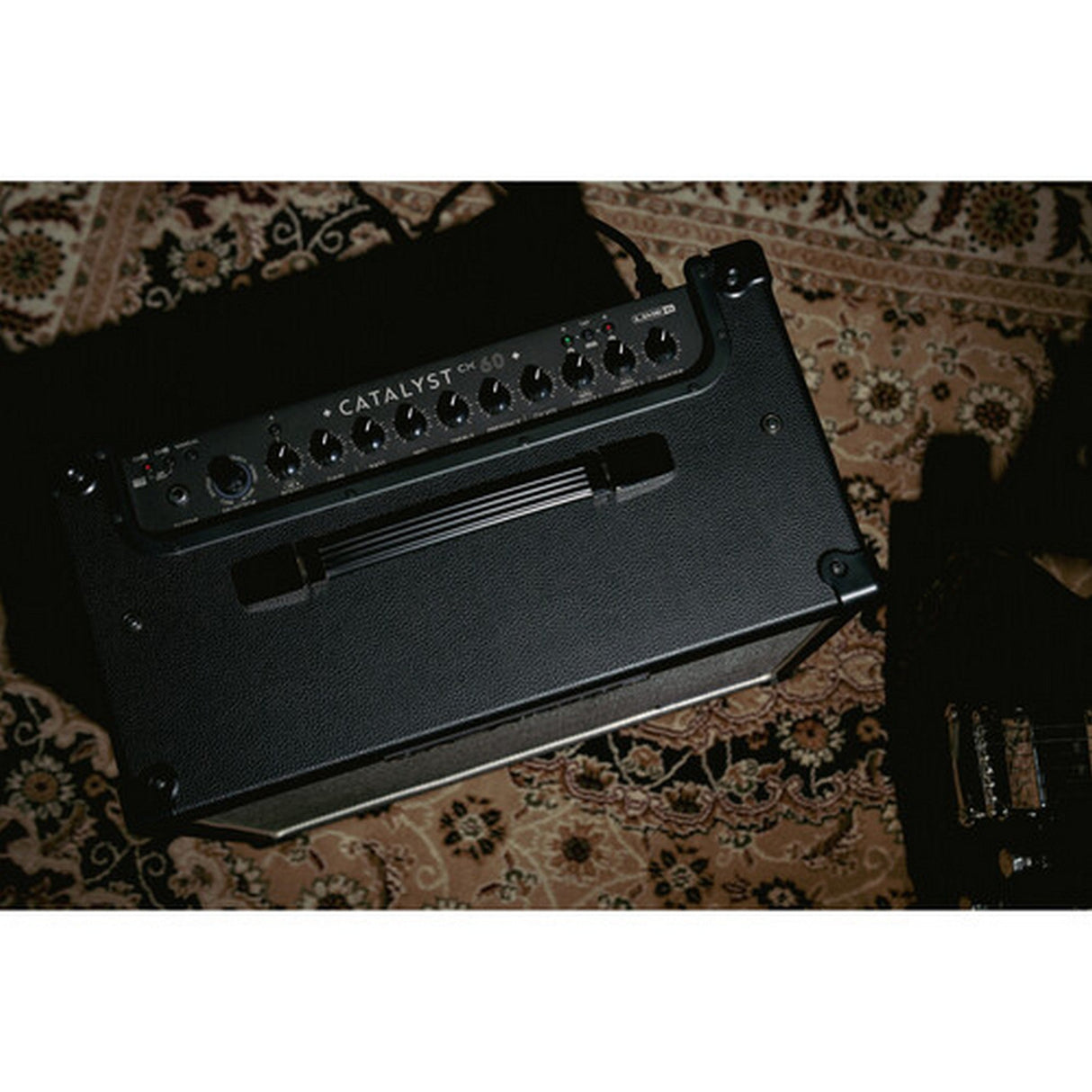

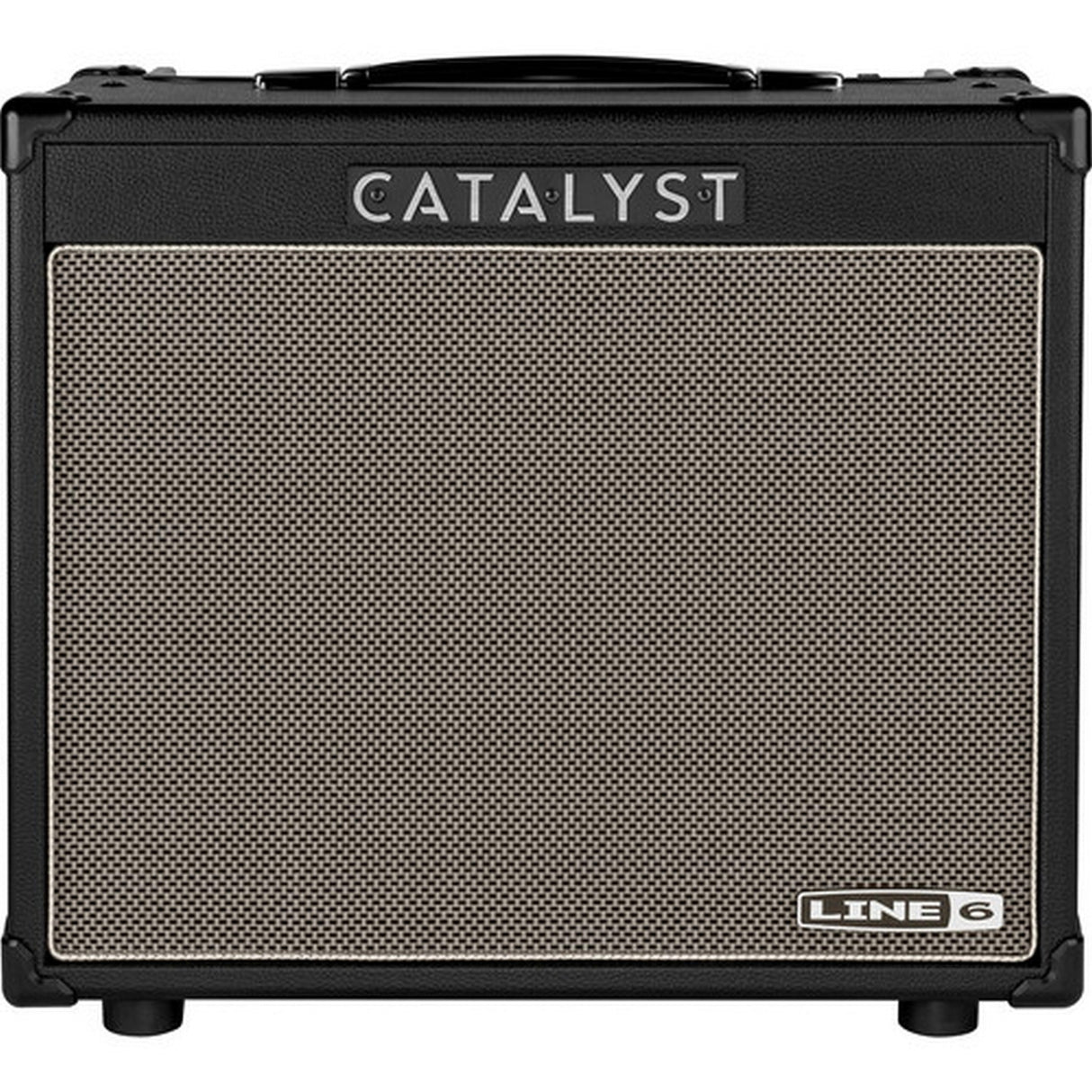

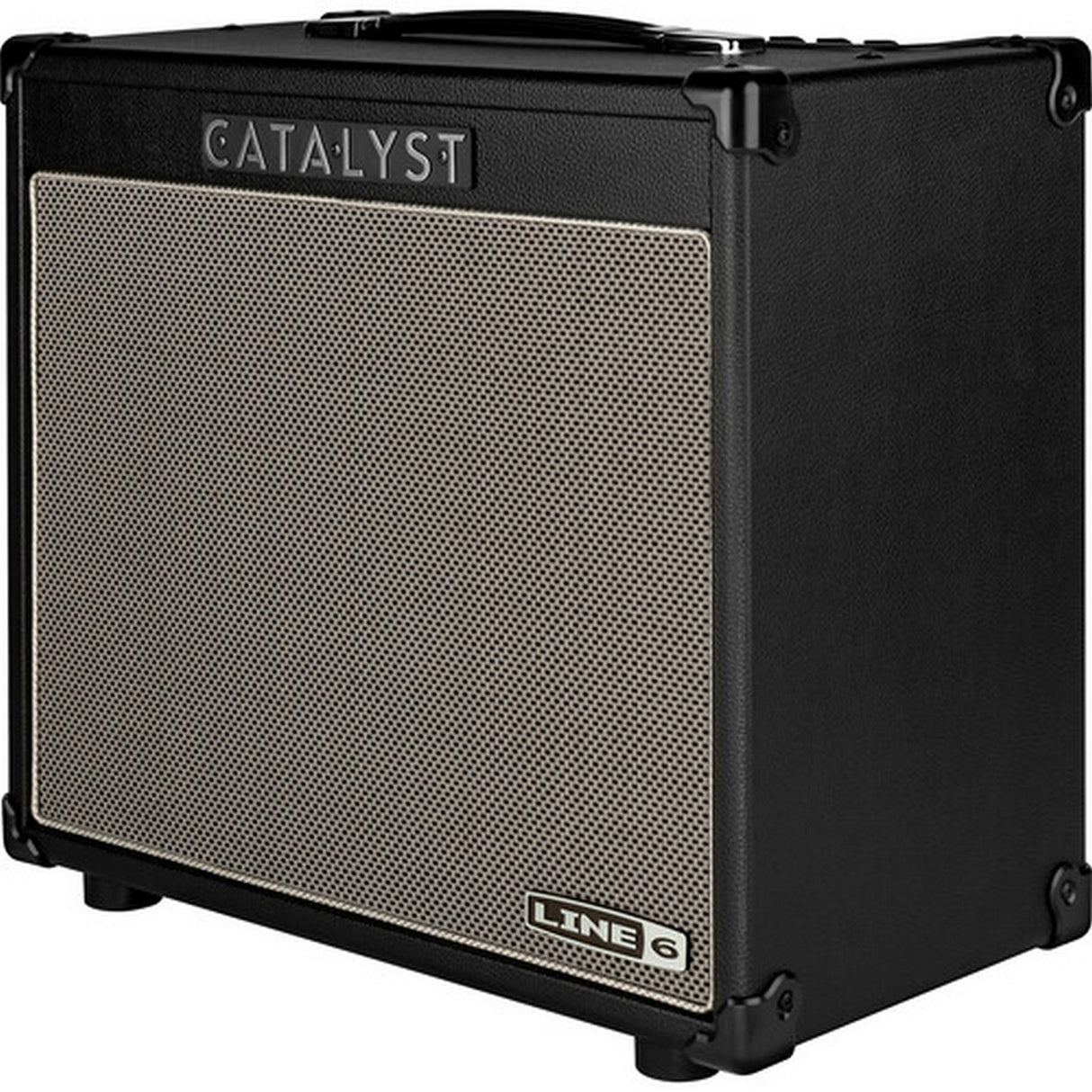

Catalyst CX 60 Specifications

• Power Output: 60W RMS
• Selectable Output: 60W, 30W, 0.5W, Mute
• Speaker Configuration: 1 x 12-inch cone speaker
• MIDI: MIDI signaling over USB
• Maximum Power Consumption: 85W
• Dimensions (W x H x D): 19.8 x 17.5 x 10.3 inches
• Weight: 25.9 lb
• Package Dimensions (L x W x H): 23.4 x 21.4 x 14.4 inches
• Package Weight: 35.7 lb

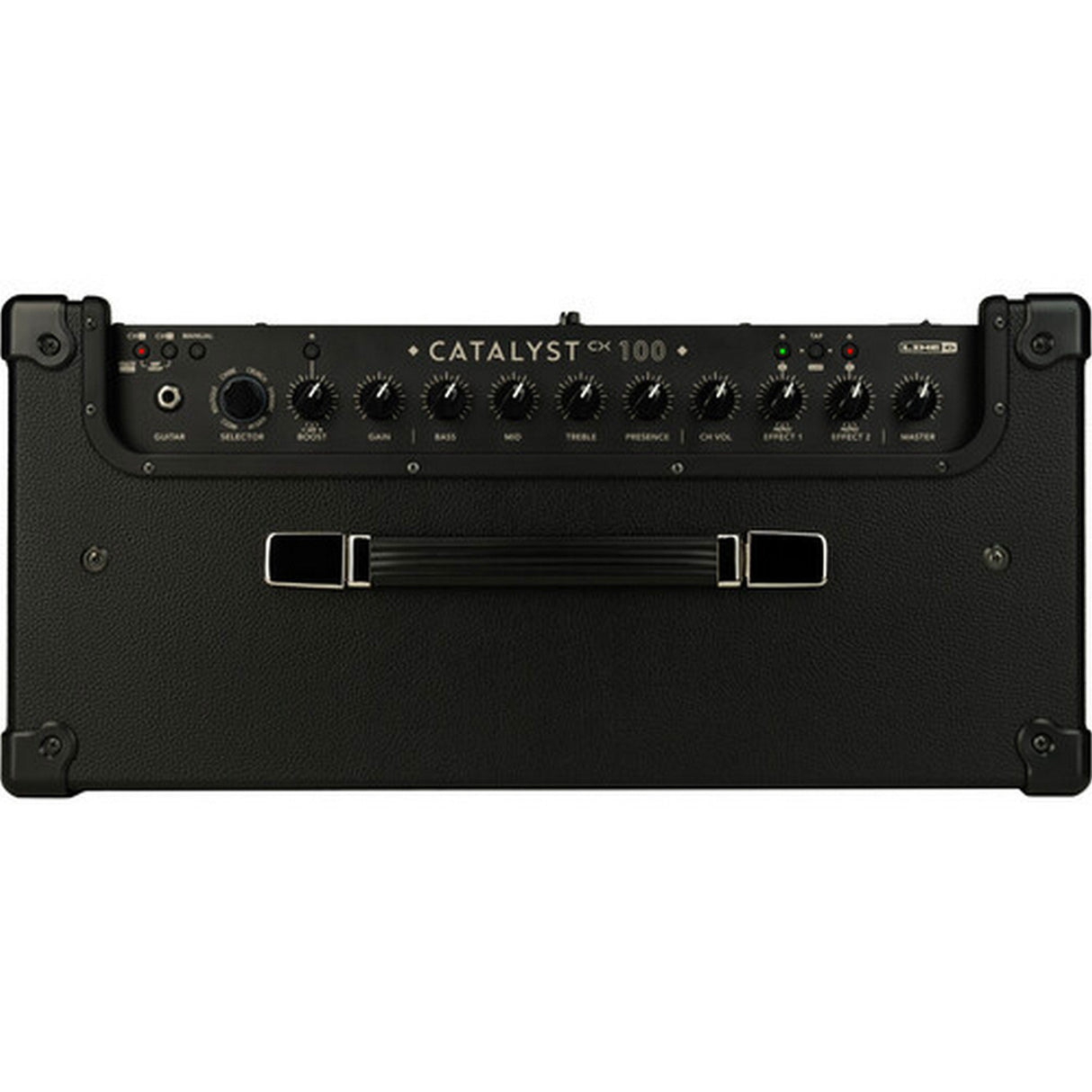

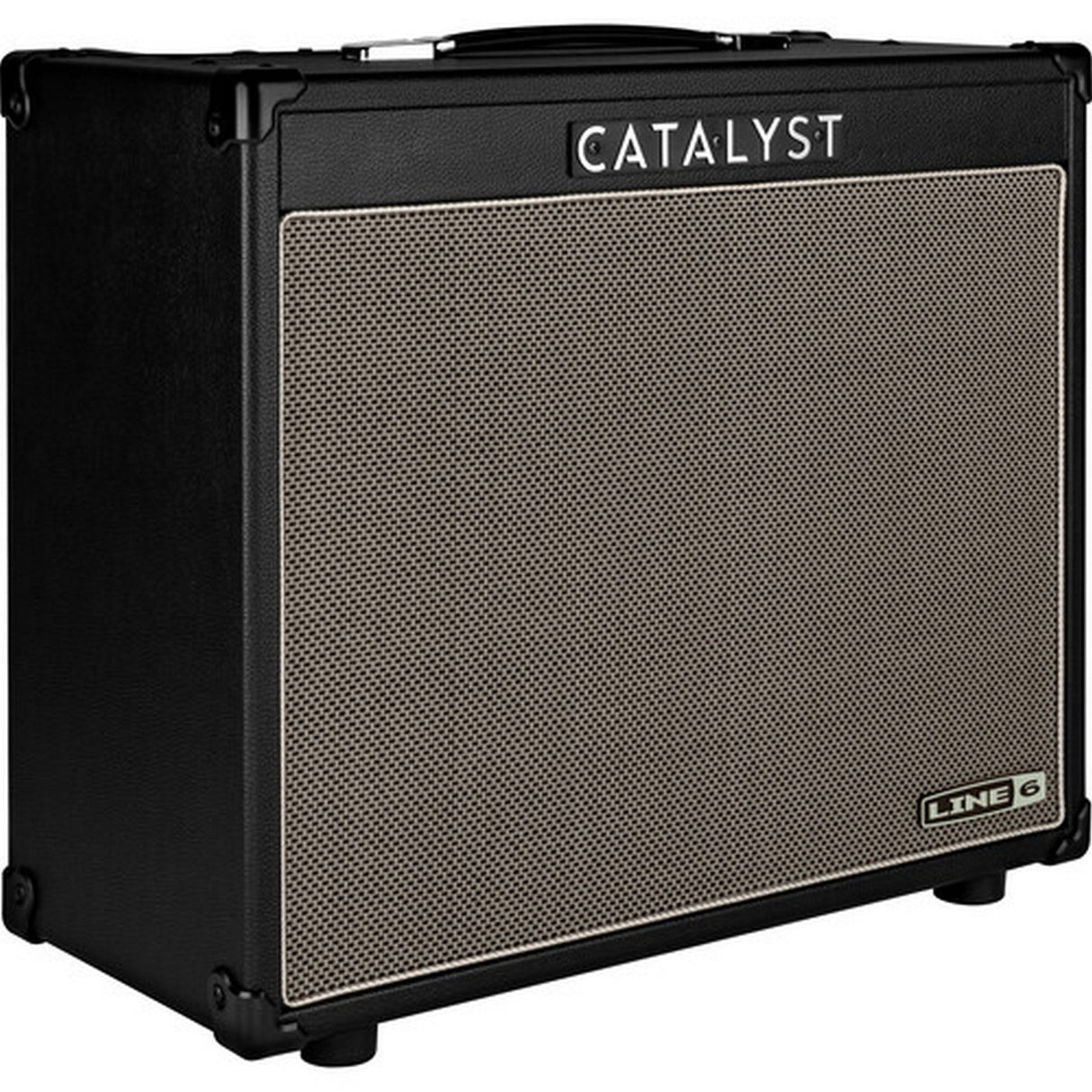

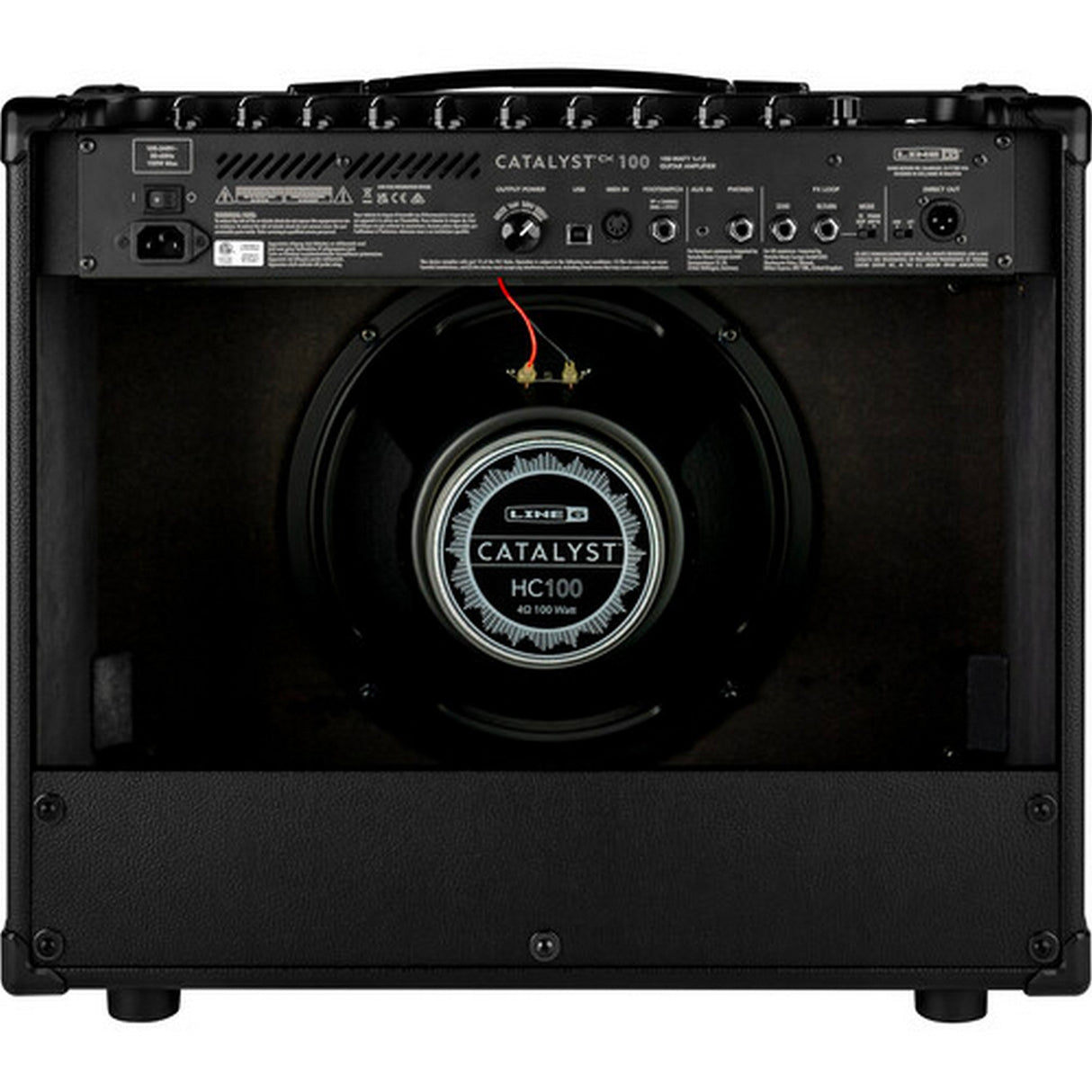

Catalyst CX 100 Specifications

• Power Output: 100W RMS
• Selectable Output: 100W, 50W, 0.5W, Mute
• Speaker Configuration: 1 x 12-inch cone speaker
• MIDI Input: 1 x 5-pin DIN
• Maximum Power Consumption: 150W
• Dimensions (W x H x D): 22.2 x 19.2 x 10.3 inches
• Weight: 31.9 lb
• Package Dimensions (L x W x H): 26 x 23 x 13.5 inches
• Package Weight: 42 lb

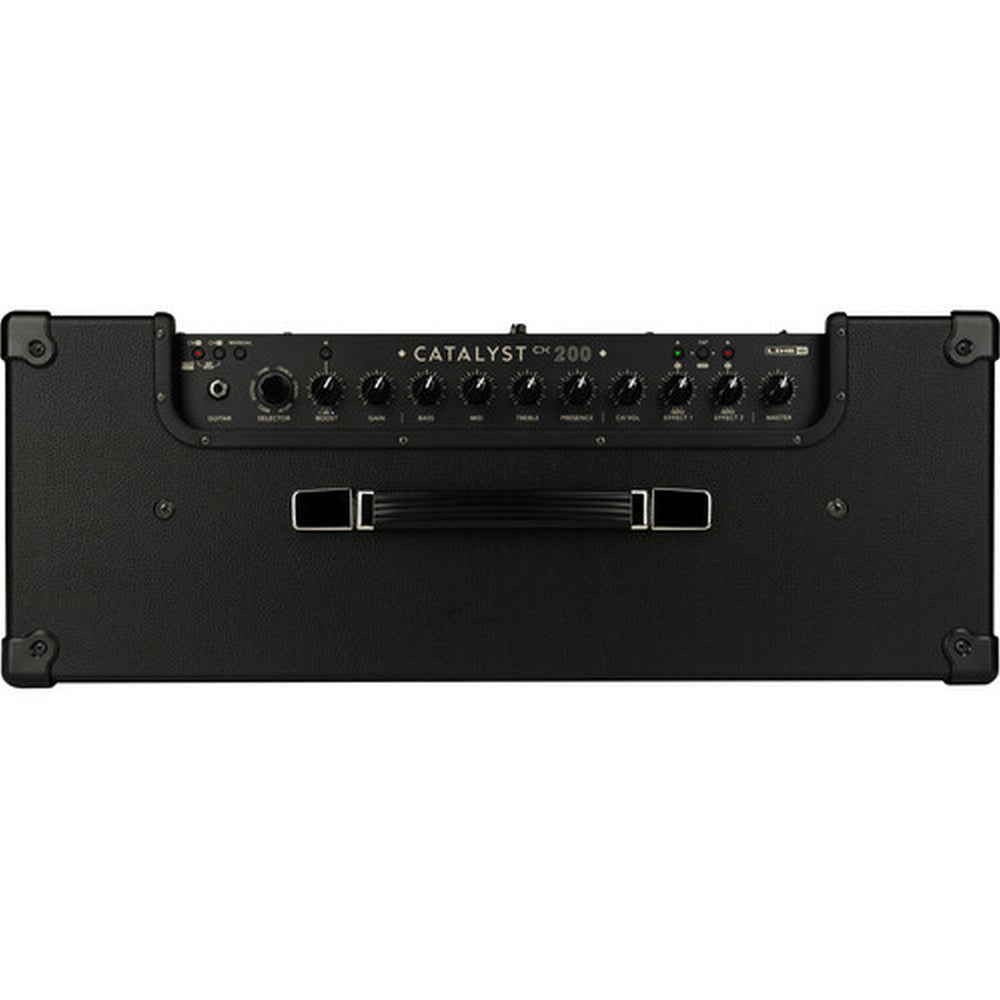

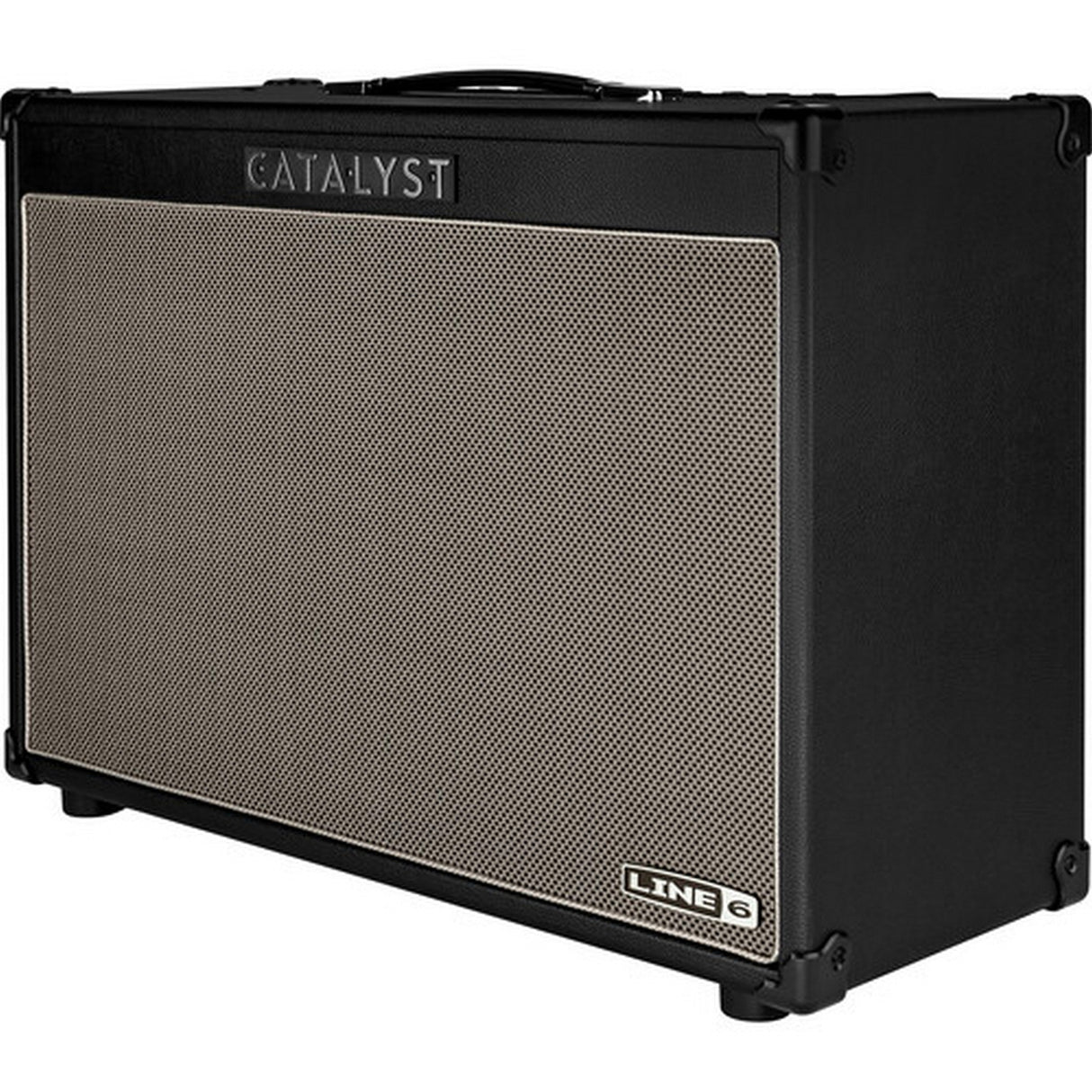

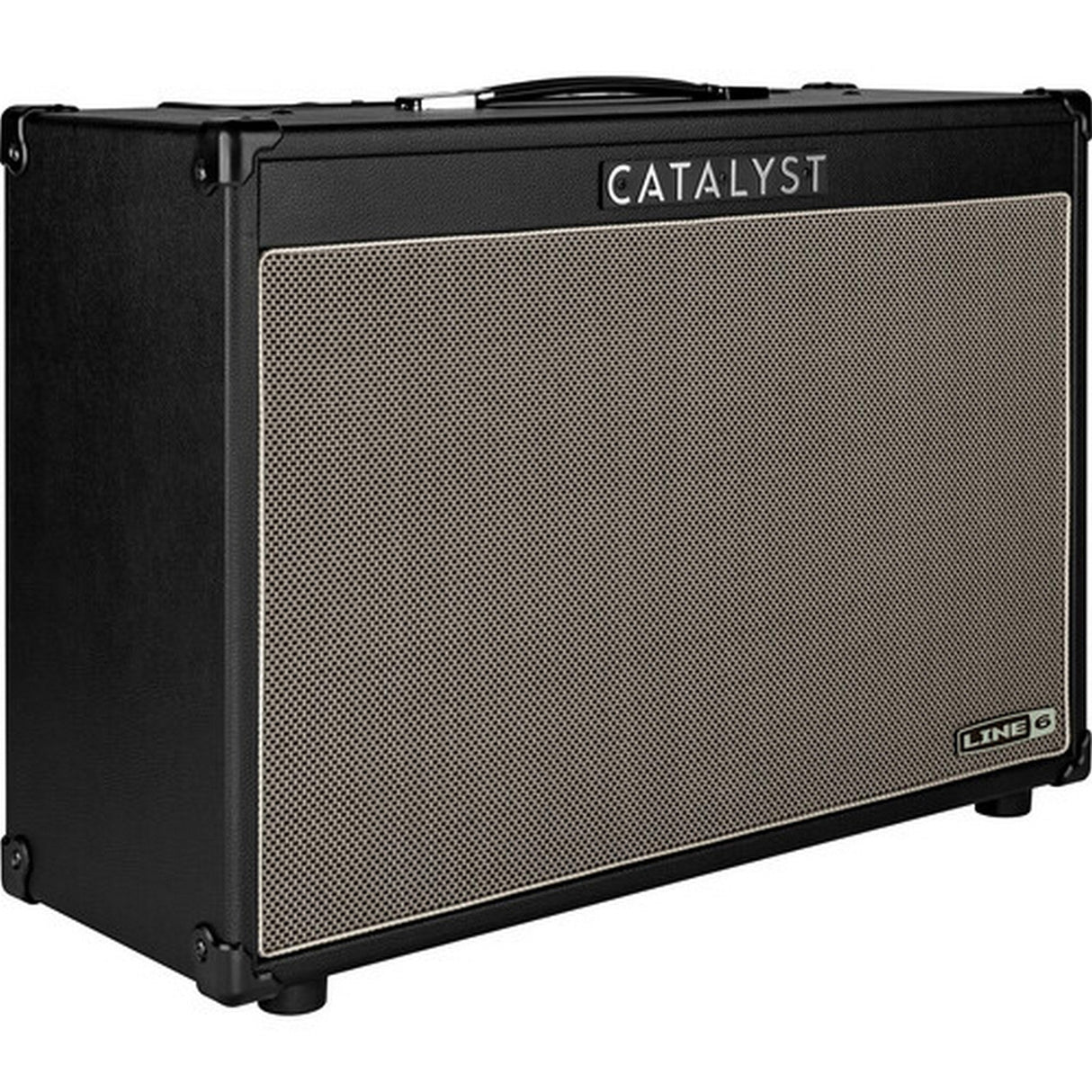

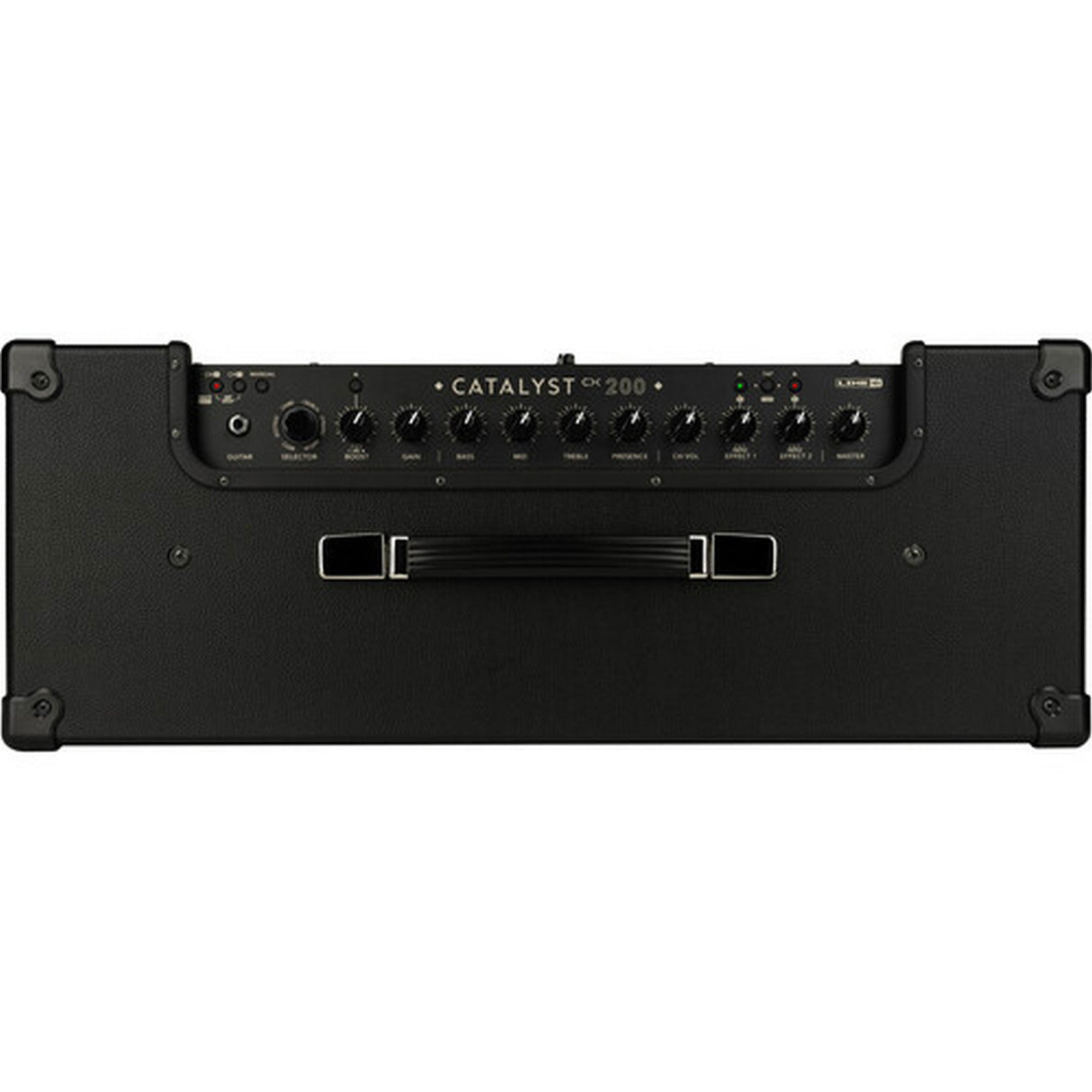

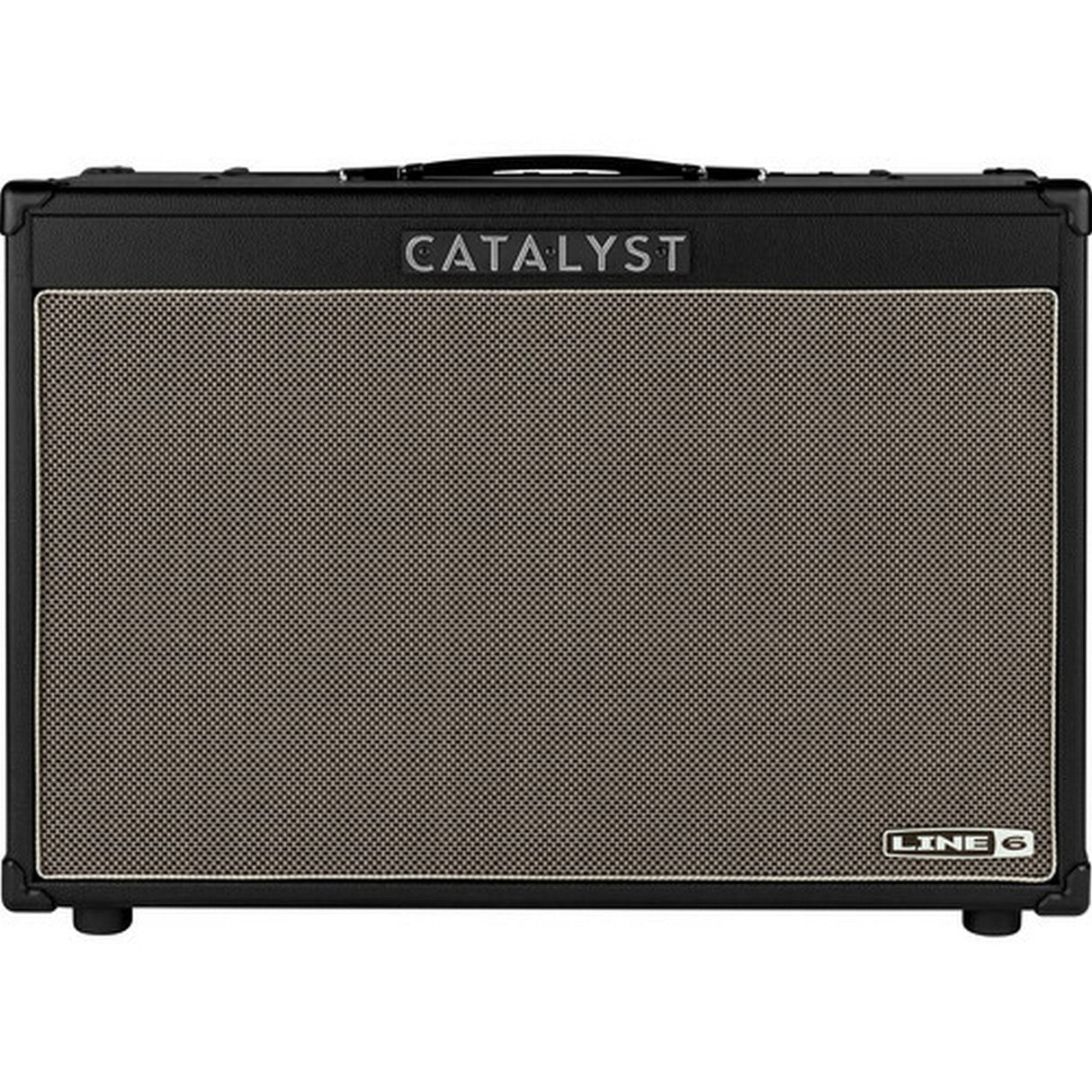

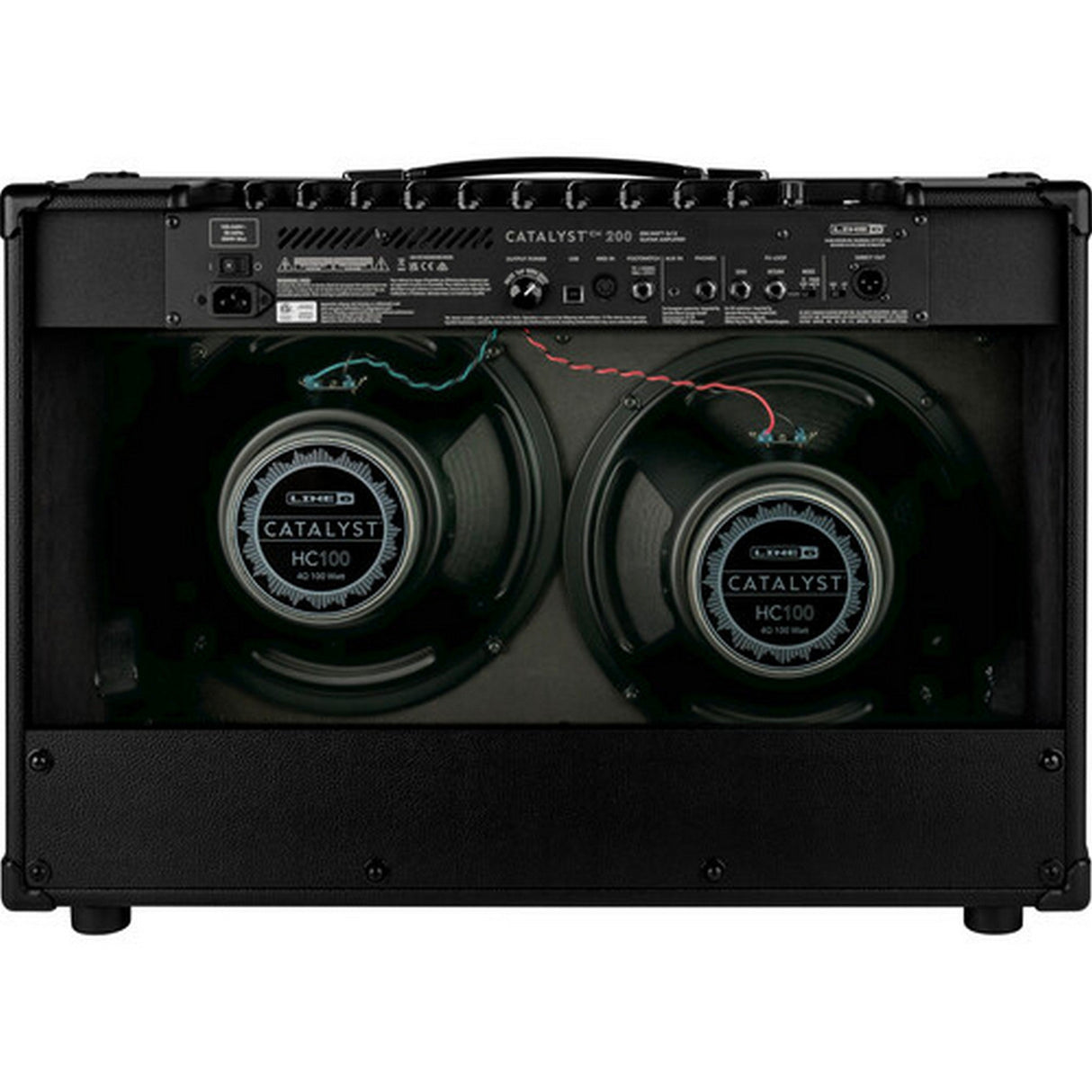

Catalyst CX 200 Specifications

• Power Output: 200W RMS
• Selectable Output: 200W, 100W, 0.5W, Mute
• Speaker Configuration: 2 x 12-inch cone speakers
• MIDI Input: 1 x 5-pin DIN
• Maximum Power Consumption: 300W
• Dimensions (W x H x D): 27.3 x 19.2 x 10.3 inches
• Weight: 41.6 lb
• Package Dimensions (L x W x H): 31 x 23 x 14 inches
• Package Weight: 53 lb

What's In the Box

• Selected Line 6 Catalyst CX Combo Amplifier
