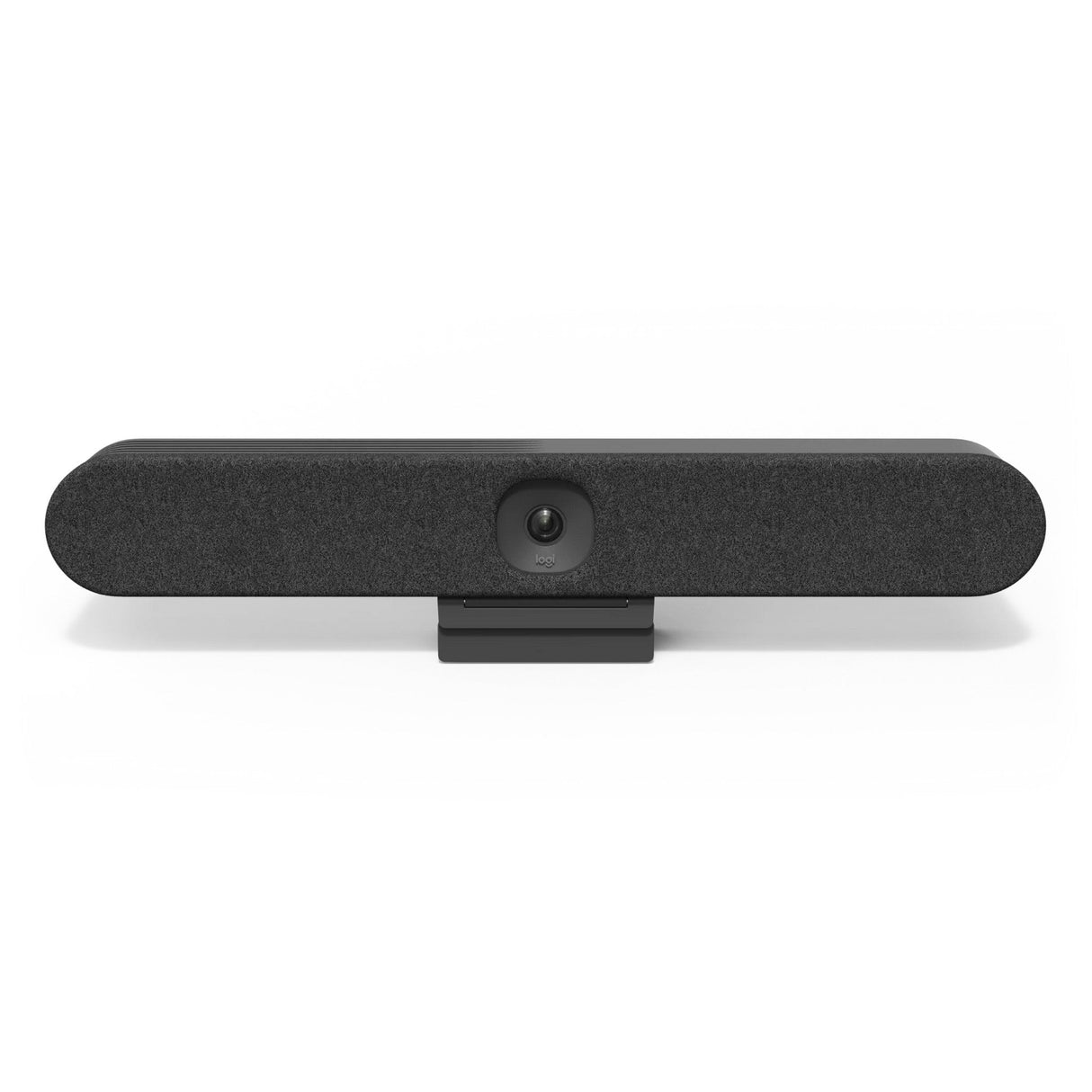

Logitech Rally Bar Huddle All-In-One Video Bar for Huddle and Small Room

Featuring a sleek design and robust technology - Rally Bar Huddle is a straightforward and powerful solution for small spaces.

ENABLE EQUITABLE MEETINGS
Ensure everyone can be seen and heard clearly during hybrid meetings. AI video intelligence, advanced sound pickup, noise suppression, and ongoing software improvements provide a clear and natural meeting experience for remote workers.

3 WAYS TO DEPLOY
Use Rally Bar Huddle as a meeting room appliance, in USB mode connected to a meeting room PC, or connect via laptop.

SET UP IN MINUTES
Designed to deliver video meetings with ease, Rally Bar Huddle is quick to set up, simple to manage, and easy to integrate with Tap IP through CollabOS. Plus, use the included Multi Mount to mount Rally Bar Huddle one of three ways; on a wall, table, or above a display.

CLEAN CABLING
Created for huddle and small collaboration spaces, Rally Bar Huddle operates as a standalone conference camera or as part of a greater room solution1Appliance mode deployment shown, cabling can vary by deployment type.

OUR FIRST VIDEO BAR MADE WITH RECYCLED PLASTIC
Logitech is committed to creating a more sustainable world. The plastic parts in Rally Bar Huddle are made with 42% post-consumer recycled plastic; The plastic parts in Rally Bar Huddle include up to 42% certified post-consumer recycled plastic. We're giving a second life to plastic from consumer electronics to reduce our carbon footprint.*
*excluding accessories and packaging. Measured by weight.; we are actively working to minimize our environmental footprint and accelerate the pace of social change.

MADE WITH RECYCLED PLASTIC
The plastic parts in Rally Bar Huddle include up to 42% certified post-consumer recycled plastic. We’re giving a second life to plastic from consumer electronics to reduce our carbon footprint.

RESPONSIBLE PACKAGING
The paper packaging for Rally Bar Huddle comes from FSC™-certified forests and other controlled sources. By choosing this product, you are supporting responsible management of the world’s forests.

CERTIFIED CARBON NEUTRAL
Rally Bar Huddle is certified carbon neutral. This means the carbon impact of the product and packaging has been reduced to zero due to Logitech’s investment in carbon offsetting and removal projects.

EASY CLEAN COVER
Cleanable cover ideal for healthcare or education.

OFF-WHITE FABRIC COVER
Change the color of your video bar to suit your space.

ACCESSORIES BY HECKLER
Heckler has partnered with Logitech to create custom Rally Bar Huddle accessories.

Technical Specifications

Dimensions
Width: 21.6 in (549.6 mm)
Height: 3.1 in (78.9 mm)
Depth: 3.0 in (76.0 mm)
Weight: 3.9 lbs (1.8 kg)
Compatibility
Internet Connection: Wired or wireless
USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode: Room solution software license (not included)
Certifications and Compatibility
For the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications.
General Specifications
Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform
Enclosure: All-in-one enclosure with field replaceable front cover
Device Management: Logitech Sync
Displays Supported: 1 (2nd display support is coming soon)
Display Resolution: 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
Digital Pan: ±48° at 4x zoom
Digital Tilt: ±32° at 4x zoom
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80°
Resolution: 4K
Speakers
Driver: 2.2 in(55 mm) with bass reflex enclosure and patented suspension design
Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
Rated Power: 8W
THD at 1W, 1kHz: <2%
Speaker Sampling Rate: 48KHz
Impedance: 4 Ohms
Microphones
Frequency Response: 90Hz - 16kHz
Sensitivity: -36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: Up to 23 ft (7m)
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI based de-noising algorithm
Interfaces
HDMI Out: 1
HDMI In: 1
USB: 1x Type A USB 3.1, 1x Type C USB 3.1
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac
Bluetooth: Bluetooth® Low Energy
Power and Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 2.1A
Power Supply Dimensions: 4.48 in (114 mm) x 1.85 in (47 mm) x 1.27 in (32.3 mm)
DC Cable: 5 ft (1.5 m)
AC Cable: 3.3 ft (1 m)
HDMI 1.4 Cable: 6.5 ft (2 m)
USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -25 to 70°C
Humidity: 10 to 90%
Security
File Based Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Accessories
Covers: Rally Bar Huddle Front Cover-Cleanable, Off-White Fabric
Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
Touch Controller: Logitech Tap (coming soon) and Tap IP
Package Contents
Rally Bar Huddle
Multi-Mount
Power supply
AC power cord
HDMI cable
USB cable
Warranty Information
Standard: 2-year limited hardware warranty included.
Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.
