Description

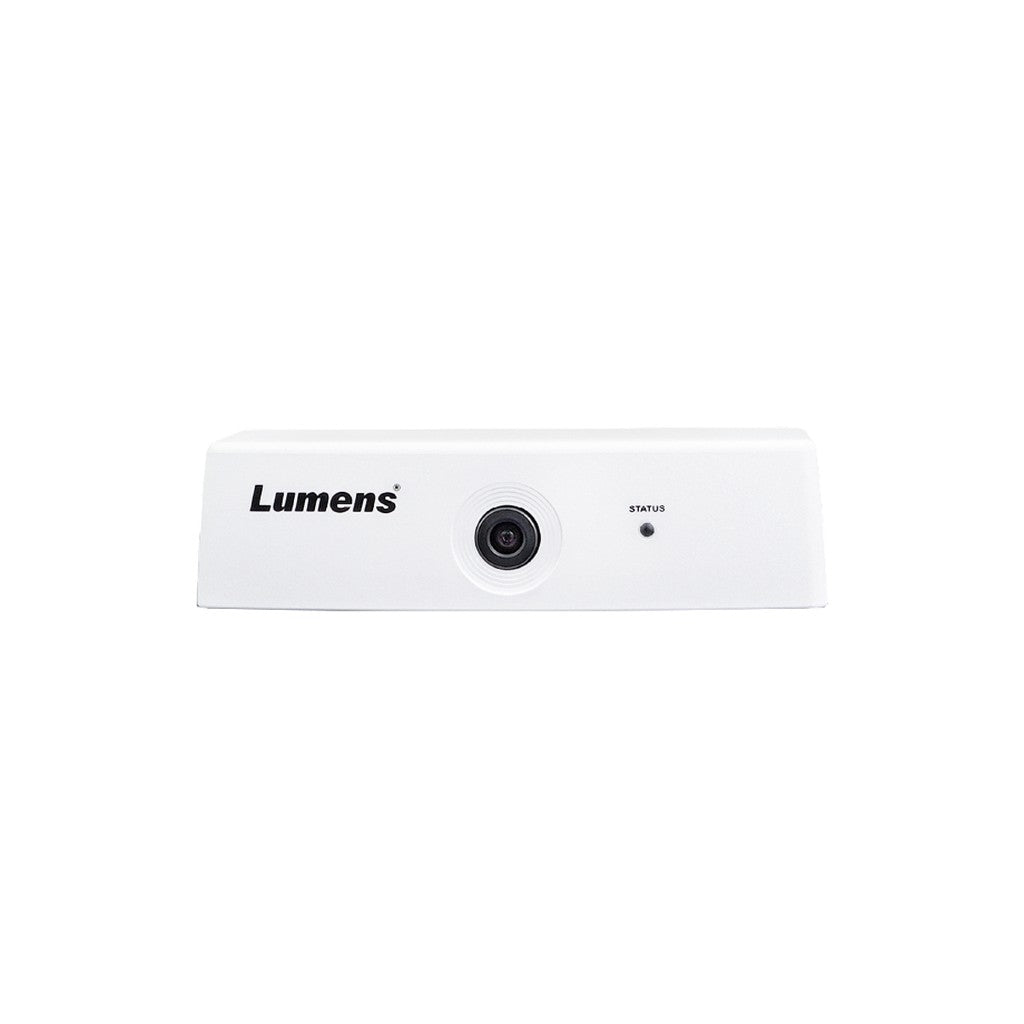

Lumens BC-200 AI Room Analysis Camera for CamConnect Pro
The Lumens BC-200 Room Analysis Camera uses AI-based visual analysis to locate people throughout a meeting space and provide positional data to a CamConnect Pro voice-tracking system. It enables preset-free automated tracking, helping compatible PTZ cameras follow seated, standing, and moving participants without relying on fixed camera positions.
Designed for conference rooms, classrooms, training facilities, and collaborative spaces, the BC-200 supports a human-detection range from 4.9' to 26.2'. Its 54° horizontal viewing angle captures a defined room area, while the fixed-focus lens maintains consistent spatial analysis. Multiple units can support larger or more complex spaces when deployed within their specified detection range.

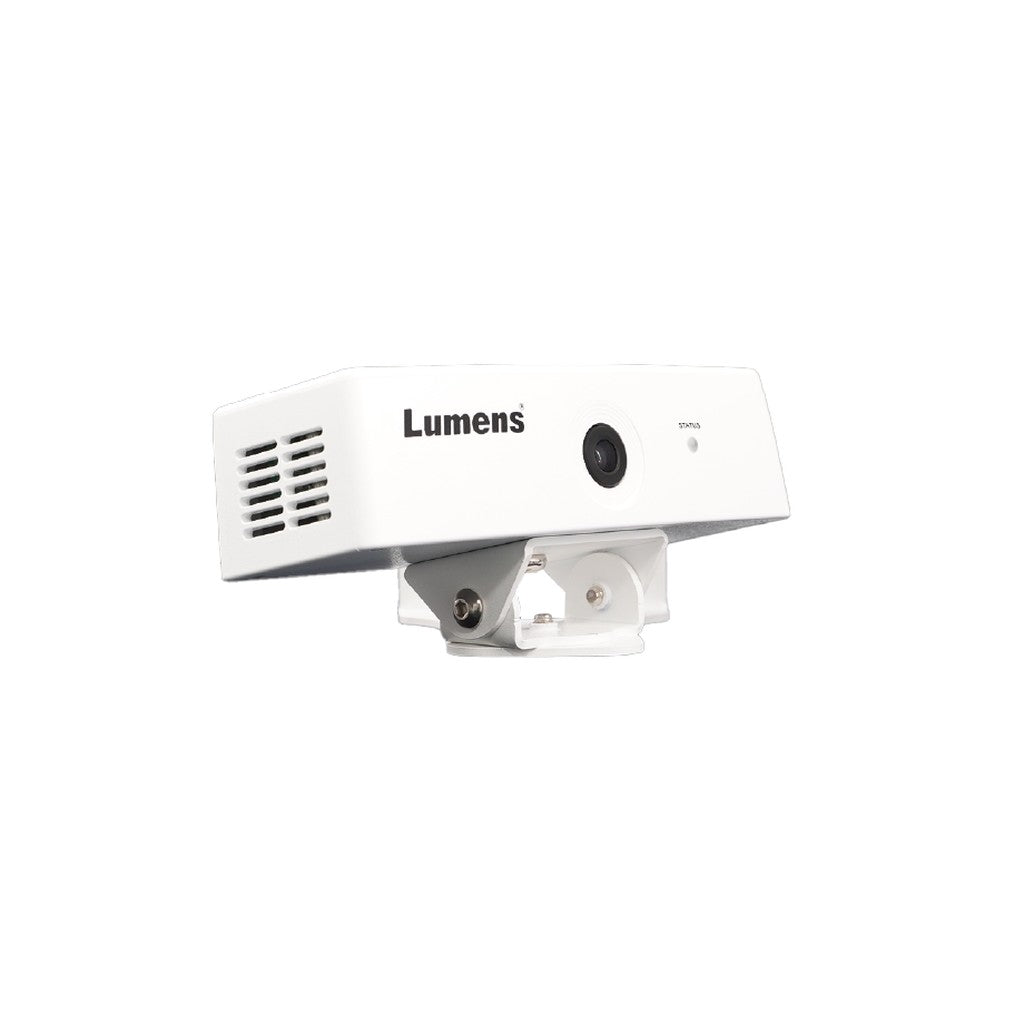

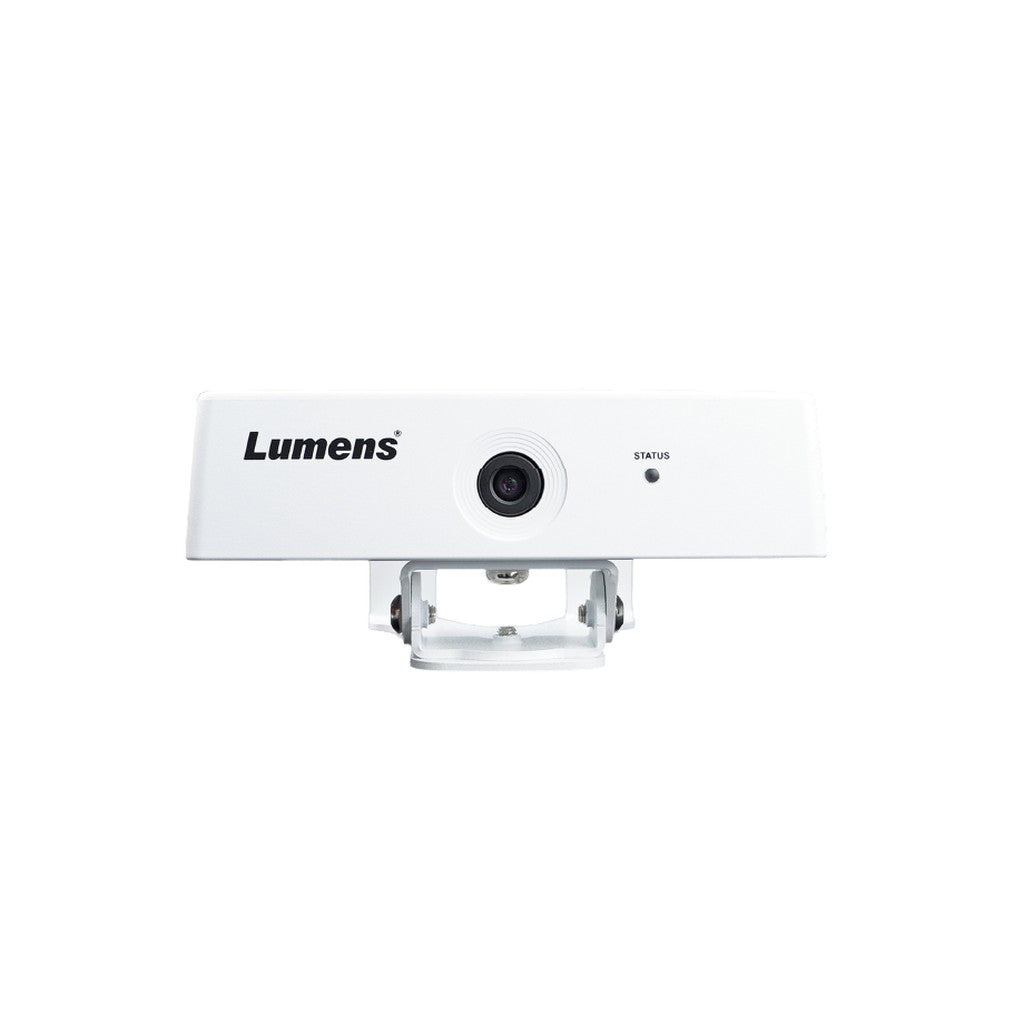

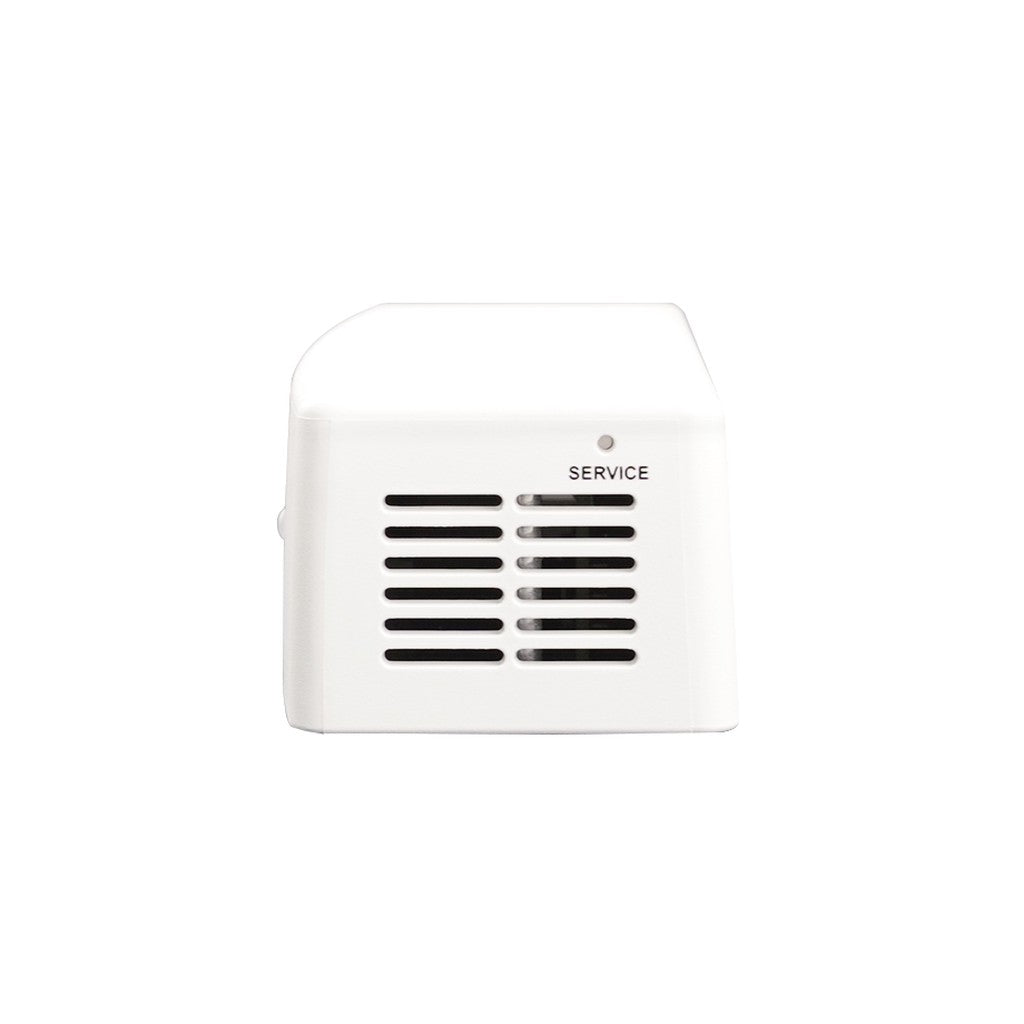

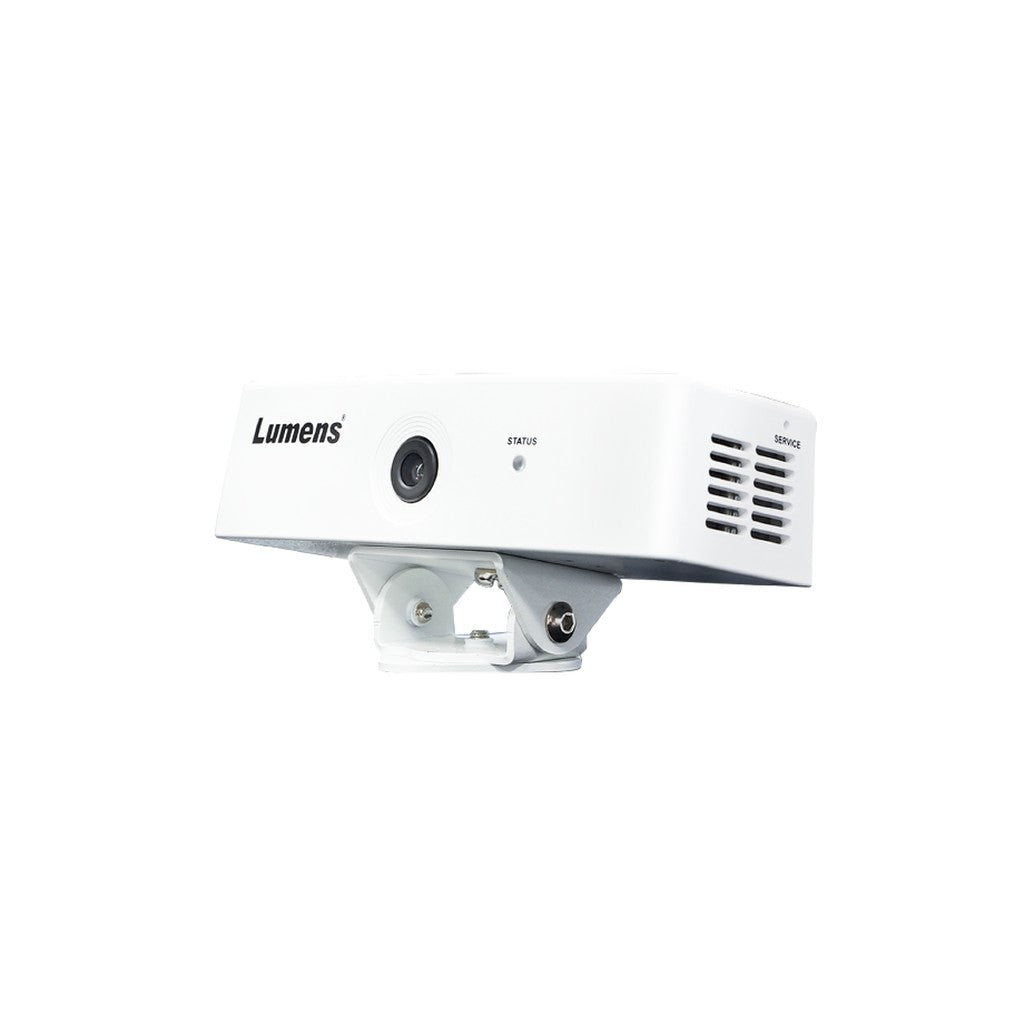

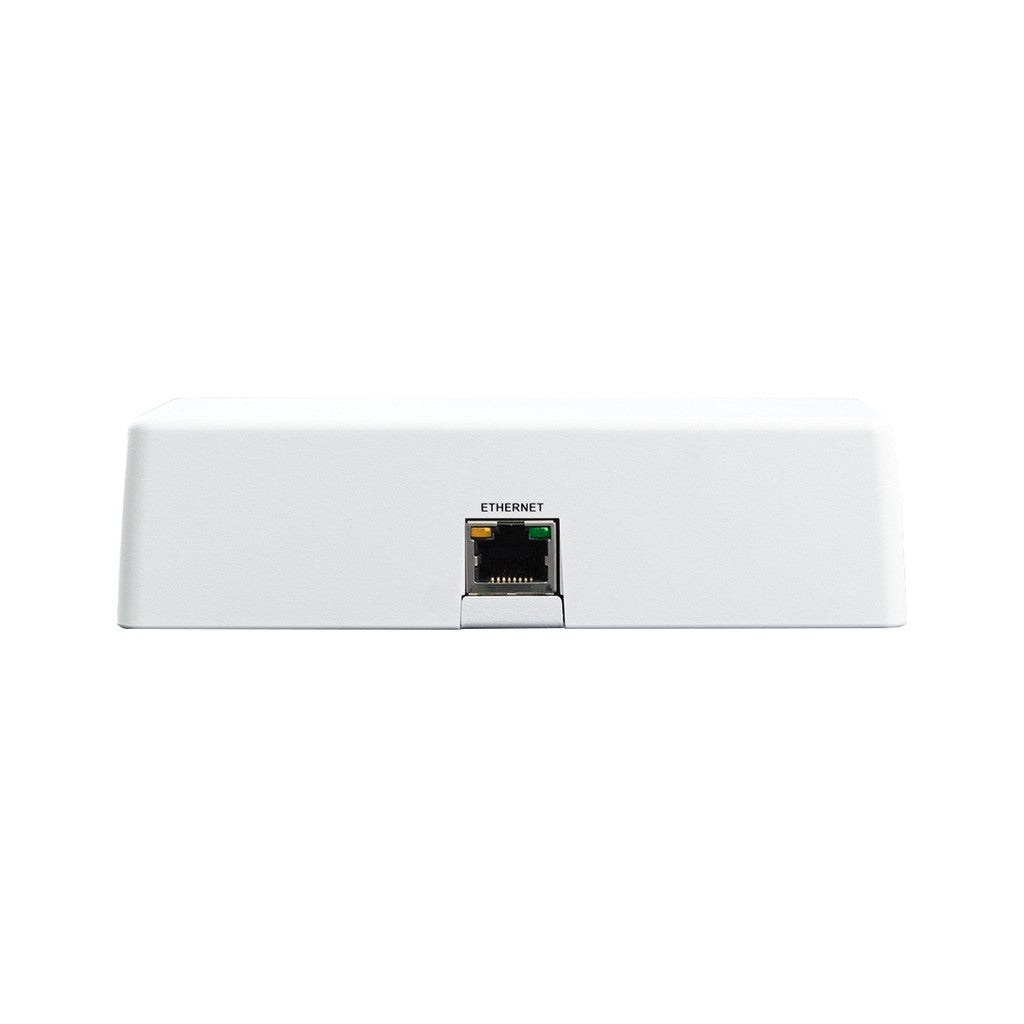

The compact white enclosure mounts upright on a wall or inverted beneath a compatible camera bracket. A single RJ45 Ethernet connection carries data and IEEE 802.3af Power over Ethernet, or PoE, reducing cable requirements during installation. The web interface provides correction, zone, network, image-orientation, streaming, and maintenance controls for professional system configuration.
Key Features
- Preset-Free Automated Tracking: Supplies spatial data that enables CamConnect Pro to track participants without fixed camera presets.
- AI Room Analysis: Detects the location of seated, standing, and moving people within the meeting environment.
- Extended Detection Range: Identifies participants between 4.9' and 26.2' from the installed camera.
- Wide Room Coverage: Provides a 54° horizontal, 29° vertical, and 62° diagonal viewing angle.
- PoE Connectivity: Receives power and network connectivity through one Ethernet cable for streamlined installation.
- Flexible Mounting: Supports wall installation, a 1/4"-20 mounting point, or inverted placement beneath a compatible bracket.
- Web-Based Configuration: Provides browser controls for calibration, tracking zones, network settings, image orientation, and firmware maintenance.
- Compact Installation: Fits discreetly into professional meeting spaces with a lightweight white enclosure.
Technical Specifications
- Product Type: AI room analysis camera
- Model: BC-200
- Compatible System: Lumens CamConnect Pro with AI-Box1 and compatible PTZ cameras
- Image Sensor: 1/2.8" 2.16MP CMOS
- Video Resolution: 1080p
- Frame Rate: 30 or 25 fps
- Video Codec: H.264
- Bitrate Range: 2,000 to 20,000 kbps
- Rate Control: CBR or VBR
- Streaming Protocol: RTSP
- Digital Zoom: 1x
- Horizontal Viewing Angle: 54°
- Vertical Viewing Angle: 29°
- Diagonal Viewing Angle: 62°
- Aperture: F1.6
- Focal Length: 6 mm
- Shutter Speed: 1/30 or 1/25 second
- Focus System: Fixed lens
- Minimum Object Distance: 4.9'
- Human Detection Distance: 4.9' to 26.2'
- Data Output: Ethernet

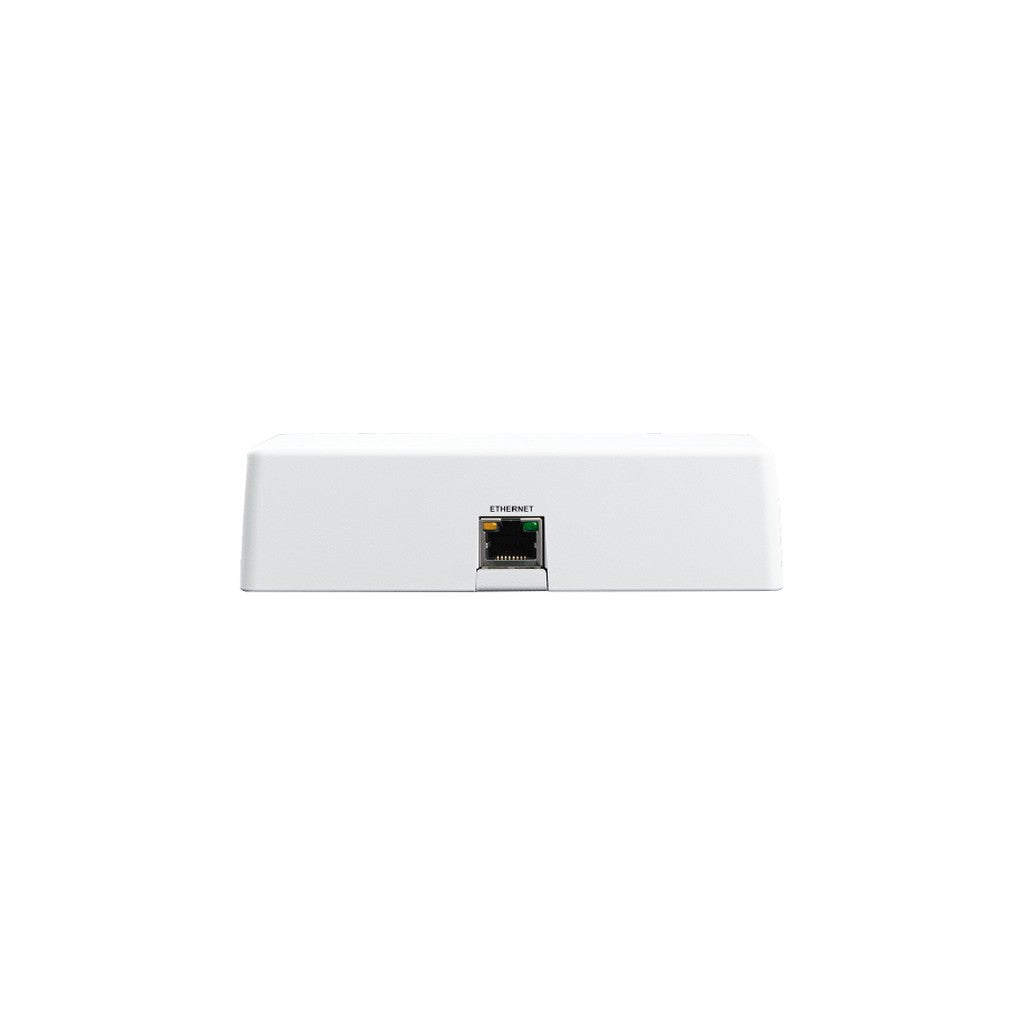

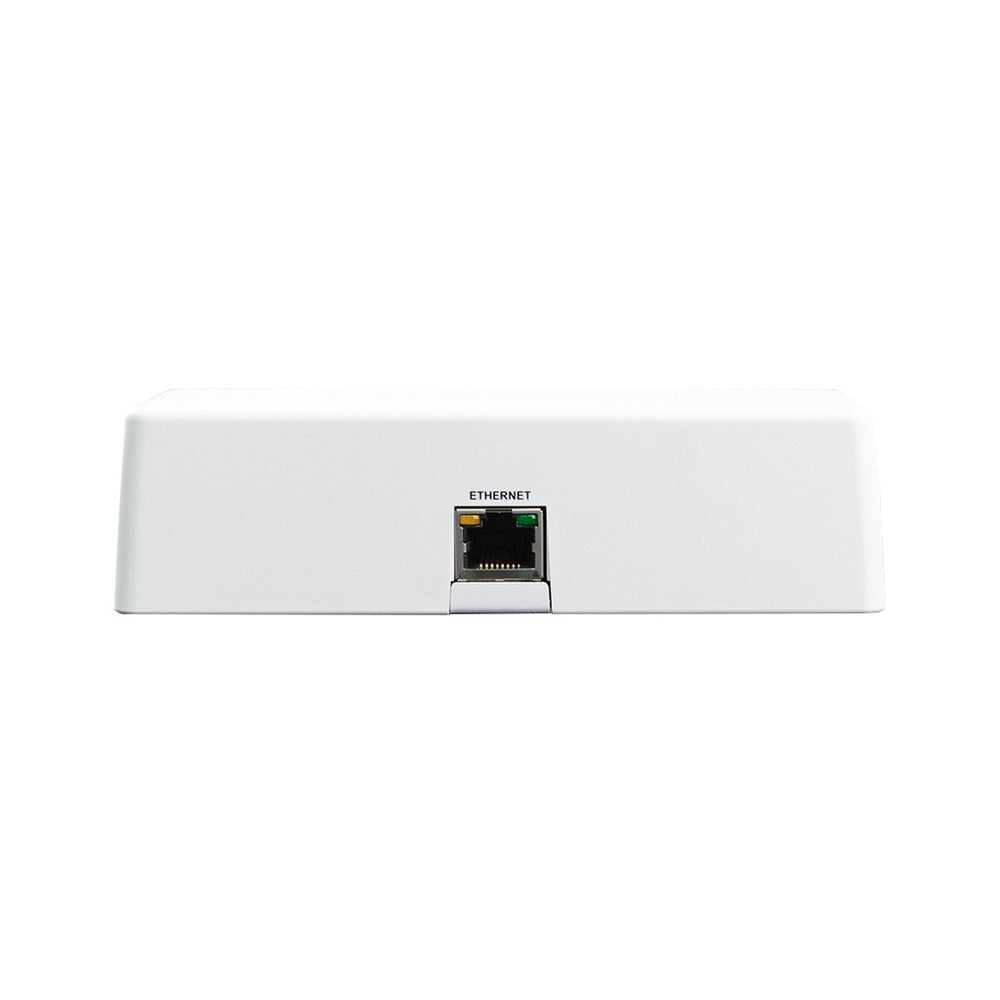

- Network Connection: RJ45 Ethernet
- Control Protocol: VISCA over IP
- Power: IEEE 802.3af Power over Ethernet
- Power Consumption: 11W

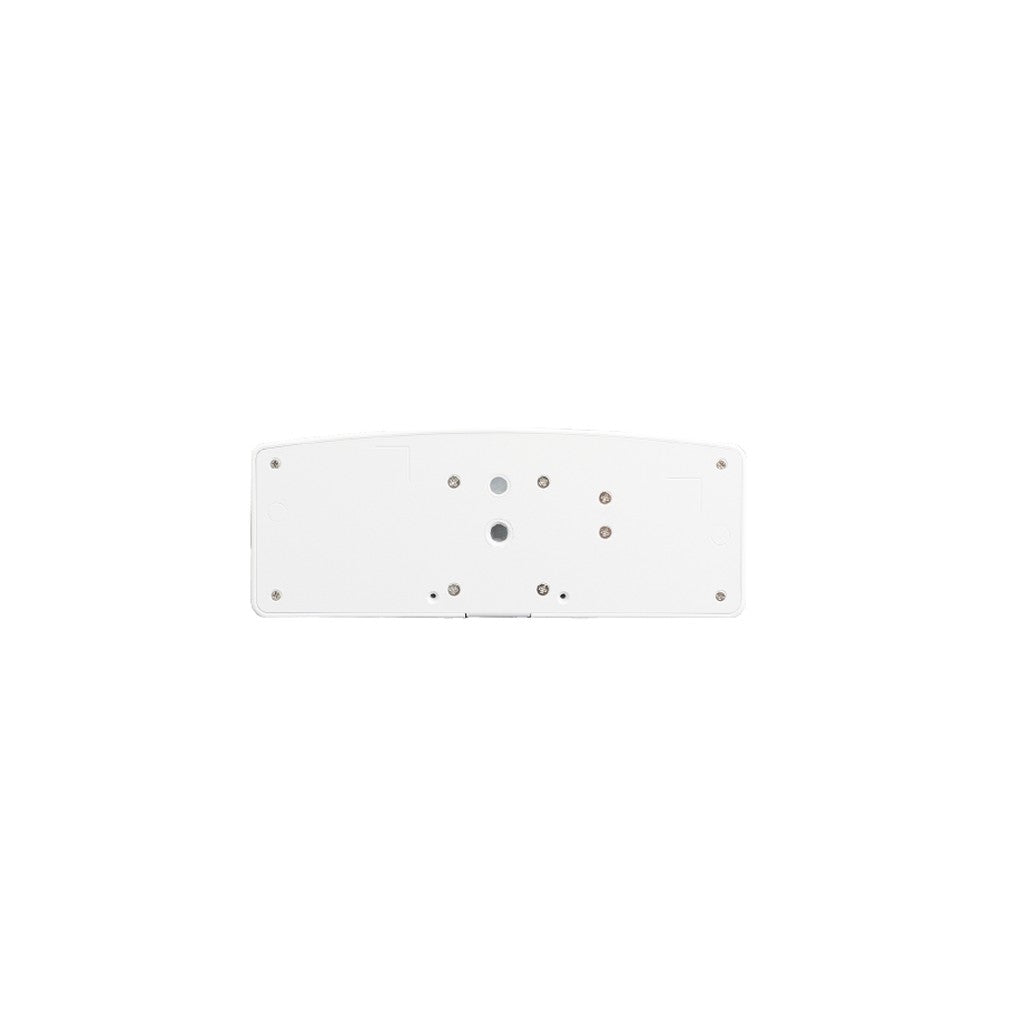

- Mounting: Wall mount or 1/4"-20 UNC mounting point
- Body Color: White
- Dimensions: 5.68" x 2.21" x 1.50"
- Weight: 0.56 lbs
What's In the Box
- Lumens BC-200 Room Analysis Camera

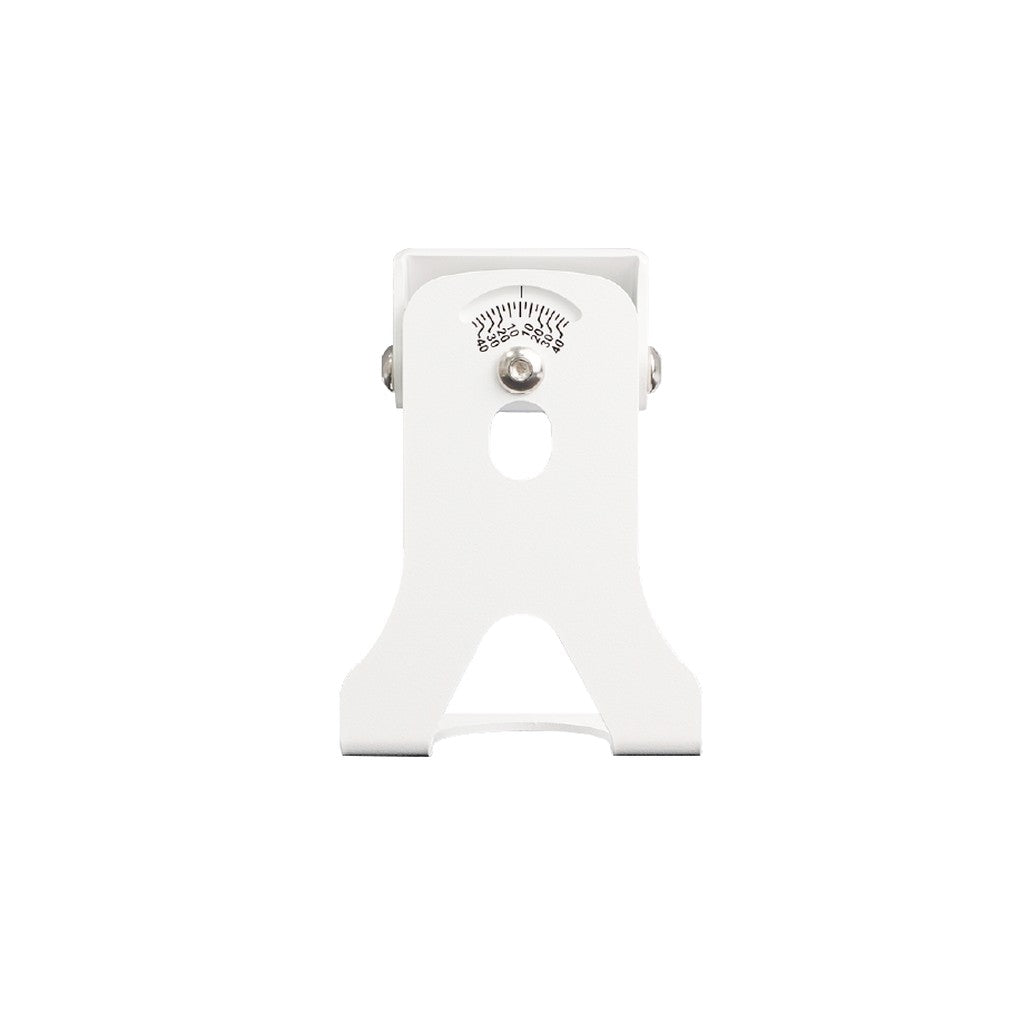

- Mount
- 1/4"-20 UNC Screw
