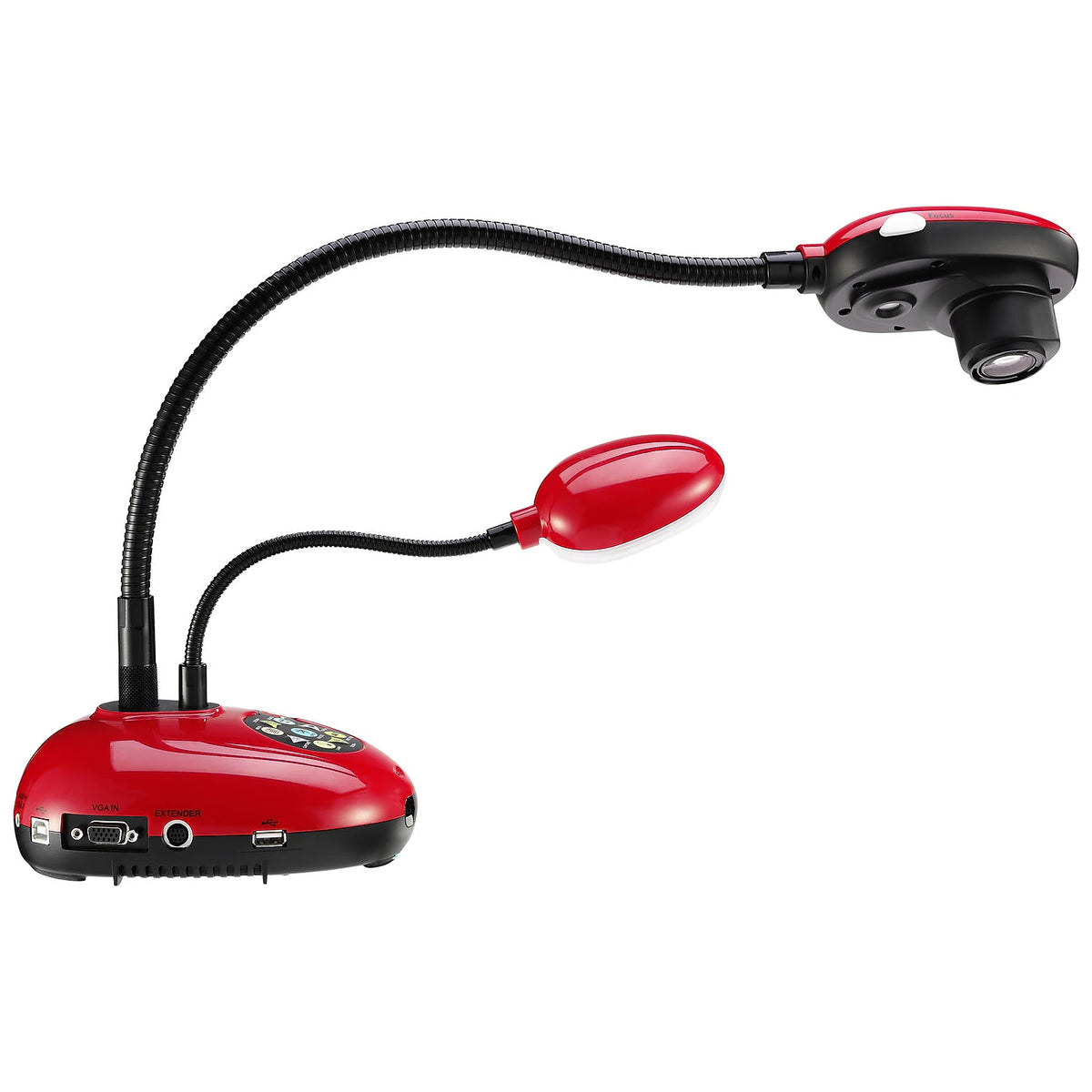

Lumens DC-193 20x HDMI 1080p USB Document Camera
Lumens DC-193 20x HDMI 1080p USB Document Camera
Free Shipping
Lumens DC-193 20x HDMI 1080p USB Document Camera
Lumens DC193, 20x, HDMI, USB, 1080p
Key Features
- Full HD, 1080p output resolution with 30fps
- 20 times variable zoom ratio(10x optical zoom with 2x sensor zoom)
- VGA input/output, HDMI input/output
- Built-in microphone
- One-touch synchronous audio/video recording
- Compatible with USB flash drives, expandable to 4TB
- Jointless, highly flexible gooseneck
- Plug & Play and compatible with all major whiteboard brands
- Unique image optimization auto-tune button
- Innovative built-in power supply
- Rigid lens provides protection from abnormal operation
- 5 Year Warranty
Technical Specifications
Image Sensor
1/3 CMOS Color Image Sensor
Total Pixels
3.25MP
Zoom
20x (10x Optical Zoom; 2x Sensor Zoom)
Digital Zoom
12x
Mechanical Zoom
10x
Close-Up
0.78ā (2cm)
Shooting Area Max.
15.7ā x 11.8ā (400 x 300 mm)
Output Resolution
XGA, SXGA(1280x960), WXGA, 1080p
High Color Reproduction
ĪE*ab (mean): 14.8
SNR
51 dB
Sharpness
MTF 937 line
Frame Rate
30 fps
Lamp
LED side lamp supported by gooseneck
Power Supply
Internal Power Supply, 100-240VAC
USB Image Transmission
USB 2.0 (480 Mbps) high speed transmission
Video/Audio Recording
One-touch records image and sound synchronously
Built-in Microphone
Yes
Image Capture
Single or continuous capturing
Auto Tune
Yes, one button for optimization image
Image Rotation
0 deg, 180 deg, flip, mirror
Anti-Theft
Kensington anti-theft lock device
Free Lumens Software
Support PC Windows 10, 8, 7, XP, Vista, Mac OS X,Chrome OS, iOS and Android App; WIA and TWAIN interface
Weight
4.2 lbs (1.9 Kg)
Dimension: (LxWxH)
Folded : 230 x 140 x 310 mm (9.1" x 5.5" x 12.2" )
Open : 420 x 140 x 423 mm (16.5" x 5.5" x 16.6")
