Lumens PTH-01 Remote Head for Auto-Tracking Camera with PoE Control

Lumens PTH-01 Remote Head for Auto-Tracking Camera Systems

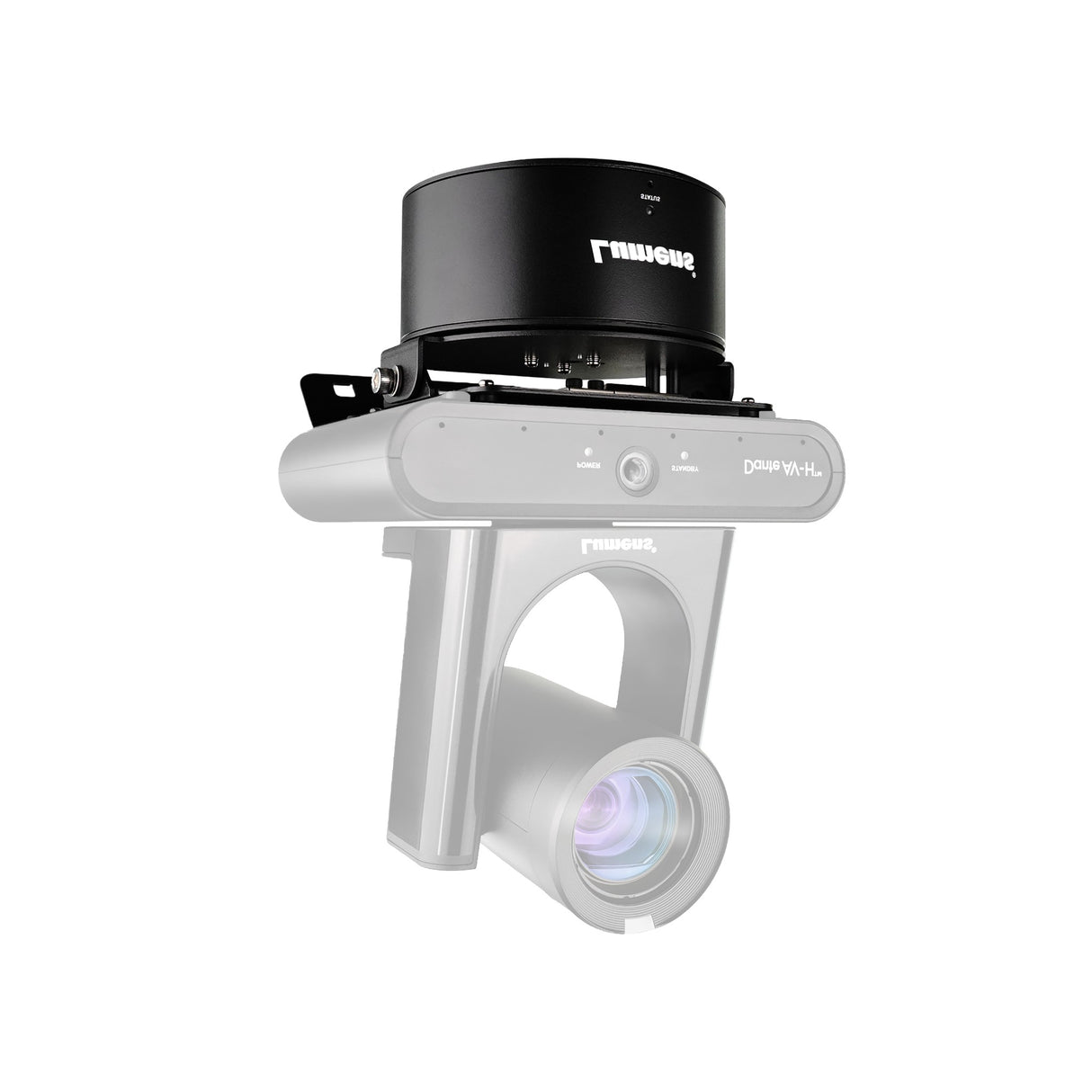

The Lumens PTH-01 Remote Head is a professional mounting and positioning solution designed specifically for Lumens auto-tracking cameras used in corporate, education, broadcast, and multi-purpose presentation environments. This remote head enables precise pan positioning and flexible tilt adjustment, allowing installers and system integrators to achieve optimal camera alignment in rooms where mounting flexibility and remote control are critical.

Built for modern AV installations, the PTH-01 supports electric pan adjustment with a wide 270° movement range and manual tilt adjustment for fine positioning. Control can be performed via RS-232 or IP commands, enabling seamless integration with professional AV control systems. With PoE (Power over Ethernet) capability and support for DC power, the unit simplifies installation while reducing the need for additional power infrastructure.

Engineered for reliability and installation flexibility, the PTH-01 supports VESA mounting, tripod compatibility, and robust load capacity for professional camera equipment. Its compact design and network-ready connectivity make it an ideal accessory for lecture halls, conference rooms, broadcast studios, houses of worship, and training environments that rely on automated camera tracking systems.

Key Features

• Electric Pan Adjustment: Motorized pan control with a wide 270° rotation range enables precise camera positioning for professional video tracking environments.
• Manual Tilt Adjustment: Adjustable tilt range of +15° to -15° allows installers to fine-tune vertical camera angles for optimal framing.
• Flexible Control Integration: Supports both RS-232 and IP control commands for integration with AV control systems and automation platforms.
• PoE Powered Design: Power over Ethernet (IEEE 802.3af) simplifies installation by delivering both power and data through a single network cable.
• Preset Position Support: Supports up to 127 presets, enabling automated positioning within complex camera tracking systems.
• Professional Mounting Options: Includes VESA 75x75 compatibility, tripod mounting support, and safety screw provisions for secure installations.
• High Load Capacity: Supports equipment loads up to 4 kg, accommodating compatible tracking cameras and mounting configurations.

Technical Specifications

• Model: PTH-01
• Product Type: Remote Head for Auto-Tracking Camera
• Pan Adjustment Method: Electric
• Panning Angle: 270°
• Tilt Adjustment Method: Manual
• Tilt Angle: +15° to -15°
• Preset Positions: 127
• Maximum Load Capacity: 4 kg
• Control Interfaces: RS-232 and IP
• Ethernet Port: RJ-45 (10/100/1000 Base-T)

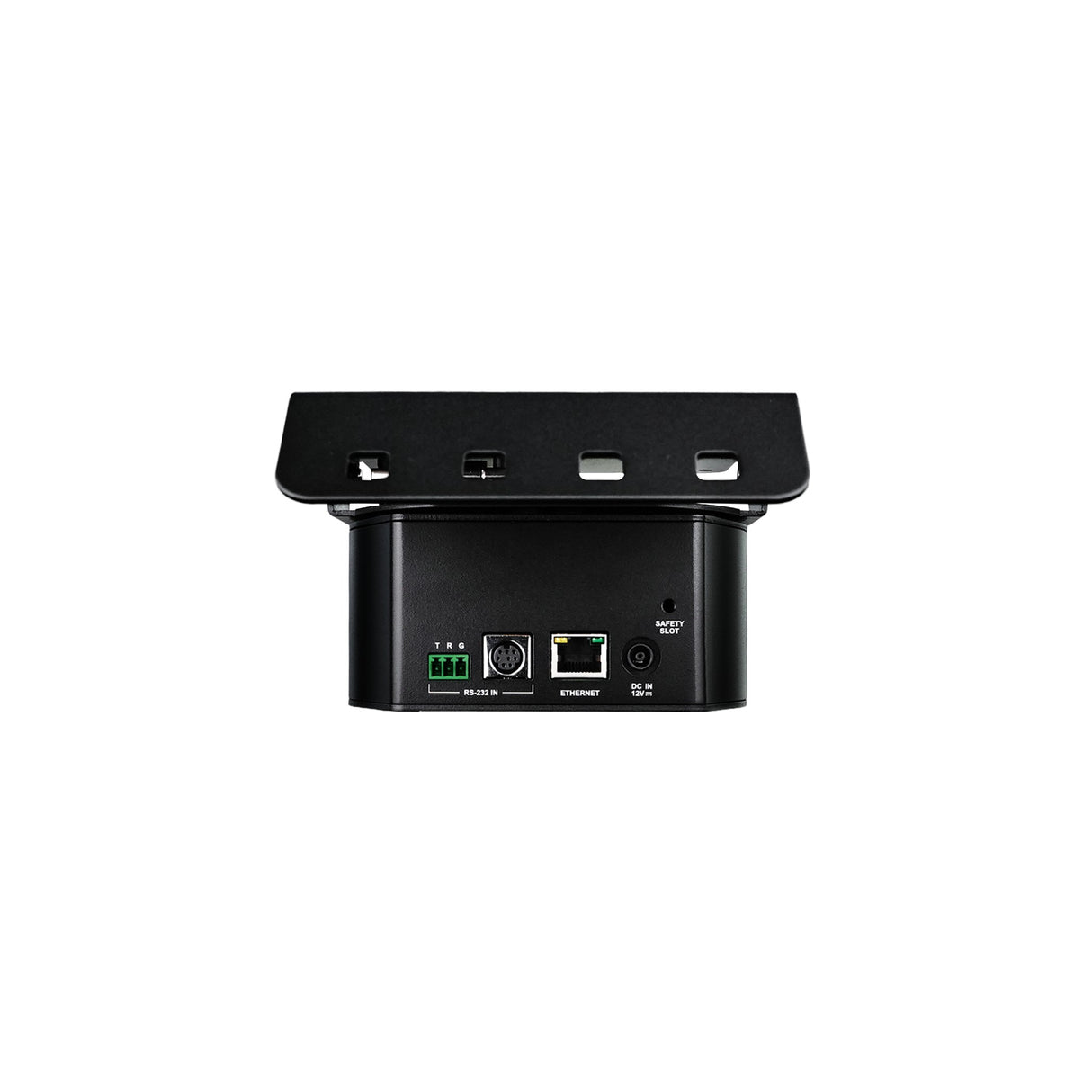

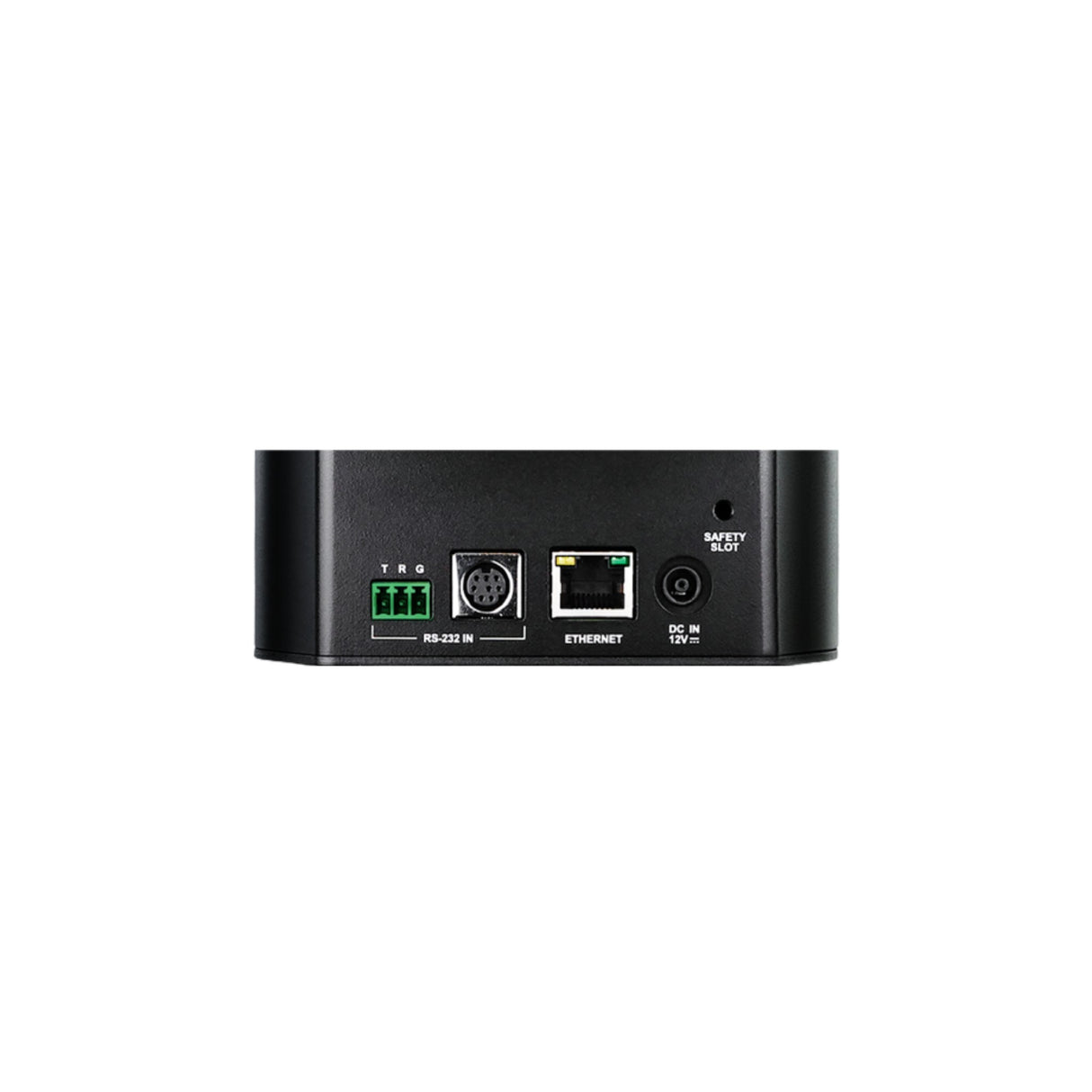

• RS-232 Ports: Phoenix Connector ×1, Mini-DIN (8-Pin) ×1
• Tripod Mount: 1/4"-20 UNC tripod thread with positioning pin
• VESA Mount: 75 × 75
• Safety Slot: M4 Screw Hole
• Power Options: PoE (IEEE802.3af) or DC 12V
• Power Consumption: 7W
• Dimensions: 8.82 in × 6.06 in × 3.31 in
• Weight: 1.8 kg
