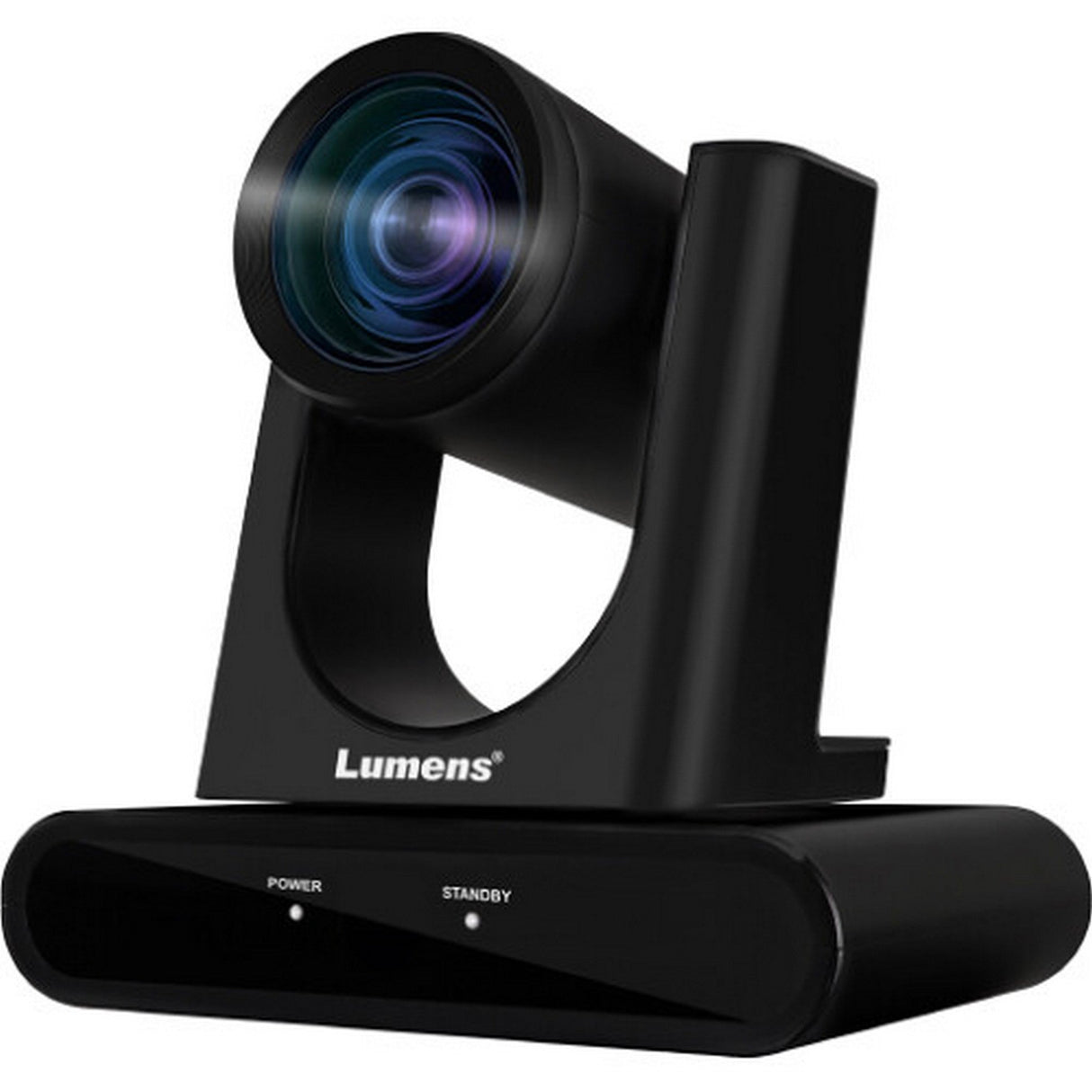

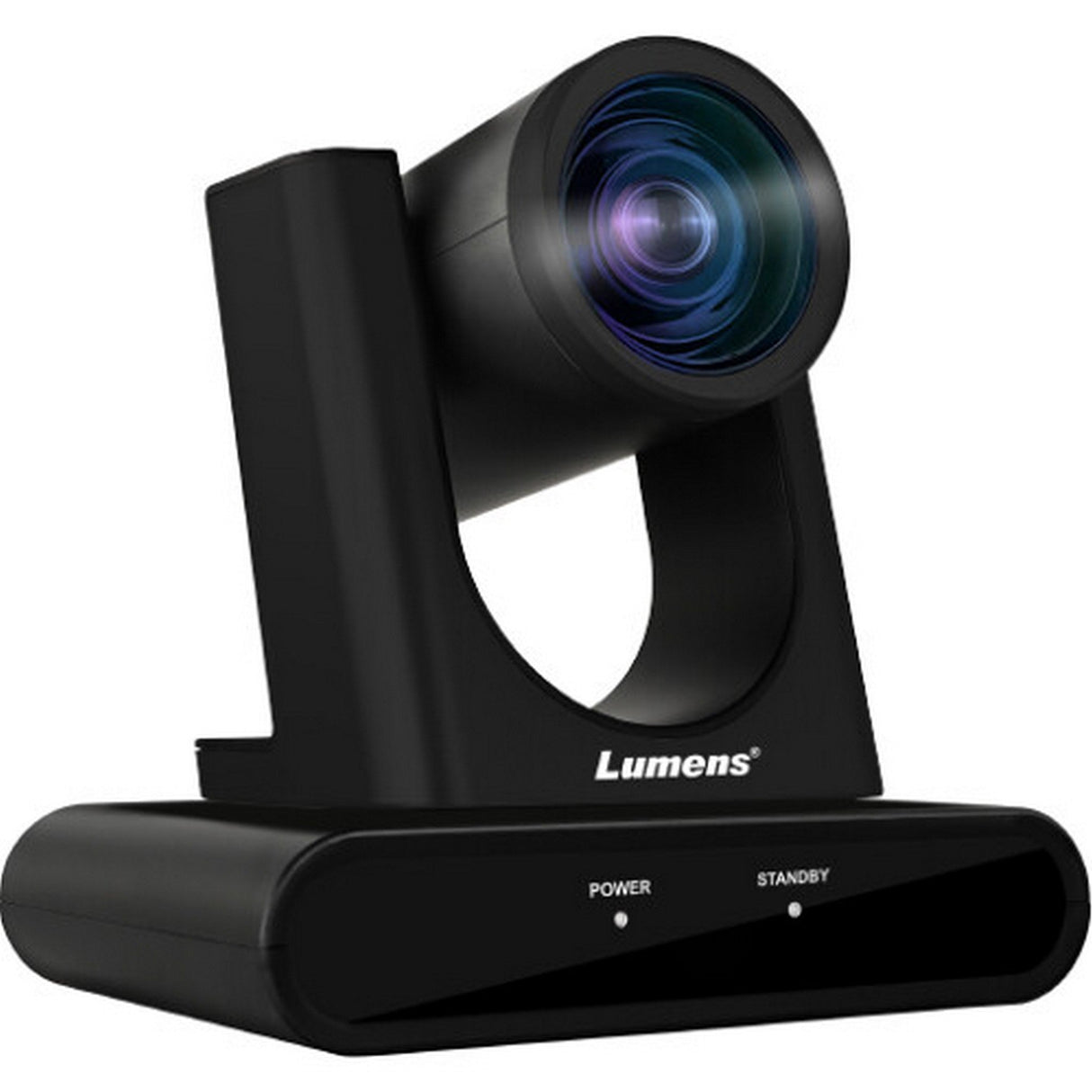

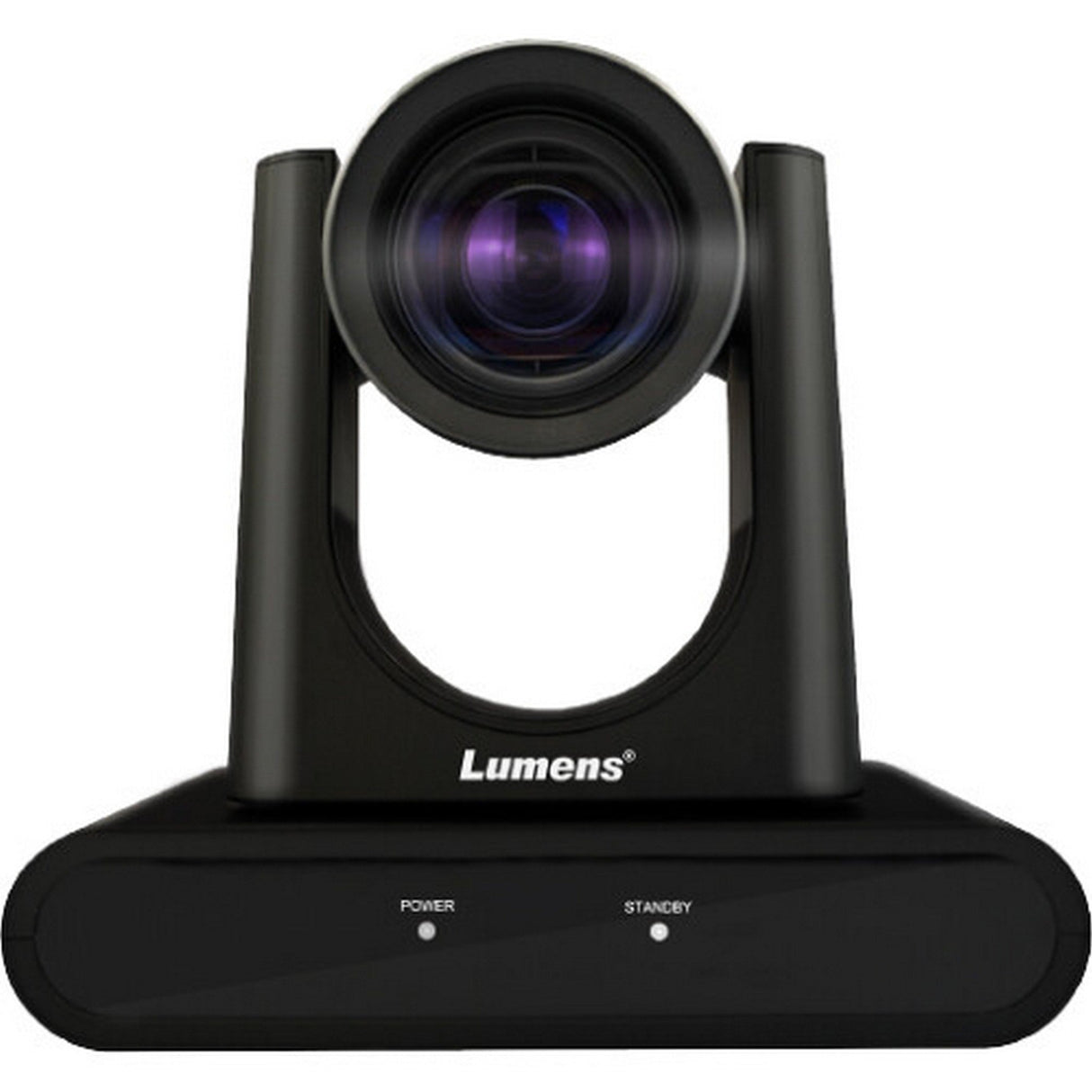

Lumens VC-R32PB HD IP PTZ Camera

Lumens VC-R32PB Full HD 12x Optical Zoom IP PTZ Camera

The Lumens VC-R32PB Full HD IP PTZ Camera captures video at up to 1080p60 and outputs simultaneously through HDMI, USB 3.0, and Ethernet. Its 12x optical zoom, 72.5-degree horizontal field of view, quiet robotic movement, and network connectivity support professional conferencing, streaming, education, worship, and live-production workflows.

The wide-angle lens frames groups in compact meeting rooms, while the telephoto range isolates presenters from farther camera positions. Automatic framing helps maintain useful compositions, and 256 preset positions let operators recall frequently used views. Triple IP streaming supports direct distribution to networked production, recording, and streaming systems.

Power over Ethernet carries power, video, embedded audio, and control through one network cable. Operators can control the camera through Ethernet, USB, RS-232, or RS-422 using VISCA and ONVIF protocols. The black VC-R32PB also supports remote browser configuration, firmware updates, upright or inverted mounting, and compatible ClickShare conferencing systems.

Key Features

• Full HD Capture: Outputs video at up to 1920 x 1080 resolution and 60 frames per second.
• 12x Optical Zoom: Moves from wide room coverage to detailed presenter close-ups without repositioning the camera.
• Simultaneous Outputs: Sends video through HDMI, USB 3.0, and Ethernet at the same time.
• Wide Viewing Angle: Provides a 72.5-degree horizontal field of view for flexible framing in small and medium rooms.
• Quiet PTZ Movement: Smooth motors support controlled camera moves without distracting mechanical noise.
• Integrated Auto Framing: Automatically adjusts the shot to maintain useful participant or presenter coverage.
• Single-Cable Networking: IEEE 802.3af PoE combines power, video, audio, and control through Ethernet.
• Professional Control: Supports VISCA, ONVIF, RS-232, RS-422, USB, IP control, and 256 preset positions.

Technical Specifications

Camera and Imaging

• Brand: Lumens
• Model: VC-R32PB
• Product Type: Full HD IP PTZ camera
• Body Color: Black
• Image Sensor: Sony 1/2.8-inch 2.16MP CMOS
• Video Formats: 1080p60, 1080p50, 1080p30, 1080p25, 720p60, and 720p50
• Minimum Illumination: 1 lux at f/1.8, 50 IRE, and 30 fps
• Signal-to-Noise Ratio: Greater than 50 dB
• Shutter Speed: 1/25 to 1/10,000 second
• Focus Control: Automatic and manual
• Exposure Control: Automatic and manual
• Gain Control: Automatic and manual
• White Balance: Automatic and manual
• Wide Dynamic Range: Supported
• 3D Noise Reduction: Supported
• Image Flip: Supported
• Auto Framing: Supported

Lens Specifications

• Focal Length: 4.1 to 47.8mm
• Optical Zoom: 12x
• Digital Zoom: 12x
• Maximum Aperture: f/1.8 to f/3
• Horizontal Field of View: 72.5 degrees
• Vertical Field of View: 40.8 degrees
• Diagonal Field of View: 83.2 degrees
• Minimum Focusing Distance at Wide: 3.3 feet
• Minimum Focusing Distance at Telephoto: 4.9 feet

Pan, Tilt, and Presets

• Pan Range: -170 to +170 degrees
• Pan Speed: 0.2 to 120 degrees per second
• Tilt Range: -30 to +90 degrees
• Tilt Speed: 0.2 to 80 degrees per second
• Preset Positions: 256

Video and Streaming

• HDMI Output: Up to 1080p60
• USB Output: Up to 1080p60
• USB Video Compression: MJPEG
• IP Video Compression: H.264
• Primary IP Stream: H.264 at up to 1080p60
• Secondary IP Stream: H.264 at up to 720p30
• Webpage Stream: H.264 at up to 720p30
• Streaming Protocols: RTSP, RTMP, RTMPS, and SRT
• UVC Support: Yes
• UAC Support: Yes

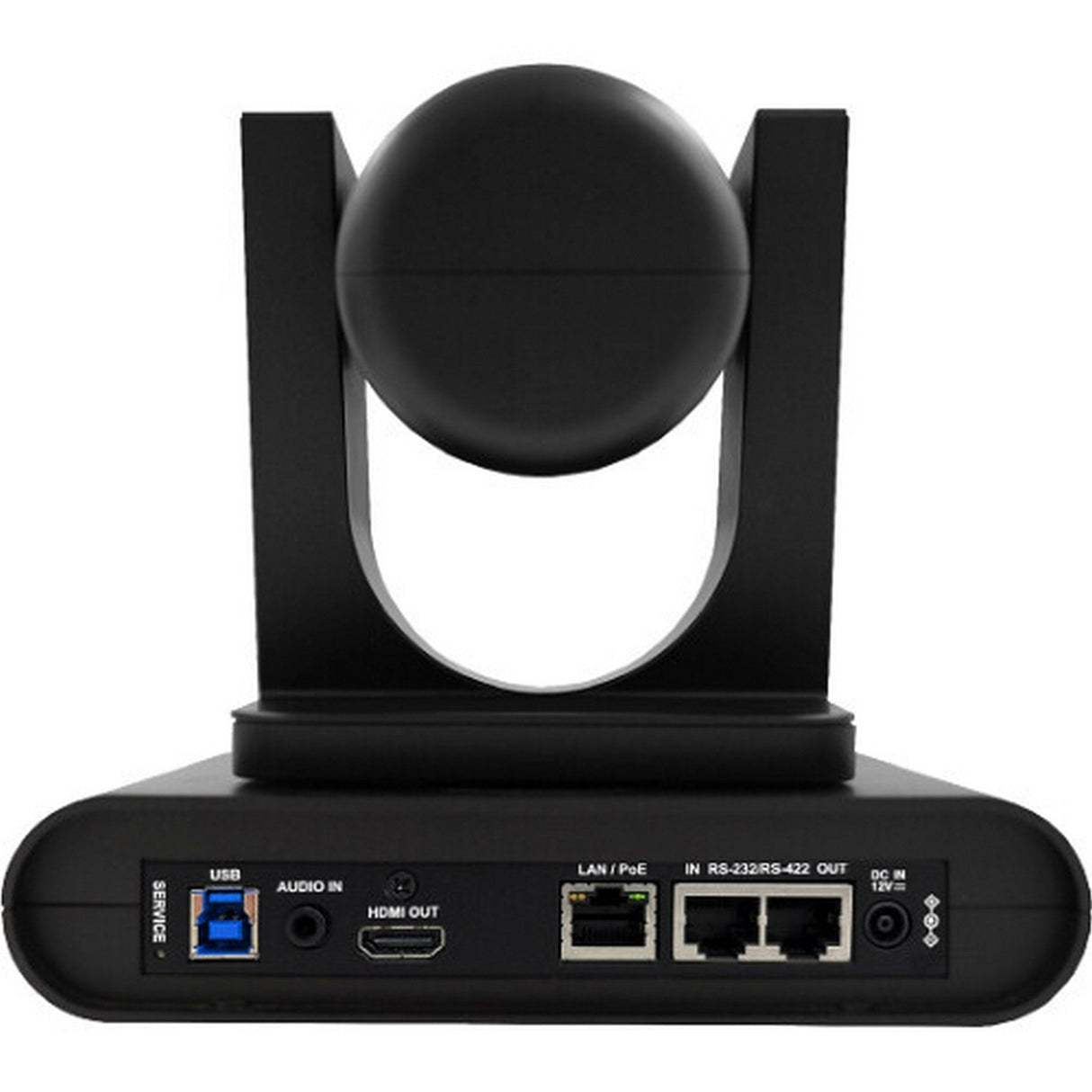

Connections and Control

• HDMI Output: One HDMI connector
• USB Connection: One USB-B 3.0 port
• Network Connection: One RJ45 Ethernet and PoE port
• Audio Input: One 3.5mm line or microphone input
• Audio Output: Embedded through Ethernet, USB 3.0, and HDMI
• IP Audio Compression: AAC
• USB Audio Format: PCM
• Serial Control Input: One RJ45 RS-232 and RS-422 port
• Serial Control Output: One RJ45 RS-232 and RS-422 port
• Control Interfaces: Ethernet, USB 3.0, RS-232, and RS-422
• Control Protocols: VISCA and ONVIF
• Remote Management: Web interface configuration and firmware updates

Power and Physical Specifications

• Power over Ethernet: IEEE 802.3af PoE
• DC Input: 12 VDC, +/-20%
• PoE Power Consumption: 9W
• DC Power Consumption: 8W
• Mounting Orientation: Upright or inverted
• Mounting Thread: One 1/4-inch-20 female thread
• Dimensions (W x H x D): 7.5 x 7.3 x 5.4 inches
• Weight: 3.1 pounds
• Package Dimensions (L x W x H): 10.8 x 10.7 x 8 inches
• Package Weight: 5.5 pounds

What's In the Box

• Lumens VC-R32PB Full HD IP PTZ Camera
• IR remote control
• Power adapter
• Regional power cable
• USB-A to USB-B 3.0 cable, 6.6 feet
