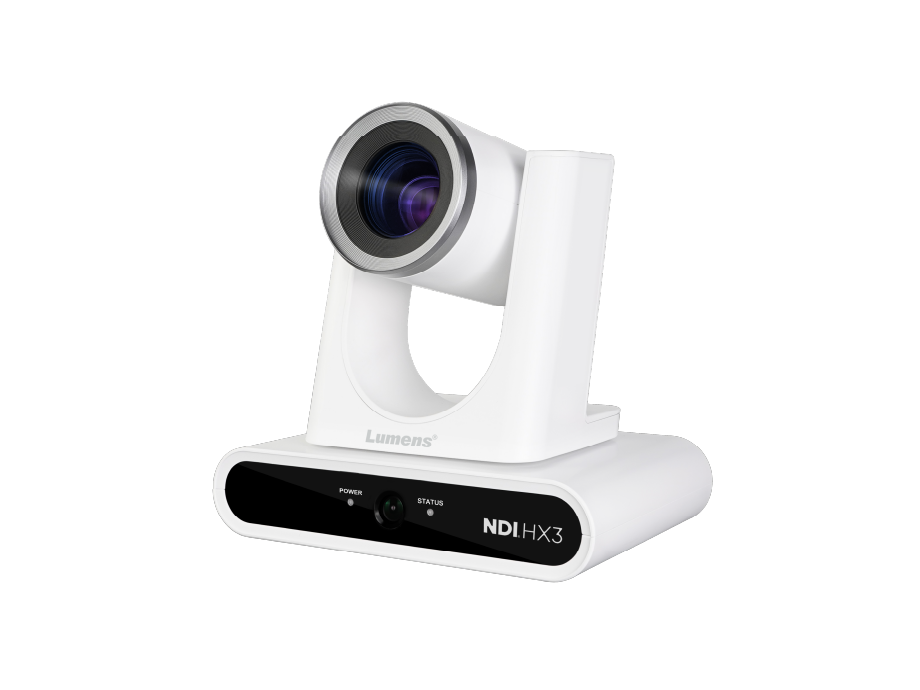

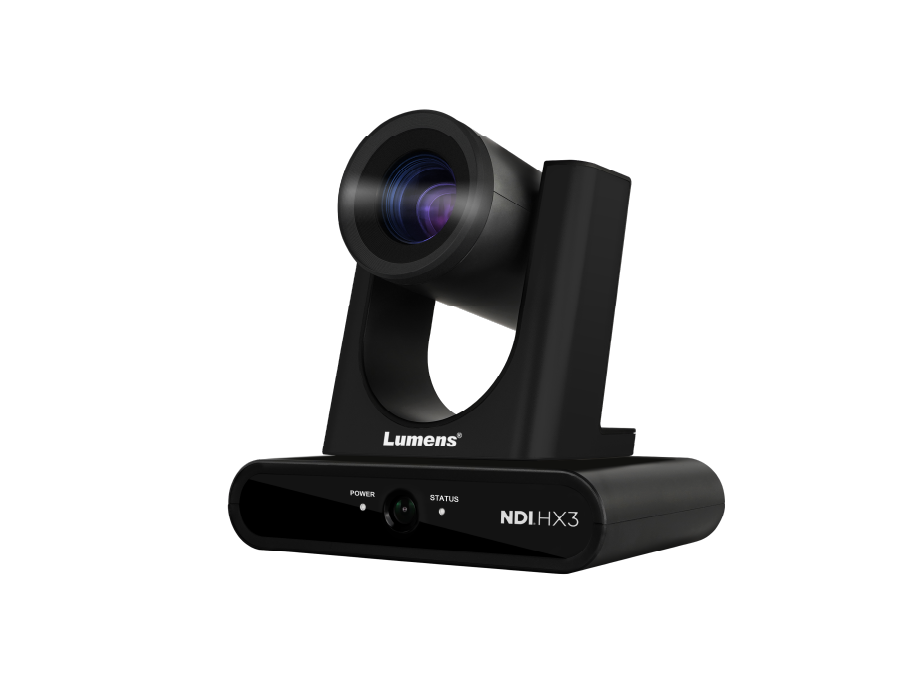

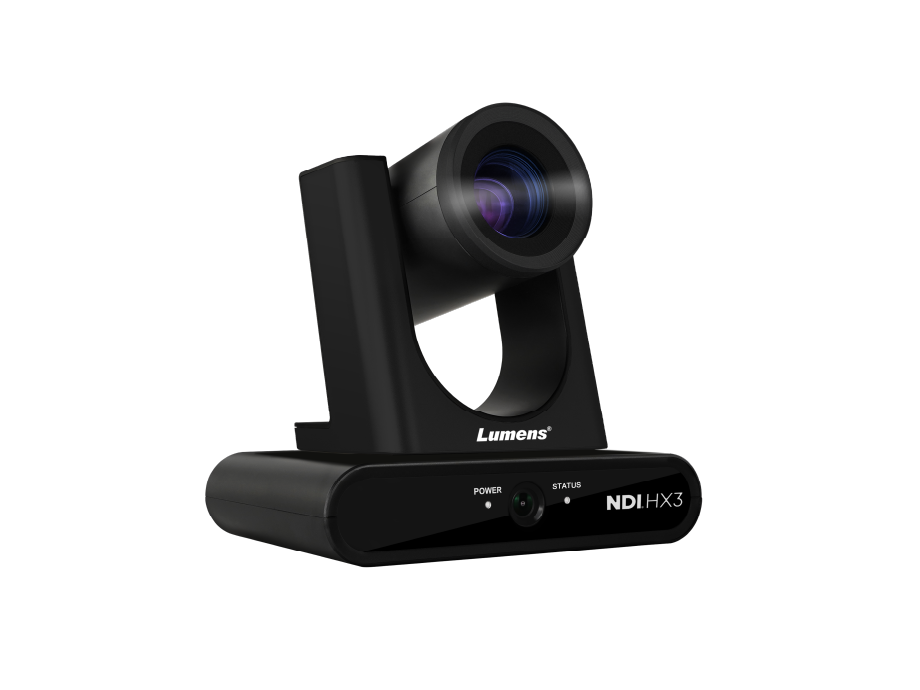

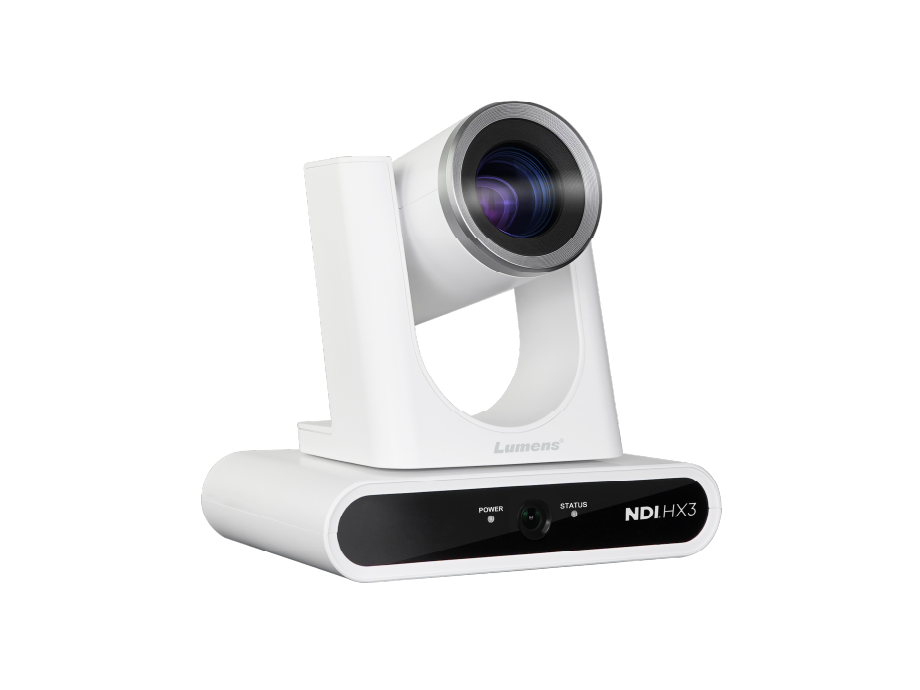

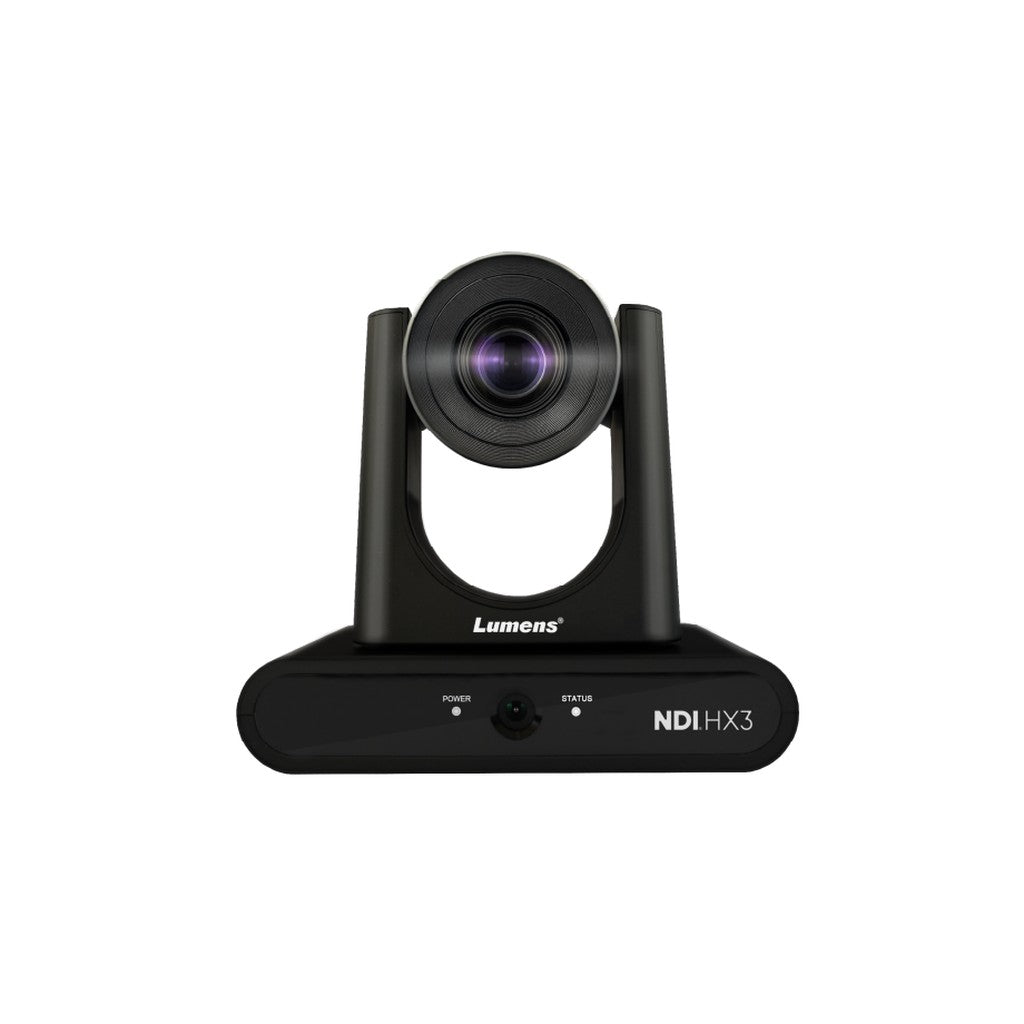

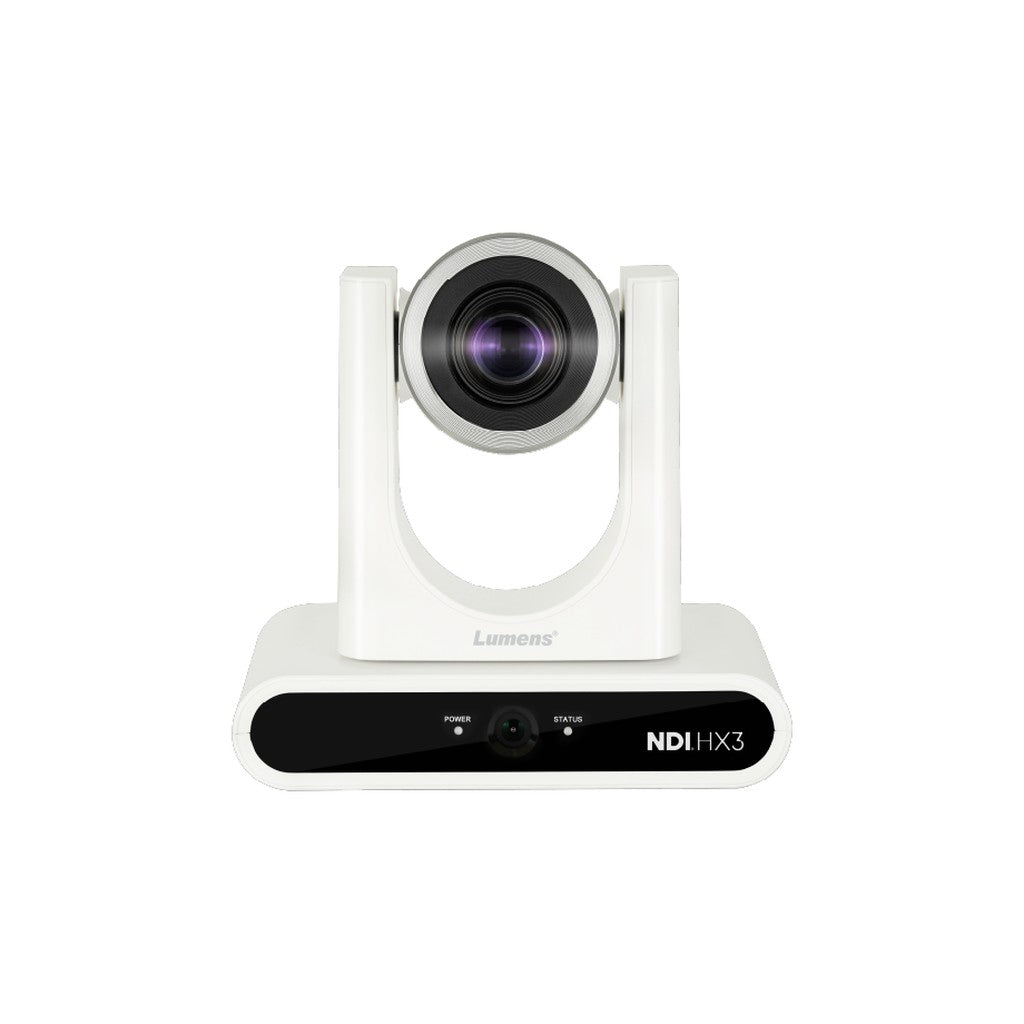

Lumens VC-TR41N 20x AI NDI HX3 Auto-Tracking PTZ Camera - Black
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

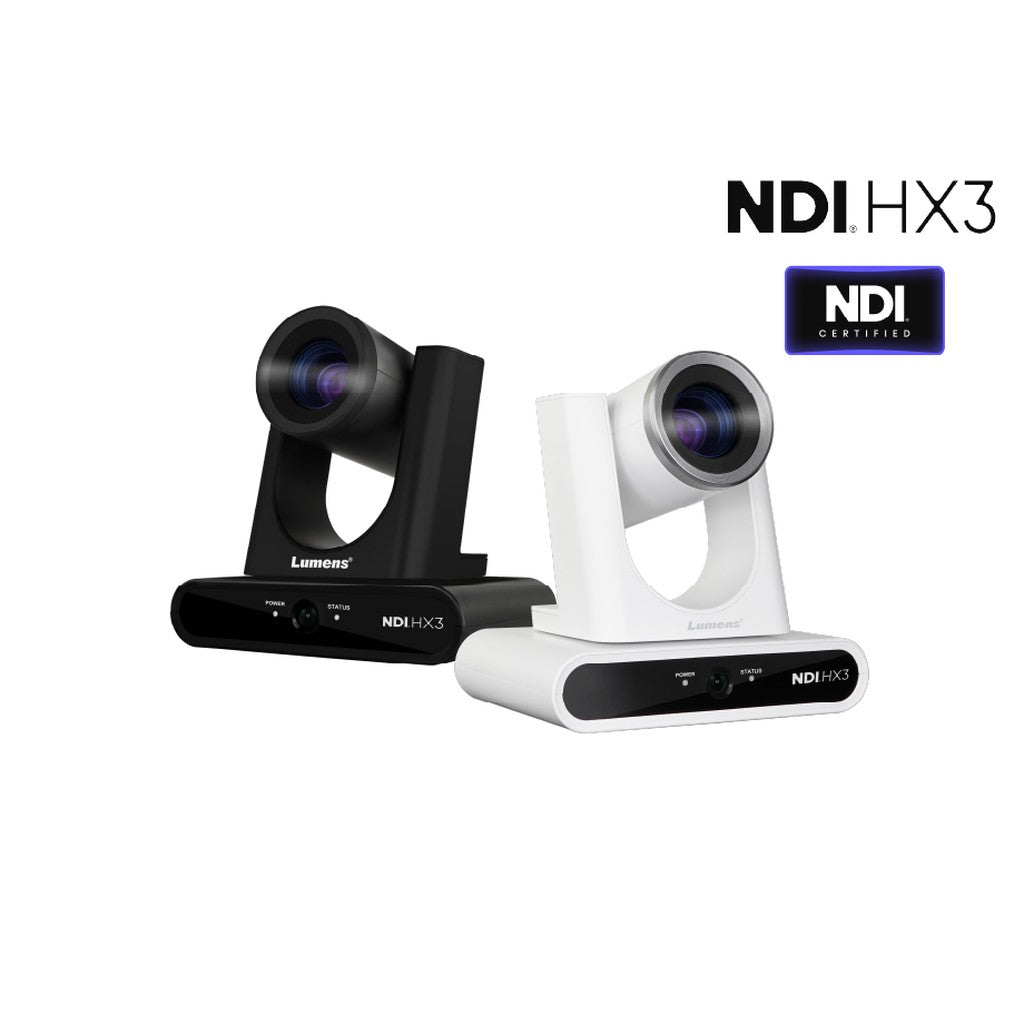

Lumens VC-TR41N AI Auto-Tracking PTZ Camera
The Lumens VC-TR41N AI Auto-Tracking PTZ Camera delivers Full HD video up to 1080p60 with intelligent presenter tracking, automatic framing, 20x optical zoom, and NDI HX3 connectivity. Available in black or white finishes, it supports coordinated installations in conference rooms, classrooms, studios, auditoriums, and other professional AV environments.
Designed for lectures, presentations, hybrid meetings, training sessions, and live productions, the VC-TR41N tracks subjects without requiring a dedicated camera operator. Everywhere, Stage, and Partition tracking modes adapt to different room layouts and presenter movements. Buyers can select the black model for discreet technical spaces or the white model for bright, modern interiors and ceiling-mounted applications.
An independent panoramic sensor helps detect movement across the room while the PTZ camera captures detailed close-ups. HDMI, 3G-SDI, USB 3.0, and IP outputs support flexible video workflows, while NDI HX3, SRT, RTSP, and RTMP enable network production and streaming. PoE, VISCA, ONVIF, RS-232, and RS-422 compatibility simplifies integration with professional control and conferencing systems.
Key Features

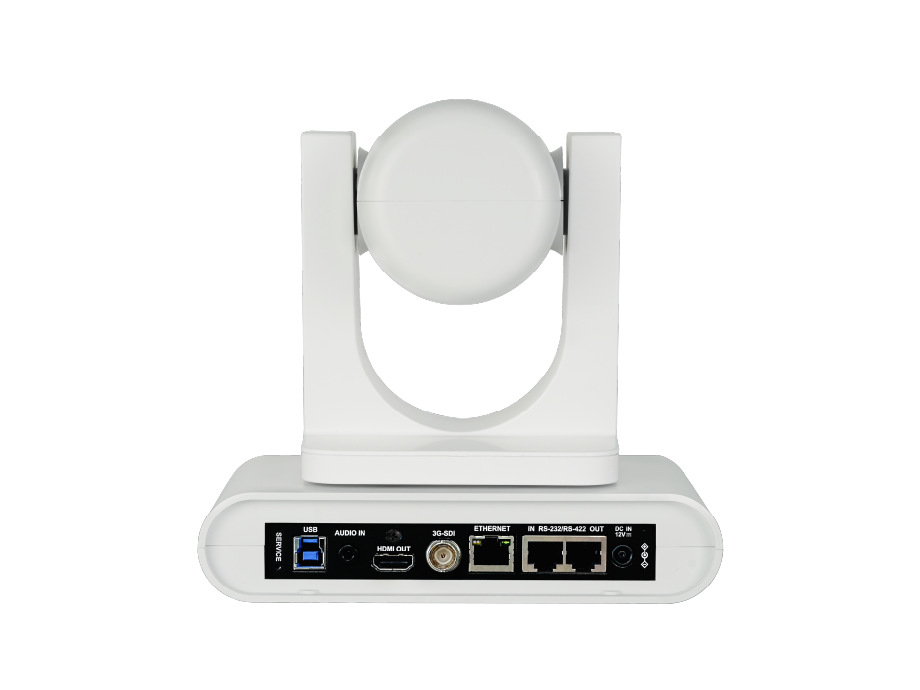

- Black or White Finish: Choose the color that best complements the room, ceiling, or production environment.
- AI-Powered Presenter Tracking: Automatically follows detected subjects using Everywhere, Stage, or Partition modes.
- Automatic Framing: Maintains balanced subject composition during presentations, meetings, and instructional sessions.
- 20x Optical Zoom: Captures detailed Full HD images across small, medium, and large rooms.
- Independent Panoramic Sensor: Uses a wide viewing angle to detect movement throughout the presentation area.

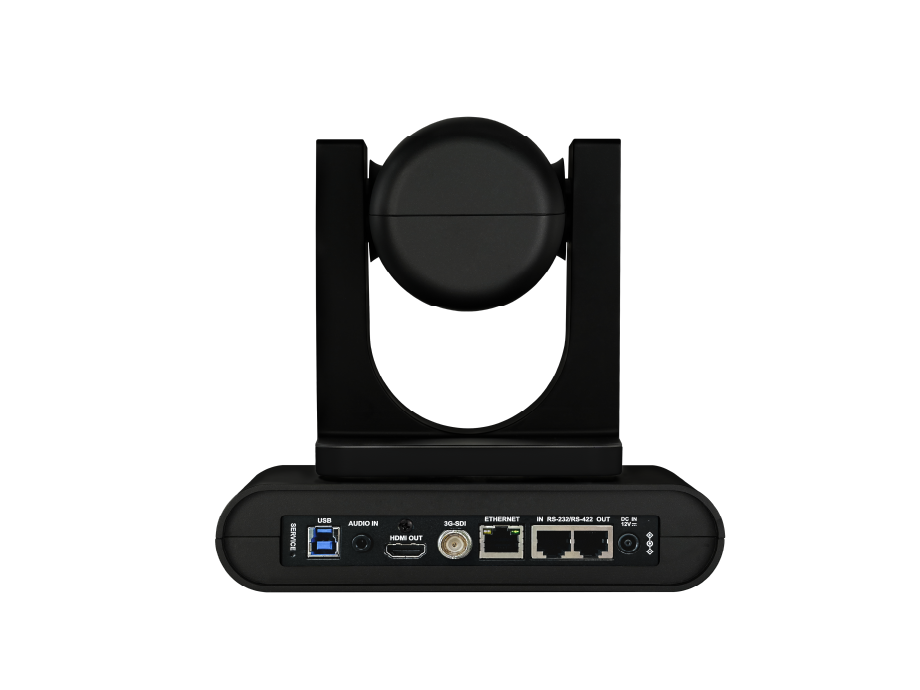

- Multiple Video Outputs: Provides simultaneous HDMI, 3G-SDI, USB 3.0, and Ethernet connectivity.
- NDI HX3 Support: Enables efficient, low-latency video transport across compatible IP networks.
- PoE Installation: Carries power, video, audio, and control through a single Ethernet cable.
Technical Specifications
- Product Type: AI-powered Full HD auto-tracking PTZ camera
- Available Colors: Black and white
- PTZ Image Sensor: 1/2.8" 2.16-megapixel sensor
- PTZ Video Formats: 1080p60, 1080p50, 1080p30, 1080p25, 720p60, and 720p50

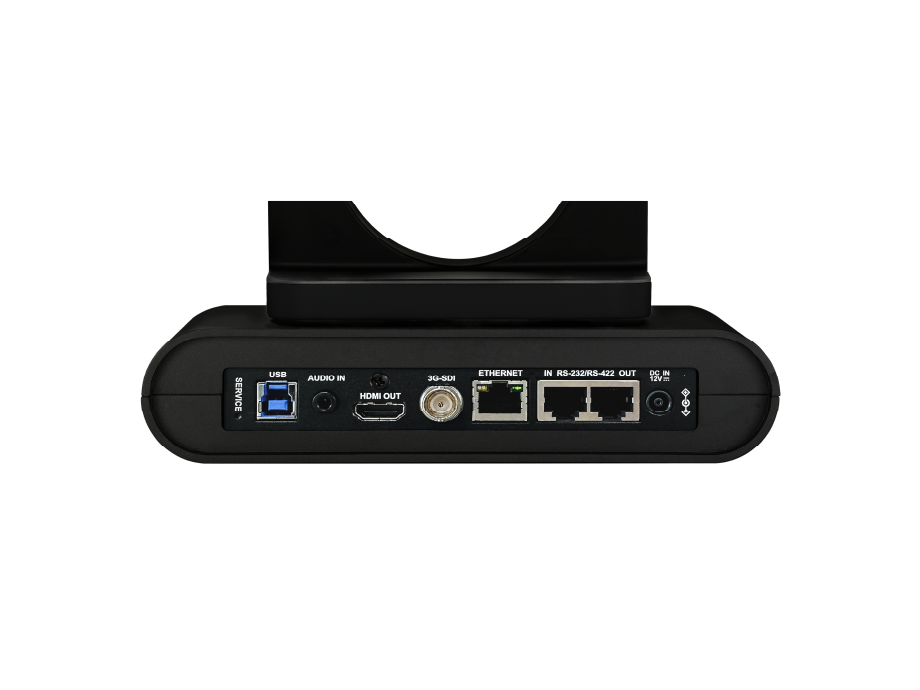

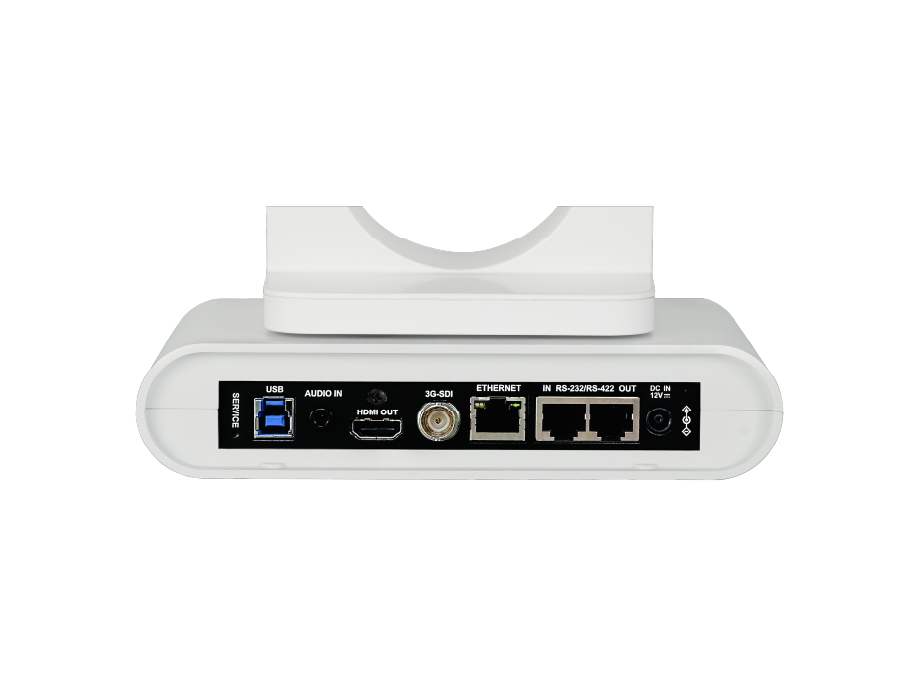

- Video Output Interfaces: HDMI, Ethernet, 3G-SDI, and USB 3.0
- Optical Zoom: 20x
- Digital Zoom: 12x
- PTZ Horizontal Viewing Angle: 58.7°
- PTZ Vertical Viewing Angle: 33°
- PTZ Diagonal Viewing Angle: 67.3°
- Aperture: F1.6 to F2.8
- Focal Length: 4.9mm to 94mm
- Shutter Speed: 1/25 to 1/10,000 second
- Minimum Object Distance: 19.69"
- Video Signal-to-Noise Ratio: Greater than 50 dB
- Minimum Illumination: 1 lux at F1.6, 50 IRE, and 30 fps
- Focus System: Auto, manual, and Smart AF
- Gain Control: Auto or manual
- White Balance: Auto or manual
- Exposure Control: Auto, manual, and Smart AE
- Wide Dynamic Range: Supported
- 3D Noise Reduction: Supported
- Image Flip: Supported
- Auto-Tracking Modes: Everywhere, Stage, and Partition
- Auto-Framing Modes: Everywhere and Partition
- Gesture Control: Supported
- Panoramic Image Sensor: 1/2.8" 2-megapixel CMOS sensor
- Panoramic Video Formats: 720p30 and 720p25
- Panoramic Horizontal Viewing Angle: 87°
- Panoramic Vertical Viewing Angle: 49°
- Pan Range: +170° to -170°
- Pan Speed: 0.2° to 120° per second
- Tilt Range: +90° to -30°
- Tilt Speed: 0.2° to 80° per second
- Preset Positions: 256
- HDMI and 3G-SDI Output: Up to 1080p60
- Main PTZ IP Stream: Up to 1080p60 or 1080p50
- Secondary PTZ IP Stream: 720p30 or 720p25
- Panoramic Camera IP Stream: 720p30 or 720p25
- IP Video Compression: H.264
- USB Video Output: 1080p30 or 1080p25
- USB Video Compression: MJPEG
- IP Protocols: NDI HX3, NDI HX2, HTTP, RTSP, RTMP, RTMPS, and SRT
- Power over Ethernet: IEEE 802.3af PoE
- Audio Input: Line input or microphone input
- Audio Output: Ethernet, USB 3.0, HDMI, and SDI
- Audio Compression: AAC or PCM
- Control Interfaces: RS-232, RS-422 through RJ-45, Ethernet, and USB 3.0
- Control Protocols: VISCA, ONVIF, and NDI
- UVC Version: 1.1
- USB Audio Class: Supported
- DC Input: 12V, ±20%
- Power Consumption: 11W through PoE or 10W through DC input
- Weight: 3.3 lbs
- Dimensions: 7.5" x 7.3" x 5.4"
