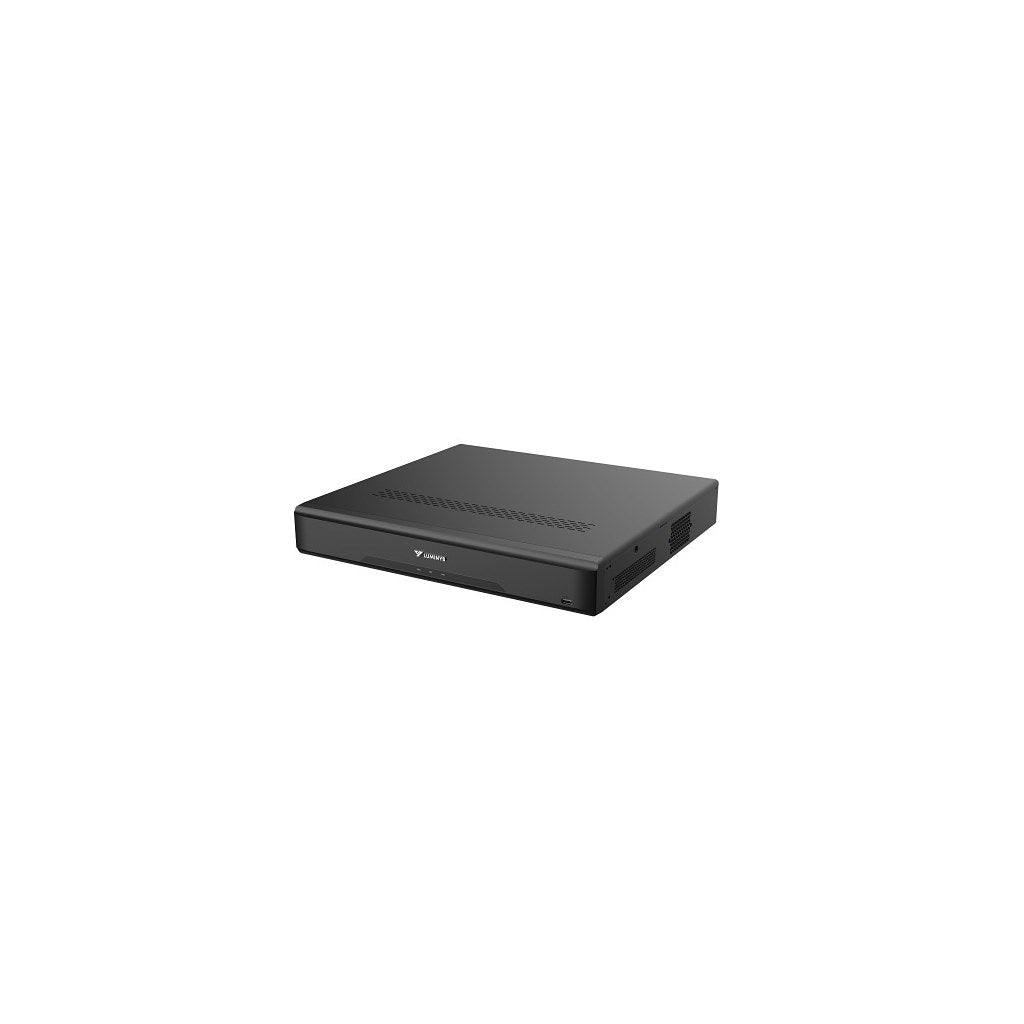

Luminys R54-32PA 32-Channel 8K PoE Network Video Recorder for Security Systems

Luminys R54-32PA 32-Channel 8K PoE Network Video Recorder for Security Systems

The Luminys R54-32PA Network Video Recorder manages up to 32 IP cameras with 8K output, 24 PoE ports, and support for recording resolutions up to 32MP. It combines high-bandwidth video recording, local storage expansion, and recorder-based analytics in a rack- or desktop-mountable R5 Mainstream Series platform.

This 32-channel PoE NVR is built for commercial security systems, campuses, warehouses, retail locations, and larger surveillance deployments. Buyers looking for an 8K network video recorder, 32-channel security NVR, or PoE surveillance recorder get flexible camera management with 4 SATA bays and one eSATA port.

The R54-32PA supports LumiSearch+, iMD, VCA, face recognition, license plate recognition, ONVIF interoperability, and LumiViewer access. LumiPower support on PoE ports 1-8 extends power and data transmission up to 3,000 feet, helping installers simplify long-distance camera runs in larger security infrastructures.

32-Channel 8K PoE NVR for Security Recording

• 32-Channel Recording: Records and manages up to 32 IP camera channels for scalable surveillance deployments.
• 24 PoE Ports: Provides 24 self-adaptive PoE ports, with LumiPower support on ports 1-8 for long-distance camera connections.
• High Recording Bandwidth: Supports up to 400 Mbps incoming and outgoing bandwidth with AI off, or 220 Mbps with AI on.
• 32MP Camera Support: Records resolutions up to 32MP for high-detail security video capture.
• Advanced Analytics: Supports intelligent motion detection, video content analytics, face recognition, LumiSearch+, metadata, and license plate recognition.
• Flexible Storage Expansion: Includes four SATA ports and one eSATA port, with support for up to 16TB per internal HDD.
• Dual Display Output: Offers HDMI and VGA outputs with independent and simultaneous display configurations.
• Professional Deployment Options: Supports rack or desktop mounting for control rooms, equipment racks, and security closets.

Technical Specifications

• SKU: R54-32PA
• ADI Part Number: LY-R5432PA
• Product Series: R5 Mainstream
• Product Type: Network video recorder
• Video Input: 32 channels
• Recording Resolutions: 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
• Effective Camera Resolution: Up to 32MP
• Maximum Frame Rate: 30 fps
• Output Resolutions: HDMI up to 4K 3840 x 2160, 1920 x 1080, 1280 x 1024; VGA up to 1920 x 1080, 1280 x 1024
• Display Output Modes: HDMI1/HDMI2 independent output, HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
• Live View/Playback Resolutions: 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
• Video Compression: Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG
• Decoding Capability with AI On: 1 channel at 32MP, 2 channels at 16MP, 4 channels at 8MP, 12 channels at 4MP, or 24 channels at 1080p, all at 30 fps
• Decoding Capability with AI Off: 2 channels at 32MP, 4 channels at 16MP, 8 channels at 8MP, 16 channels at 4MP, or 32 channels at 1080p, all at 30 fps
• Live View Window Division: 1, 4, 9, 16, 25, 36 views
• Auxiliary Port Window Division: 1, 4, 8, 9, 16 views
• Synchronous Playback: 16 channels
• Intelligent Motion Detection: Camera 16 channels, NVR 8 channels
• Video Content Analytics: Camera 16 channels, NVR 4 channels, 10 rules per channel
• Face Recognition: Face capture and recognition 2 channels; face picture comparison alarm from camera 16 channels
• Face Library Capacity: Up to 20 face picture libraries, 20,000 pictures total
• LumiSearch+: 16 channels with compatible LumiSearch+-enabled cameras
• Video Metadata: 8 channels, analytics by camera
• License Plate Recognition: 8 channels with LPR camera required; two block lists, two allow lists, up to 20,000 plate numbers
• Network Bandwidth with AI On: 220 Mbps incoming, 220 Mbps outgoing
• Network Bandwidth with AI Off: 400 Mbps incoming, 400 Mbps outgoing
• Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
• Interoperability: ONVIF, RTSP
• PoE Standard: IEEE 802.3 af/at
• Network Clients: LumiViewer, LumiViewer Mobile App, LumiCloud
• SATA Ports: 4
• eSATA Ports: 1
• Internal HDD Support: Up to 16TB per HDD
• Total Internal Storage Support: Up to 64TB with four 16TB HDDs, not included
• Network Port: 1 x RJ45 self-adaptive Ethernet, 10/100/1000 Mbps
• PoE Ports: 24 x RJ45 self-adaptive Ethernet, 10/100 Mbps
• LumiPower Support: PoE ports 1-8
• USB Ports: 1 x front-panel USB 2.0, 2 x rear-panel USB 3.0
• Serial Port: 1 x RS-232
• Alarm Input/Output: 16 inputs, 6 outputs
• Audio Input/Output: 1-channel RCA input, 2-channel RCA output
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Power Consumption: Less than 13 W without HDD
• PoE Power Budget: 210 W, maximum single-port output 25.5 W
• Installation Method: Rack or desktop mount
• Operating Temperature: 14°F to 131°F
• Operating Humidity: 10% to 93%
• Dimensions: 17.4" x 16.3" x 2.7" W x D x H
• Weight: 10.4 lbs without HDD
• Certifications: FCC
• Compliance: NDAA
