LynTec DDR Dual DMX Relay Power Control Switch

LynTec DDR Dual DMX Relay Power Control Switch

The LynTec DDR Dual DMX Relay is a compact, IP65-rated power control switch that lets entertainment and AV professionals remotely power fixtures, projectors, distributed loads, and remote gear through DMX or RDM. It uses one input to feed two independently controlled outputs for fast, flexible deployment.

Built for touring rigs, temporary installs, architectural uplighting, and outdoor events, the DDR helps simplify remote power switching without routing every load back to a rack. It is a practical choice for buyers looking to purchase a DMX relay switch, add portable relay control for lighting, or manage DMX power switching for events.

DMX512 compatibility, full RDM support, 5-pin XLR DMX input and pass-through, and LED status indicators make the DDR easy to integrate into professional lighting networks. Its rugged housing, truss and wall mounting options, and wide voltage range support demanding AV, production, and installation environments.

Key Features

• Dual-Channel Relay Control: Two oversized mechanical relays provide independently controlled power switching for connected equipment.
• DMX and RDM Integration: DMX512 compatibility and full RDM support allow remote discovery, addressing, and control.
• IP65-Rated Housing: Weather-proof construction supports professional use in outdoor events and demanding environments.

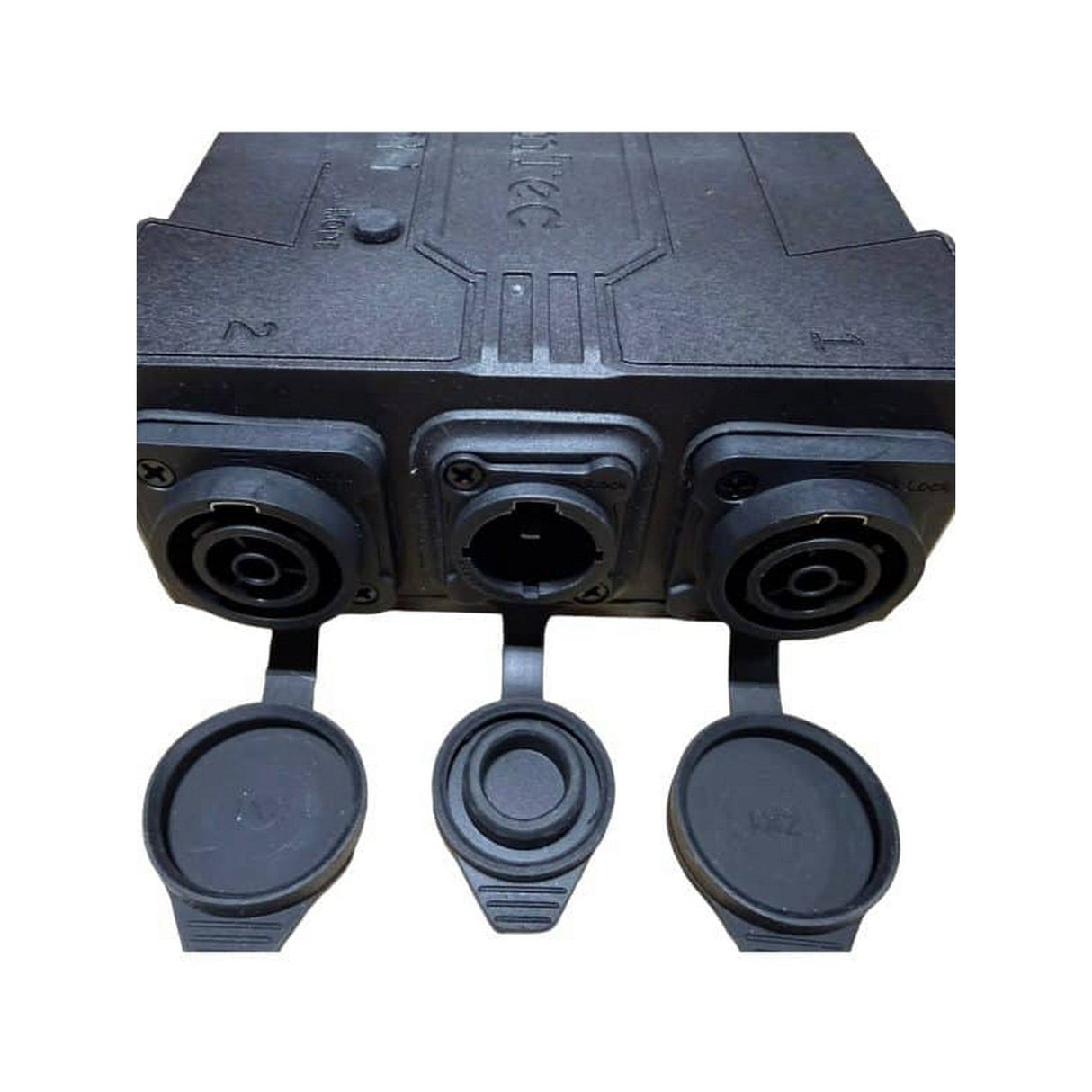

• Power Linking Connections: Seetronic Powerkon IP65 True1-style input and output connections support reliable power routing.
• Five Operating Modes: DMX512 compatibility includes five operating modes, including DMX Sense.
• Flexible Mounting: M12 and M10 threads support clamp or truss mounting, with additional wall mount and stackable options.

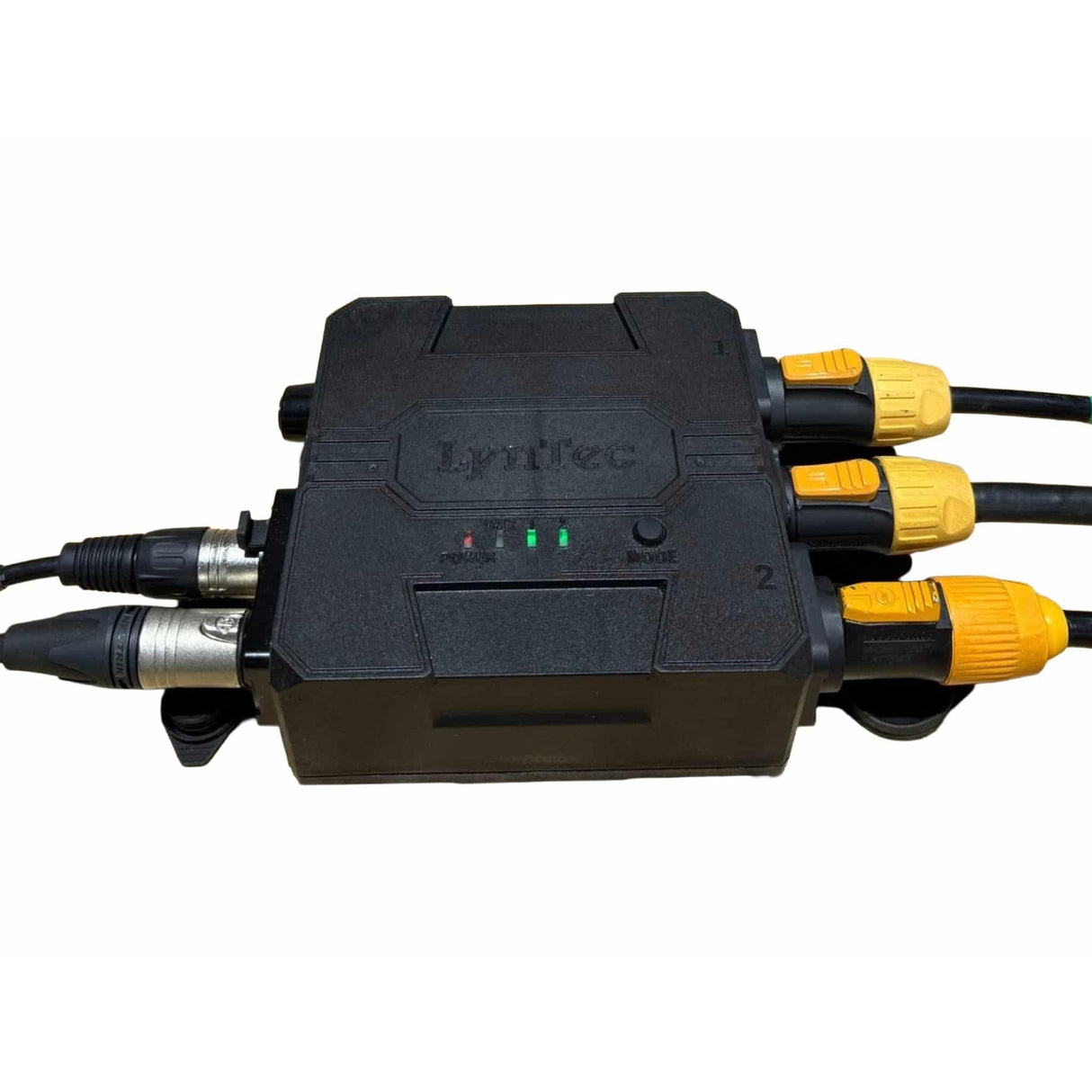

• Status Monitoring: LED indicators show power and DMX status for quick visual confirmation during setup and operation.
• Global Voltage Support: Auto-ranging 100 to 240 VAC, 50/60 Hz input voltage supports broad application use.

Technical Specifications

• Product Name: Dual DMX Relay
• Model: DDR
• Item Code: 10082704
• DMX Channels: 2

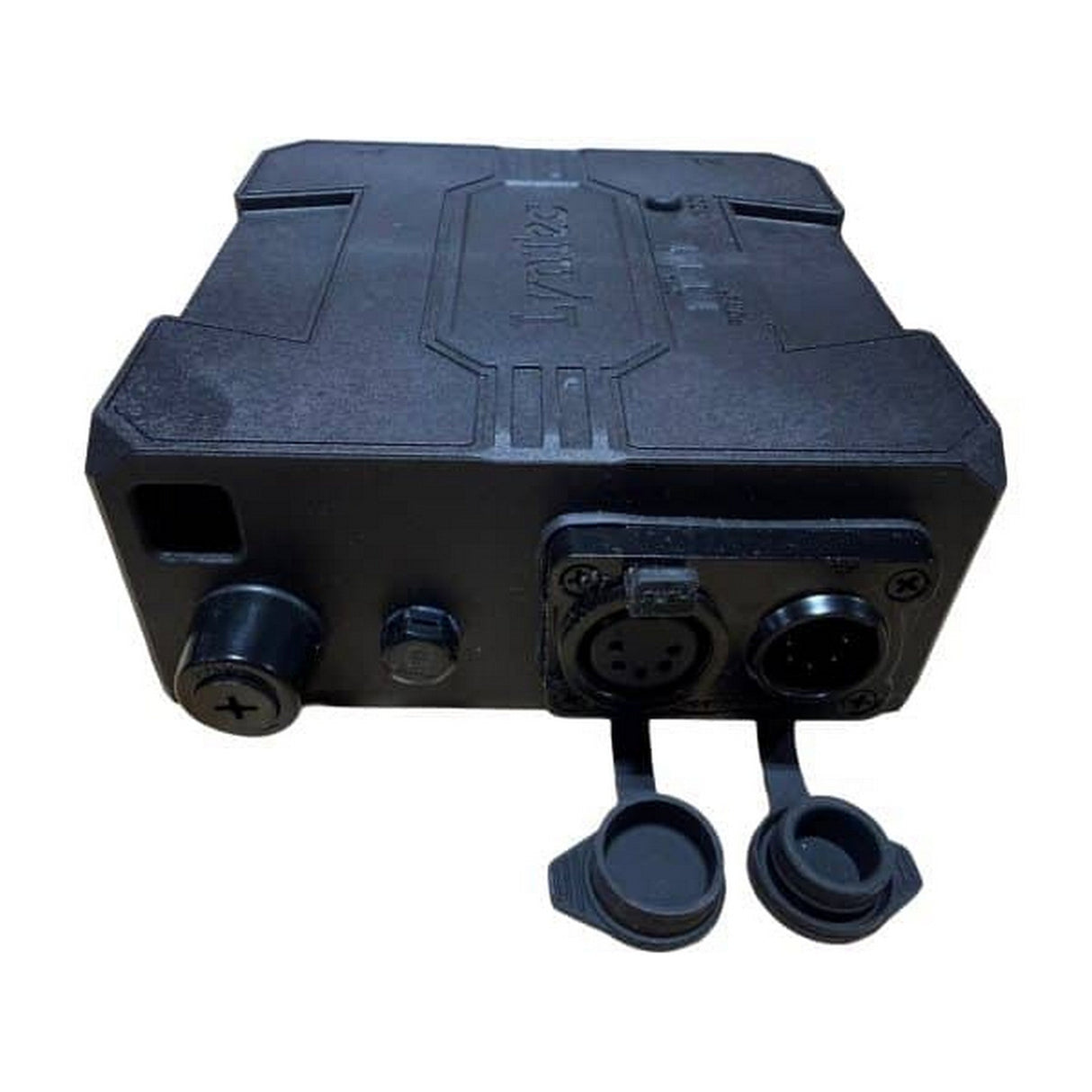

• DMX Connectors: 5-pin XLR
• Control Compatibility: DMX512 and RDM
• IP Rating: IP65
• Startup Temperature: -4°F to 113°F
• Operating Temperature: -22°F to 113°F
• Cable Length: 5 ft
• US Version Output: 20 A per channel, 20 A max
• EU Version Output: 16 A per channel, 16 A max
• Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
• Mounting Options: Truss, wall mount, stackable
• Approvals: CE, MET, ROHS, FCC
• Weight: 1.1 lb

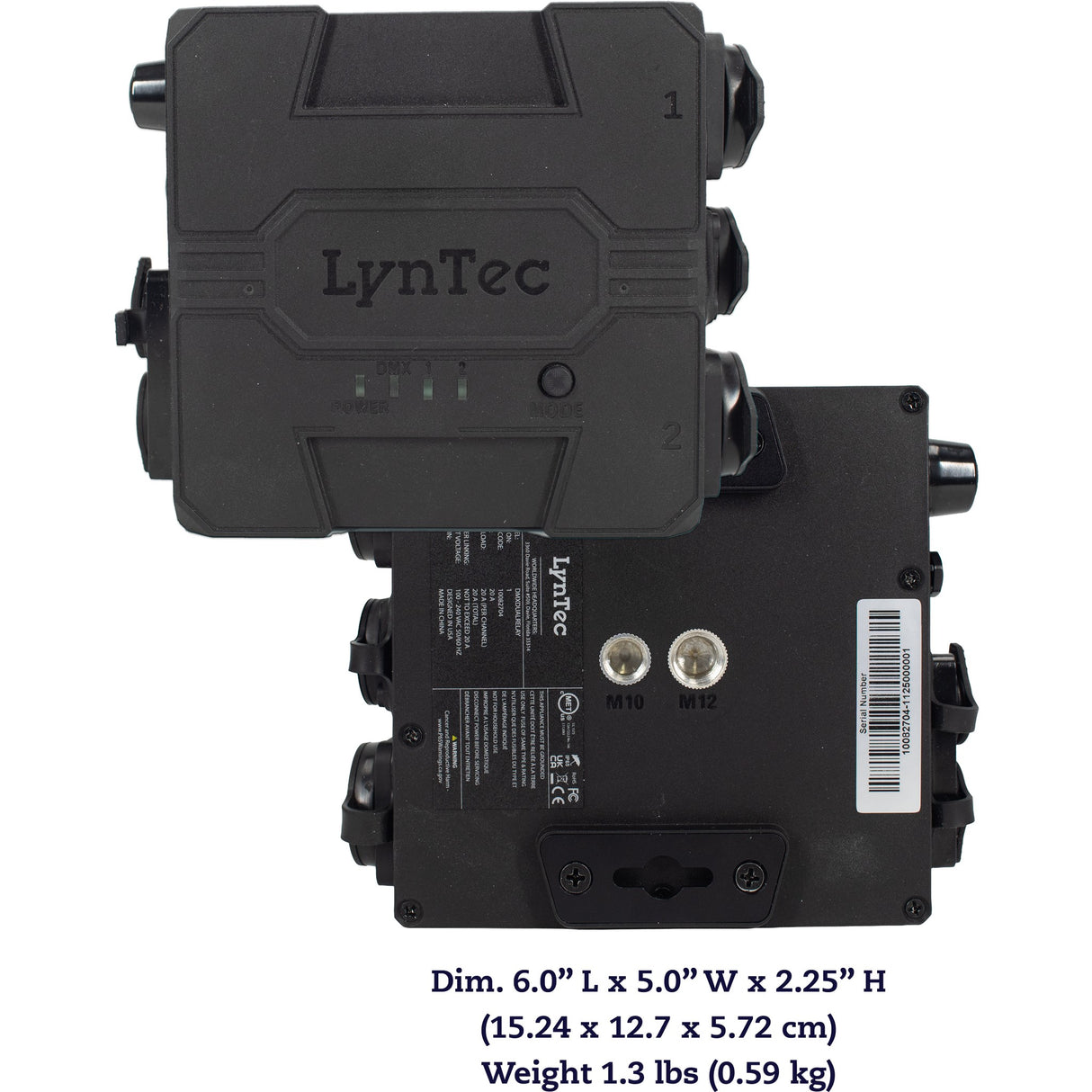

• Dimensions: 6" x 5" x 2.3"

What's Included

• DMX Dual Relay
• Power Cable
• Quick Reference Guide
