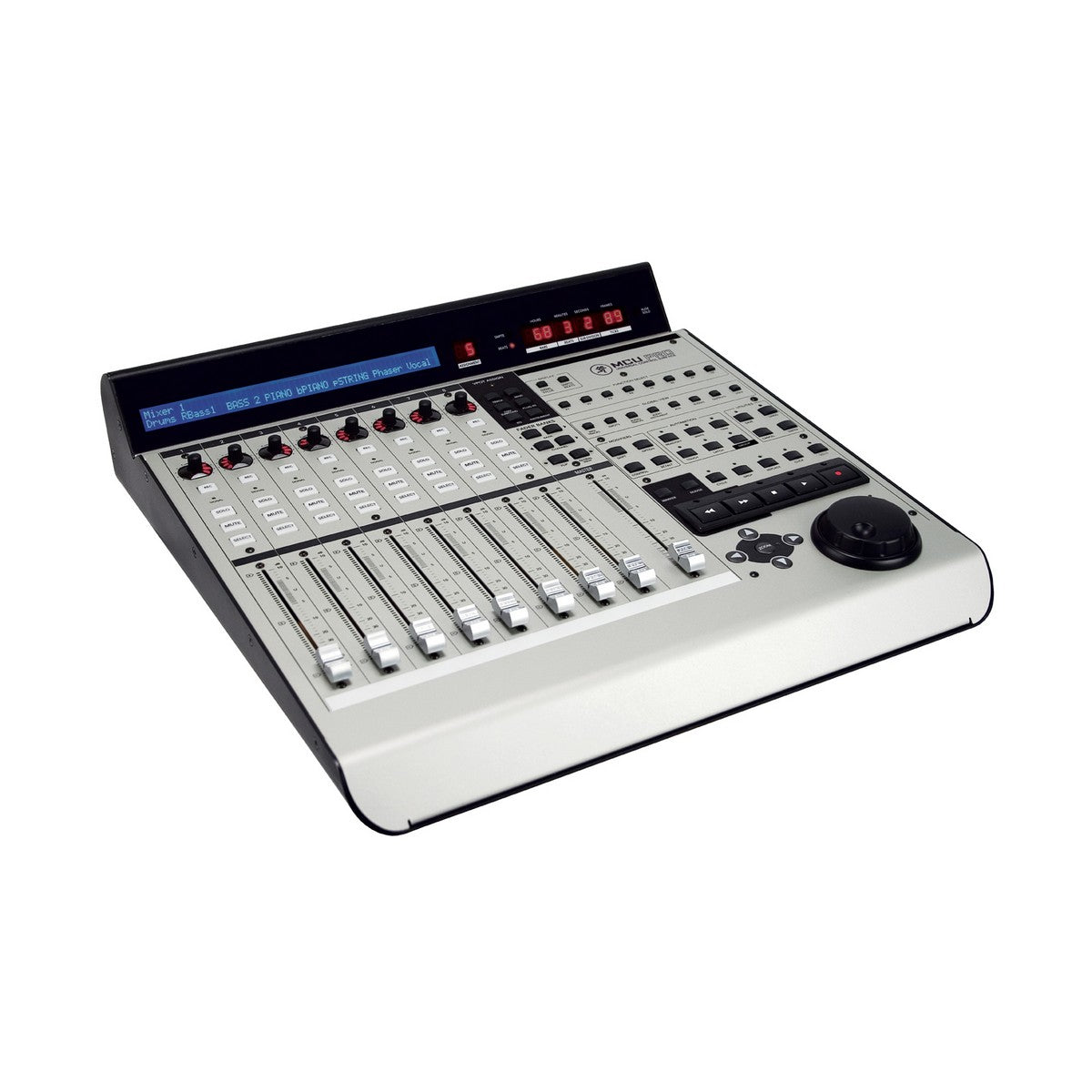

Mackie MCU Pro 8-Channel Control Surface with USB

The Mackie Control Universal Pro from Mackie is a 9-fader (8-channels + master) USB/MIDI controller that provides mixing, editing, automation and navigational control for any supported digital audio workstation. Utilizing a proprietary communication protocol allows the controller to "talk" to various software applications without additional set-up.

The unit communicates with the computer via USB and provides connectors for up to three pieces of external MIDI gear. For some users this functionality could allow them to remove any external MIDI interfaces from their systems.

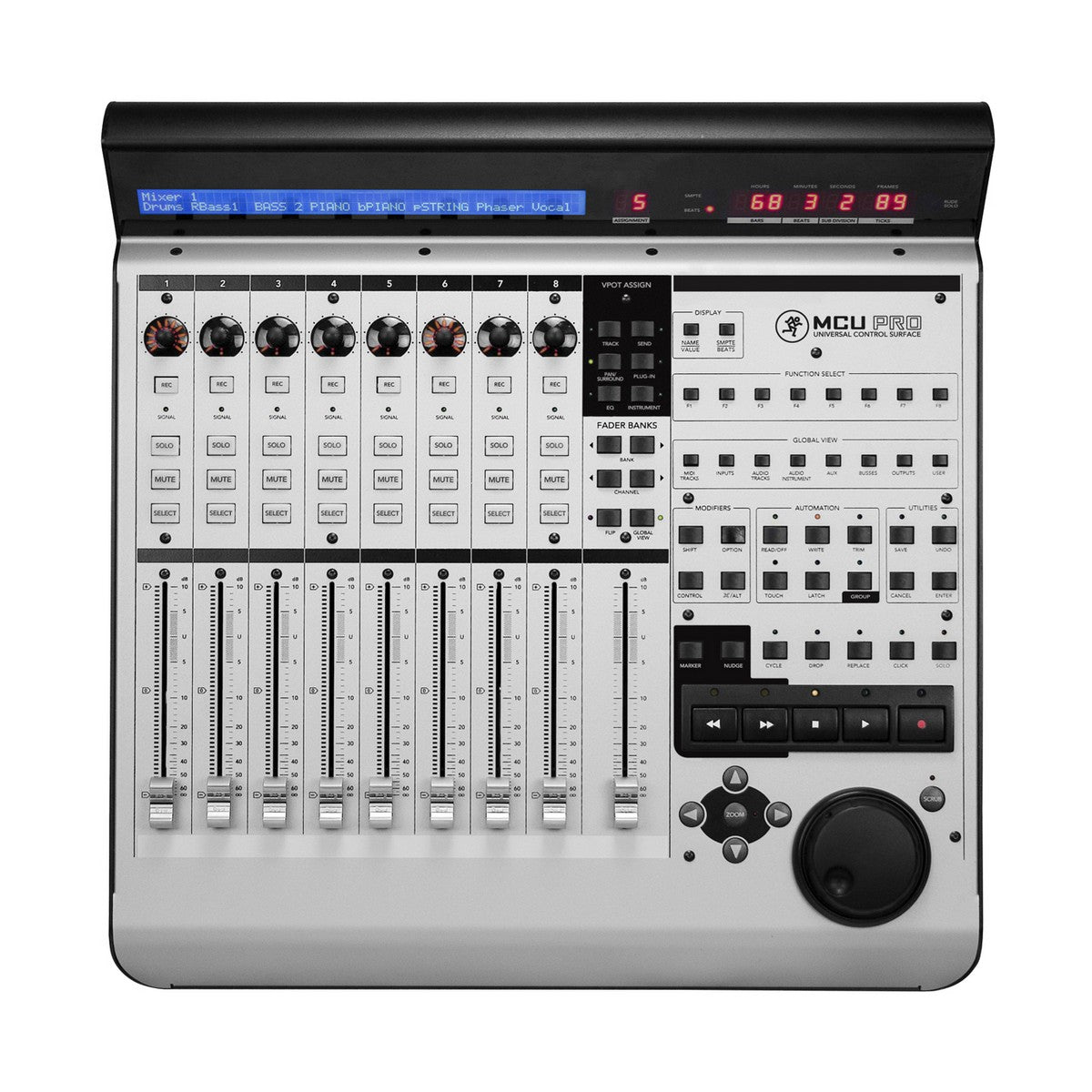

Each of the 8 channel strips includes a 100 mm, Alps touch-sensitive motorized fader in addition to mute, solo, and record arming buttons. Also included is a Signal LED, a Channel Select button, and a V-Pot that can be used to control panning, send levels, EQ, dynamics, and other DSP plug-in modules. The control surface also contains a full automation assignment section, edit buttons, Undo, Redo, and Save buttons, and a Shift Modifier that offers dual functionality for specific commands.

Navigational control is provided in a tape-style transport with Jog/Shuttle wheel, Loop In/Out points, and timeline quick jump buttons. The unit works seamlessly with all the major music software programs, and DAW-specific Lexan overlays that fit right over the master section can be used to "personalize" the control surface.

Key Features

• Expandable touch-sensitive control surface with 100mm motorized faders
• Proprietary Mackie communication protocol for seamless music production software integration
• 100 mm touch-sensitive Alps motorized faders
• Channel mute, solo, pan, send level and record arm functions
• Multi-functional rotary encoders
• Editing controls include cut/copy/paste
• Tape-style transport with RTZ/END jump buttons
• Shift modifier for dual function commands
• Full meter display with track names and parameters

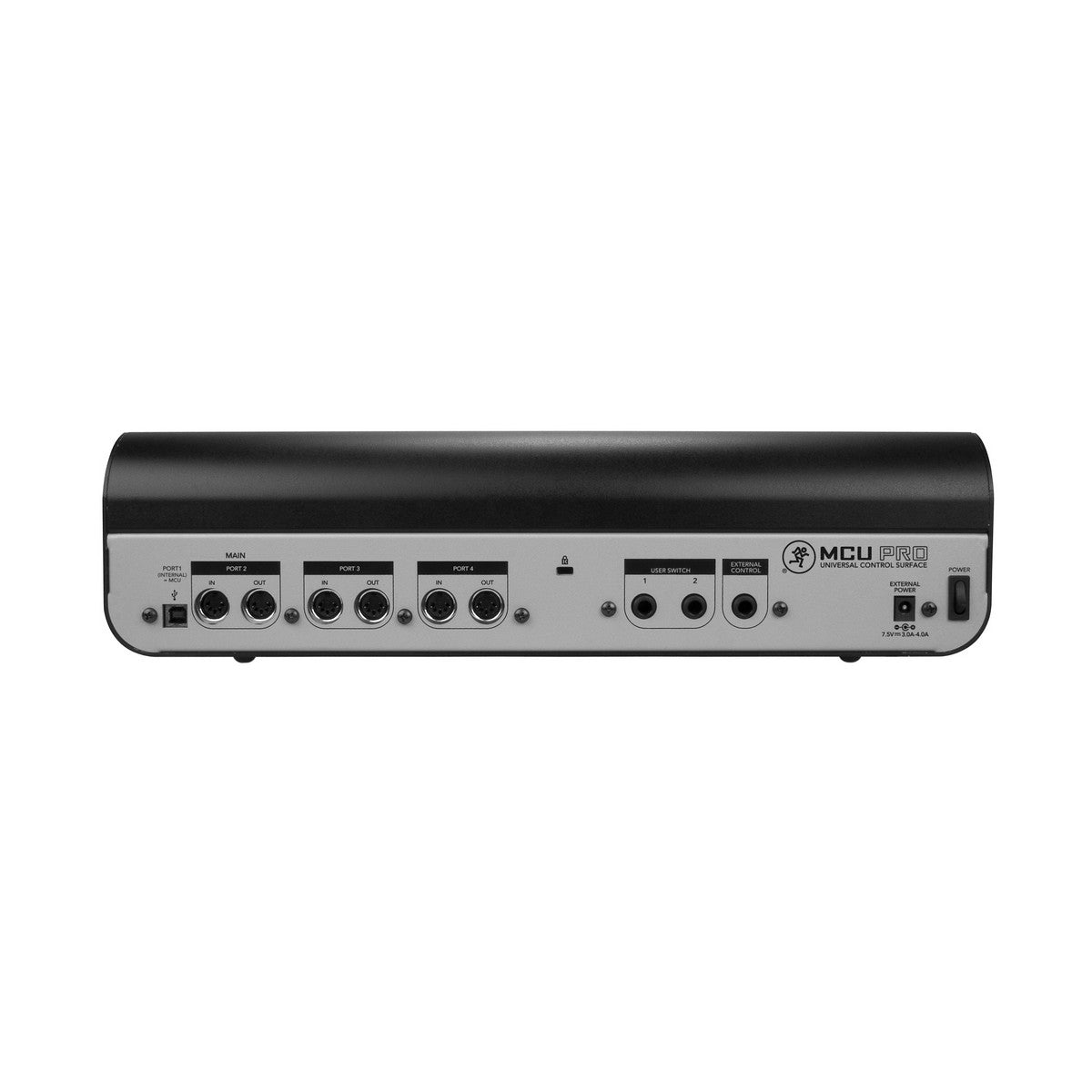

• Onboard USB MIDI interface for direct connection to Mac or PC and up to three additional pieces of external MIDI gear
• Expandable via optional Mackie Control Extender Pro and C4 Pro modules

Technical Specifications

Connection
USB/MIDI

Faders
9

Transport Controls
Yes

Jog/Shuttle
Yes

Rotary Controls
8

Numeric Keypad
No

Display
40 x 2 character LED
Two digit LED
SMPTE Time Code read-out

Multiple Units
Yes

Included Software
No

Software Supported
ACID Pro 6
Audition
Cubase
Digital Performer
Final Cut Pro 5
Logic
Live 5
Nuendo
Pro Tools
Reason 3
Samplitude
SAWStudio
Sequoia
Sonar
Soundscape
Soundtrack Pro
Tracktion
Vegas

System Requirements
Free computer USB port

Dimensions (WxDxH)
16.5 x 16.9 x 4.7" (419 x 429 x 120mm)

Weight
11.8 lbs (5.4kg)
