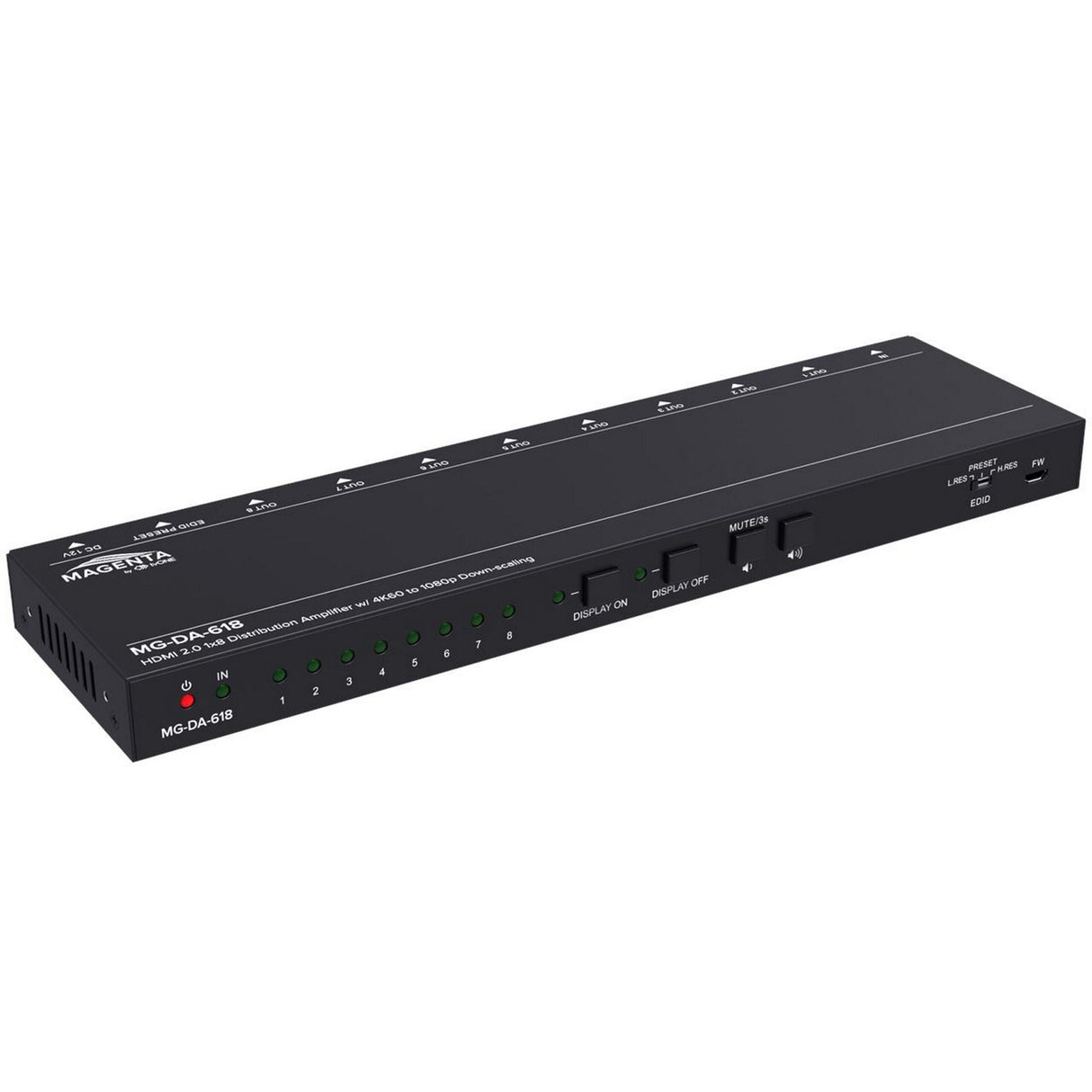

Magenta Research MG-DA-618 1 x 8 4K60 HDMI 2.0 Ultra Slim Distribution Amplifier

The Magenta Research series of ultra-slim HDMI 2.0 Splitters and MG-DA-618 Distribution Amplifier provides a high-performance solution for distributing HDMI signals with video output up to 4K2K@60Hz (YUV444) resolutions and HDR (High Dynamic Range Imaging) support, which gives the most life like video experience. Support is also offered for up to 32 audio channels with sampling rates up to 192kHz and passthrough of 7.1 channels of digital audio including high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos.

Key Features

• Supports HDMI 2.0 and up to 4K@60Hz 4:4:4.
• HDCP 2.2
• HDR
• 3D pass through
• 18Gbps high bandwidth
• Ultra Slim less than 18mm in height
• Advanced EDID management
• Supports CEC pass through

Technical Specifications

Video Input
Input (1) HDMI
Input Connector (1) Type-A female HDMI
HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard 2.0a
HDCP Version 2.2, 1.4 compliant
CEC Supported
Video Output
(8) HDMI
Output Connector Type-A female HDMI
HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI 2.0
HDCP 2.2, 1.4 compliant
CEC Supported
Control
Control Port: (1) EDID 4-pin DIP switch, (1) Micro-USB port
General
Bandwidth: 18Gbps
Input Connector: 4K@60Hz 4:4:4 <= 5m, 4K@60Hz 4:2:0 <= 15m,1080P <= 20m
Operation Temperature: -10C - +55C
Storage Temperature: -25C - +70C
Relative Humility: 10%-90%
Power Supply: Input 100V~240V AC, Output: 12v DC 1A
Power Consumption: 7W (Max)
Replacement Power Supply: PS-12-10-LK
Dimension (W x H x D): 10.32 inch x 0.78 inch x 2.75 inch (260mm x 20mm x 70mm)
Net Weight: 1.1 lbs (500g)
Item Includes
1x HDMI 2.0 Distrubution Amplifier
2x Mounting Ears with 4 Screws
4x Plastic Cushions
1x Power Adapter
1x User guide
1x Safety, liability, and warranty guide
Warranty
5 Years
