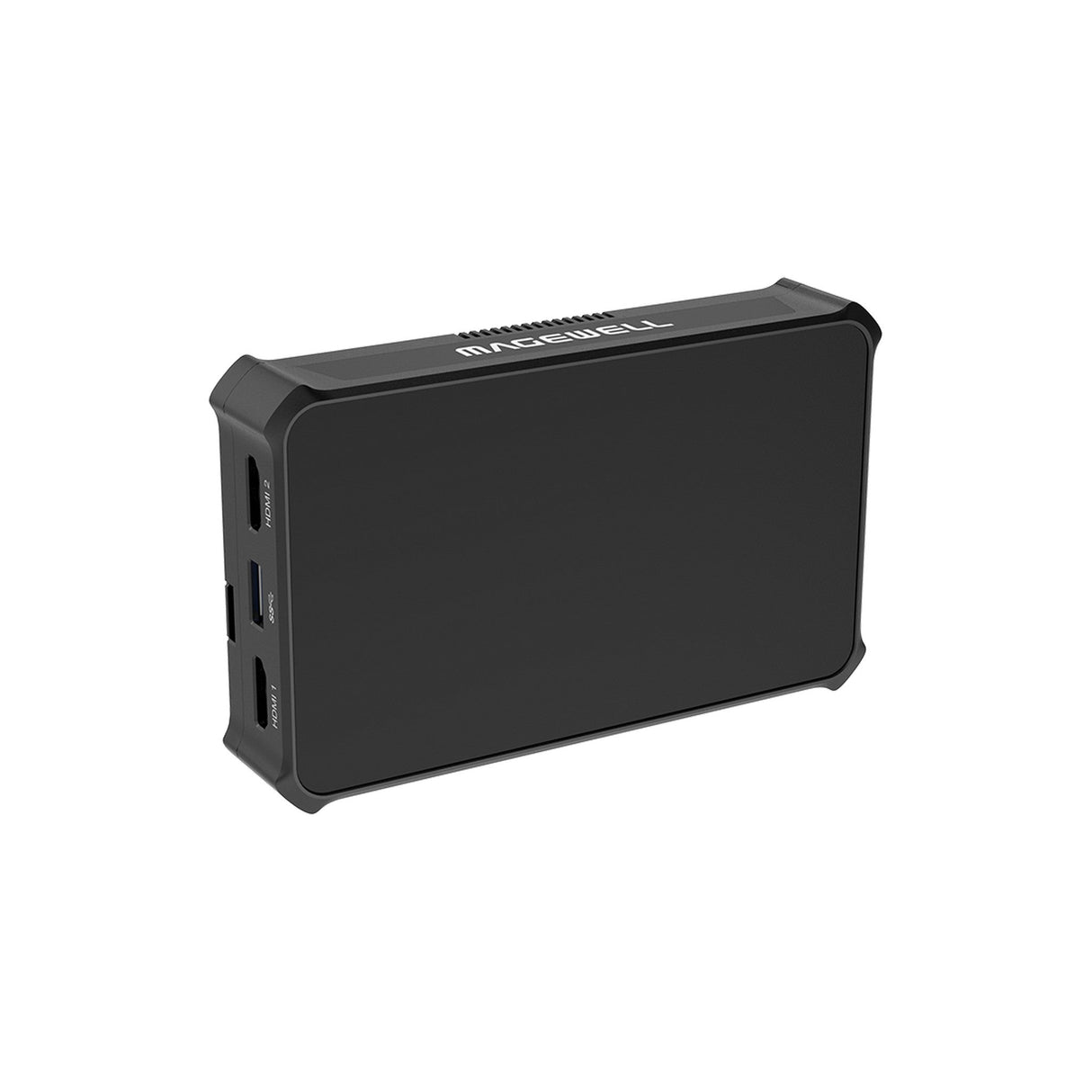

Magewell Director Mini Multi-Input Switcher

The Magewell Director Mini is a compact and versatile multi-input switcher designed for live streaming, recording, and monitoring. With its sleek form factor, this powerful device enables users to seamlessly switch between multiple video sources, making it an ideal solution for professionals in the broadcasting, education, and event production industries. The Director Mini not only simplifies the production process but also ensures high-quality video output, providing a reliable platform for content creators looking to elevate their productions.

Equipped with advanced encoding capabilities, the Magewell Director Mini supports a wide range of input formats, allowing users to connect various devices easily. Whether you’re integrating cameras, computers, or other video sources, the Director Mini ensures smooth transitions and high-quality visuals. The built-in monitoring features also allow for real-time oversight of all sources, ensuring that your broadcast remains professional and polished at all times.

The Magewell Director Mini is designed for user-friendliness without compromising on functionality. The intuitive interface simplifies the switching process, enabling users to focus on their content rather than technical difficulties. Additionally, the device supports streaming to popular platforms, making it an excellent choice for those looking to engage with audiences online. With its ability to record streams directly to storage devices, the Director Mini provides a comprehensive solution for content creation and distribution.

Key Features

• Multi-input switching for seamless transitions between video sources.
• High-quality video encoding for superior broadcast quality.
• Real-time monitoring capabilities to maintain production standards.
• Support for various input formats, including HDMI and USB.
• User-friendly interface for efficient operation during live events.
• Direct streaming to popular platforms, enhancing audience engagement.
• Integrated recording features for easy content management.

Technical Specifications

Input Ports
4 x HDMI
2 x HDMI 2.0 Type-A port
Video Input Typical Resolution/Frame Rate
4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 25/29.97/30
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p 50/100
720x576i 25/50
720x480p 59.94/60
720x480i 29.97/30

Color Depth
8/10/12-bit
Color Sampling
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

USB Ports
2 x USB 3.0 Type-A port, 1 x USB 3.0 Type-C port
USB Format
YUYV, MJPG, NV12, UYUV
USB Resolution/Frame Rate
Single USB-A input: Up to 1920x1080p, 60fps
Single USB-C input: Up to 1920x1080p, 60fps
Dual USB-A input: Up to 1920x1080p, 50fps + 1920x1080p, 30fps
One USB-A input + one USB-C input: Up to 1920x1080p, 60fps + 1920x1080p, 60fps

Phone Camera Connection Mode
LAN
Phone Camera Resolution/Frame Rate
Up to 1080p, 60fps

SRT Caller/Listener Codec
H.264, H.265
SRT Resolution/Frame Rate
Up to 1080p, 60fps

RTMP Pull/Push Codec
H.264
RTMP Resolution/Frame Rate
Up to 1080p, 60fps

RTSP Stream Codec
H.264, H.265
RTSP Resolution/Frame Rate
Up to 1080p, 60fps

NDI Stream
NDI|HX2, NDI|HX3, Full NDI
NDI Codec
H.264, H.265
NDI Resolution/Frame Rate
Up to 1080p, 60fps

Video Resolution
Up to 4K
Video Codec
H.264, H.265
Video Format
MOV/MP4

Picture Format
JPEG/PNG/BMP
Webpage Support
Supports adding up to 3 webpages as scenes and 7 webpages as GFXs

Audio Input
Mic/line in: 1 x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Audio input from HDMI/USB/Bluetooth: 2-channel, 48 KHz, 16-bit
Audio from various streaming protocols and files
Background music (BGM): MP3, M4A, WAV files

Video Output
Streaming and recording codec: H.264, H.265
Resolution: 1080p, 720p, 540p, 360p (only for NDI)
Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps
Bitrate: NDI® HX3: up to 62.0Mbps, others: up to 30.0Mbps

USB-C Output
1 x USB 3.0 Type-C port
Output mode: DP-OUT, UVC/UAC
Resolution: 1920x1080
Frame rate: 60fps, 50fps
Sampling format: RGB 4:4:4, RGB24

Audio Output
Streaming and recording: 2-channel, 16-bit, 48 KHz, aac
Headphone output: 1 x 3.5mm jack, 2-channel, 48 KHz, 16-bit

Network Support
Supports Ethernet, WiFi, and Cellular connections
Ethernet: 1 x RJ45 port, 10/100/1000 Mbps Base-T
WiFi: 2.4G/5G, Station and Hotspot modes
Bluetooth: BT 5.0

Power
AC power input: 12V/1.5A, max power consumption: 15W
Battery pack: 2 x DC 7.4V (not supplied), hot swappable

Working Environment
Operating temperature: –10 to 50 deg C (AC power)
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
