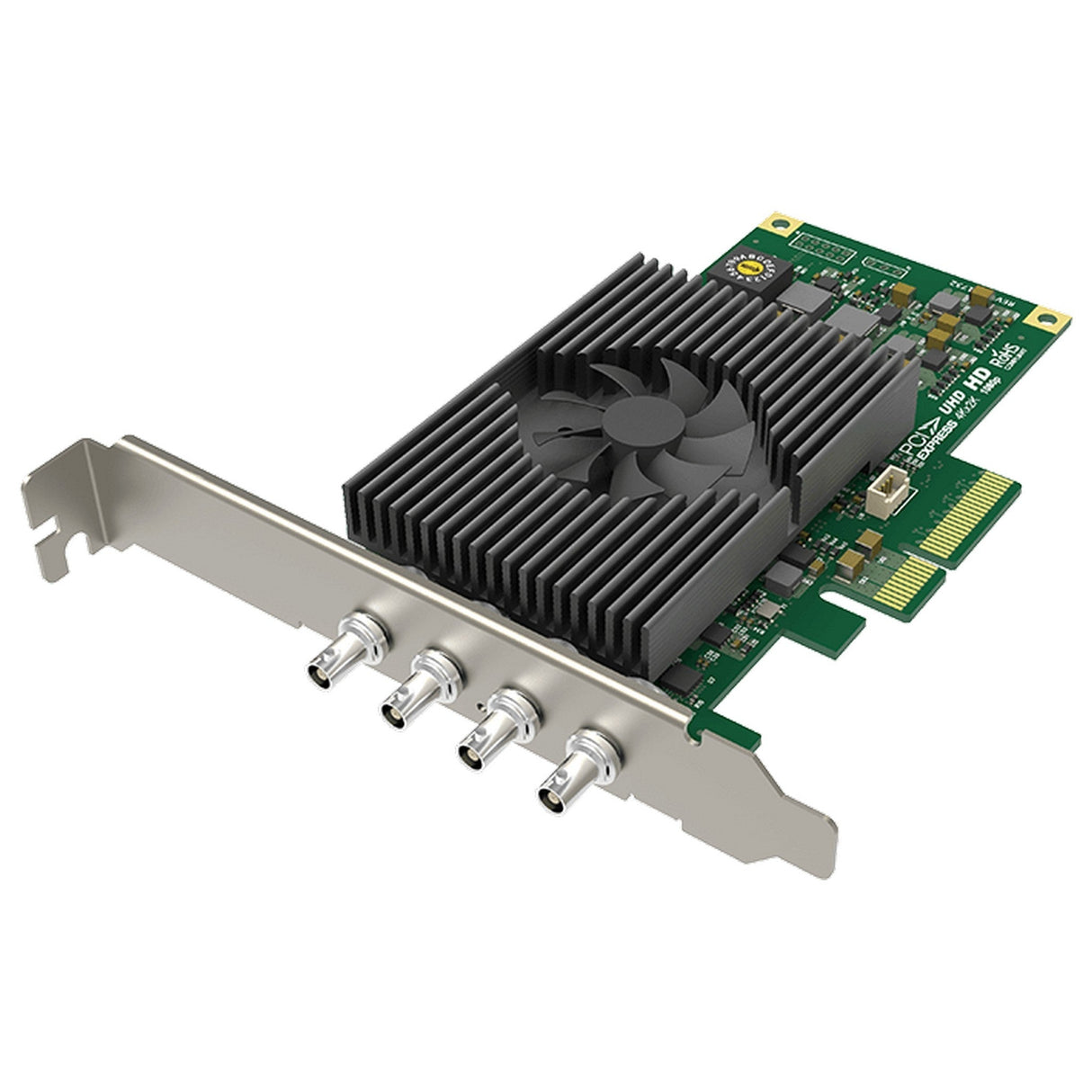

Magewell Pro Capture SDI 4K Plus 1-Channel 4K Capture Card

Magewell | SKU: MAGE-PROCAPTURESDI4KPLUS-11180
$99900

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


Magewell Pro Capture SDI 4K Plus 1-Channel 4K Capture Card

The Magewell Pro Capture SDI 4K Plus 1-Channel 4K Capture Card is designed to deliver exceptional performance and flexibility for video capture in professional settings. This advanced capture card supports 4K video at 60 frames per second, making it an ideal choice for high-resolution broadcasting, live streaming, and video production. With its SDI input, this capture card ensures reliable and high-quality signal transmission, making it suitable for various applications in the media and entertainment industries.

Engineered for versatility, the Pro Capture SDI 4K Plus features a compact design that easily integrates into any production environment. Whether you're a content creator, a broadcaster, or involved in live event production, this card offers robust features that enhance your workflow. Its ability to capture from a wide range of SDI sources ensures that you can connect to existing equipment seamlessly, allowing you to elevate your video quality without needing extensive equipment upgrades.

With support for various color spaces and video formats, including 4:2:2 and 4:2:0, the Magewell Pro Capture SDI 4K Plus is designed to meet the needs of demanding applications. The card also features hardware-based encoding options, which reduce the load on your CPU and provide smoother operation during streaming and recording. This makes it not only a powerful tool for video capture but also an essential asset for any professional looking to achieve stunning visuals and maintain high production standards.

Key Features

  • 4K capture at 60fps for high-quality video streaming and recording.
  • Single-channel SDI input with loop-through capability.
  • Support for a variety of video formats and color spaces.
  • Hardware-based encoding for efficient processing.
  • Compact design for easy integration into production setups.

Technical Specifications

Dimensions
4.5" x 4.3" x 0.8"
Weight
0.5 lbs

Input Interface
1 x 3G/HD/SD-SDI
Output Interface
1 x 3G/HD/SD-SDI loop-through

Video Capture
4K @ 60fps
Supported Formats
4:2:2, 4:2:0

Power Consumption
5V, 1A

Operating System Compatibility
Windows, Linux, macOS

Supported OS
Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
Linux (support x86, x64 & ARM architecture): Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above, CentOS 6.5/7 (x86 & x64) and above, Fedora 25/26/27 (x86 & x64) and above, Red Hat 6.5 (x86 & x64) and above, Other Linux OS with kernel version 2.6.35 and above
Mac OS X 10.9/10.10/10.11 and above; macOS 10.12/10.13/10.14/10.15/11/12/13 (not yet supporting macOS 14).

Recommended OS (tested)
Windows: Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux: Ubuntu 12.04/14.04/16.04 (x86 & x64), Ubuntu 17.04/17.10/18.04 (x64), CentOS 6.5/7.2 (x86 & x64), Fedora 25/26 (x64), Red Hat 6.5 (x86 & x64)
Mac: OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4; macOS 10.12/10.13.2/10.13.3/10.14.3/10.15/11/12/13

Supported APIs
Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA
macOS: AVCaptureSession, AudioUnit

Input Interfaces
HD-BNC x4: Two connectors compatible with SD/HD/3G SDI, One connector compatible with SD/HD/3G/6G SDI, One connector compatible with SD/HD/3G/6G/12G SDI
Host Interfaces
PCIe Gen2 x4

Input Features
Support for input video resolutions up to 4096x2160 pixels, Auto detection of Single Link, Dual Link, Quad Link

SDI Specific Features
Integrated cable equalizer extending the cable length as follows: up to 330m for SD-SDI signals, up to 190m for HD-SDI signals, up to 150m for 3G-SDI signals, up to 75m for 6G-SDI signals, up to 40m for 12G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G/12G
Support for 2K (2048x1080) & 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Support for Closed Caption via SDK

Video Capture Formats
Support for capture image resolutions up to 4096x2160 pixels, Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK

Video Processing Features
Two video processing pipelines with ~720 Mpixels/s processing bandwidth for each one
Full 10-bit video processing, Video cropping, Video scaling, Video de-interlacing
Weave, Blend top & bottom field, Top field only, Bottom field only
Video aspect ratio conversion, Auto or manual selection of input aspect ratio, Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion, Auto or manual selection of input color format & quantization range, Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion, Video OSD composition, Support for PNG OSD image (up to 4096x2160), Support for dynamic loading of RGBA OSD image via SDK

Multiple Cards per System
Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Capture Streams
Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream

Ultra Low Latency Support
Latency of 64 video lines
Partial notification mode in SDK

Timestamp & A/V Synchronization
Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA
~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipset

SDK
Magewell Capture SDK for easy integration, maximum flexibility and performance

Windows Driver Tweaks
All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade
Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.

LED Indicator
Status LEDs indicate the working state of each channel:
Pulsing slowly: input signal unlocked
On: input signal locked
Double blinks: memory failed or FPGA configuration failed
Off: firmware or power supply abnormal

Form Factor
Low profile PCIe x4 Add-on Card
5.5" x 2.7" (without PCI bracket)

Accessories
Low profile PCIe
4 x HD-BNC to BNC cable (6.8")

Power Consumption
Max current at 12V:
4 x 3G SDI: ~ 0.65 A
2 x 6G SDI: ~ 0.65 A
1 x 12G SDI: ~ 0.66 A
Max current at 3.3V:
4 x 3G SDI: ~ 0.94 A
2 x 6G SDI: ~ 0.83 A
1 x 12G SDI: ~ 0.75 A
Max power consumption:
4 x 3G SDI: ~ 10.9 W
2 x 6G SDI: ~ 10.59 W
1 x 12G SDI: ~ 10.39 W

Working Environment
Operating temperature: 32 to 140 deg F
Storage temperature: -4 to 158 deg F
Relative Humidity: 5% to 90% non-condensing
