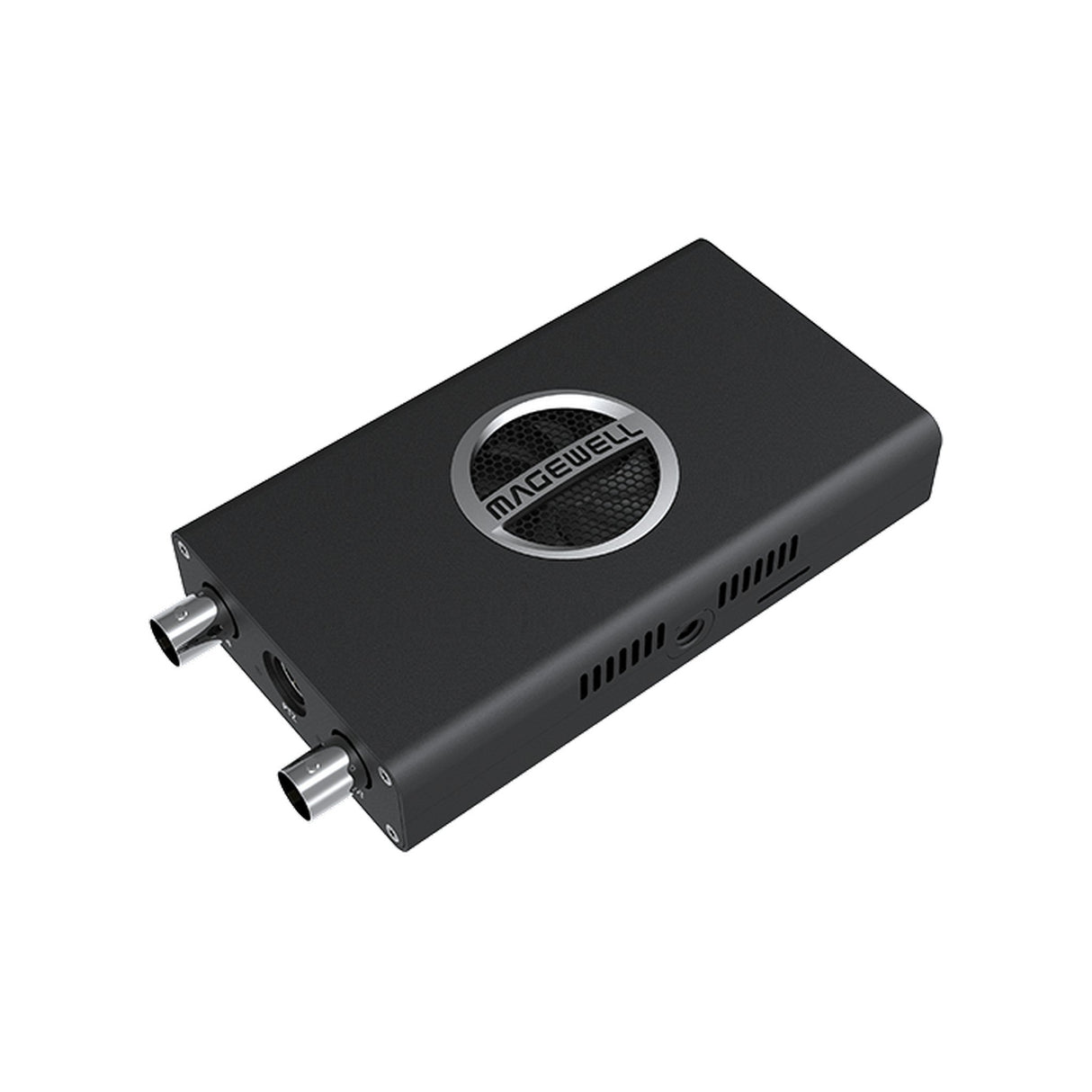

Magewell Pro Convert 12G SDI 4K Plus - 1-Channel of 12G-SDI 4Kp60 to Full NDI with Loop-Through

The Magewell Pro Convert 12G SDI 4K Plus is an advanced video conversion solution designed for professional broadcasters and content creators. With its ability to convert 12G-SDI 4Kp60 signals to Full NDI, this device is perfect for seamless integration into modern IP workflows. Whether you are streaming live events, producing high-quality broadcasts, or managing complex video routing scenarios, the Pro Convert 12G SDI 4K Plus offers unparalleled flexibility and performance.

This 1-channel video converter is not just about converting signals; it also features a loop-through output that allows for simultaneous monitoring of your 12G-SDI input. This means you can easily check your signal integrity and maintain high-quality visuals without the need for additional equipment. The device supports a wide range of resolutions and frame rates, making it suitable for various applications, from live sports to corporate events and everything in between.

Built with reliability in mind, the Magewell Pro Convert 12G SDI 4K Plus is equipped with advanced processing capabilities, ensuring minimal latency and outstanding image quality. Its compact design makes it easy to integrate into any setup, while its robust construction guarantees long-lasting performance. Experience the future of video conversion and broadcasting with the Magewell Pro Convert 12G SDI 4K Plus, where high definition meets cutting-edge technology.

Key Features

• Convert 12G-SDI 4Kp60 signals to Full NDI format
• Loop-through output for real-time monitoring
• Supports a wide range of resolutions and frame rates
• Compact and robust design for easy integration
• Minimal latency and exceptional image quality
• Supports 16-channel SDI embedded audio inputs
• Remote management capabilities via WebUI and Control Hub
• Compatible with various NDI-enabled products like OBS and vMix

Technical Specifications

Input
1 x 12G-SDI
Max Video Input & Loop-Through
4096 x 2160 60fps
Supported Resolutions
4096x2160p, 3840x2160p, 2048x1080p, 1920x1080p (23.98/24/25/29.97/30/47.95/48/50/59.94/60), 2048x1080i, 1920x1080i (25/29.97/30/47.95/48/50/59.94/60), 1280x720p (50/59.94/60), 720x576 (25p/50i PAL SD), 720x480 (29.97p/59.94i NTSC SD)
Color Support
Supports RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth, RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Video Input Standards
Supports RGB, YUV BT.601/709/2020 video input
Audio Input
16-channel SDI embedded audio inputs
SDI Standards
SD/HD/3G/6G/12G-SDI BNC input & loop through (ST 259/292/425/2081/2082)
Transmission Distance
Receive 12G-SDI transmitted up to 30m (98ft), 6G-SDI 80m (262ft)
NDI Encoding Features
Encoding Full NDI real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
Output Resolutions
Same as input or custom resolution (Typical: 4096x2160p, 3840x2160p, etc.)
Output Frame Rate
Same as original, 1/2, 1/3, or 1/4 of input frame rate
Audio Encoding
16-channel NDI-embedded audio
NDI Version Support
Support NDI 5.x
Configuration Management
Register with Control Hub, remote control via WebUI, real-time signal information
USB Support
USB RNDIS/ECM, USB 2.0 Type B
Network Interfaces
10/100/1000Mbps Ethernet, IEEE 802.3af PoE
Form Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Weight
2.2 lbs
Power Supply
5V/2.1A power supply
Power Consumption
Max current: ~1.65A, Max power consumption: ~8.5W
Working Environment
Operating temperature: 0 to 45 °C, Storage temperature: –20 to 70 °C, Relative humidity: 5% to 90% non-condensing
Accessories
USB 2.0 A to B cable, 5V/2.1A power adaptor, Mini-DIN 8 breakout cable, Tally light, L-bracket, Screw Mounting Hole (¼–20 threaded hole)
