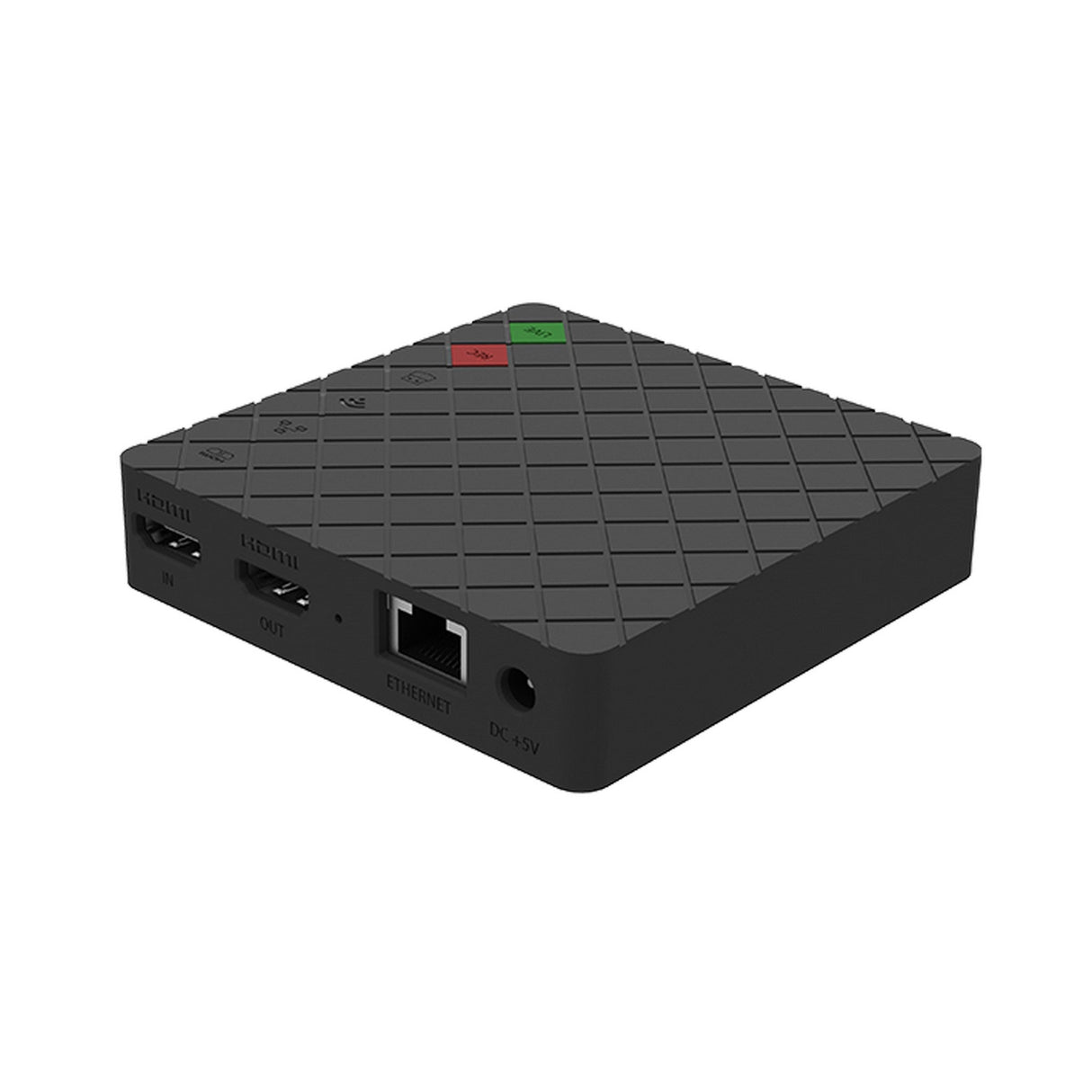

Magewell Ultra Stream HDMI Streaming Encoder with Loop-Through
Magewell Ultra Stream HDMI Streaming Encoder with Loop-Through
Free Shipping
Magewell Ultra Stream HDMI Streaming Encoder with Loop-Through
The Magewell Ultra Stream HDMI Streaming Encoder is a cutting-edge solution designed for live streaming enthusiasts and professionals alike. This versatile device allows users to effortlessly stream high-quality video content directly to popular platforms such as YouTube, Facebook Live, and more. With its robust design and user-friendly interface, the Ultra Stream HDMI makes live broadcasting accessible to everyone, from casual streamers to serious content creators.
One of the standout features of the Ultra Stream HDMI is its loop-through capability. This allows users to connect their HDMI source to both the encoder and a display simultaneously, ensuring that you can monitor your output in real-time while streaming. The device supports resolutions up to 1080p at 60 frames per second, delivering stunning video quality that enhances the viewing experience. Whether youāre streaming a gaming session, a live event, or a presentation, the Magewell Ultra Stream ensures that your audience receives the best quality possible.
In addition to its high-quality video capabilities, the Ultra Stream HDMI is designed with ease of use in mind. The device can be set up quickly, with straightforward controls and an intuitive interface that allows for seamless operation. It also includes features such as dual-streaming, enabling users to broadcast to multiple destinations simultaneously. With built-in encoding and streaming functionality, the Magewell Ultra Stream HDMI is the perfect choice for anyone looking to elevate their live streaming setup.
Key Features
- High-quality video streaming at up to 1080p60
- Loop-through HDMI output for real-time monitoring
- Easy setup and user-friendly controls
- Dual-streaming capabilities to multiple platforms
- Compact and portable design for on-the-go streaming
Technical Specifications
Video Input
HDMI, up to 1080p60
Video Output
HDMI loop-through
Input Features
Max HDMI input & loop-through signals:
4096x2160 4:2:0 60fps
4096x2160 4:4:4/4:2:2 30fps
Custom EDID
Supported HDMI inputs include:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 25/29.97/30/50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
720x576p 50/100/144
720x576i 25/50
720x480p 59.94/60/144
720x480i 29.97/30
8/10/12-bit color
Input & loop-through 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
Input audio from 3.5mm microphone
HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D
Encoding Features
Dual stream encoding: main stream and sub stream
Max bitrate:
Main Stream - 8Mbps
Sub Stream - 2Mbps
Supported resolutions:
HD: 1920x1080, 1600x1200, 1600x900, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from HDMI signal and output through 3.5mm headphone
Encoding videos after de-interlacing
Streaming Features
Natively support streaming to Facebook, Twitch, and YouTube
Supported streaming protocols including RTSP/RTMP/RTMPS
Up to 2 streaming sessions simultaneously
Recording Features
Recording to a USB flash drive, internal SD storage, and paired mobile device simultaneously
To a USB Flash Drive:
support auto-recording, normal recording
recording as MP4 or MOV files
Recording duration can be 5/10/30/40/50/60/90/120 min
Downloading recorded videos via WebUI
To internal SD storage (32GB):
support auto-recording, loop-styled or normal recording
recording as MP4 or MOV files
Recording duration can be 5/10/30/40/50/60/90/120 min
uploading recorded videos to a specified FTP server (FTP over TLS is supported), your Dropbox, and Google Drive via WebUI
Downloading recorded videos via WebUI
To paired mobile device:
recording as MP4 files
taking still image snapshots during recording
timer recording at 15s, 30s, 1min, 2min, 5min
Configuration Management
Register with 2 Control Hub platforms
Remote control via Application, WebUI, and Control Hub
Provide comprehensive information regarding the system information of the device and working status in real-time
Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
Update firmware
WebUI supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs
Network
Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)
Bluetooth 4.0 BLE
LED Indicators
Indicate the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
Indicate the working state of the device: startup, recording, streaming, updating
Power Supply and Consumption
DC 5V/2A
Max power consumption: ~9.6 W
Form Factor
3.71" x 3.71" x 0.88"
Accessories
AC adapter, HDMI cable
Working Environment
Operating temperature: 32Ā°F to 104Ā°F
Storage temperature: ā4Ā°F to 158Ā°F
Relative humidity: 5% to 90% non-condensing
