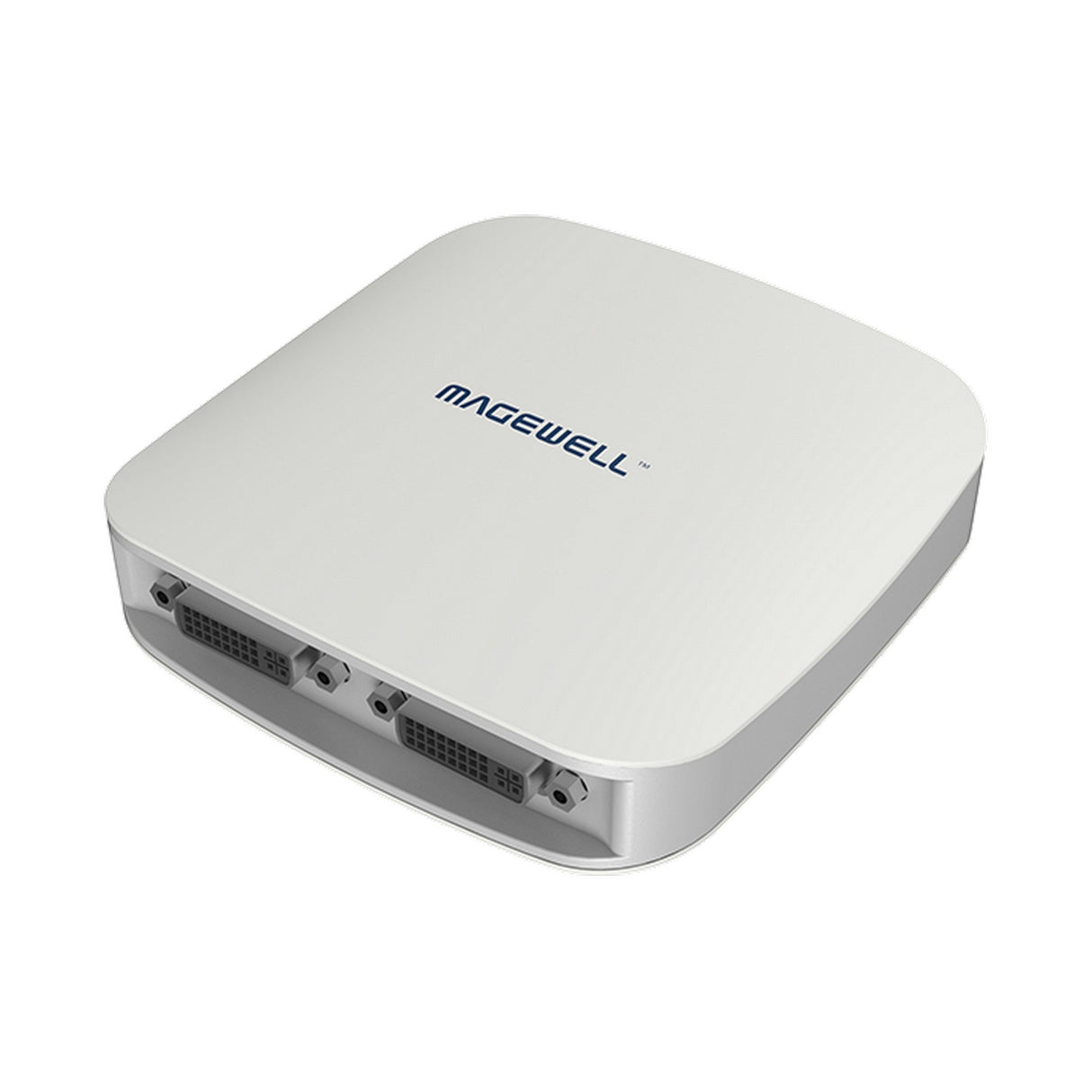

Experience High-Quality Video Capture with the Magewell USB 3.0 BOX (Windows Only)

The Magewell USB 3.0 BOX is a state-of-the-art video capture device designed for professionals who demand the highest quality in video production. This innovative device supports dual-channel input from HDMI, DVI, VGA, and YPbPr sources, making it an incredibly versatile tool for content creators, streamers, and broadcasters. With its robust design and exceptional performance, the Magewell USB 3.0 BOX ensures seamless integration into your existing setup, allowing for high-definition video capture directly to your Windows-based system.

Equipped with advanced technology, the Magewell USB 3.0 BOX not only captures video but does so with remarkable fidelity and low latency. Whether you're capturing a live event, producing a podcast, or streaming gameplay, this device delivers outstanding results. The dual-channel capabilities allow users to connect multiple sources simultaneously, providing flexibility and enhancing productivity. Its plug-and-play functionality ensures that you can start capturing video right out of the box, without the need for complex configurations.

Engineered for reliability, the Magewell USB 3.0 BOX features a compact design that makes it easy to transport and set up in various environments. This device is compatible with a wide range of applications and software (Windows ONLY), further extending its usability for any video-related project. With its combination of high performance and ease of use, the Magewell USB 3.0 BOX is the ideal solution for anyone looking to elevate their video production quality.

Key Features

• Supports dual-channel video capture from HDMI, DVI, VGA, and YPbPr sources
• High-definition video capture with low latency
• Plug-and-play functionality for easy setup
• Compact and portable design for versatile use
• Compatible with a wide range of Windows-based software applications

Technical Specifications

Input Interfaces
2 DVI-I (can connect to HDMI, VGA, YPbPr)
DVI Input Dual: 1080p/60Hz HD DVI signals
HDMI Input: Dual 1080p/60Hz HD HDMI signals
VGA Input: Dual VGA
YPbPr Input: Dual YPbPr
CVBS Input: Dual SD video signals
HDMI Audio Input: Dual LPCM audio signals

Output Interface
USB 3.0

Operating System
Windows XP Professional/Vista/7/8/8.1/10/Server 2003/Server 2008/Server 2008 R2 (x86 & x64)

Supported Software
Windows Media Encoder
Adobe Flash Media Live Encoder
Real Producer Plus
VideoLAN for Windows

Onboard Memory
128MB DDR2, working rate is 160 MHz, bus width is 32 bits

Host Interface
USB 3.0

Standards
DVI Input Format: Meets DVI 1.0 standard, single connection (480i, 576i, 480p, 576p, 720p, 1080i, 1080p)
HDMI Input Format: Meets HDMI 1.3 standard and supports 36 bits DeepColor.
YPbPr Input Format: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
VGA Input Format: 640×400–2048×1536 when the pixel rate is below 170MHz. Provides safe mode to VGA and can capture irregular resolutions.
CVBS Output Standard: PAL/NTSC

Video Output Formats
HD Output Format: 40×30–2048×1536, frame rate: 1–100 fps
SD Output Format: 176×144–768×576, frame rate: 1–30 fps

Video Sampling Rate
RGB/YPbPr: 170MHz
HDMI/DVI: 225MHz

Video Sampling Precision Rate
10 bits

Color Space
YUYV, UYVY, I420, NV12, RGB 24 Bits, RGB 32 Bits

Video Processing
Hardware Color Switch
Video de-interlacing
Vertical filter de-interlacing
Motion-adaptive de-interlacing
Video scaling: Hardware 5-Tap Scale
Image Mirror: Horizontal, vertical
Image cropping
Image Adjustment
Brightness/contrast/hue adjustment
Saturation adjustment/control of monochrome and color
Gamma adjustment
Separately adjust the brightness and contrast of R/G/B

Firmware Upgrade
Firmware can be updated.

Installation
Connects to computer via USB 3.0 interface; compatible with USB 2.0 interface at a lower frame rate.

Dimensions
4.57" x 4.57" x 1.26"

Weight
0.48 lbs

Power Consumption
Max power consumption: ~ 4 W
