Description

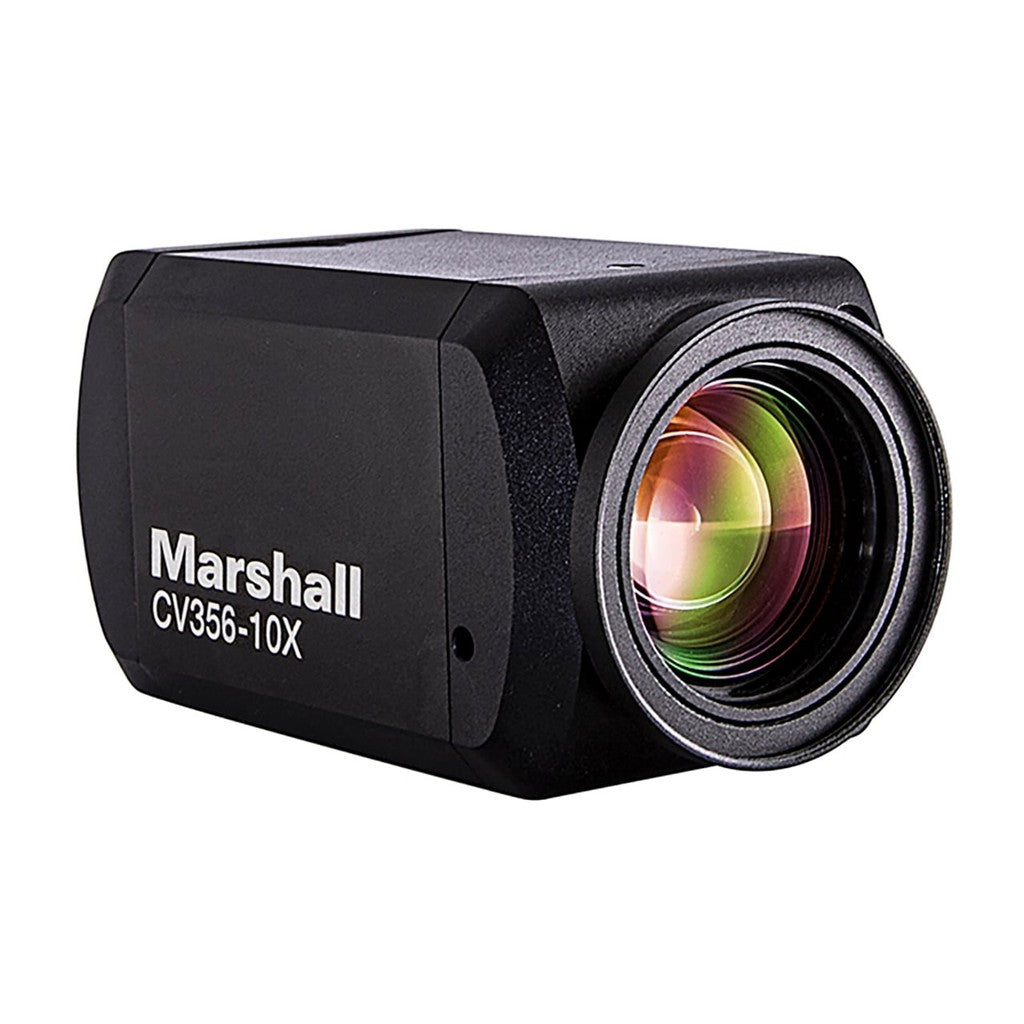

Marshall CV356-10X Full HD 10x Zoom Camera
The Marshall CV356-10X Full HD 10x zoom camera delivers simultaneous 3G-SDI and HDMI video at resolutions up to 1920 x 1080p60. Its compact aluminum body, remotely adjustable optical zoom, embedded stereo audio support, and extensive image controls make it a flexible camera for professional broadcast, live production, sports, education, and worship applications.
A 10x optical zoom lens helps operators frame wide scenes or capture distant subjects without repositioning the camera. An additional 12x digital zoom extends its reach when needed. This compact Full HD broadcast camera is ideal for fixed installations, front-of-stage coverage, courtrooms, government facilities, observation systems, and professional live event production. A threaded ring adapter also accepts compatible 49mm close-up lenses and neutral-density filters.
The 2.1-megapixel progressive CMOS sensor supports multiple 1080p, 1080i, and 720p frame rates for regional and workflow compatibility. VISCA over RS485 and PELCO-P/D protocols provide remote camera control, while automatic and manual settings support precise adjustment of focus, exposure, white balance, shutter, pedestal, noise reduction, and other broadcast parameters. A standard 1/4"-20 mounting point simplifies integration with professional camera supports.
Key Features
- 10x Optical Zoom: Frames wide scenes and distant subjects with a 0.19" to 1.85" focal-length range.

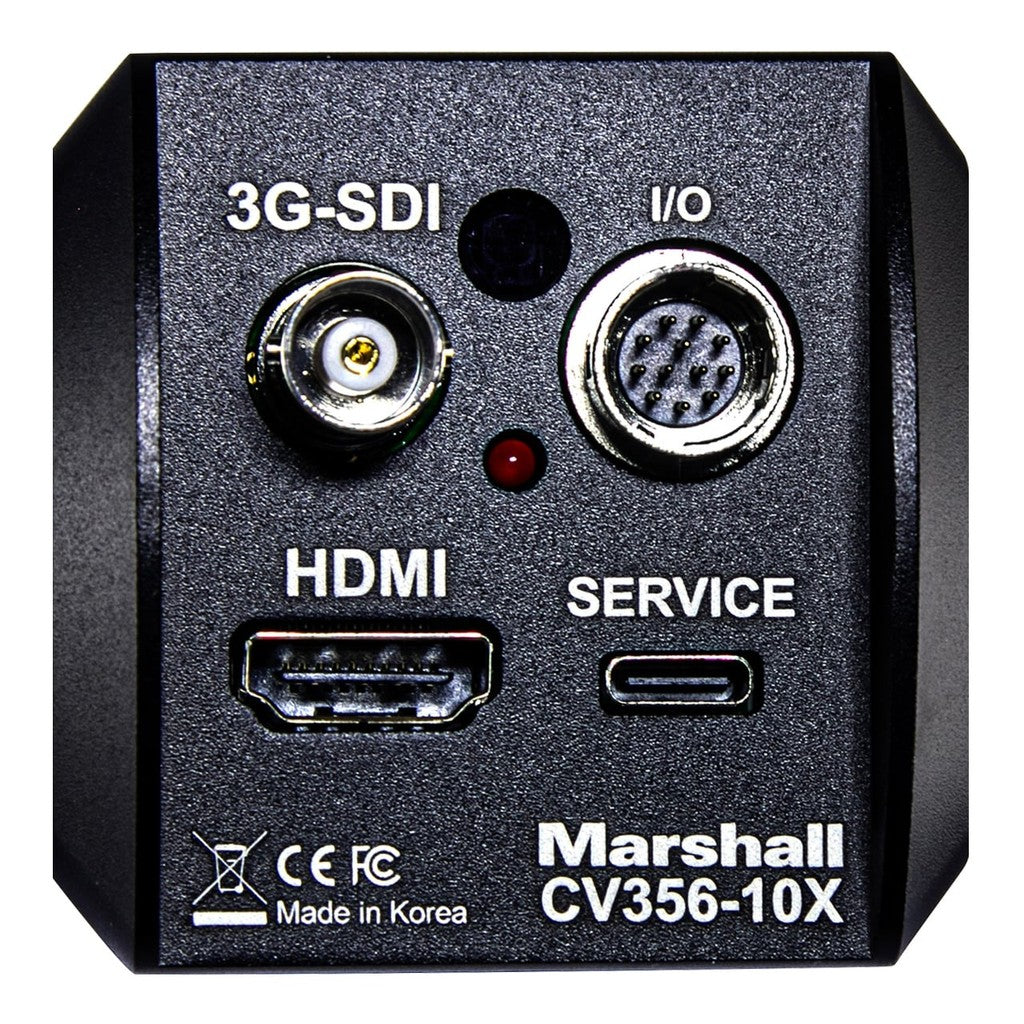

- Simultaneous Professional Outputs: Delivers Full HD video through 3G-SDI and HDMI connections at the same time.
- Full HD 60 fps Performance: Supports resolutions up to 1920 x 1080p at 60 frames per second.
- Remote Camera Control: Uses RS485 connectivity with SONY-VISCA and PELCO-P/D control protocols.
- Embedded Stereo Audio: Accepts microphone- or line-level audio through a 3.5mm TRS input on the I/O cable.
- Advanced Image Adjustment: Provides control over exposure, white balance, pedestal, noise reduction, defog, stabilization, and gamma.
- Durable Compact Construction: Features an aluminum-alloy body, side impact panels, and protected full-size video connections.
- Flexible Installation: Includes a standard 1/4"-20 mounting hole for stands, clamps, and articulating arms.
Technical Specifications
Imaging
- Image Sensor: 1/2.8" progressive CMOS
- Approximate Resolution: 2.1 megapixels
- Effective Pixels: 1920 x 1080
- Pixel Size: 0.000114" x 0.000114"
- Minimum Illumination: 0.1 lux in day mode, 0.01 lux in night mode, and 0.001 lux with DSS enabled
Optics

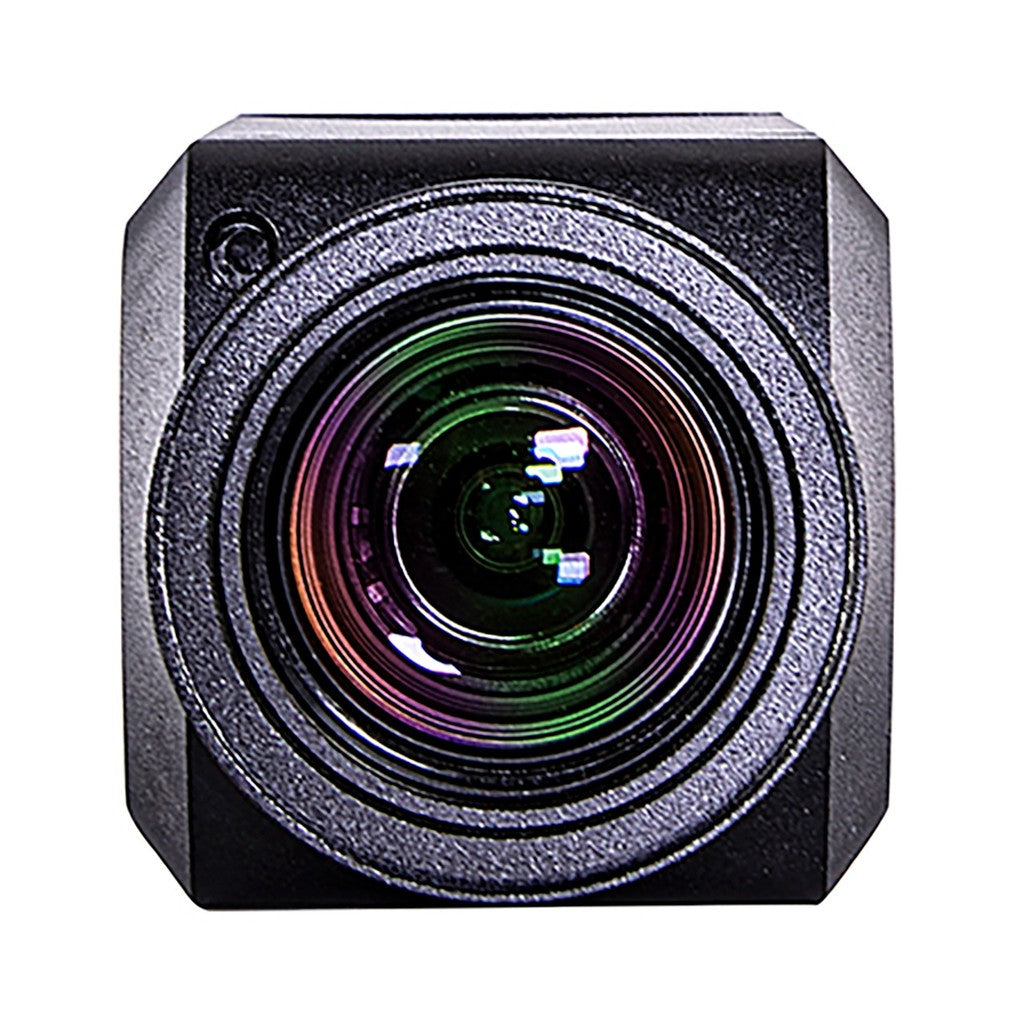

- Lens: 10x optical zoom
- Focal Length: 0.19" to 1.85"
- Aperture: F1.6 to F3.0
- Digital Zoom: 12x
- Horizontal Angle of View: 57.7° at wide end and 6.4° at telephoto end
- Minimum Working Distance: 3.94" at wide end and 35.43" at telephoto end
- Filter and Adapter Size: 49mm threaded ring adapter
Camera Functions
- Focus: Auto or manual
- Exposure Modes: Auto, shutter priority, iris priority, AGC priority, manual, and bright
- White Balance: AWB 3000K to 8000K, ATW 1900K to 11000K, indoor, outdoor, one-push, and manual
- Day and Night Modes: Day, night, and auto
- Electronic Shutter: NTSC 1/30 to 1/10000 second; PAL 1/25 to 1/10000 second
- Image Controls: Pedestal, white level, privacy mask, mirror, flip, freeze, 2D/3D noise reduction, edge enhancement, defog, digital image stabilization, and gamma correction
Video Outputs
- HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps
- HDMI 1080i: 60, 59.94, and 50 fps
- HDMI 720p: 60, 59.94, and 50 fps
- 3G-SDI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps
- 3G-SDI 1080i: 60, 59.94, and 50 fps
- 3G-SDI 720p: 60, 59.94, and 50 fps
Audio and Control
- Audio Input: 3.5mm TRS stereo jack through I/O cable, supporting microphone and line levels
- Audio Sample Depth: 16-, 24-, and 32-bit
- Control Interface: RS485
- Control Protocols: SONY-VISCA and PELCO-P/D
- Menu Control: Breakout cable with integrated joystick for OSD access
General
- Operating Temperature: 32°F to 122°F
- Power Input: 12 VDC nominal; 7 to 15 VDC supported
- Power Consumption: 6W

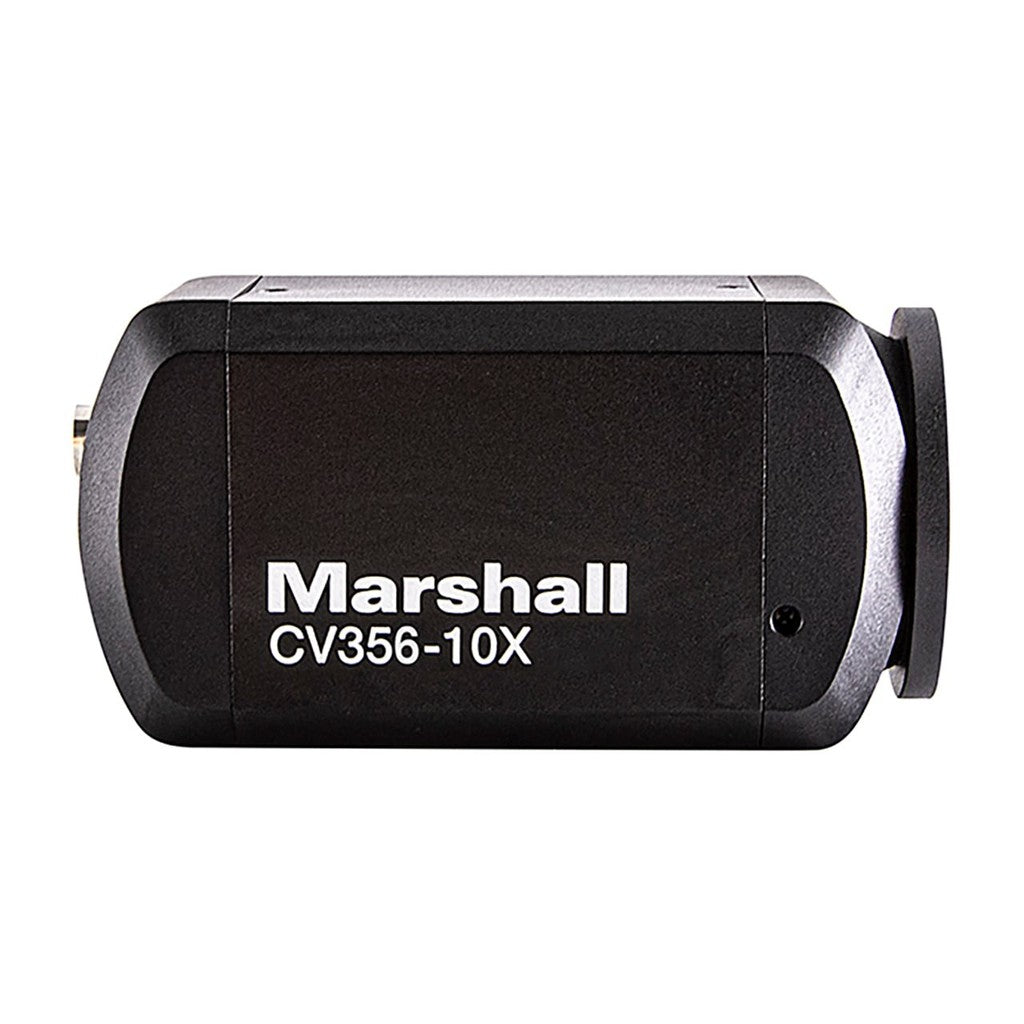

- Construction: Aluminum-alloy body with side impact protection panels
- Mounting Thread: 1/4"-20
- Dimensions: 4.12" x 2.20" x 2.20"
- Camera Weight: 0.80 lbs
What's In the Box
- Marshall CV356-10X Camera

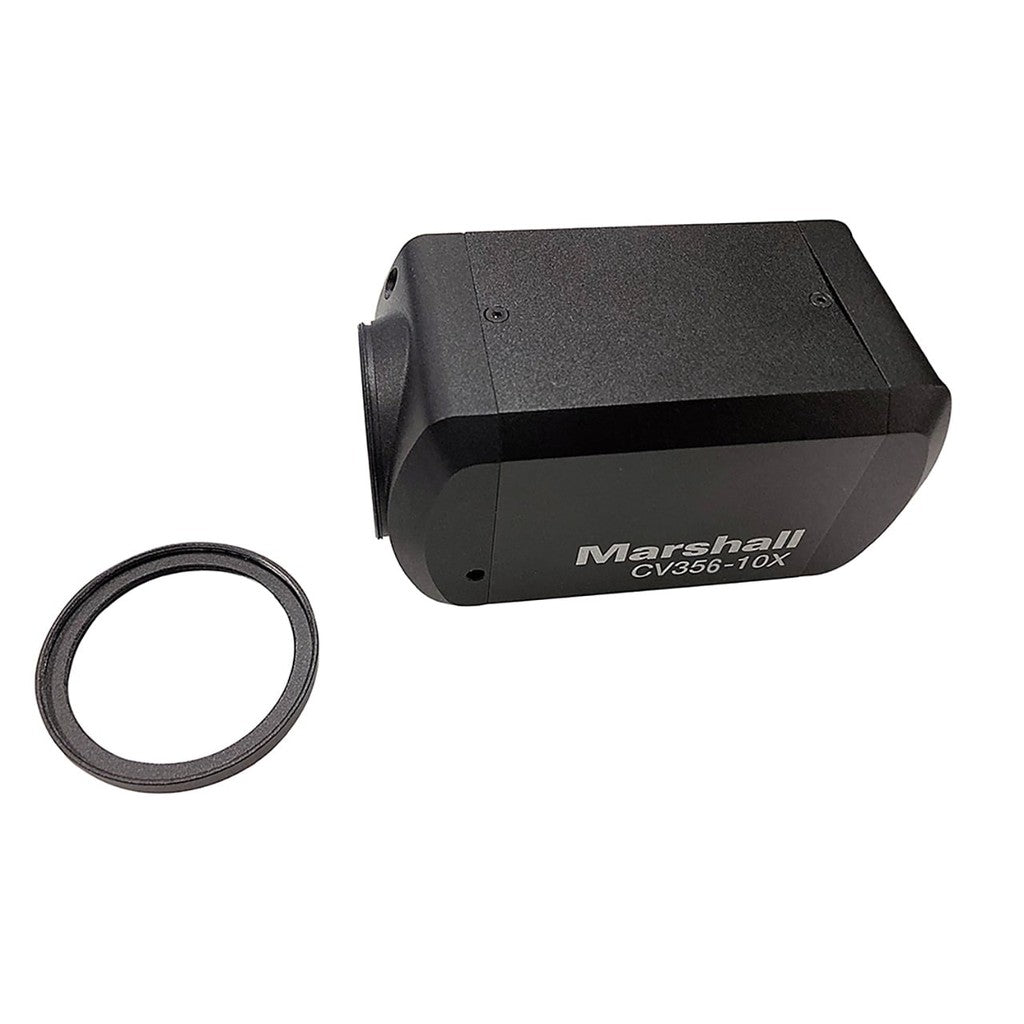

- 49mm Threaded Ring Adapter
- Breakout Cable with OSD Joystick
- 12 VDC Power Supply
