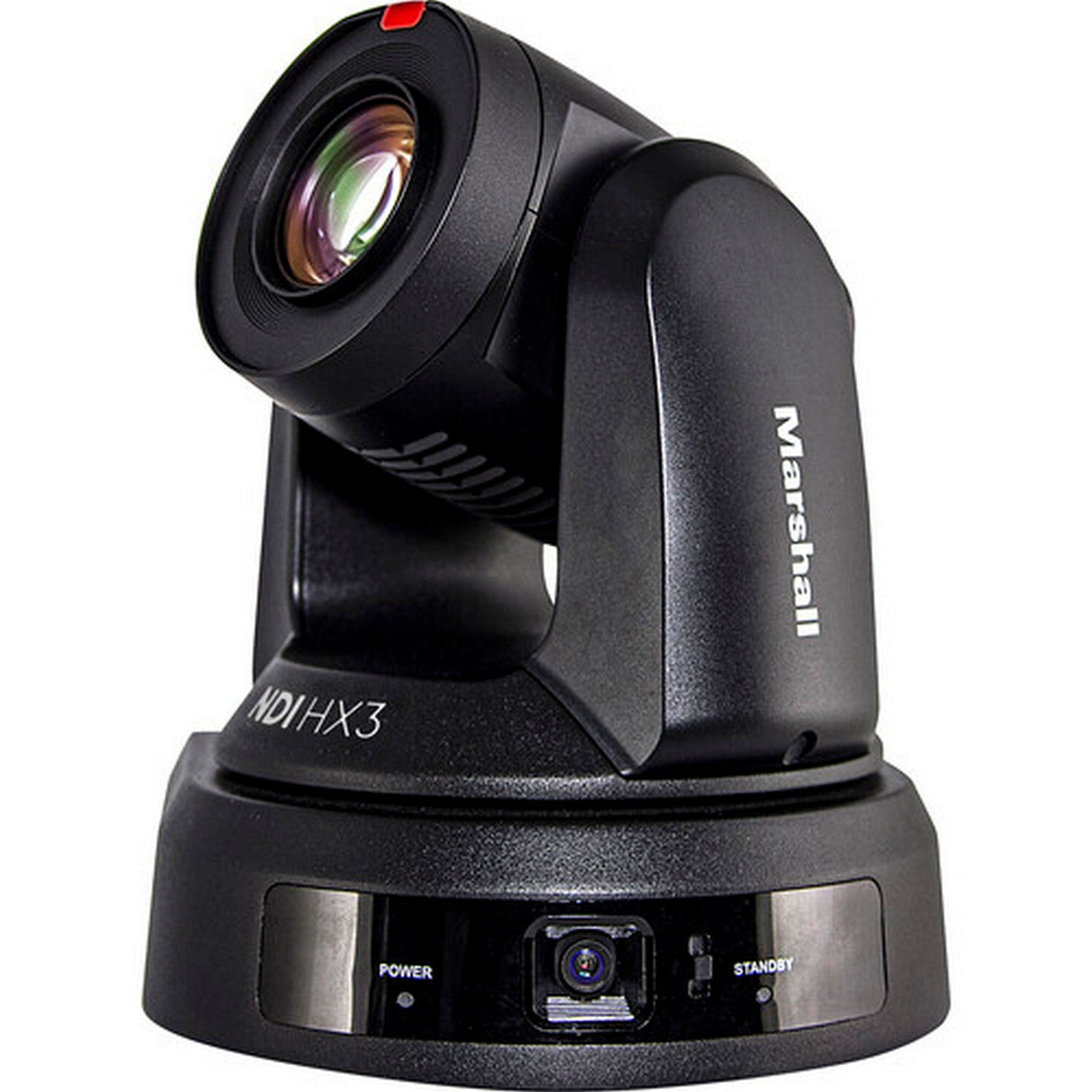

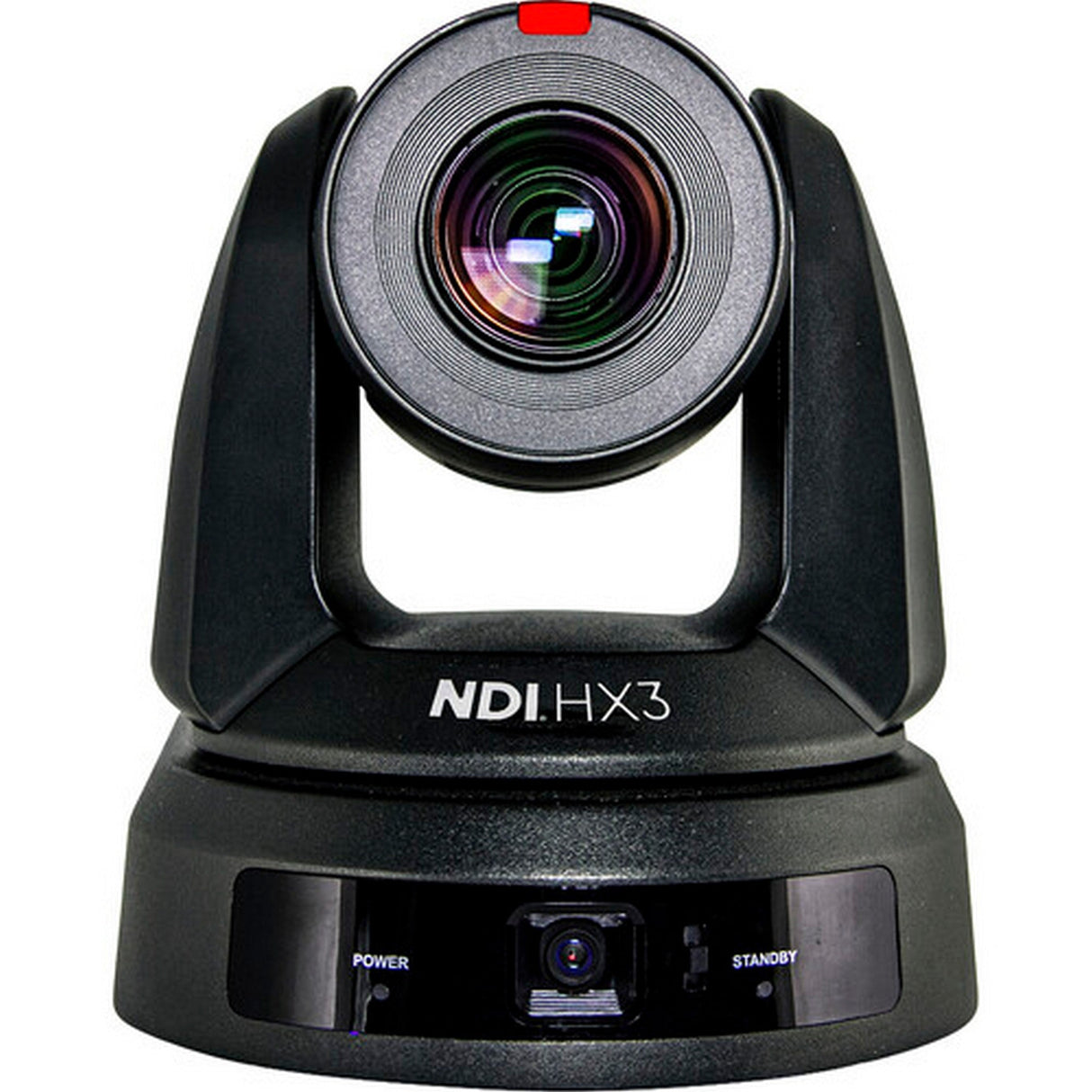

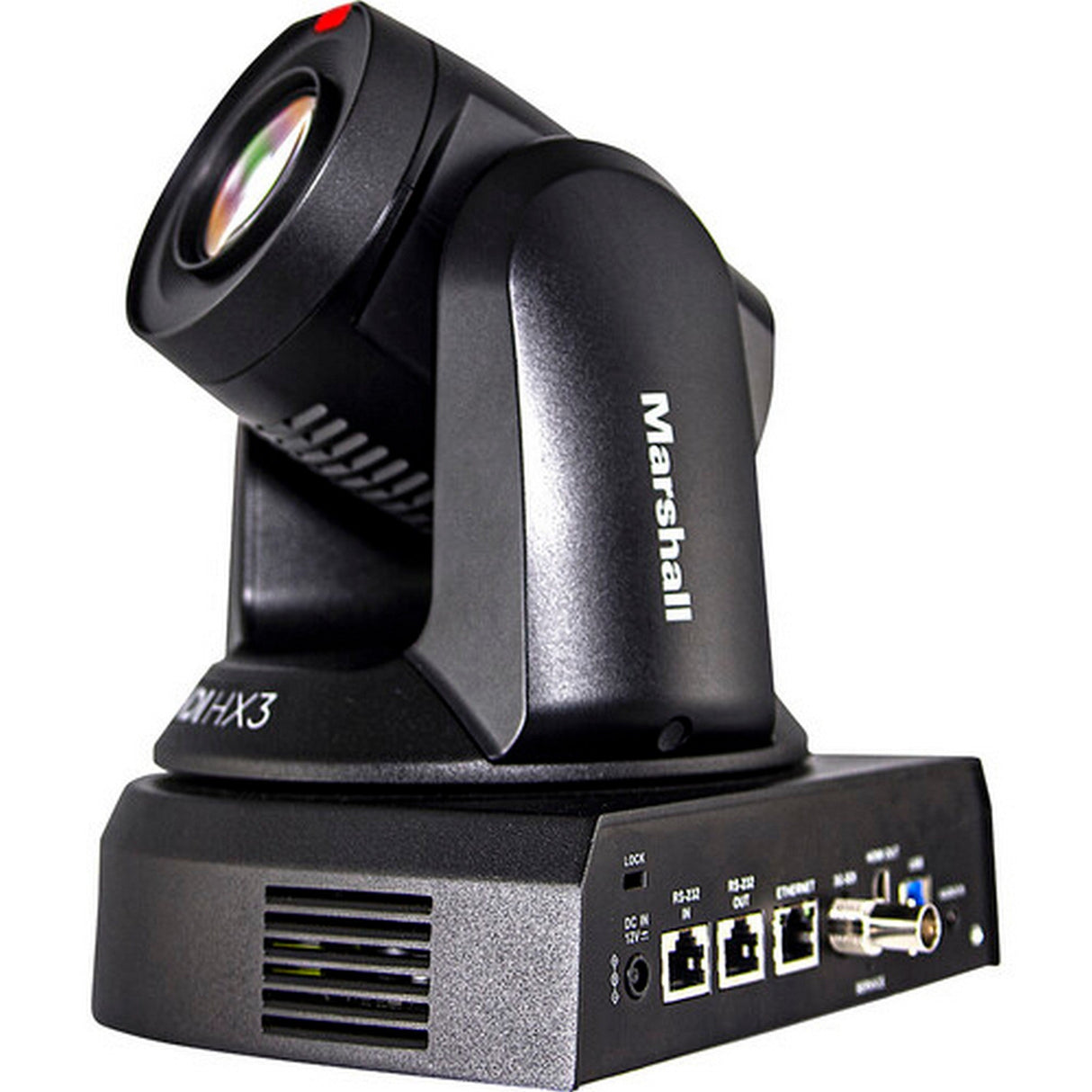

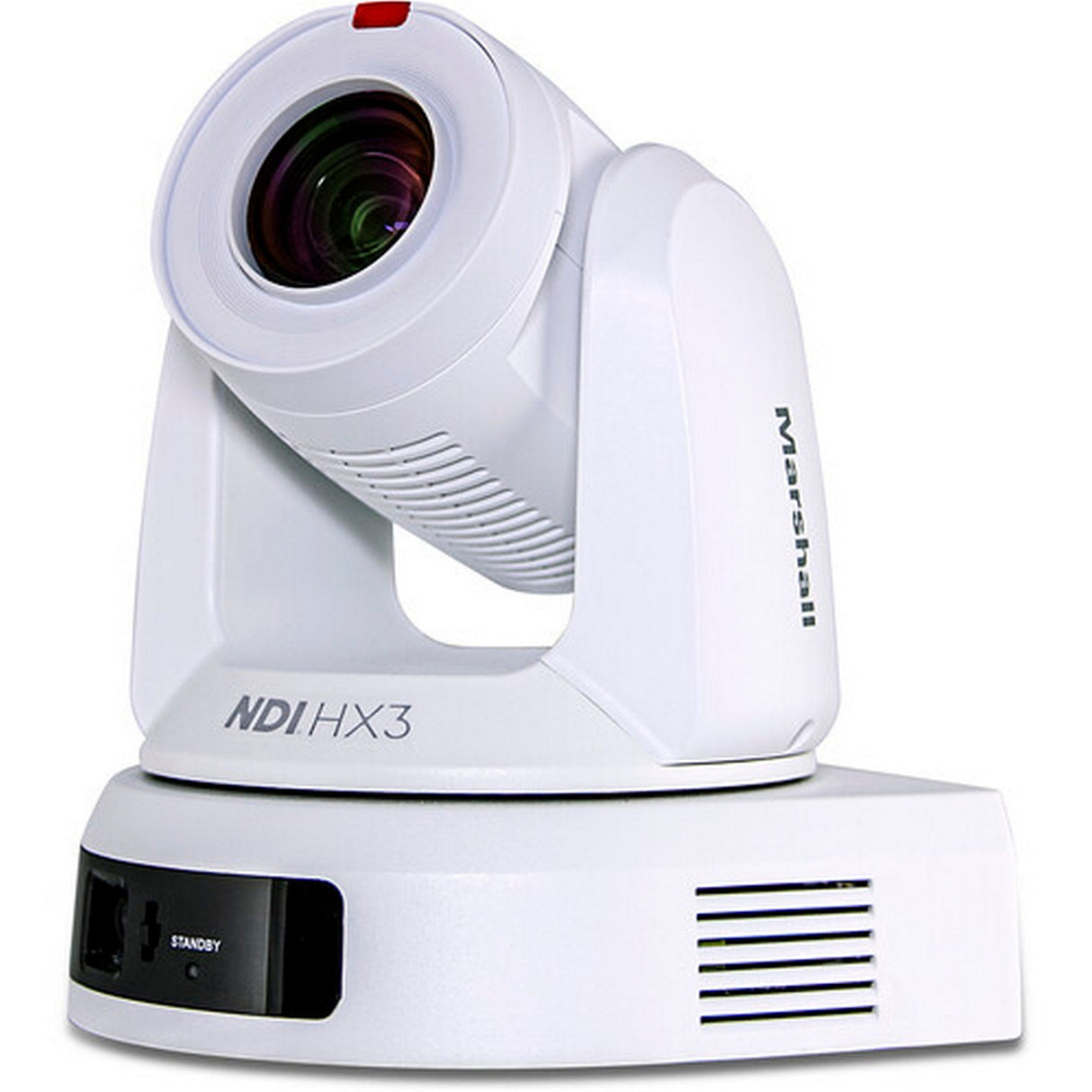

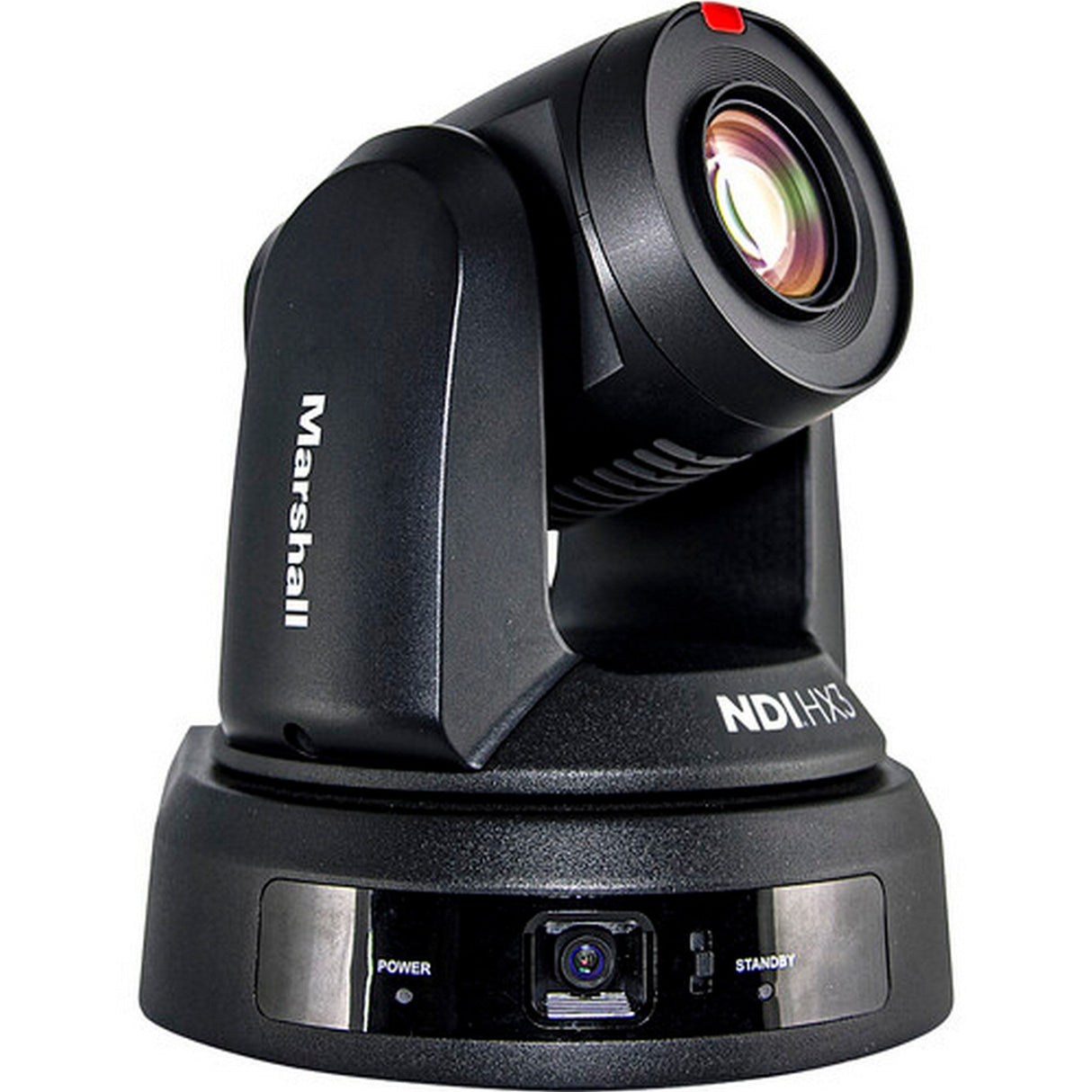

Marshall Electronics CV625 UHD60 NDI PTZ 25x Optical Zoom Dual PTZ Camera - Black

Marshall Electronics CV625 UHD60 NDI PTZ 25x Optical Zoom Dual PTZ Camera

The Marshall CV625-TBN 25X UHD60 NDI PTZ Auto Tracking Camera combines UHD 4K video, AI-powered presenter tracking, 25x optical zoom, and dual-camera coverage in one professional PTZ system. It is designed for lecture halls, conference rooms, houses of worship, broadcast spaces, government facilities, and live production environments.

This 4K PTZ camera gives operators both a focused close-up view and a static panoramic view of the room. The adjustable PTZ camera follows and frames presenters, while the wide-angle panoramic camera helps maintain awareness of the full space. For teams shopping for a professional NDI PTZ camera, a dual-camera auto tracking camera, or a UHD camera for live streaming and presentations, the CV625-TBN offers flexible control and production-ready signal routing.

The CV625-TBN supports HDMI, 3G-SDI, Ethernet, USB 3.0, RTSP, RTMP, RTMPS, SRT, NDI HX2, and NDI HX3 workflows. It also includes VISCA, VISCA over IP, ONVIF, NDI, RS-232, Ethernet, remote, and USB control options for integration into AV control systems, broadcast switchers, lecture capture setups, and IP-based production networks.

Key Features

• UHD 4K Video Capture: Delivers up to 3840 x 2160 resolution at 60 fps for crisp, detailed video.

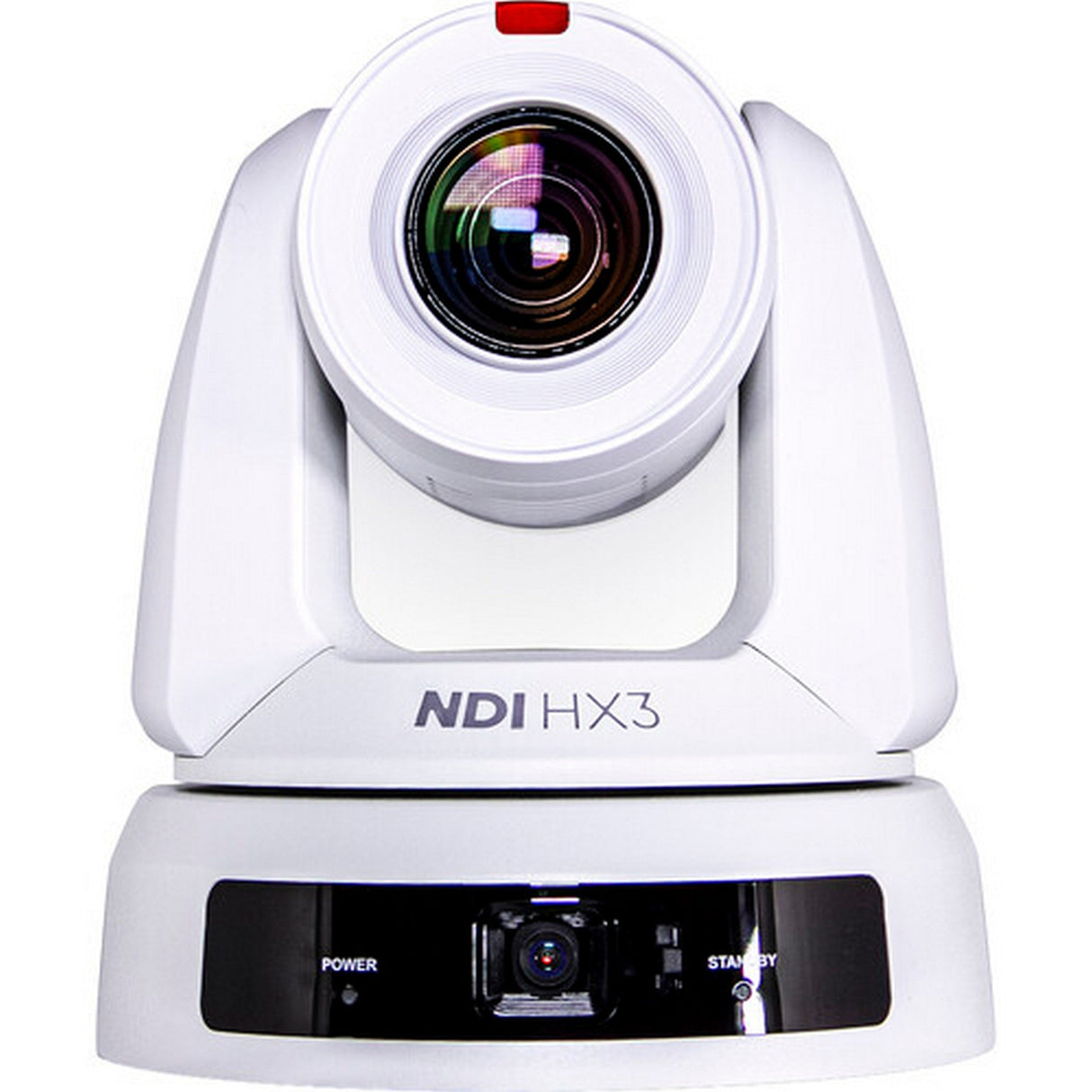

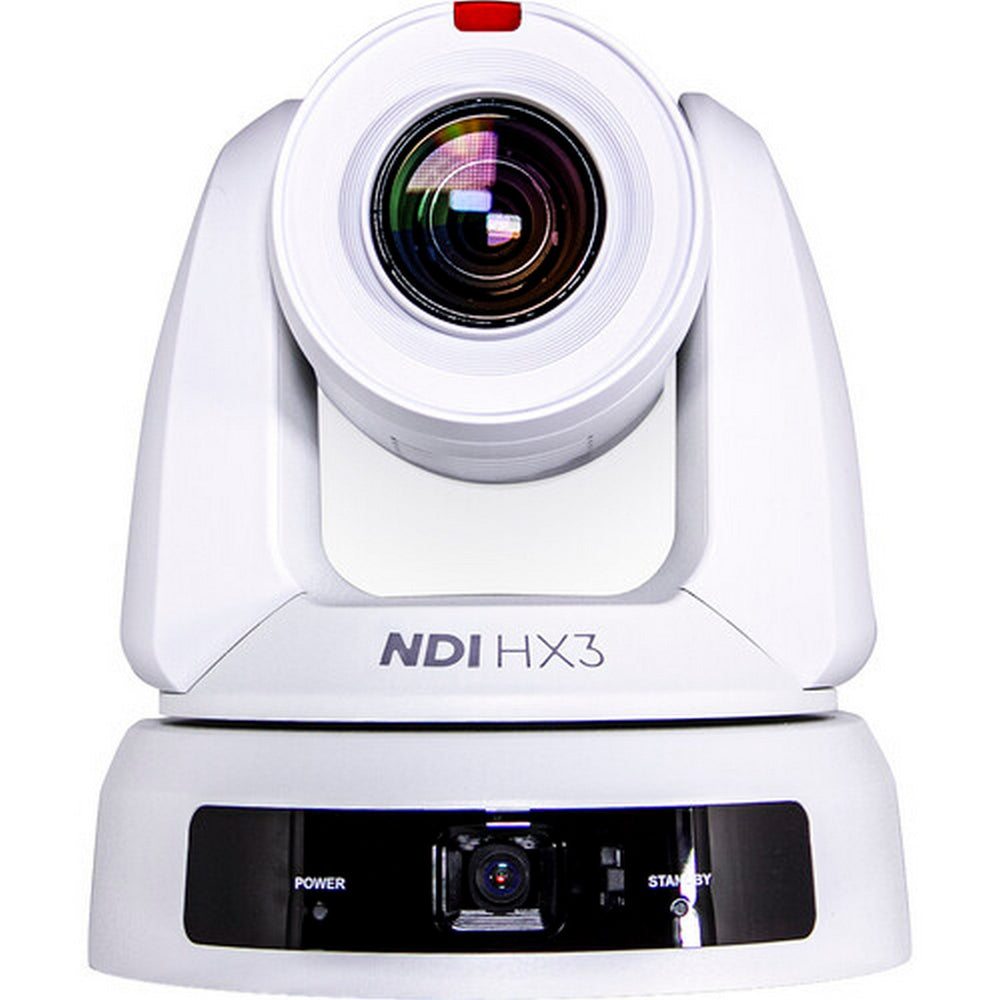

• Dual-Camera Design: Combines an adjustable PTZ camera with a static panoramic lens for close-up and wide-room coverage.
• AI Auto Tracking: Follows, frames, and tracks presenters with smooth, self-adjusting camera movement.
• 25x Optical Zoom: Captures presenters, panels, and stage activity from a distance while maintaining image clarity.
• NDI HX2 and NDI HX3 Support: Integrates into modern IP production workflows over standard network infrastructure.
• Flexible Video Outputs: Supports HDMI, 3G-SDI, Ethernet, and USB 3.0 for production, streaming, and recording systems.
• Picture-in-Picture Capability: Allows operators to use the PTZ and panoramic camera views together for dynamic coverage.
• PoE+ Compatibility: Supports IEEE802.3at PoE+ or 12V DC power for flexible installation.

Technical Specifications

• Model: CV625-TBN,CV625-TWN
• Color: Black or White
• Main Camera Sensor: 1/1.8" 8MP IMX678
• Panoramic Camera Sensor: 1/2.8" 8MP IMX415
• Maximum Video Resolution: 3840 x 2160 at 60 fps
• Optical Zoom: 25x
• Focal Length: 7.1mm to 171.95mm, ±5%
• Main Camera Horizontal Viewing Angle: 60 degrees, ±5%
• Panoramic Camera Horizontal Viewing Angle: 83.1 degrees
• Minimum Object Distance: 1.5m telephoto, 1.5m wide
• Main Camera Minimum Illumination: 0.1 lux at F1.6, 50IRE, 30 fps
• Tracking Distance: 2m to 18m
• Panning Angle: +170 to -170 degrees
• Panning Speed: 0.1 to 100 degrees per second
• Tilting Angle: +90 to -30 degrees
• Tilting Speed: 0.1 to 60 degrees per second
• Preset Positions: 256
• Focus System: Auto and manual
• Gain Control: Auto and manual
• White Balance: Auto and manual
• Exposure Control: Auto and manual
• WDR: Yes
• 3D Noise Reduction: Yes
• Image Flip: Yes
• Auto Tracking: Yes
• Auto Framing: Yes
• People Counting: Yes
• Tally Light: Yes
• SNR: Greater than or equal to 50 dB
• Tracking Minimum Illumination: 10 lux
• Video Output Interface: HDMI, 3G-SDI, Ethernet, USB 3.0
• HDMI Output: 2160p at 59.94, 50, 29.97, and 25 fps; 1080p at 59.94, 50, 29.97, and 25 fps; 720p at 59.94, 50, 29.97, and 25 fps; 1080i at 59.94 and 50 fps
• 3G-SDI Output: 1080p at 59.94, 50, 29.97, and 25 fps; 720p at 59.94, 50, 29.97, and 25 fps; 1080i at 59.94 and 50 fps
• Stream Protocols: RTSP, RTMP, RTMPS, SRT, NDI HX2, NDI HX3
• PTZ Camera IP Stream: Stream 1 H.264/HEVC 2160p at 60 fps; Stream 2 H.264 1080p at 30 fps
• Panoramic Camera IP Stream: H.264 2160p at 60 fps
• IP Compression: H.264, HEVC
• USB Video Formats: H.264 2160p at 30 fps; MJPEG 1080p at 60 fps; YUV2 480p at 60 fps; HEVC 1080p at 60 fps; NV12 480p at 60 fps
• UVC Video Compression: H.264, MJPEG, YUV2, NV12, HEVC
• Video Latency: HDMI/SDI 67ms or less; stream 150ms or less; UVC 4K at 30 fps 160ms or less; UVC 1080p at 60 fps 160ms or less
• Audio Input: 3.5mm line input
• Audio Compression Format: AAC

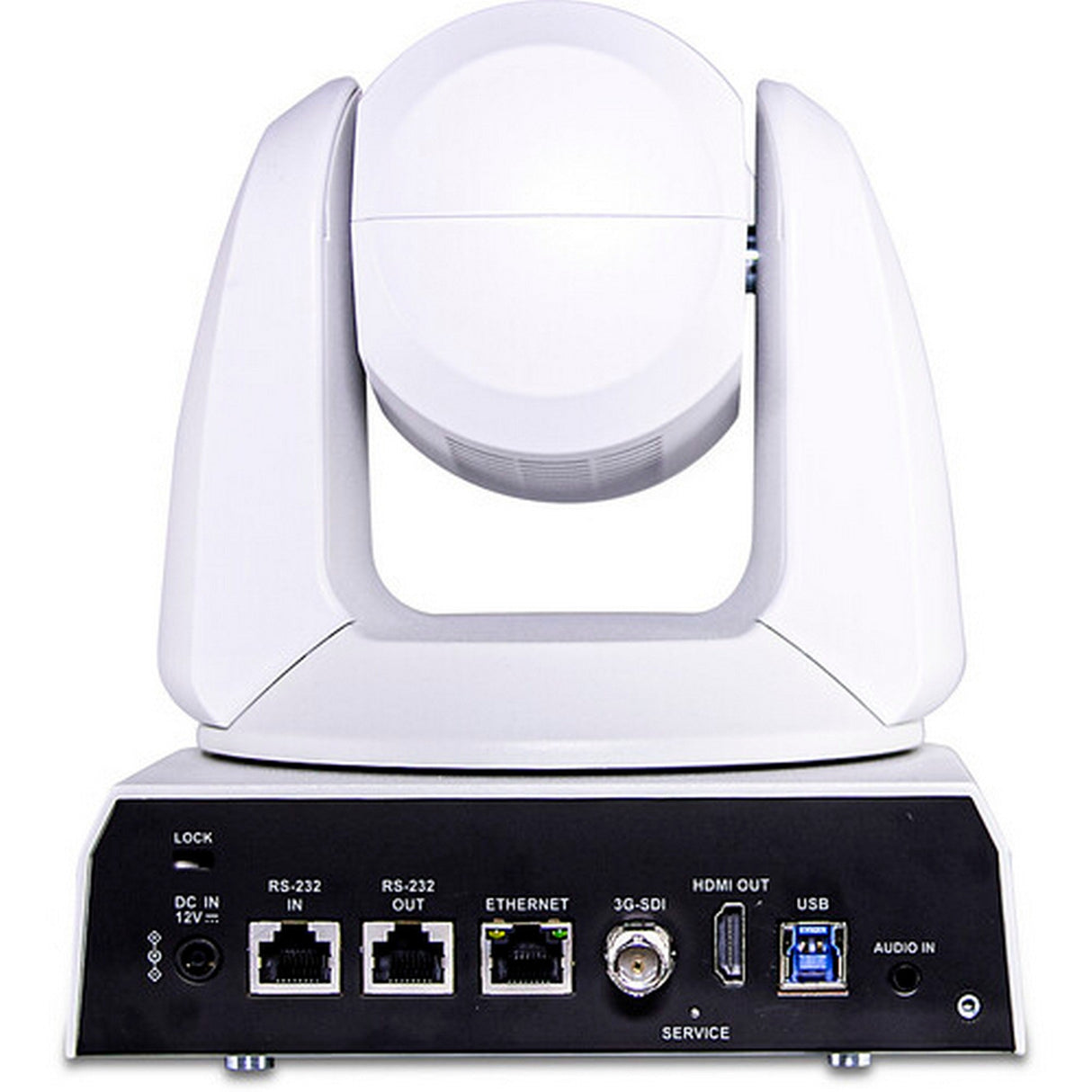

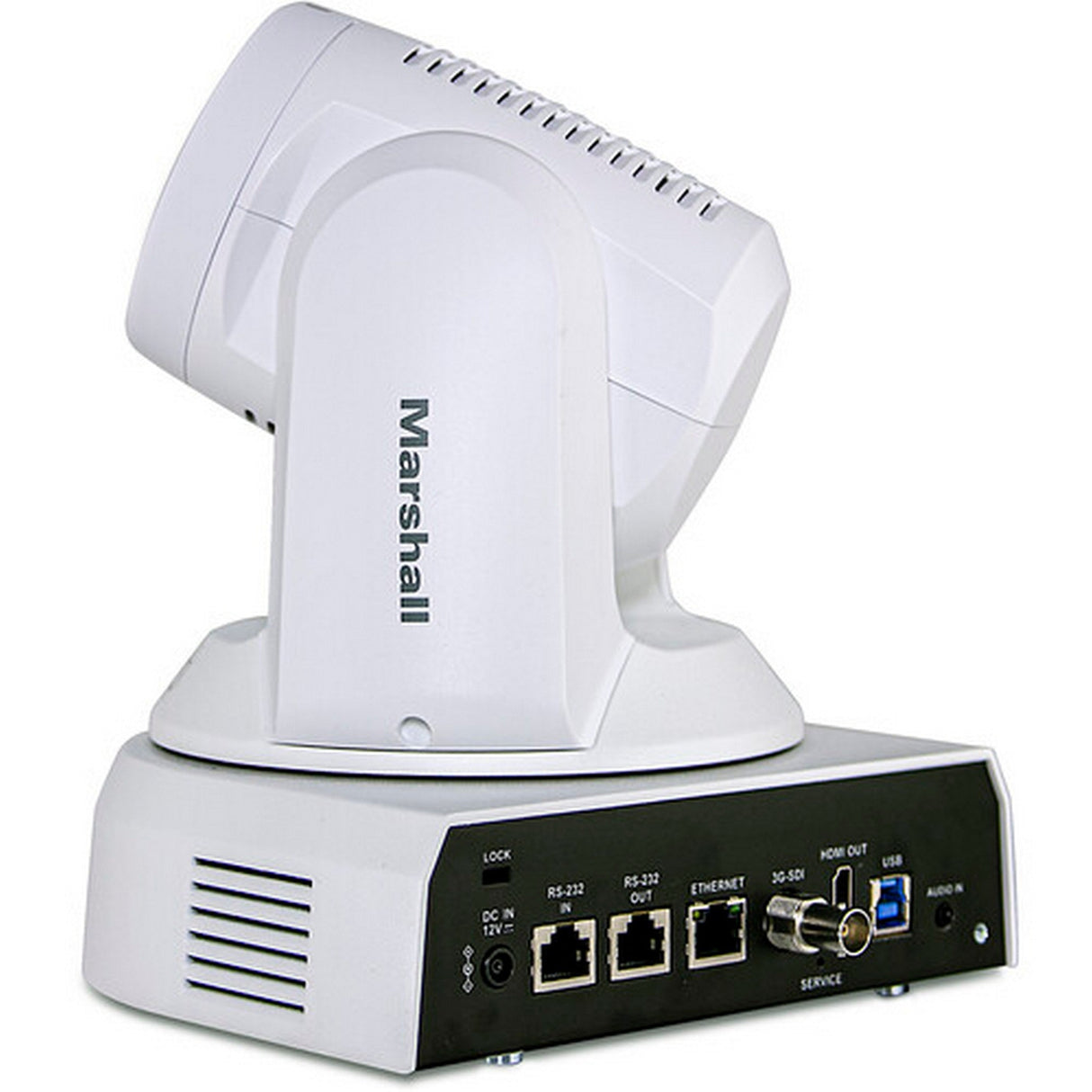

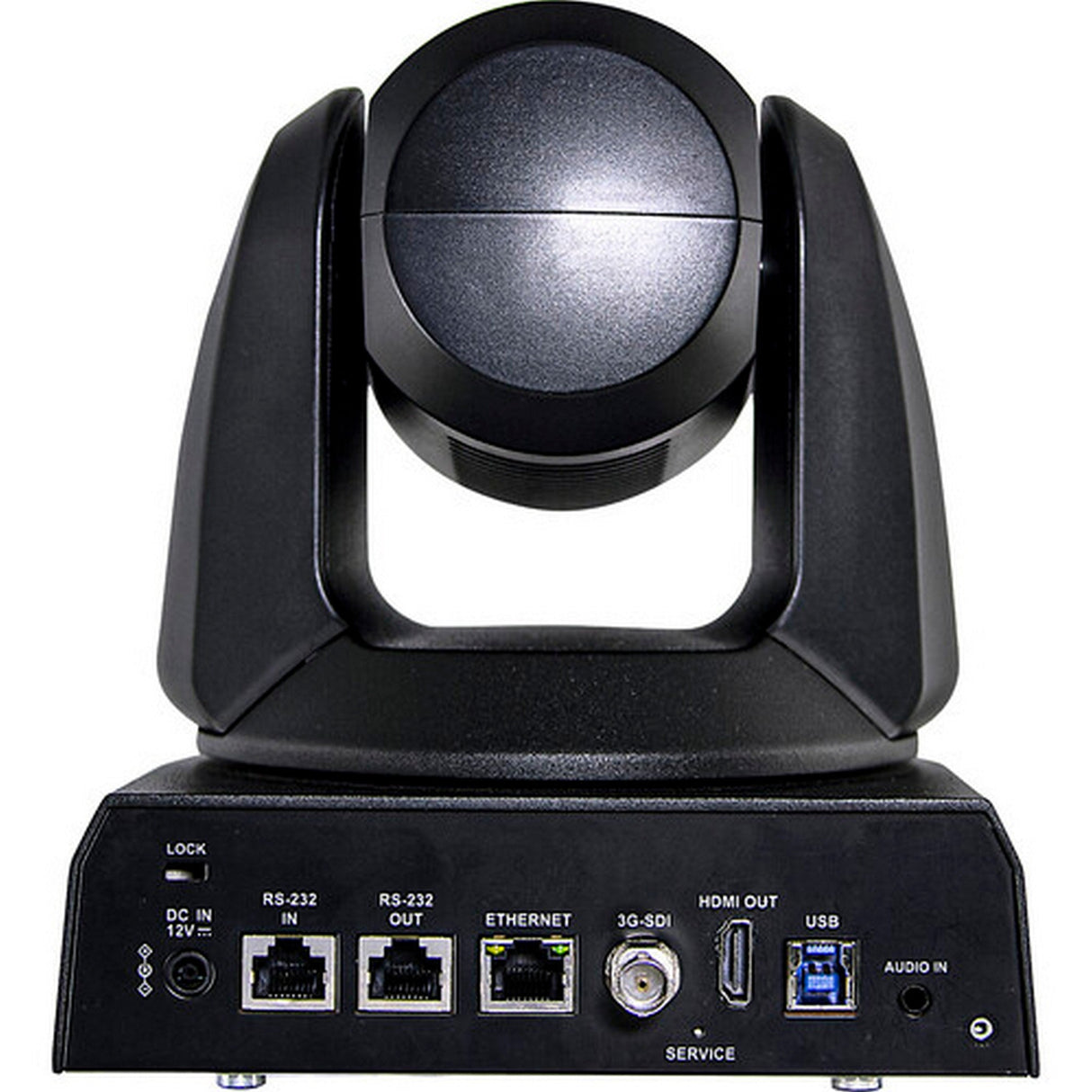

• USB Port: USB 3.0 Type-B
• HDMI Output Port: HDMI x 1
• SDI Output Port: 3G-SDI x 1
• Network Port: RJ45 x 1, 10M/100M/1G
• Camera Control Interface: RS-232, Ethernet, remote, USB
• Control Protocols: VISCA, VISCA over IP, ONVIF, NDI
• Communication Baud Rate: 9600 default and 38400
• HTTP API Command: Yes
• Remote Controller: Infrared remote control
• Infrared Remote Control Distance: 15m
• Remote Control Angle: ±15 degrees
• Remote Control Frequency: 40KHz
• OSD Menu Language: English
• Webpage Language: English
• Power Supply: DC 12V at 3A
• Power Consumption: DC input 23.5W maximum; PoE IEEE802.3at 24.5W maximum
• Operating Temperature: 32 to 104 degrees F
• Operating Humidity: 10% to 90%
• Storage Temperature: -4 to 140 degrees F

What's Included

• Marshall Electronics CV625-TBN UHD 4K Dual PTZ Camera
• Remote Control
• Metal Plate Set
• USB-B to USB-A Cable, 6.6'
• M3 Screw Set
• Power Cord
• Power Adapter
