Marshall Electronics VMV-402-3GSH 3G-SDI Quad Viewer/Switcher

Marshall Electronics VMV-402-3GSH 3G-SDI Quad Viewer/Switcher

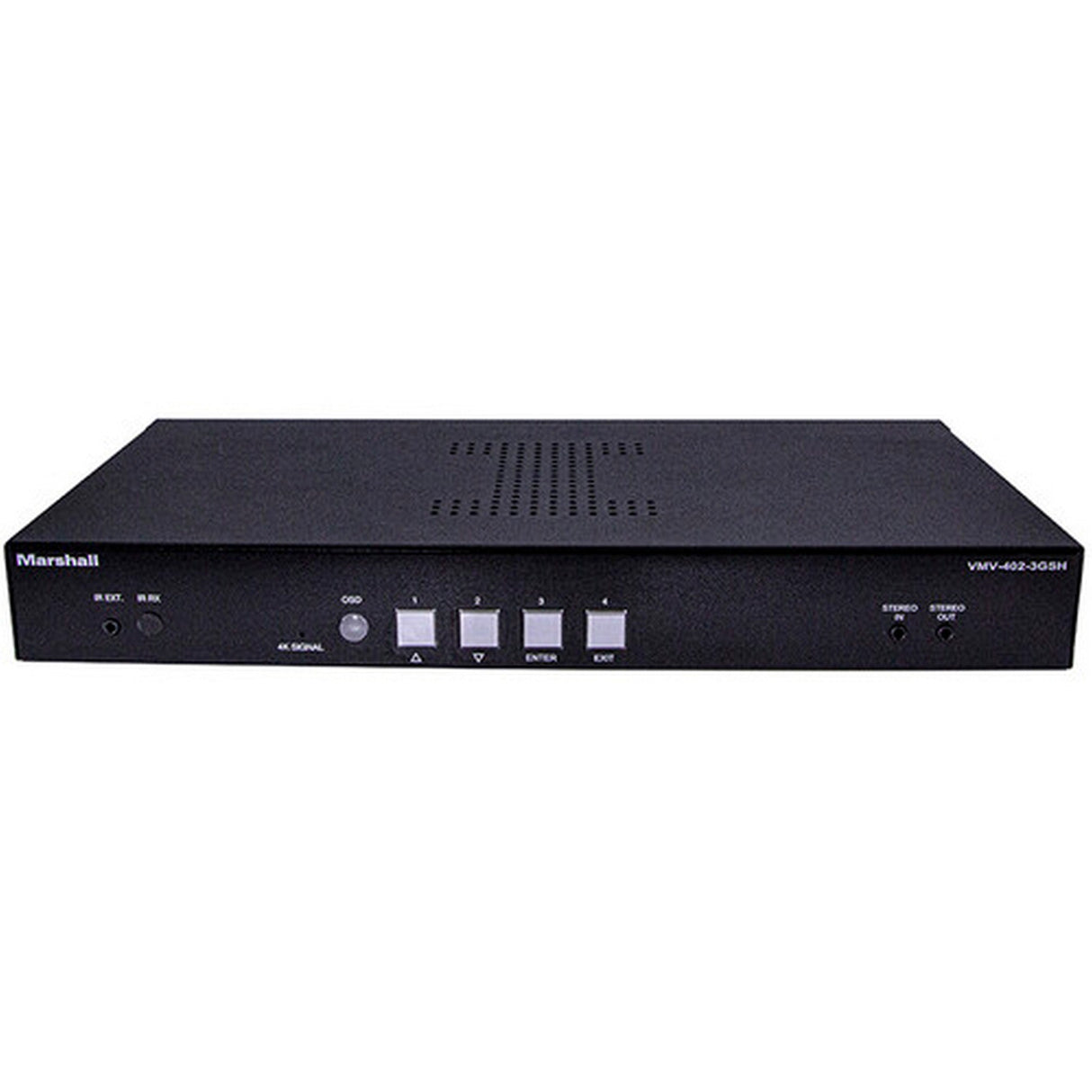

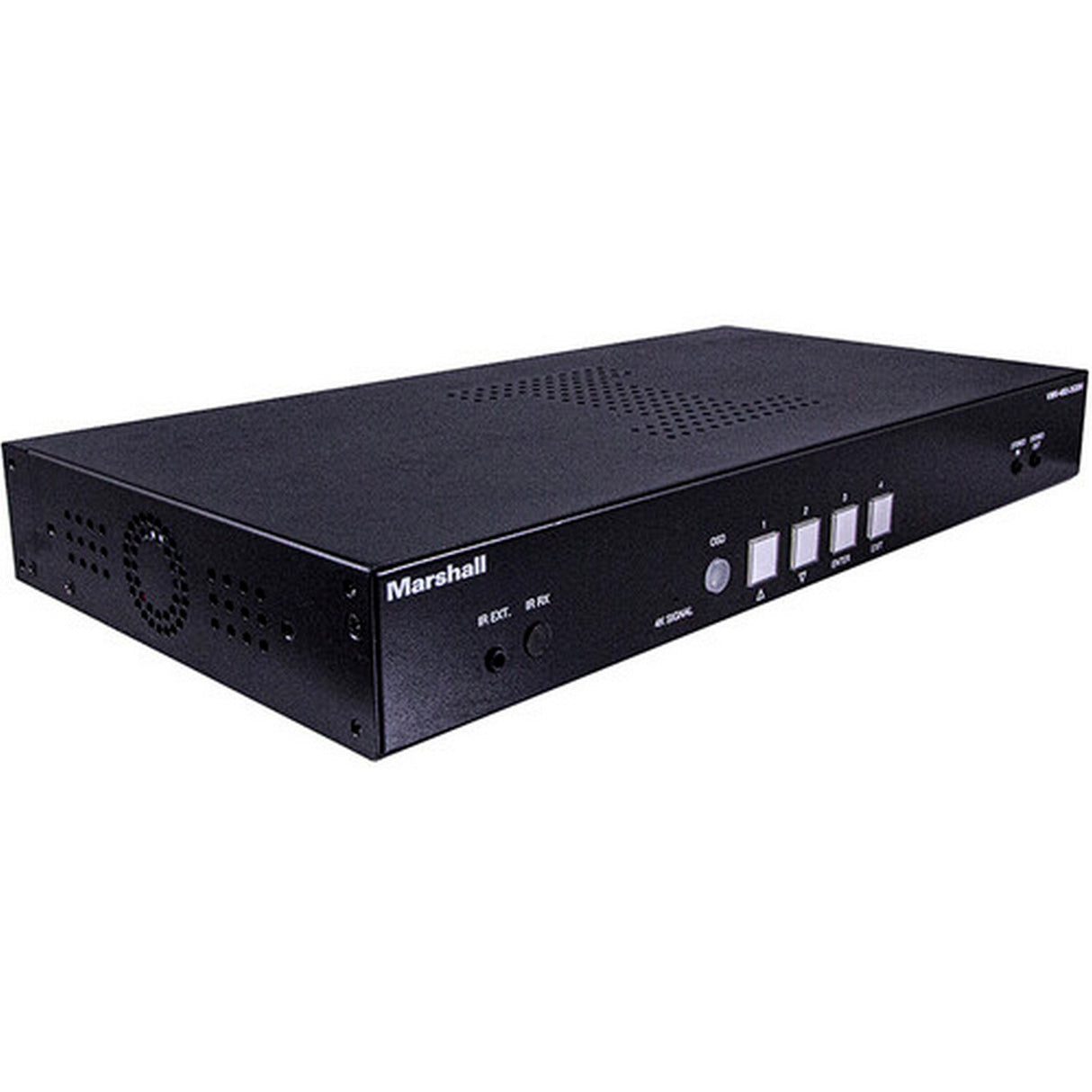

The Marshall Electronics VMV-402-3GSH is a seamless 4x1 video switcher and quad viewer for presentation, control-room, and remote-production workflows. It accepts four 3G-SDI sources, with HDMI available on inputs 1 and 2, then provides simultaneous SDI and HDMI program outputs plus a dedicated HDMI quad-view preview.

An internal scaler handles mixed input formats and frame rates, converting them to the selected program format for consistent output. HDMI program and preview signals scale up to UHD resolution, while the SDI program output supports up to 1080p60. Full-time quadview, a four-source split display, simplifies source monitoring without requiring four separate displays.

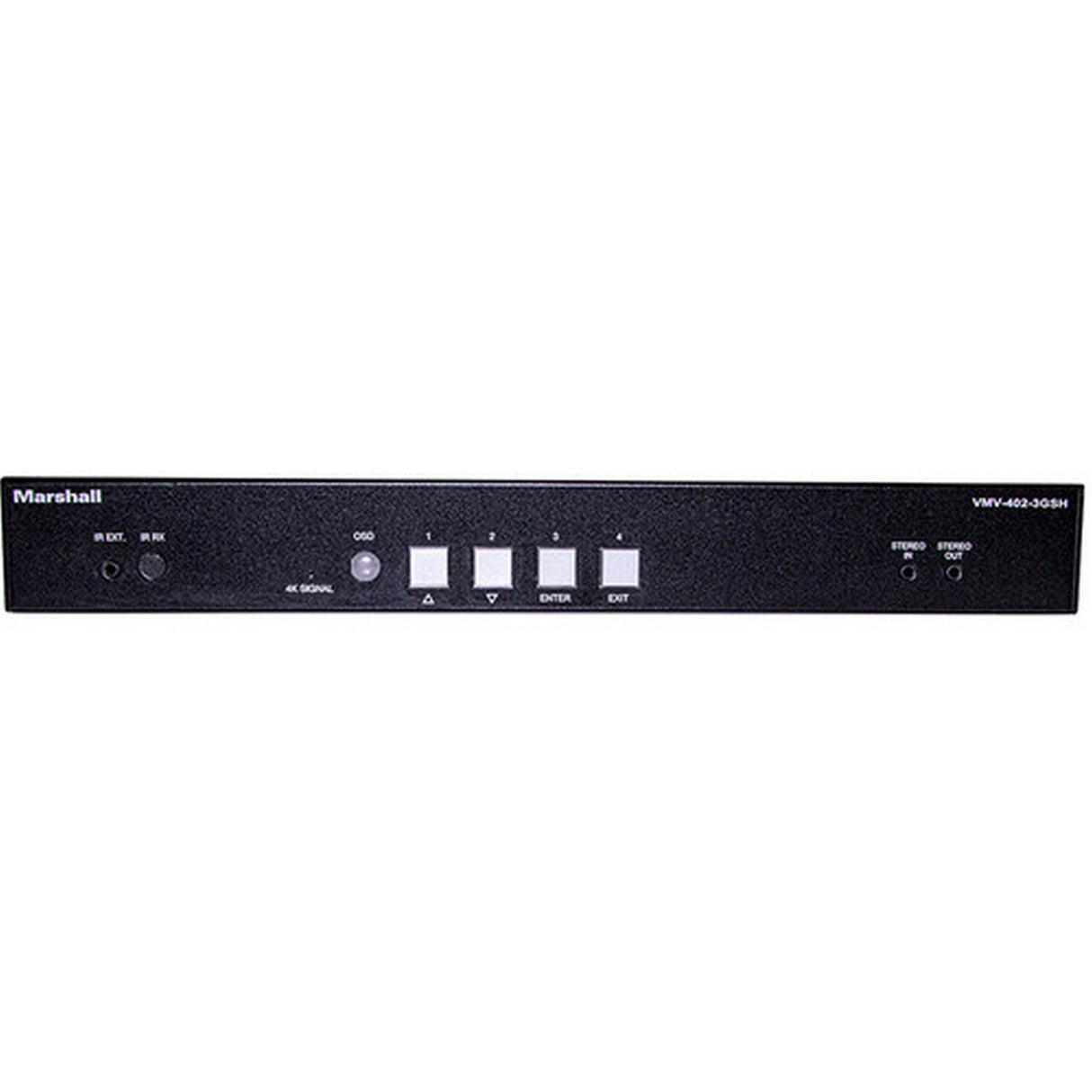

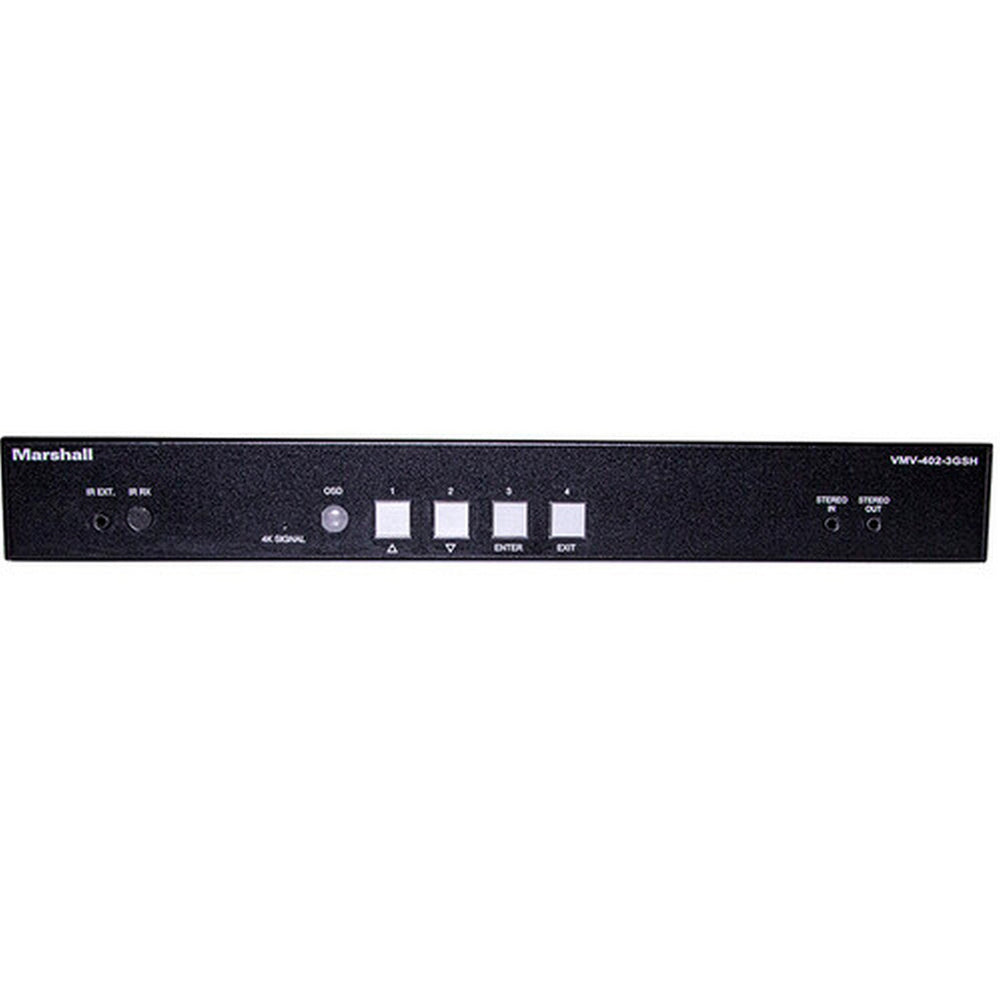

Front-panel controls and an Ethernet browser provide direct system configuration without a dedicated application. Ethernet and RS-232 support source selection and quad-view labeling for integration with professional control systems. A metal 1U rack-mounting enclosure suits flypacks, classrooms, conference rooms, courtrooms, production facilities, and other installed AV environments.

Key Features

• Four-Input Seamless Switching: Switches among four selectable 3G-SDI sources for live production and presentation workflows.
• Dual-Format Inputs: Inputs 1 and 2 also accept HDMI, providing flexibility when combining professional and presentation video sources.
• Full-Time HDMI Quadview: Displays all four sources simultaneously for efficient preview and monitoring.
• Integrated Video Scaling: Performs upward and downward resolution and frame-rate conversion to match the selected output format.
• Simultaneous Program Outputs: Provides HDMI and SDI program feeds for local displays, routing, recording, or distribution.
• Selectable Waveform Overlay: Adds an on-screen waveform monitoring option for evaluating video signal levels.
• Network and Serial Control: Supports front-panel operation, browser-based Ethernet setup, and Ethernet or RS-232 source control.
• Rack-Ready Construction: Uses a metal 1U enclosure with rack ears for permanent installations and portable production systems.

Technical Specifications

• Switching Configuration: 4 x 1 seamless video switcher with quad-view monitoring

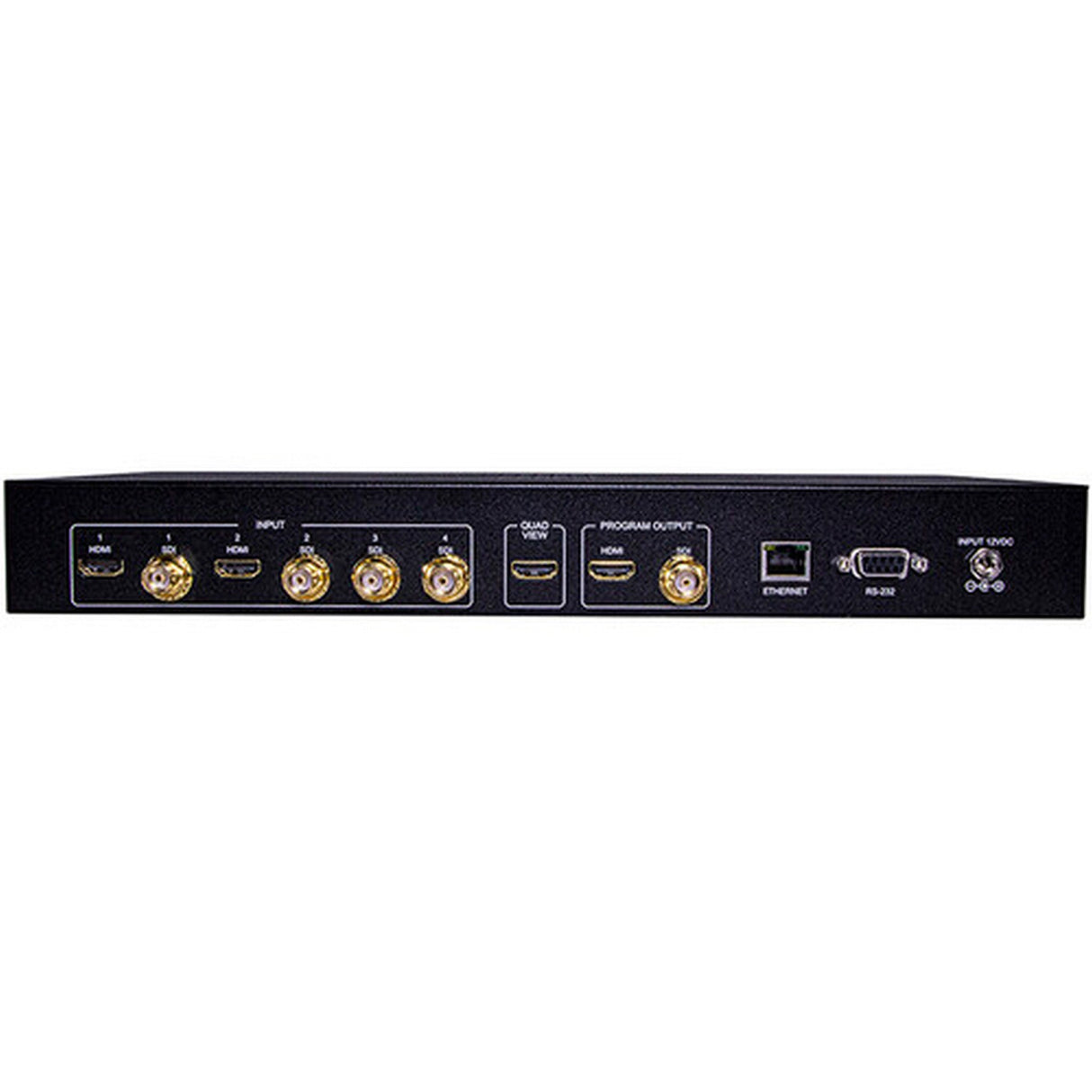

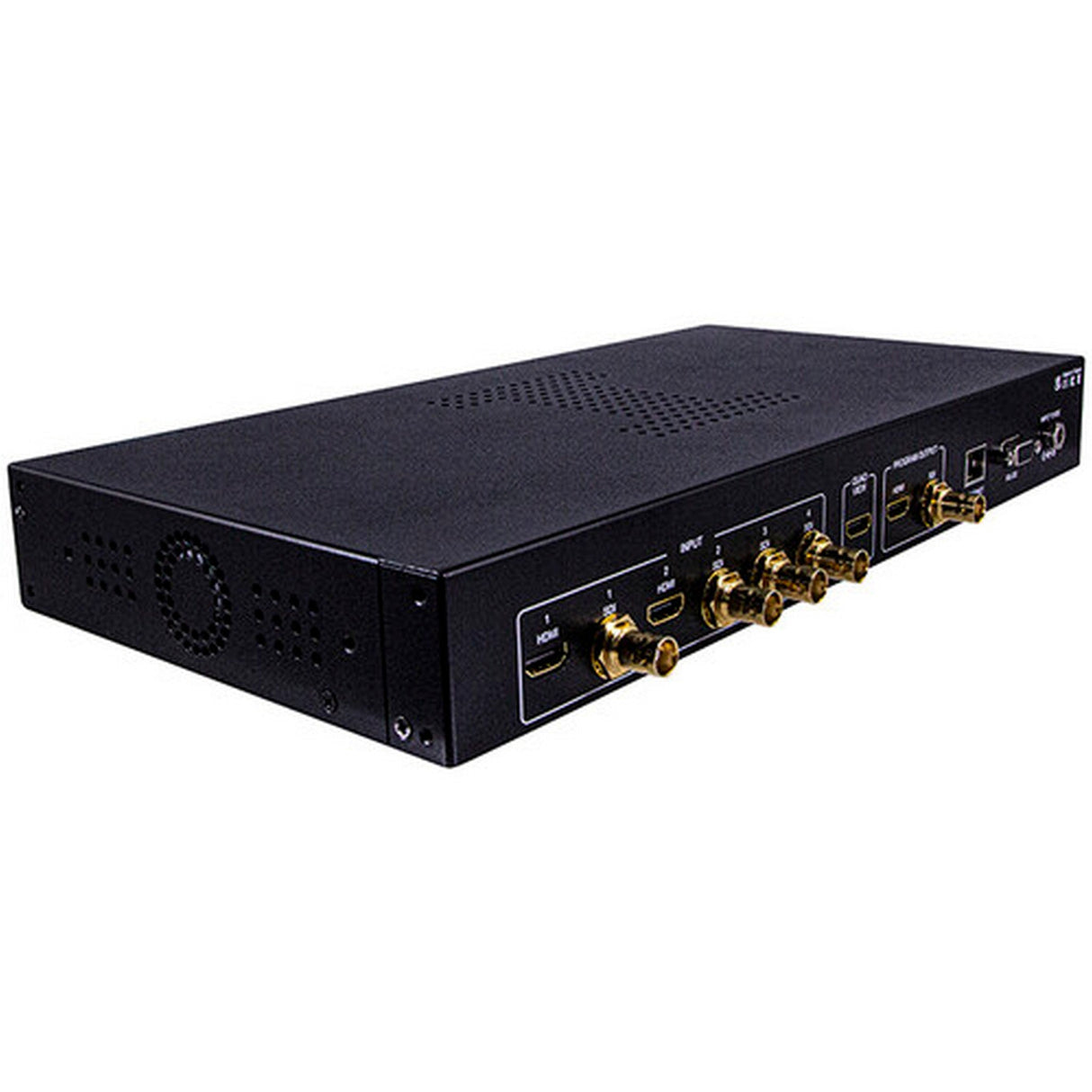

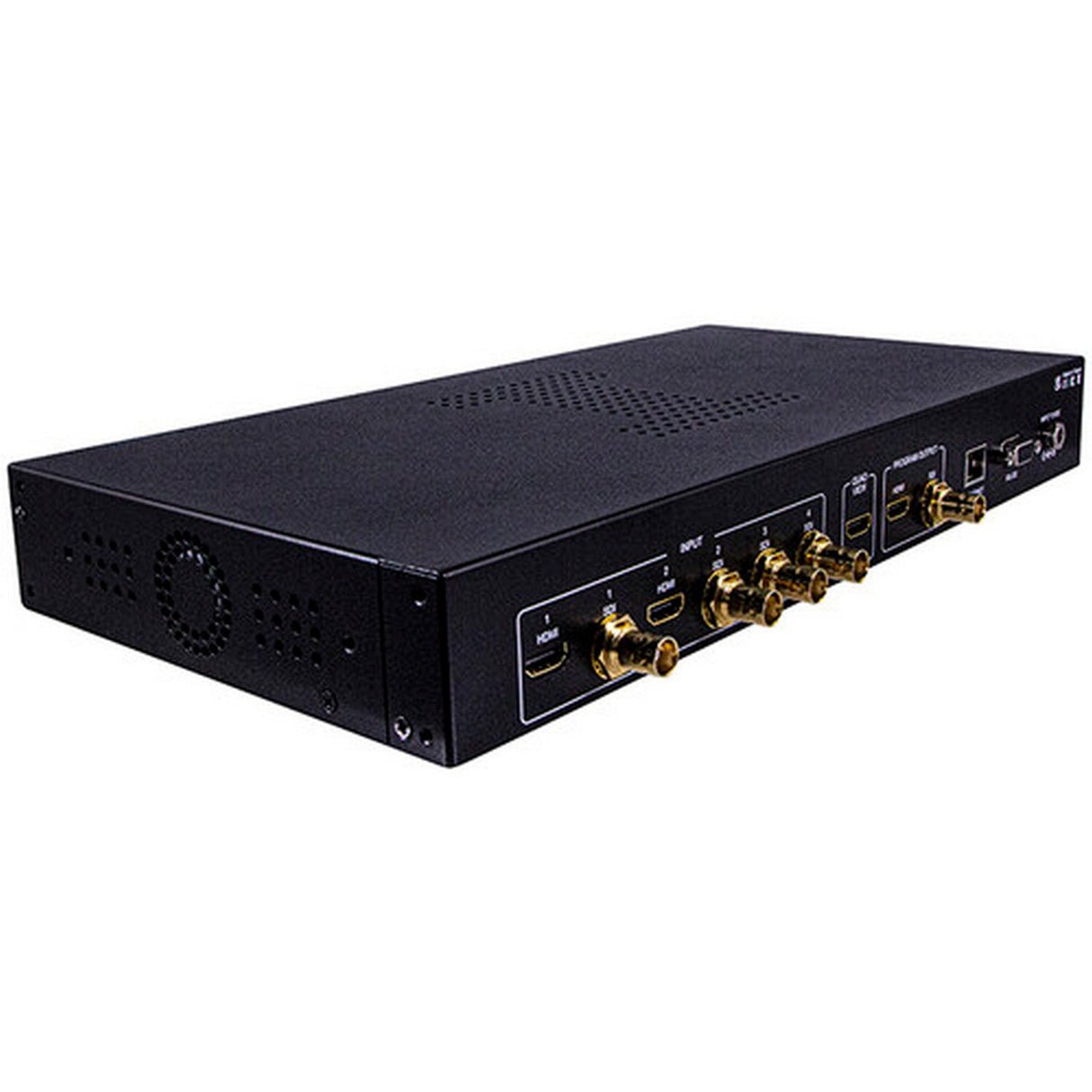

• Video Inputs: 4 x 3G-SDI; 2 x HDMI selectable on inputs 1 and 2
• SDI Input Formats: 480i59.94, 576i50, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60
• HDMI Input Formats: 480i59.94/60, 480p59.94/60, 576i50, 576p50, 720p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 3840 x 2160p23.98/24/25/29.97/30/50/59.94/60, 4096 x 2160p23.98/24/25/29.97/30/50/59.94/60
• Embedded Audio Support: Embedded surround sound up to 7.1 channels or stereo digital audio
• Program Outputs: 1 x HDMI and 1 x SDI
• Preview Output: 1 x HDMI
• HDMI Quad-View Preview Formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p25/29.97/30/50/59.94/60, 3840 x 2160p25/29.97/30/50/59.94/60
• HDMI Program Output Formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p25/29.97/30/50/59.94/60, 3840 x 2160p25/29.97/30/50/59.94/60
• SDI Program Output Formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p25/29.97/30/50/59.94/60
• Scaling: Upward and downward resolution and frame-rate scaling
• Video Monitoring: Selectable waveform overlay
• System Setup: Front-panel controls or Ethernet browser
• Remote Control: Input selection and quad-view labels via Ethernet or RS-232
• Housing: Metal enclosure
• Mounting: 1U rack-mounting case with ears
• Power Supply: 12 VDC, 5 A
• Power Consumption: 43 W
• Operating Temperature: 32 to 122 degrees F
• Storage Temperature: 32 to 140 degrees F
• Relative Humidity: 30% to 70%
• Dimensions: 14.1 x 7.1 x 1.7 inches
• Weight: 3.3 lb
