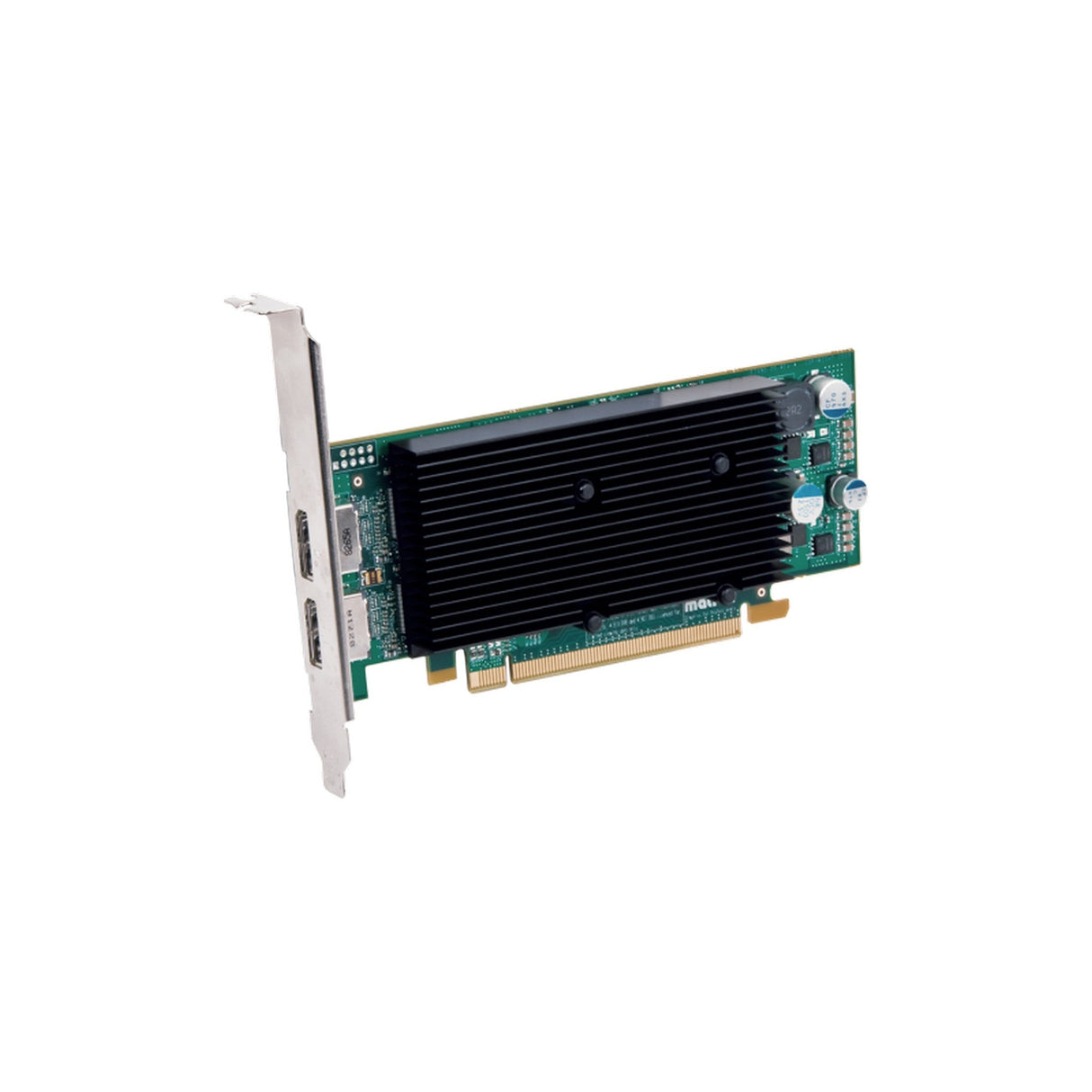

Matrox M9128-E1024LAF M9128 LP PCIe x16 Dual Monitor Graphics Card

The Matrox M9128 LP PCIe x16 dual monitor graphics card renders pristine image quality on up to two DisplayPort monitors at resolutions up to 2560x1600 per output. With 1 GB of memory and advanced desktop management features, the M9128 LP PCIe x16 card supports both independent or stretched desktop modes and is the economical choice to drive business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M-Series card for additional monitor support.

Key Features

• High-resolution two DisplayPort monitor support: Support resolutions up to 2560x1600 per output
• Native PCI express x16 performance: Maximum bandwidth to ensure best performance
• 1 GB of memory: For enhanced performance in demanding multi-monitor applications
• Low-profile form factor: To fit in a wide variety of systems; includes bracket for full-height ATX form factor
• Passive cooling and low power consumption: Fanless design eliminates noise and increases product reliability
• Stretched and independent desktop modes: Expand your desktop across multiple monitors or set each monitor independent of each other
• Edge Overlap: Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
• M-Series multi-card support1: Add an additional M-Series card into the same system to drive up to 10 displays from two cards
• Joined graphics card mode2: Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
• Matrox Clone: View a copy of one display on the other displays
• Wide enterprise flexibility: Unified driver package compatible with other Matrox products
• Matrox PowerDesk software: Easily configure and manage program windows on multiple monitors
• Multiple operating system support: Display drivers for Microsoft Windows 10 (32-bit, 64-bit; non-WHQL), Windows Server 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux3

Technical Specifications

Part Number
M9128-E1024LAF
Bus Interface
PCIe x16
Form Factor
Card
Low profile/half length
Bracket
ATX and low profile
Connectivity
Video Output
Formats
DisplayPort
SL-DVI (requires additional adapter)
Connectors
2x DisplayPort
Maximum Number of Cards per System
2
Performance
Maximum Video Resolutions
Support for custom resolutions; contact Matrox for details.
Memory
1 GB DDR2
Video Output Resolutions
DisplayPort
2560x1600*
*Max resolutions are per output
Support for Custom Resolutions contact Matrox for specific requirements.
Video and Audio Processing
Bezel Management
Yes (available under Windows only)
Physical
Product Dimensions
6.6 (L) x 2.7 (H) inches
16.67 (L) x 6.86 (H) cm
Cooling
Fanless
Additional Features
Open GL 2.0 support
Unified driver package
Hardware & Software
Hardware Included
Low profile bracket
Software
Matrox PowerDesk (free download)
Main Software Features
Independent Desktop Mode
Stretched Desktop Mode
Clone Mode
Pivot Mode
Joined Adapter Mode*
*Not available under Microsoft Windows 7 and Vista when M9188 is the additional card, except under Windows 7 XDDM mode.
General
Supported Operating Systems (software)
Windows 7 (32-bit, 64-bit)
Windows 8.x (32/64 bit)
Microsoft Windows 10 (32-bit, 64-bit; non-WHQL)
Windows Embedded Standard 7 (32*/64 bit)
Windows Server 2003 (32/64bit)
Windows Server 2008 R1 (32-bit, 64-bit)
Windows Server 2008 R2
Windows Server 2016
Windows Server 2012 (32-bit, 64-bit)
Windows Server 2016 R2
Windows Server 2019
Windows Vista (32-bit, 64-bit)
Windows XP (32-bit, 64-bit)
Linux*
*M-Series cards support a wide range of Linux operating systems. Refer to the README file in the driver download section for compatible Linux distributions or contact Matrox directly.
EMC/EMI Device Class
Class B
Warranty
Three-year limited warranty with free telephone support
