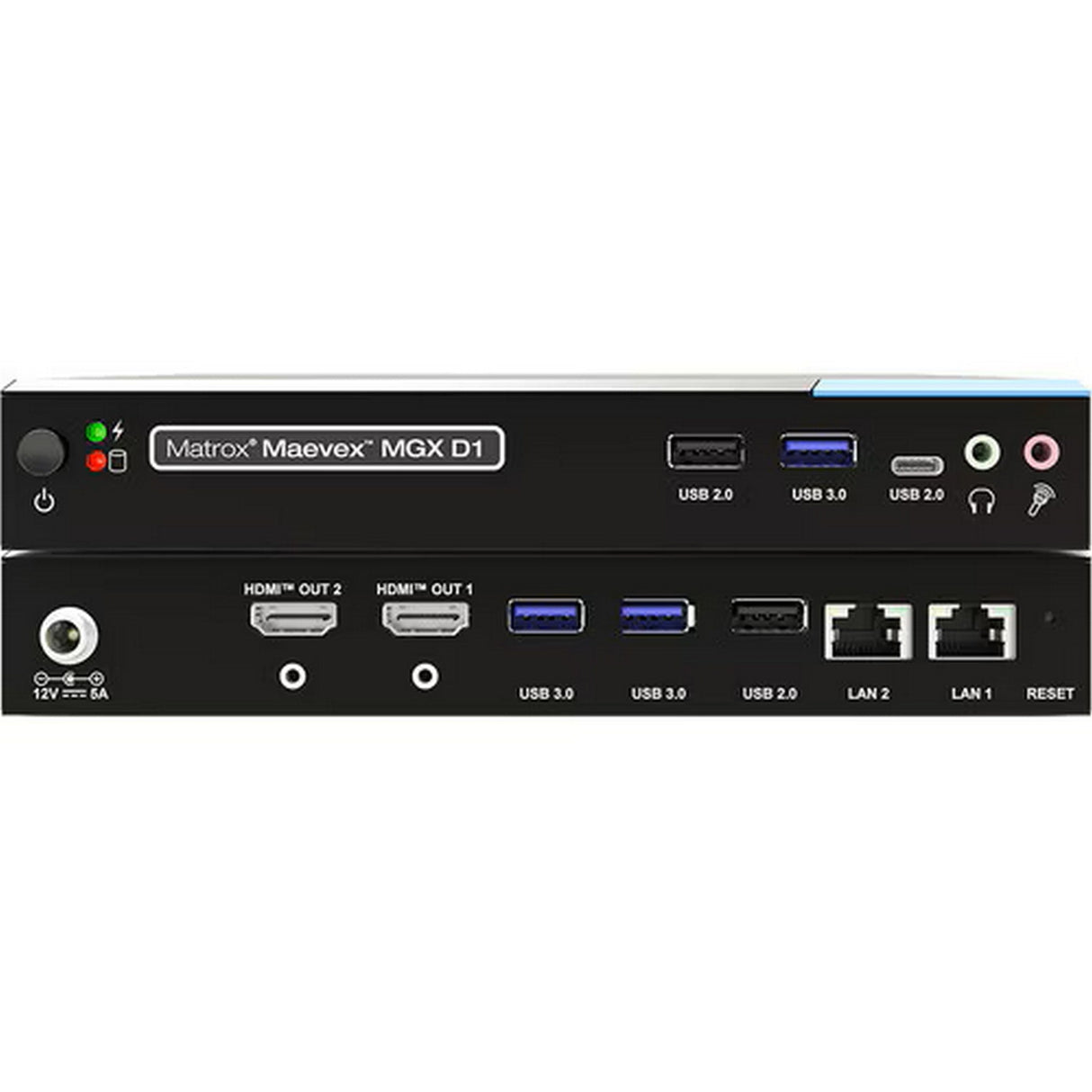

Matrox Maevex MGX D1 Single 4K60 / Dual FHD AV-over-IP Decoder

Matrox Maevex MGX D1 AV-over-IP Decoder

The Matrox Maevex MGX D1 AV-over-IP Decoder receives H.265 or H.264 network video and outputs either one 4K60 signal or two 1080p60 signals through dual HDMI connections. It supports H.265 4:4:4, IPMX, Matrox IQ Mode, multiview layouts, and USB extension for interactive professional AV systems.

Designed for control rooms, corporate AV distribution, medical environments, remote workstations, and other networked video installations, the MGX D1 fits workflows requiring a single 4K60 AV-over-IP decoder, dual Full HD network video outputs, or low-latency HDMI-over-IP decoding. Picture-in-Picture, Picture-by-Picture, and 1080p quadrant layouts let operators display multiple sources without a separate multiview processor.

Matrox IQ Mode reaches as low as 16 ms glass-to-glass when paired with compatible MGX encoders; an MGX E1 adds one frame for a two-frame total. Dual Gigabit Ethernet interfaces, six USB ports, HDCP 1.4/2.3, IPv4/IPv6, NMOS IS-04/IS-05, and Matrox Central Manager support integration into managed AV-over-IP infrastructure.

Key Features

• Single 4K60 or Dual FHD Decoding: Outputs one 4K60 stream or up to two simultaneous 1080p60 streams for flexible display configurations.
• H.265 and H.264 Support: Decodes HEVC with 4:2:0 or 4:4:4 color and AVC with 4:2:0 color for broad workflow compatibility.
• Low-Latency Matrox IQ Mode: Delivers glass-to-glass latency as low as 16 ms with compatible MGX encoders.
• Dual HDMI Outputs: Provides two HDMI Type A connections with retention screws for secure professional display connections.
• Integrated Multiview: Supports fixed Picture-in-Picture, Picture-by-Picture, and 1080p quadrant layouts.
• USB Extension: Six USB ports support keyboard, mouse, and webcam connectivity for interactive remote workflows.
• Flexible Network Streaming: Supports IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS protocols.
• Professional Device Management: Works with Matrox Central Manager, Web UI configuration, and NMOS IS-04/IS-05 discovery and routing.

Technical Specifications

Product

• Model: Maevex MGX D1
• Product Type: AV-over-IP Decoder
• Base Part Number: MVX-MGXD1Y
• North American MPN: MVX-MGXD1Y-NA
• Form Factor: Standalone appliance
• Rackmount Support: Rack mounting is not supported for the Maevex MGX D1

Video and Audio Connectivity

• HDMI Outputs: 2 x HDMI Type A with retention screws
• Microphone Port: 1 x 3.5 mm; supported in a future firmware release
• Headphone Output: 1 x 3.5 mm; supported in a future firmware release

Network and USB Connectivity

• LAN 1: 1000 Base-T RJ45
• LAN 2: 1000 Base-T RJ45
• Network Interfaces: Separate MAC address for each LAN connection
• Front USB Ports: 3 x USB Type-A
• Rear USB Ports: 2 x USB Type-A and 1 x USB Type-C
• USB Device Support: Keyboard, mouse, and webcam

Video Decoding Performance

• Maximum Output: Up to 1 x 4Kp60 or 2 x 1080p60
• H.265 Decoding: Up to 1 x 4Kp60 or 2 x 1080p60 in 4:2:0 or 4:4:4
• H.264 Decoding: Up to 1 x 4Kp60 or 2 x 1080p60 in 4:2:0
• Matrox IQ Mode Latency: As low as 16 ms glass-to-glass, or one frame
• MGX E1 Pairing Latency: Two frames total when the D1 is paired with an MGX E1 encoder
• IPMX Latency: As low as 120 ms glass-to-glass

Video and Audio Processing

• Video Scaling: Supported
• Video Compositing: Fixed Picture-in-Picture, Picture-by-Picture, and 1080p quadrant formats
• Preview Mode: Supported
• HDCP Support: Versions 1.4 and 2.3
• Audio Format: MPEG-4 AAC-LC, Raw and ADTS
• AAC-LC Audio Bitrate: Up to 1152 Kbps
• H.265 Color Support: 4:2:0 8-bit and 10-bit; 4:4:4 8-bit and 10-bit, up to 100 Mbps
• H.264 Color Support: 4:2:0 8-bit, up to 100 Mbps
• Uncompressed Audio: Supported with IPMX and Matrox IQ Mode
• AAC-LC Stereo Pair Bitrate: 32 to 1152 Kbps
• Decoder Bitrate Range: 50 Kbps to 400 Mbps per stream

Network and Streaming

• Network Operation: Auto speed and half/full duplex
• IGMP: Versions 2 and 3
• Routing: Unicast and multicast
• IP Addressing: IPv4 and IPv6
• Address Configuration: DHCP by default or static IP
• Command and Control: mDNS, LLMNR, and HTTPS over TCP
• NMOS: IS-04 discovery and IS-05 connection management
• Streaming Formats: IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS
• SRT Modes: Caller, sender, and rendezvous

Physical and Environmental

• Dimensions: 7.8 x 6 x 1.2 inches
• Weight: 2.4 lb
• Operating Temperature: 32 to 104°F
• Regulatory Compliance: CE Class A, FCC Class A, ICES-003 Class A, KC Class A, RCM Class A, UKCA Class A
• Environmental Compliance: China RoHS, EU RoHS, REACH, WEEE

Power, Management, and Accessories

• Power Supply Input: 110-240V AC
• Power Supply Output: 12V DC, 60W
• Management Software: Matrox Central Manager
• Configuration Interface: Web UI
• API: NMOS IS-04 and IS-05
• Optional Routing Hardware: ConductIP NMOS-based routing solution, CDCTIP-MRA2Y
• Optional HDMI Secure Cable Solution: SK-SLND-4
• Optional Angle Bracket Kit: RMK-6BRKT-A
• Standard Warranty: 2 years

What's In the Box

• Matrox Maevex MGX D1 Decoder
• 110-240V AC to 12V DC, 60W Power Supply
