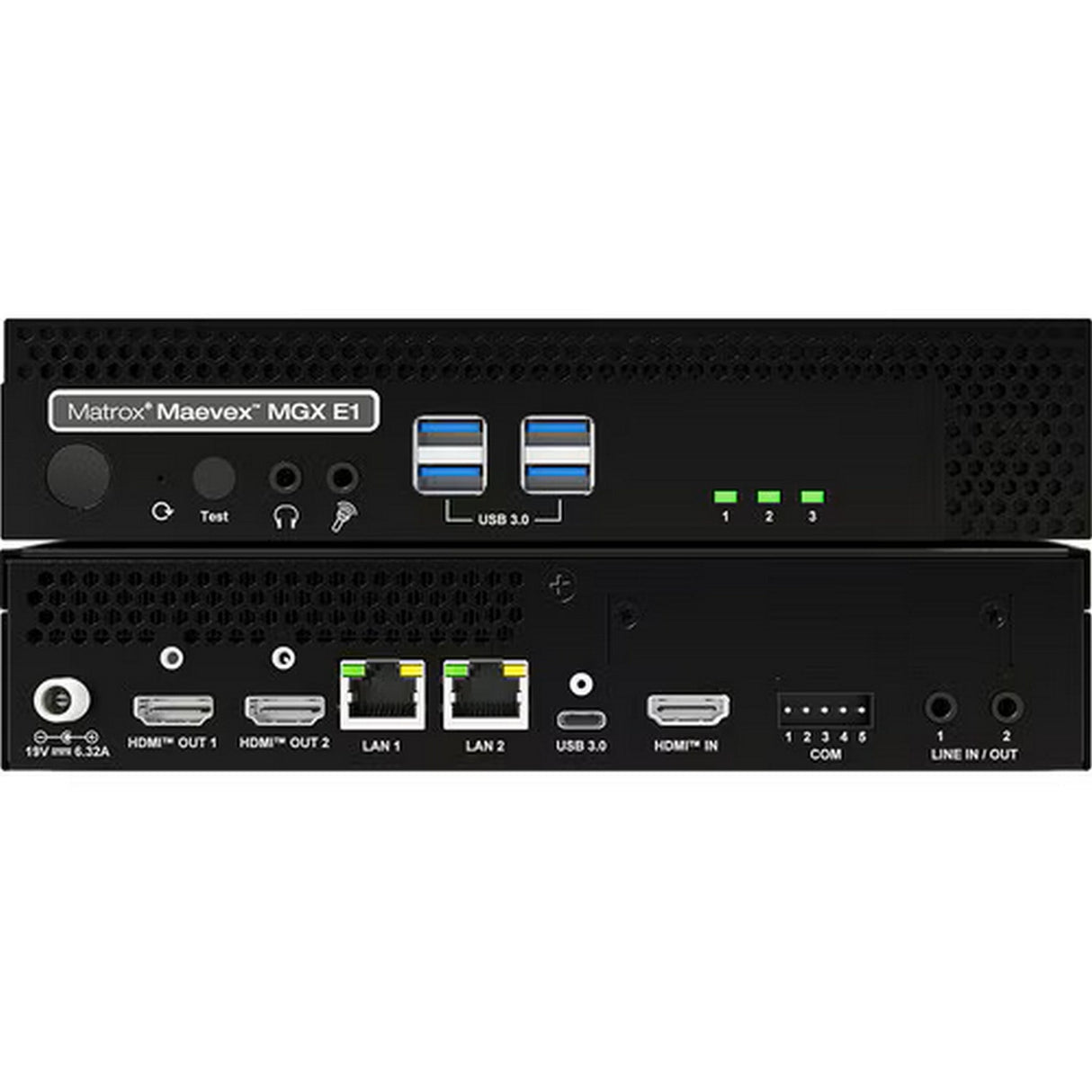

Matrox Maevex MGX E1 Single-Channel 4K60 AV-over-IP Encoder

Matrox Maevex MGX E1 Single-Channel 4K60 AV-over-IP Encoder

The Matrox Maevex MGX E1 is a single-channel 4K60 AV-over-IP encoder built for high-quality video distribution over standard IP networks. It encodes one HDMI source at up to 3840 x 2160 at 60 Hz using H.265 or H.264, with H.265 supporting 4:4:4 chroma for detailed professional video workflows.

Designed for corporate AV, control rooms, command environments, medical applications, and other networked video systems, the MGX E1 supports IPMX and Matrox IQ Mode alongside RTP/RTSP, SRT, and MPEG2-TS streaming. Two 1000/2500 Base-T network ports provide flexible connectivity, while dual HDMI outputs support local passthrough. Integrated USB connectivity also accommodates interactive remote workflows.

Matrox IQ Mode delivers glass-to-glass latency as low as 32 ms, or two frames, with the MGX E1. The encoder also supports video scaling, HDCP 1.4 and 2.3, AAC-LC audio encoding, IPv4 and IPv6 networking, NMOS IS-04 and IS-05 discovery and routing, and centralized configuration through Matrox Central Manager or its Web UI.

Key Features

• Single-Channel 4K60 Encoding: Captures and encodes one HDMI source at resolutions up to 3840 x 2160 at 60 Hz.
• H.265 4:4:4 Support: Preserves detailed color information for high-fidelity professional AV-over-IP applications.
• Low-Latency Matrox IQ Mode: Supports glass-to-glass latency as low as 32 ms, or two frames, with compatible Matrox endpoints.
• Flexible Streaming Protocols: Supports IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS distribution.
• Dual 2.5GbE Networking: Provides two 1000/2500 Base-T RJ45 ports with separate MAC addresses.
• Local HDMI Passthrough: Two HDMI outputs allow local video monitoring while the source is distributed over the network.
• USB Extension Connectivity: Four front USB Type-A ports and one rear USB Type-C host connection support interactive workflows.
• Professional Management: Supports Matrox Central Manager, a browser-based Web UI, and NMOS IS-04 and IS-05 integration.

Technical Specifications

Product

• Model: Maevex MGX E1
• Series Part Number: MVX-MGXE1Y
• North America MPN: MVX-MGXE1Y-NA
• Form Factor: Standalone appliance; rack-mountable in 1U, 1/2-rack horizontal configuration

Video and Audio Connectivity

• HDMI Input: 1 x HDMI Type A with retention screw
• HDMI Input Audio: Digital LPCM two-channel stereo
• Microphone Input: 1 x 3.5 mm port; future firmware support
• Line Input: 1 x 3.5 mm port; future firmware support
• HDMI Outputs: 2 x HDMI Type A with retention screws
• Headphone Output: 1 x 3.5 mm port; future firmware support
• Line Output: 1 x 3.5 mm port; future firmware support
• COM Port: 5-pin COM port; future firmware support

Network and USB Connectivity

• LAN 1: 1000/2500 Base-T RJ45
• LAN 2: 1000/2500 Base-T RJ45
• Network MAC Addresses: Separate MAC address for each LAN interface
• Front USB Ports: 4 x USB Type-A
• Rear USB Port: 1 x USB Type-C
• USB Type-C Function: USB host connection

Video Performance

• Maximum Input Resolution: 3840 x 2160 at 60 Hz, progressive
• Maximum Passthrough Resolution: 3840 x 2160 at 60 Hz, progressive
• H.265 Encoding: Up to 1 x 4Kp60 in 4:2:0 or 4:4:4
• H.264 Encoding: Up to 1 x 4Kp60 in 4:2:0
• Video Scaling: Yes
• Video Compositing: No
• Preview Mode: Yes
• HDCP Support: HDCP 1.4 and 2.3
• Recording: Planned for a future firmware release

Latency

• Matrox IQ Mode Latency: As low as 32 ms glass-to-glass, or two frames
• IPMX Latency: As low as 120 ms glass-to-glass

Codecs and Audio Processing

• H.265 HEVC Color Support: 4:2:0 8-bit and 10-bit; 4:4:4 8-bit and 10-bit
• H.265 Bitrate: Up to 100 Mbps for listed color-space modes
• H.264 AVC Color Support: 4:2:0 8-bit
• H.264 Bitrate: Up to 100 Mbps
• Audio Encoding: MPEG-4 AAC-LC, Raw and ADTS
• AAC-LC Audio Bitrate: 32 to 1152 Kbps per stereo pair
• Uncompressed Audio: Supported with IPMX and Matrox IQ Mode
• Encoder Video Bitrate: 50 Kbps to 400 Mbps per stream
• Encoding Level: Up to 6.0
• Encoding Profiles: H.264 Baseline, H.264 Main, H.264 High, H.265 Main, H.265 Main 10-bit, H.265 Main 4:4:4, H.265 Main 4:4:4 10-bit
• Rate Control: Adjustable GOP size, Constant Bitrate, and Variable Bitrate

Network and Streaming

• Network Operation: Auto speed and half/full duplex
• IGMP: Versions 2 and 3
• Routing: Unicast, multicast, and multi-unicast
• IP Addressing: IPv4 and IPv6
• Address Configuration: DHCP by default or static IP
• Command and Control: mDNS, LLMNR, and HTTPS over TCP
• NMOS: IS-04 discovery and IS-05 connection management
• Streaming Formats: IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS
• SRT Modes: Caller, sender, and rendezvous

Physical and Environmental

• Dimensions: 8.1 x 7.3 x 1.8 inches
• Weight: 2.7 lb
• Operating Temperature: 32 to 104°F
• Regulatory Compliance: CE Class A, FCC Class A, ICES-003 Class A, KC Class A, RCM Class A, UKCA Class A
• Environmental Compliance: China RoHS, EU RoHS, REACH, WEEE

Power, Software, and Accessories

• Power Supply Input: 110-240V AC
• Power Supply Output: 12V DC, 60W
• Management Software: Matrox Central Manager
• Configuration Interface: Web UI
• API: NMOS IS-04 and IS-05
• Optional Routing Hardware: ConductIP NMOS-based routing solution, part CDCTIP-MRA2Y
• Optional Rackmount Kit: RMK-19TR-A
• Optional HDMI Secure Cable Solution: SK-SLND-4
• Optional Angle Bracket Kit: RMK-6BRKT-A
• Standard Warranty: 2 years

What's In the Box

• Matrox Maevex MGX E1 Encoder
• 110-240V AC to 12V DC, 60W Power Supply
