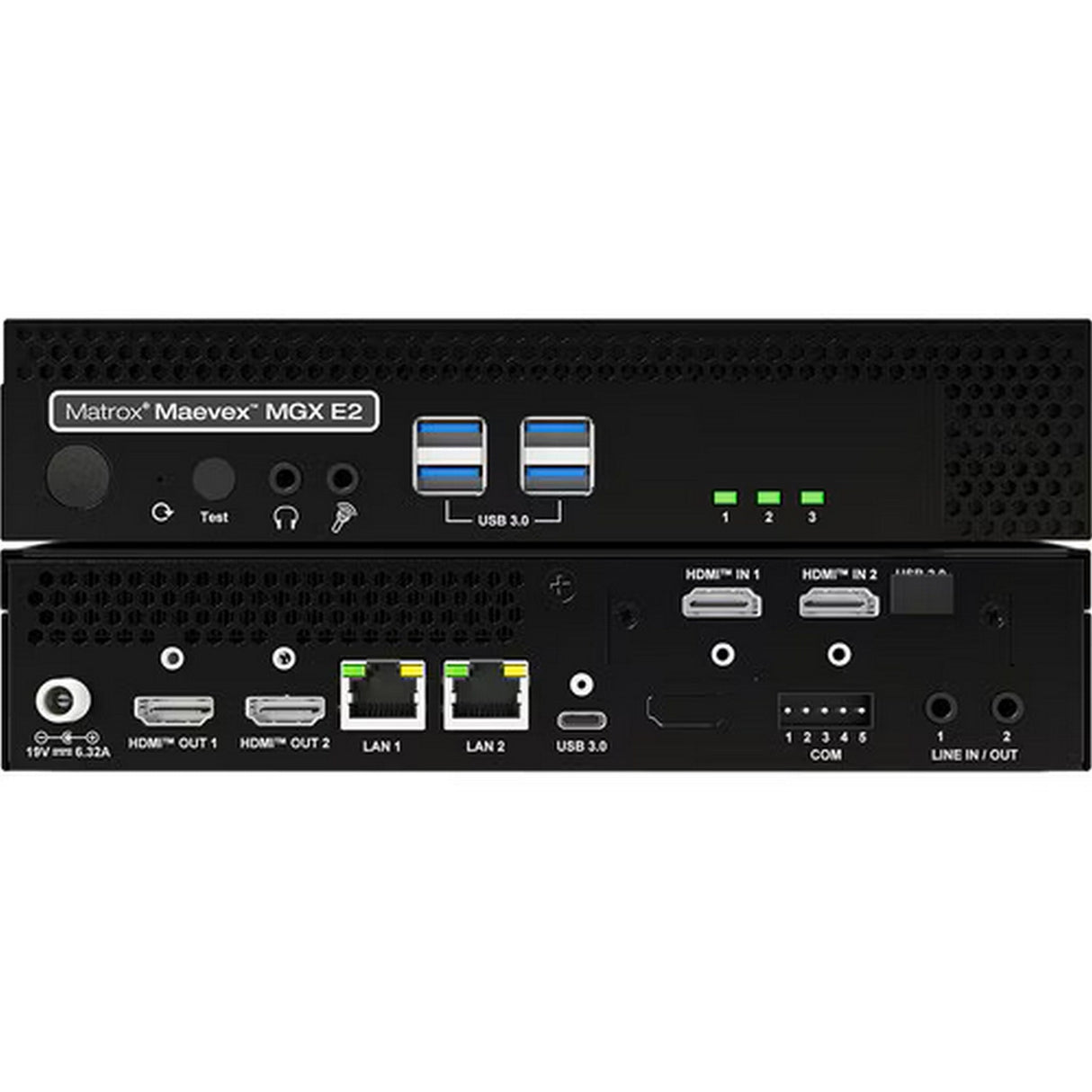

Matrox Maevex MGX E2 Dual-Channel 4K60 AV-over-IP Encoder

Matrox Maevex MGX E2 Dual-Channel 4K60 AV-over-IP Encoder

The Matrox Maevex MGX E2 is a dual-channel 4K60 AV-over-IP encoder for distributing two HDMI sources across professional IP networks. It encodes up to two 4K60 feeds using H.265 or H.264, supports H.265 4:4:4 color, and delivers Matrox IQ Mode glass-to-glass latency as low as one frame.

Built for enterprise AV, control rooms, medical environments, remote workstations, and mission-critical installations, the MGX E2 supports IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS streaming. Two 2.5GbE-capable network ports provide deployment flexibility, while dual HDMI outputs enable local passthrough alongside network distribution.

The MGX E2 also adds fixed-format Picture-in-Picture and Picture-by-Picture compositing, video scaling, HDCP support, and integrated USB connectivity for interactive workflows. Matrox Central Manager, a browser-based Web UI, and NMOS IS-04 and IS-05 support give integrators several options for configuration, discovery, routing, and device management.

Key Features

• Dual 4K60 Encoding: Encodes as many as two 4K60 HDMI sources simultaneously for high-density AV-over-IP deployments.
• H.265 4:4:4 Support: Preserves fine color and image detail while using efficient HEVC compression for professional visual content.
• One-Frame Matrox IQ Mode: Achieves glass-to-glass latency as low as 16 ms with compatible Matrox endpoints.
• Multi-Protocol Streaming: Supports IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS for flexible network distribution.
• Integrated Multiview: Fixed Picture-in-Picture and Picture-by-Picture formats combine the dual sources within supported workflows.
• Dual 2.5GbE Interfaces: Two 1000/2500 Base-T connections with separate MAC addresses support adaptable network designs.
• Local HDMI Passthrough: Two HDMI outputs provide local monitoring while content is encoded and distributed over IP.
• Professional Management: Matrox Central Manager, Web UI, and NMOS IS-04/IS-05 tools streamline device configuration and routing.

Technical Specifications

Product

• Model: Maevex MGX E2
• Part Number: MVX-MGXE2Y
• North American MPN: MVX-MGXE2Y-NA
• Form Factor: Standalone appliance
• Rack Mounting: 1U, 1/2-rack horizontal installation with optional hardware

Video and Audio Connectivity

• HDMI Inputs: 2 x HDMI Type A with retention screws
• HDMI Input Audio: Digital LPCM two-channel stereo
• Microphone Input: 1 x 3.5 mm port; future firmware support
• Line Input: 1 x 3.5 mm port; future firmware support
• HDMI Outputs: 2 x HDMI Type A with retention screws
• Headphone Output: 1 x 3.5 mm port; future firmware support
• Line Output: 1 x 3.5 mm port; future firmware support
• COM Port: 5-pin COM port; future firmware support

Network and USB Connectivity

• LAN 1: 1000/2500 Base-T RJ45
• LAN 2: 1000/2500 Base-T RJ45
• Network Interfaces: Separate MAC address for each LAN connection
• Front USB Ports: 4 x USB Type-A
• Rear USB Port: 1 x USB Type-C
• USB Type-C Function: USB host connection

Video Performance

• Maximum Input Resolution: Up to 4096 x 2160 at 60 Hz
• Maximum Passthrough Resolution: Up to 4096 x 2160 at 60 Hz, progressive
• H.265 Encoding: Up to 2 x 4Kp60 in 4:2:0 or 4:4:4
• H.264 Encoding: Up to 2 x 4Kp60 in 4:2:0
• Recording: Planned for a future firmware release
• Matrox IQ Mode Latency: As low as 16 ms glass-to-glass, or one frame
• IPMX Latency: As low as 120 ms glass-to-glass

Video and Audio Processing

• Video Scaling: Supported
• Video Compositing: Fixed Picture-in-Picture and Picture-by-Picture formats
• Preview Mode: Supported
• HDCP: Versions 1.4 and 2.3
• Audio Encoding: MPEG-4 AAC-LC, Raw and ADTS
• AAC-LC Audio Bitrate: Up to 1152 Kbps
• Uncompressed Audio: Supported with IPMX and Matrox IQ Mode
• AAC-LC Stereo Pair Bitrate: 32 to 1152 Kbps

Codecs

• H.265 HEVC: 4:2:0 8-bit and 10-bit; 4:4:4 8-bit and 10-bit, up to 100 Mbps
• H.264 AVC: 4:2:0 8-bit, up to 100 Mbps
• Encoder Bitrate Range: 50 Kbps to 400 Mbps per stream
• Encoding Level: Up to 6.0
• H.264 Profiles: Baseline, Main, High
• H.265 Profiles: Main, Main 10-bit, Main 4:4:4, Main 4:4:4 10-bit
• Rate Control: Adjustable GOP size, Constant Bitrate, Variable Bitrate

Network and Streaming

• Network Operation: Auto speed, half/full duplex
• IGMP: Versions 2 and 3
• Routing: Unicast, multicast, multi-unicast
• IP Addressing: IPv4 and IPv6
• Address Configuration: DHCP by default or static IP
• Command and Control: mDNS, LLMNR, HTTPS over TCP
• NMOS: IS-04 discovery and IS-05 connection management
• Streaming Formats: IPMX, Matrox IQ Mode, RTP/RTSP, SRT, MPEG2-TS
• SRT Modes: Caller, sender, rendezvous

Physical and Environmental

• Dimensions: 8.1 x 7.3 x 1.8 inches
• Weight: 2.8 lb
• Operating Temperature: 32 to 104°F
• Regulatory Compliance: CE Class A, FCC Class A, ICES-003 Class A, KC Class A, RCM Class A, UKCA Class A
• Environmental Compliance: China RoHS, EU RoHS, REACH, WEEE

Power, Software, and Accessories

• Power Supply Input: 110-240V AC
• Power Supply Output: 19V DC, 120W
• Management Software: Matrox Central Manager
• Configuration Interface: Web UI
• API: NMOS IS-04 and IS-05
• Optional Routing Hardware: ConductIP NMOS-based routing solution, CDCTIP-MRA2Y
• Optional Rackmount Kit: RMK-19TR-A
• Optional HDMI Secure Cable Solution: SK-SLND-4
• Optional Angle Bracket Kit: RMK-6BRKT-A
• Standard Warranty: 2 years

What's In the Box

• Matrox Maevex MGX E2 Encoder
• 110-240V AC to 19V DC, 120W Power Supply
