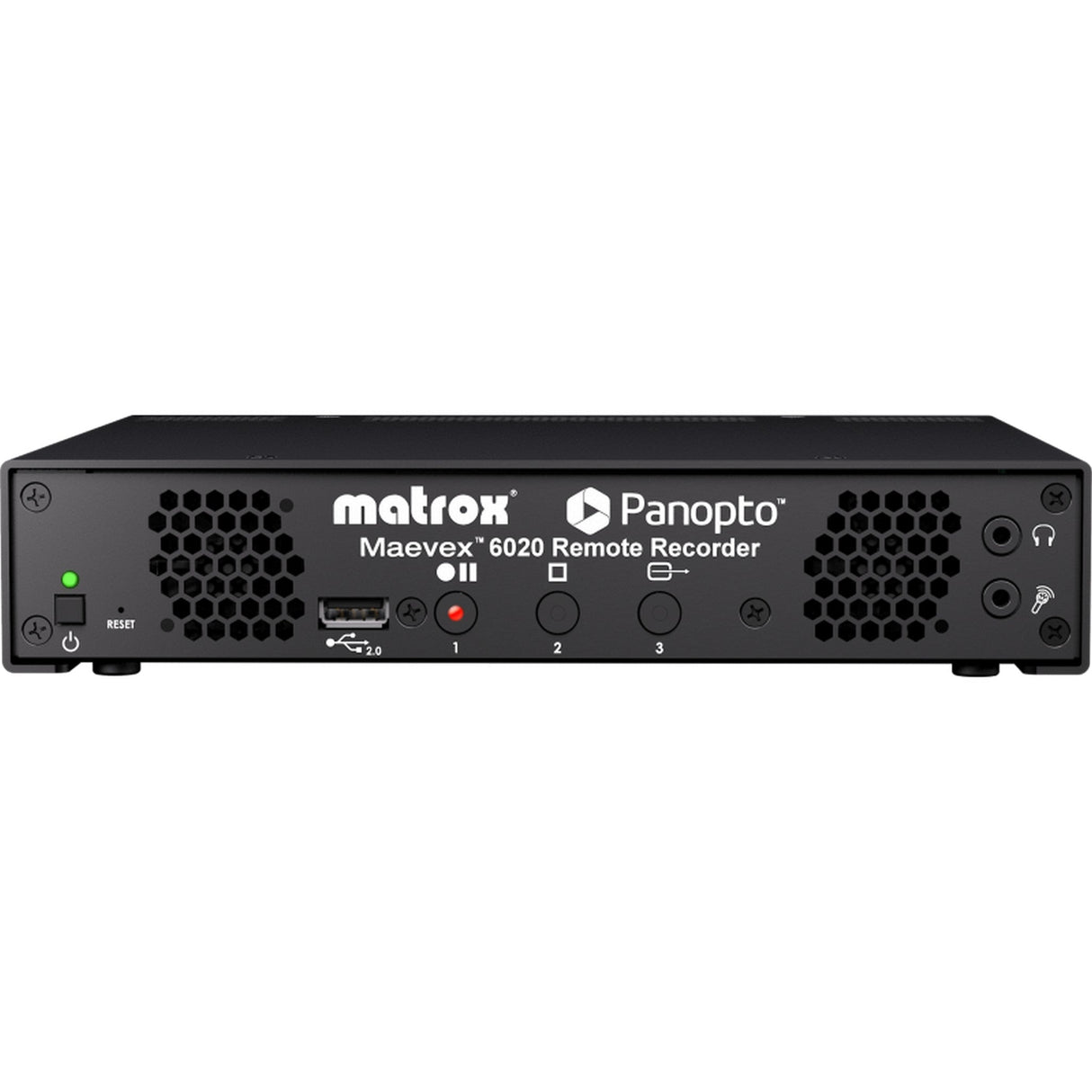

Matrox MVX-RR6020-P Maevex Panopto 6020 Remote Recorder

The Matrox Maevex 6020 Remote Recorder appliance is a Panopto-certified live streaming multi-recorder specifically designed for-and fully integrated with-Panopto’s industry-leading video management system (VMS). The best of Panopto’s cloud solution-streaming, scheduling, and management-is available for the Maevex 6020. The Maevex 6020 Remote Recorder enhances the Panopto VMS solution by providing live streaming and recording functionality for businesses and universities.

Maevex 6020 makes it easy to live stream and record multiple simultaneous 1080p HD video sources. The recordings are encoded and ready for use without any quality loss or time loss-no cloud transcoding required. This makes the video available to your audience much faster, and at the highest possible quality.

Schedule video recordings and webcasts from anywhere using Panopto's easy-to-use web-based interface. All videos captured by the appliance are automatically published to Panopto’s secure video content management system (video CMS), where they can be shared and played on any device.

Easy to set up and deploy
Matrox Maevex 6020 comes pre-configured to work as a Panopto Remote Recorder out of the box. Each unit is pre-built by Matrox and easily connects to your Panopto server through a one-time setup process: simply connect the appliance to your network, plug in your HDMI video sources, and you’re ready to go.

Access video. Anywhere, anytime.
Maevex 6020 offers the easiest way to connect to the Panopto cloud VMS. Connect power, network, and video. Power up your device. And log in to your Panopto cloud account. From there, the secure Panopto VMS platform provides complete control and makes video management, recording, live streaming, inside-video searching, quizzing, analytics, mobile, and other features readily accessible.

Capture live streams
When there are no active streams being broadcast, the two sets of recorded streams are delivered to the Panopto VMS simultaneously during the live event with only the slightest of lag from the start of the event as cloud transcoding is eliminated. If there are live streams being broadcast, the recorded streams are delivered immediately after the live streaming event ends, again with no cloud transcoding required. Additionally, in a single session, up to four sets of recordings (each set with multiple quality levels) and four Full HD streams can be enabled by combining two Maevex 6020 devices.

Control at the tip of your finger
It’s never been easier to capture presentations, lectures, events, and more. Record, pause, resume, and stop all at the touch of a button. For first-time users and seasoned professionals alike, the Maevex 6020 Remote Recorder delivers a simple video capture and streaming experience.

Compact design. Whisper quiet operation.
Support up to two 6020 remote recorder appliances from a single U of rack space, housed in a ½ rack size width means. Place the appliance on any rack mount, under a podium or desk, or anywhere you need.

With low power usage and whisper-quiet operation, this purpose-built device is ideal for any campus, enterprise, conference room, mobile application, or other environments that require a noise level of 25 dB and less.

Low maintenance. Hassle free.
Low maintenance and fully autonomous, this dedicated appliance requires no third-party or operating system control, so presentations and scheduling will never be affected by unexpected system updates or reboots. Recordings of multiple resolutions per channel are recorded simultaneously to the device’s solid-state drive (SSD), ensuring your recordings aren’t lost in case of network failure.

Device status at a glance
Know the status of the Maevex 6020 Remote Recorder at all times with the Kuando Busylight (sold separately). The colors can be customized through Maevex software.

Key Features

• Easy setup & deployment
• Whisper quiet, 1U 1/2 rack form factor
• Confidence preview & pass-through
• Dual live stream and record in Full HD
• Fastest VOD on the market
• Seamless, full integration with the Panopto VMS
• Control via on-device buttons and touchscreen controllers

Technical Specifications

Part Number
MVX-RR6020-P
Form Factor
Standalone appliance
Rack-mountable
1U, 1/2 rack (horizontal)
Connectivity
Video Input
Number of channels
2
Formats
HDMI (Type A)
Video Output
Number of channels
2
Formats
HDMI (Type A) zero latency pass-through
Audio Input
2x analog stereo audio (3.5mm)
1 Vrms (0 dBV)
14.3 kΩ (gain = 0 db)
1x stereo mic (3.5mm)
2.5 V
1 Vrms (0 dBV)
15 kΩ (gain = 0 db)
Audio Output
1x headphone (3.5 mm)
1.2 Vrms (1.6 dBV)
32 mW into 32Ω
Network Connector
1x RJ45
USB Ports
1x USB (front), 1x USB (back), with support for
Kuando Busylight UC Omega
Last session file transfer
USB to RS232 cable for tabletop touch-screen controllers
Confidence Preview
1x DisplayPort monitoring output (1920x1080), with viewing options for input 1, input 2, or inputs 1 and 2 side by side
Codec
Video Encoding Formats
H.264/MPEG-4 Part 10 (AVC)
Encoding
Encoding Capability
Up to dual 1920x1080
Recording
Recording Locations
Integrated 128 GB solid-state drive for 18 hours or more of continuous recording at maximum quality levels
On-Device Transcode
Primary input's maximum recording levels*
1920x1080
1280x720
960x540
768x432
Secondary input's maximum recording levels*
1920x1080
1280x720
960x540
*Simultaneous multiple recordings for each input
Network
Network Standard
Gigabit Ethernet operation
Streaming Protocols
RTMP live streaming to Panopto
Physical
Product Dimensions
8.53 (L) x 7.52 (W) x 1.68 (H) inches
21.7 (L) x 19.1 (W) x 4.3 (H) cm
Additional Features
Push-button controls
Button 1 (toggle)
Local manual record start, and pause/resume any on-going session
Button 2 (single function)
Local manual record stop
Button 3 (toggle)
DisplayPort monitoring output (input 1, input 2, inputs 1 and 2 side-by-side)
Hardware & Software
Hardware Included
Maevex 6020 Remote Recorder
Power supply: External 12 V d.c., 60 watts
Power cords (US, EU, UK, Aus/NZ)
Accessories (sold separately)
Rack Mount Kit (RMK-19TR-A)
Rack mounting shelf (19 in / 48.26 cm)
Pan head Phillips screws (4x 10-32 x 3/4 in)
Pan head Phillips screws (4x 12-24 x 3/4 in)
Flat head Phillips screws (6x M3 x 6 mm)
Kuando Busylight UC Omega
Sold separately by Plenom
Software
Maevex 6020 Configuration and Firmware Utility (free download)
Allows simple and easy connection to Panopto
Provides silent, centralized, optional firmware updates for Maevex 6020 Remote Recorders
RS232 API (free download)
Use the Maevex 6020 Remote Recorder RS-232 API to program a variety of basic commands for simple control of Maevex 6020 devices and for convenient in-room control via Crestron, Kramer, Extron, or other tabletop touch-screen controllers.
REST API (status)*
With the Maevex 6020 Remote Recorder REST API, easily retrieved status updates from all Matrox Maevex 6020 devices on the network and have the ability to send RS-232 control commands over IP. Effortlessly send commands such as start, stop, pause, resume, extend and even reboot with just the touch of a button-providing teachers and presenters with ease-of-use and even greater ease-of-mind.
*Contact Matrox for more details
Environmental
Power Consumption
35W
General
EMC/EMI Device Class
Class A
EMC/EMI Compliance
ACMA
CE (EU)
FCC (US)
ICES-3 (Canada)
KC (Korea)
VCCI (Japan)
Environmental Compliance
China RoHS
EU RoHS
REACH
WEEE
Warranty
Two-year limited warranty with free online or telephone support
