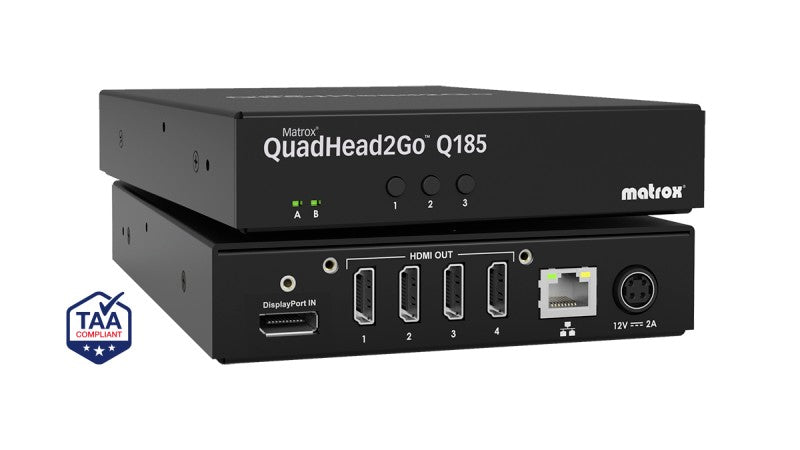

Matrox Q2G-DP4K2 QuadHead2Go Q185 Multi-Monitor Controller

Capable of driving four displays from one signal, the Matrox® QuadHead2Go™ Q185 multi-monitor controller appliance provides complete video wall scalability and flexibility. This system-independent appliance is designed to power any video wall configuration of any possible dimension, from any DisplayPort™ video source—reliably delivering flawless image quality across expansive video wall displays, suited for control rooms.

Complete Flexibility

• Drive up to four pristine quality Full HD displays from a single video signal—of up to 4Kp60 and 8Kx8K—at full RGB 8:8:8 and YUV 4:4:4 color support.
• Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
• Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
• Design modern and artistic video wall layouts with free rein—each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.
• Fashion countless forms of setups—arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations—and combine/scale them to create large-scale, captivating video walls.

Ease of Deployment

• Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2x2 in landscape—set up without installing software or even connecting a video source.
• Design any custom configuration/array with the intuitive Matrox PowerWall software.
• Ensure compatibility with professional-grade graphics cards and media players with native DisplayPort™ 1.2 support.
• Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
• Select and set the display layout by cycling through pre-set configurations* using an on-device button—there is no need to install software when using a pre-set configuration.
• Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.

Technical Specifications

PRODUCT
Product type
1 input and 4 outputs
Form factor
Appliance (p/n: Q2G-DP4K)
Input connector (video & audio support)
1 x DisplayPort 1.2
Max input resolutions
3840x2160 @60Hz, 3840x2160 @30Hz,
7680x1080 @60Hz, 7680x1080 @30Hz,
1920x4320 @60Hz, 1920x4320 @30Hz
Other input resolutions including 8Kx8K are supported.
Contact Matrox for more details.
Output connector (video & audio support)
4 x HDMI
Max output resolutions
1920x1080 @60Hz, 1920x1080 @30Hz,
1920x1200 @60Hz, 1920x1200 @30Hz
Other output resolutions are supported.
Contact Matrox for more details.
Memory
1 GB
CONFIGURATIONS
Supported configurations
2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait modes and other non-rectangular/artistic configurations
Non-rectangular/artistic video walls support
Yes
Rotation
Yes. Support for 90, 180, 270 degrees
Multi-unit support
Yes
Bezel management
Yes
Clone mode
Yes
HDCP support
Yes
VIDEO & AUDIO PROCESSING
Video scaling
Matrox’s advanced multi-channel Video Scaling Engine
Video rotation
Yes. Support for 90, 180, 270 degrees
Video cropping
Yes
Audio format
AAC, PCM, Stereo, and Mono
Audio sampling rate
44.1 KHz and 48 KHz
16-bit stereo
NETWORKING INTERFACE
Standard
Ethernet 10/100/1000 Base-T, Auto-Detect, Half/Full-Duplex
Connector
RJ45
IP version
IPv4/IPv6*
IP addressing
DHCP (default) and Static IP
CONTROL & UPDATE PROTOCOLS
Control interface
1 x 10/100/1000 Base-T RJ45 Ethernet port
Command & control protocols
HTTP/HTTPS
UPnP (discovery)
mDNS and DNS-SD (discovery)
Firmware update
Via network interface
COLOR SPACE
Input color space
RGB: 8:8:8 (24 bits per pixel)
YUV: 4:4:4, 4:2:2 (8 bits per component)
Output color space
RGB: 8:8:8 (24 bits per pixel)
ENVIRONMENTAL & POWER CONDITIONS
Operating conditions
Temperature: 0 to 45 °C/32 to 113 °F
Humidity: 20% to 80% (non-condensing)
Storage conditions
Temperature: -40 to 70 °C/-40 to 158 °F
Humidity: 5% to 95% (non-condensing)
Power supply
100-240 VAC in, 12 VDC out, 42 W
DIN4 locking power connector
Maximum power consumption
15 W
HARDWARE
Dimensions (WxHxD)/weight
5.50 x 1.25 x 7.13 in (13.97 x 3.18 x 18.11 cm)/494 g
Hardware included
4 x 6 feet power cables for US, EU, UK, Aus/Nz
1x 12 V, 3.5 A, 42 W external power supply with DIN 4 connector
Regulatory/environmental compliance
EMC Class A: FCC, CE, KC, RCM
Warranty
3 years
SOFTWARE
Matrox PowerWall
Free software available online.
See Matrox PowerWall datasheet for more details.
Matrox QuadHead2Go REST API
Available for application development.
Contact Matrox for more details.
Matrox PowerDesk
Not supported
ACCESSORIES (SOLD SEPARATELY)
Optional hardware
Rackmount Kit (RMK-19TR-A)
VESA bracket (RMK-6BRKT-A)
Secure Cable Solution (SK-Q2G-A)
