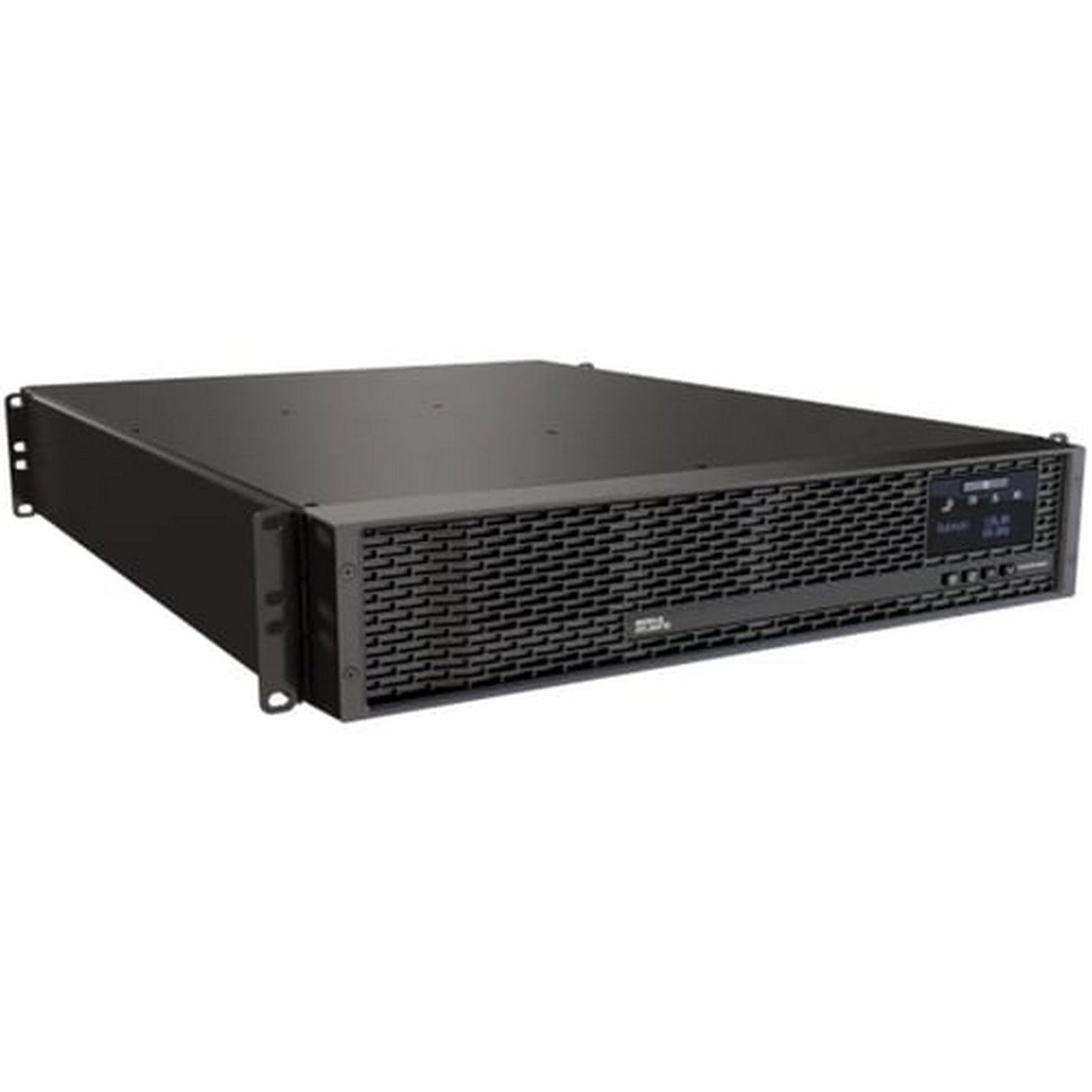

Middle Atlantic NEXSYS 2000VA Online UPS with RackLink Bank Outlet Control

Middle Atlantic NEXSYS 2000VA Online UPS with RackLink Bank Outlet Control

The Middle Atlantic NEXSYS UPX-RLNK-OL2000R-2 is a double-conversion online UPS designed specifically for professional AV systems that require continuous, clean power with zero transfer time. By delivering pure sine wave output at all times, it ensures uninterrupted operation and maximum protection for sensitive, mission-critical equipment.

Built for efficient installation and long-term reliability, this UPS ships fully assembled with the battery already connected and rack ears pre-installed for 4-post mounting. Integrated RackLink™ remote management allows centralized monitoring and control, while two independently controlled outlet banks provide flexible power management across connected devices.

Ideal for enterprise AV racks, control rooms, broadcast facilities, and managed-service environments, the NEXSYS 2000VA Online UPS combines high-capacity power protection, intelligent alerts, and hot-swappable battery service to reduce downtime and simplify maintenance.

Key Features

• Double-conversion online UPS with zero transfer time
• Pure sine wave output for sensitive AV and IT equipment
• 2000VA capacity with 20 Amp input
• 8 NEMA 5-15R outlets with bank-level control
• Two outlet banks with four outlets each

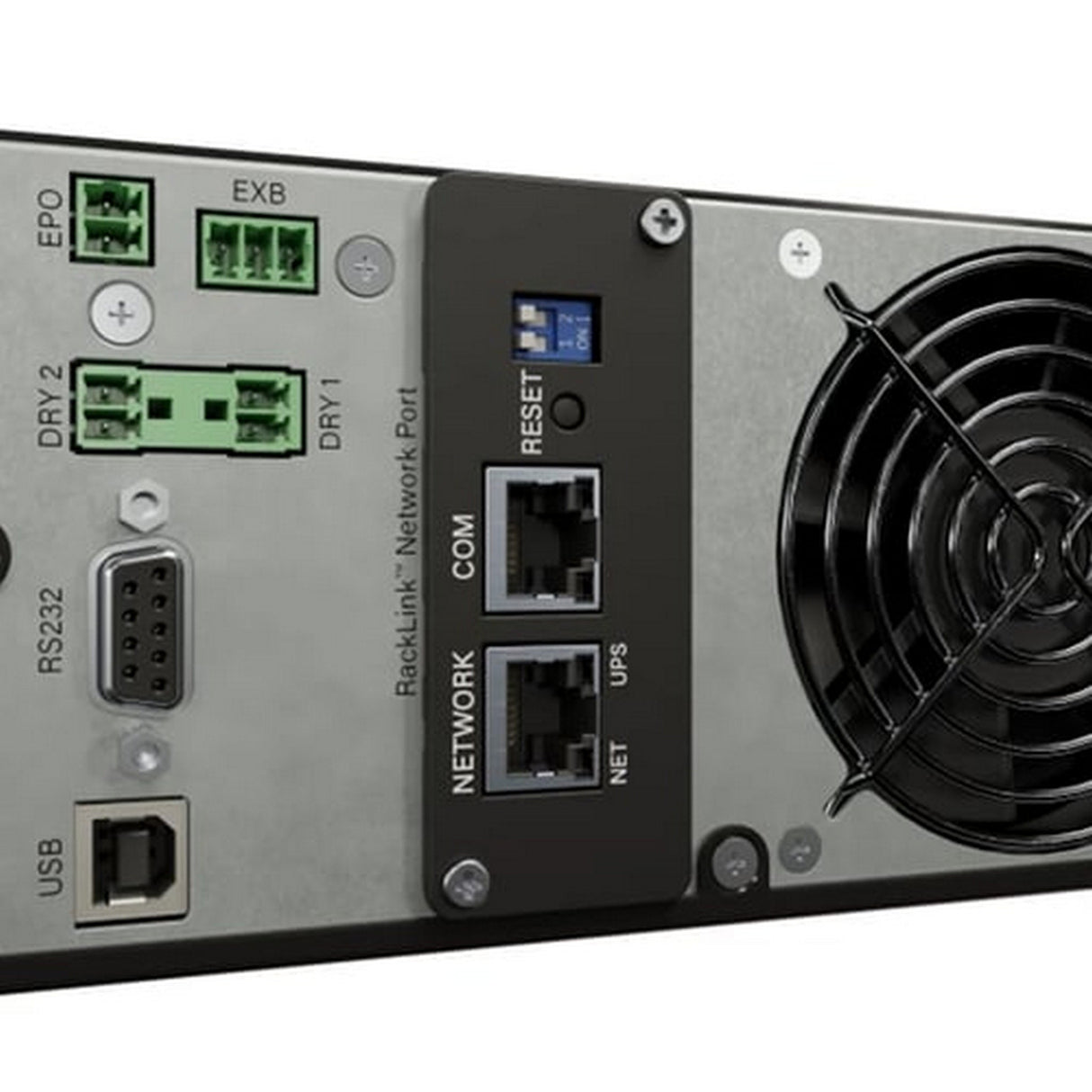

• RackLink™ remote management built in
• Hot-swappable, front-access battery for easy service
• Factory-prepped for fast installs with connected battery and pre-installed rack hardware

Technical Specifications

UPS Topology
Double Conversion Online

Load Capacity
2000 VA

Input Current
20 Amp

Output Receptacles
8 × NEMA 5-15R (2 Controlled Banks)

Waveform
Pure Sine Wave

Network Management
RackLink Compatible

Battery
Hot Swappable

Color
Black
