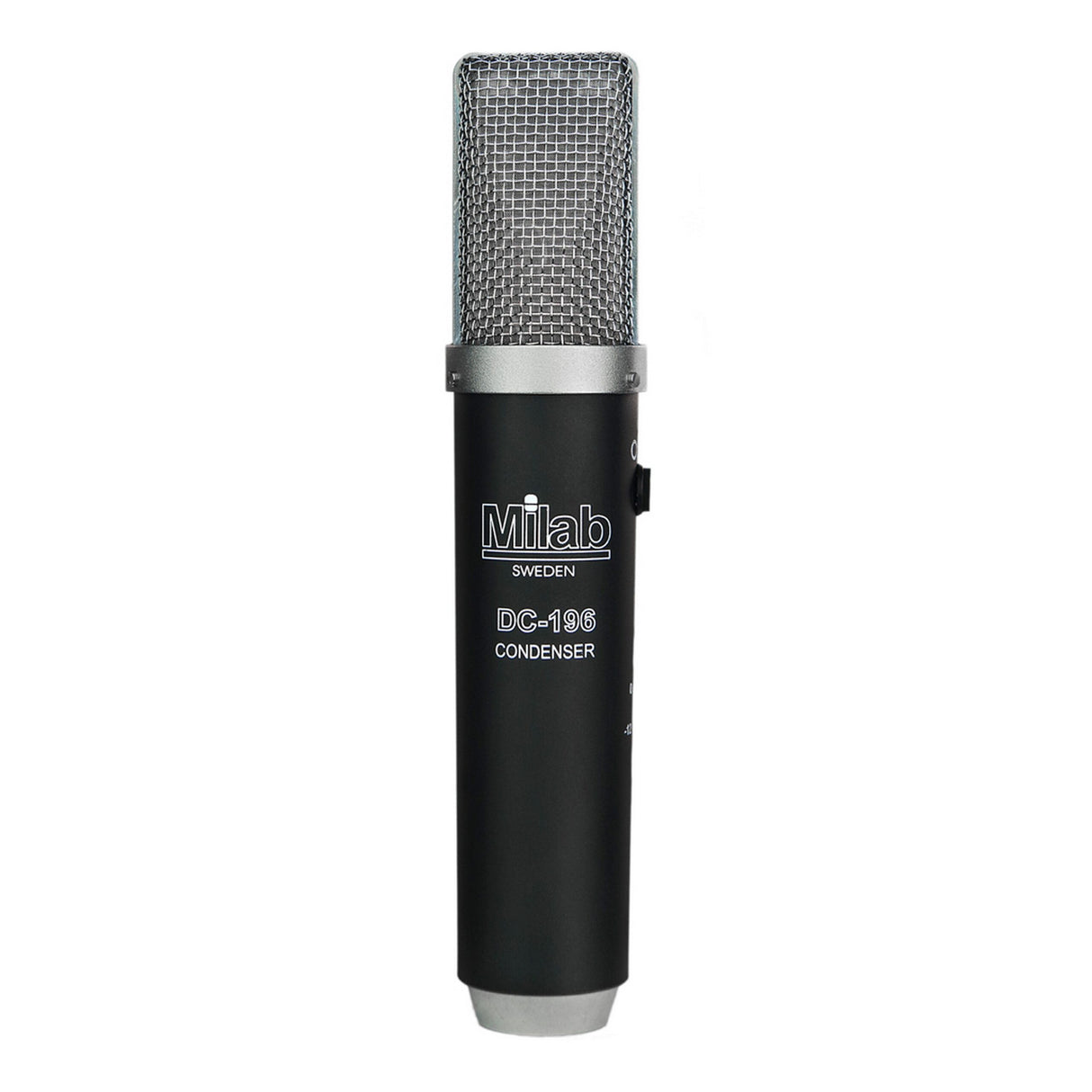

Milab DC-196 Multi-Pattern Large Diaphragm Condenser Microphone
Milab DC-196 Multi-Pattern Large Diaphragm Condenser Microphone
Free Shipping
Milab DC-196 Multi-Pattern Large Diaphragm Condenser Microphone
The DC-196 is a versatile power tool built around the latest version of Milab’s rectangular capsule (the 2900). It offers low noise, selectable patterns (cardioid, omni, bidirectional), excellent SPL handling and an extremely smooth off-axis response all in a very compact format. In fact, the DC-196 is one of the smallest large-diaphragm microphones ever produced. The DC-196 shines on transient-rich sources like acoustic instruments and, thanks to the unique properties of the rectangular capsule, it excels in recording situations where a smooth off-axis response is crucial, such as string ensembles and choirs, but also stereo setups like X/Y and Blumlein where large-diaphragm microphones are usually avoided.
Key Features
- 2900 rectangular capsule
- Variable polar pattern
- Transformerless
- Rubber fitted capsule
- Built-in pop protection
- 12 dB attenuation pad
- Gold plated XLR connector
Technical Specifications
Product name
Milab DC-196
Type
Condenser
Article number
1133
Frequency response
20 to 20,000 Hz
Polar pattern
Cardioid, Omni, Bidirectional
Pre-attenuation pad
-12 dB (switchable)
Max SPL (1 % THD at 1 kHz)
132 dB
Max SPL with 12 dB pad
144 dB
Sensitivity at 1 kHz
21,5 mV/Pa (- 1 dB)
A-weighted noise level (IEC 179-A)
12 dBA
Power supply
48 - 4 V Phantom (DIN/IEC)
Current consumption
4.2 mA
Output impedance
<200
Minimum load impedance
1 k
Connection
3-pin XLR
Length
145 mm
Diameter
27 mm
Net weight
230 g
