Mipro  |  SKU: MIP-ACT5802ACT58H2

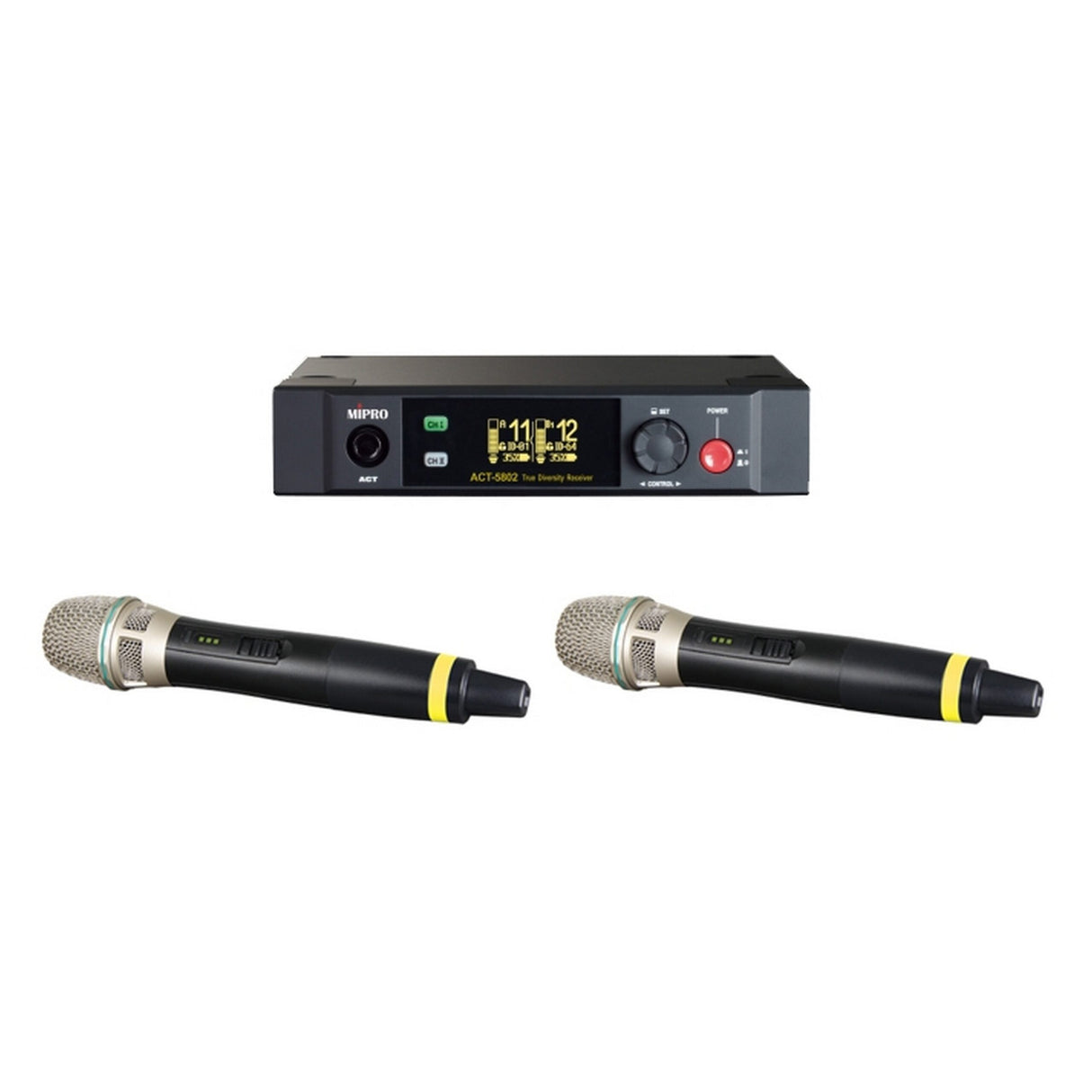

MIPRO ACT-5802/ACT-58H2 ISM 5 GHz 1/2U Dual Channel Digital Receiver with 2 Handheld Microphone Transmitters

$1,01250
🚚 Order within the next 2 hours, 15 minutes for delivery by 24 May, 2024.

Condition: New



Description

MIPRO ACT-5802/ACT-58H2 ISM 5 GHz 1/2U Dual Channel Digital Receiver with 2 Handheld Microphone Transmitters

ISM 5 GHz 1/2U Dual-Channel Digital Receiver with 2 ISM 5 GHz Digital Handheld Wireless Microphones

Key Features

  • ACT-5802 dual-channel is 5.8 GHz receivers in 1/2U metal chassis.
  • The panel with MIPRO style, operating procedure, built-in high-efficiency antenna and equips a graphic OLED screen providing a larger field of view without a blind angle.
  • Stable digital modulation circuitry. All frequencies are located in a single frequency band.
  • Presets 12 channels of interference-free operation in Group A and 24 channels of interference-free operation in Group B1 & B2 are available. 64 IDs and a specific ID are allowed to be set for each channel to prevent the same channel interfered in the same space. Group A has less interference. Group B is recommended when more channels or shorter latency is required. Group A and B can’t operate at the same time.
  • Dual tuner true diversity receiving effectively avoid interference from all 2.4 GHz communication products and ensure long reception distance and eliminates signal drop-out.
  • The precisely designed PCB is secured in a sturdy chassis for ultra-low malfunction.
    ACT-58H
  • Specific outline and color with an ergonomic design in MIPRO’s distinctive aesthetic style.
  • Interchangeable capsule module with MIPRO produced premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille instead of sponge foam protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille can be detached easily for cleaning and hygiene practices.
  • World’s first ACT function provides precise and rapid frequency sync to the receiver.
  • The default gain setting is 0 dB = microphone capsule input sensitivity. High dynamic range for singing aloud without distortion.

Technical Specifications

ACT-5802
Name
ISM 5 GHz 1/2U Dual-Channel Digital Receiver
Channel
Dual
Chassis
EIA Standard 1/2U metal black case
Antenna
Built-in
Display
Graphic OLED
Frequency Range
ISM 5.8 GHz 5,725~5,850 MHz
Preset Channels
Presets 12 channels of interference-free operation in Group A and 24 channels of interference-free operation in Group B1 & B2 are available. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel interfered in the same space.
Receiving Mode
Dual-tuner true diversity receiving
Channel Set-up
ACT Sync
Sample Rate
24-bit / 48 kHz
Frequency Response
18 Hz ~ 23 kHz (Group B)
Latency
< 1.7 ms (Group B)
Dynamic Range
120 dBA
Output Connectors
Balanced XLR & Unbalanced -6.3 mm, 0 dB (standard), -10 ~ +20 dB adjustable range.
Power Supply
External 100~240V AC switching power supply
Dimensions
210 - 44 180 mm (W H D)
Weight
Approx. 0.8 kg

ACT-58H
Frequency Range
ISM 5.8 GHz
Modulation Type
Digital
RF Output Power
20 mW (country dependent)
Mic Capsule Modules
Condenser MU-90/ 80/ 70 and dynamic
Gain Setting
0 dB = microphone capsule sensitivity
Display
Bright LEDs indicate battery status.
Housing
Black
Dimensions
51 - 257 mm
Net Weight
Approx. 235 g
Battery
2 AA alkaline
