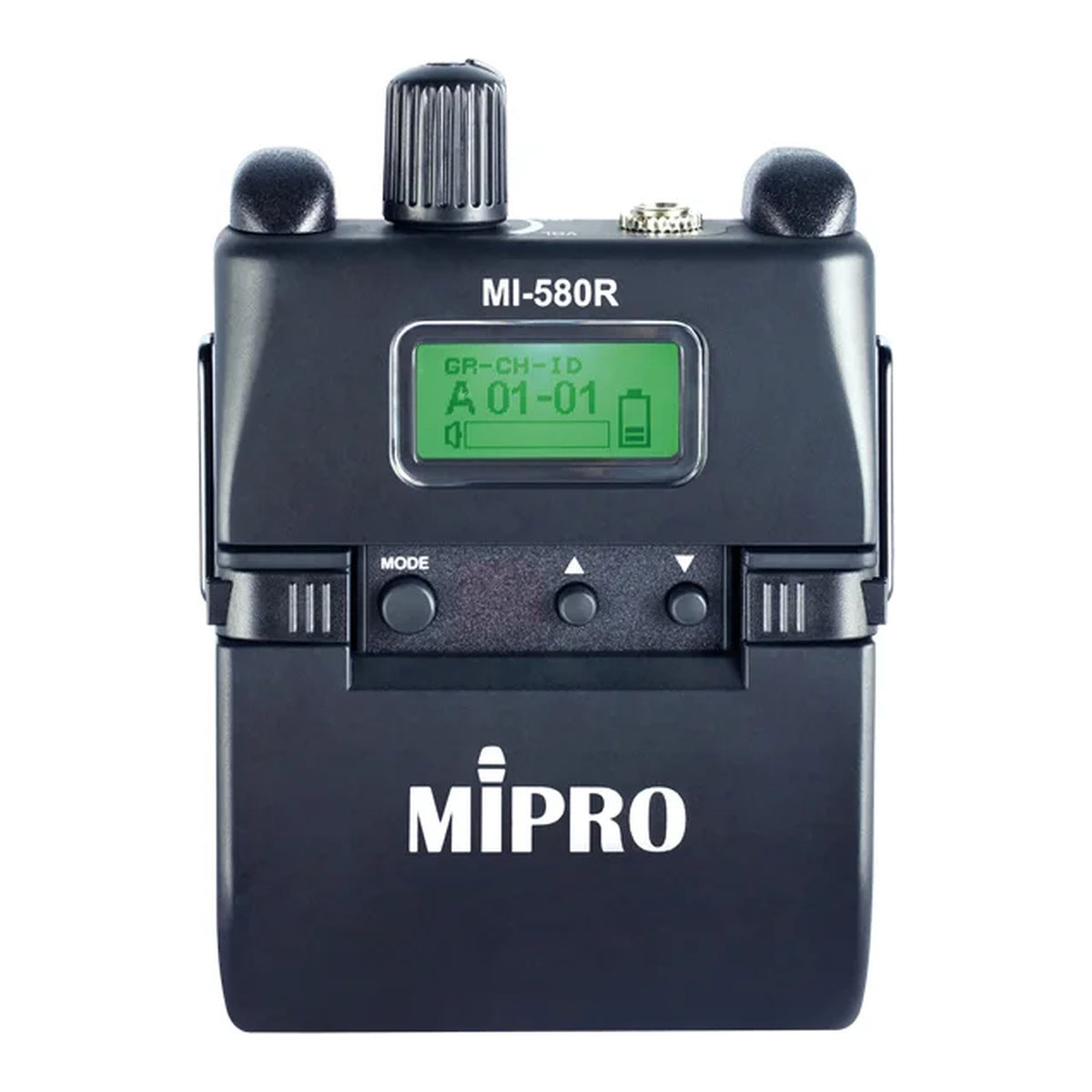

MIPRO MI-580R 5 GHz Digital Stereo IEM Bodypack Receiver with USB-C Charging

The MIPRO MI-580R is the next step in the MI-58 series of 5 GHz digital in-ear monitoring. It is a compact stereo bodypack receiver that works with the MI-58T transmitter in the ISM 5.8 GHz band, well away from the crowded UHF spectrum used by most wireless microphones, so a monitor rig can be added to a stage without a frequency coordination headache. True diversity reception keeps the audio locked in during rehearsals and shows, and the system runs at roughly 1.8 ms of latency in Group B with a 20 Hz to 23 kHz stereo response and better than 100 dB of stereo separation.

What sets the MI-580R apart from the original MI-58R is its patented battery compartment. The receiver accepts either two standard AA alkaline cells or a single 18500 lithium-ion battery, and it charges the Li-ion cell in place over USB Type-C with built-in safety protection, so there is no dedicated charging dock to carry. Either power source gives more than eight hours of operation. A backlit graphic LCD, MODE and arrow buttons, a top-mounted volume knob and an ACT sync sensor keep setup simple: hold the receiver near the transmitter and the group, channel and ID transfer in a moment, with ENG mode able to configure up to 16 receivers from one transmitter.

Performers can shape their own mix on the pack. Stereo and Mixed monitoring modes, left/right balance adjustment and a four-position EQ (FLAT, LO-CUT, LO-BOT, HI-BOT) cover most stage preferences, and the 3.5 mm TRS output delivers 100 mW per channel into 16 ohms, enough for MIPRO's E-8S and E-9 earphones as well as most third-party in-ear monitors. The reinforced polymer housing with a sturdy belt clip is built for musicians, worship teams, theaters and production companies that need reliable, affordable wireless monitoring.

Features

• 5.8 GHz ISM-band digital stereo receiver for the MIPRO MI-58 in-ear monitoring series
• True diversity reception for stable, dropout-resistant audio
• Stereo and Mixed monitoring modes plus left/right balance adjustment
• Four-position EQ: FLAT, LO-CUT, LO-BOT, HI-BOT

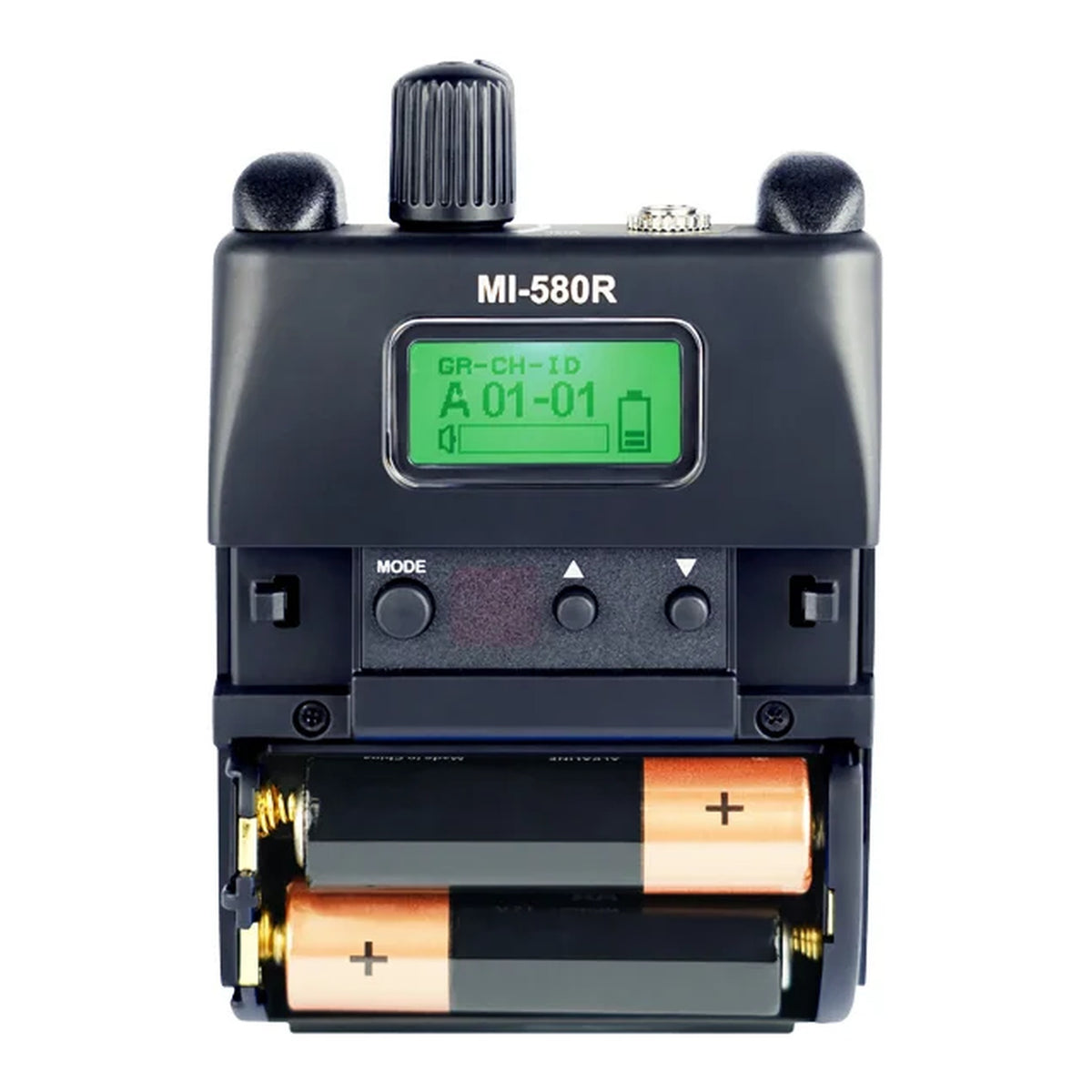

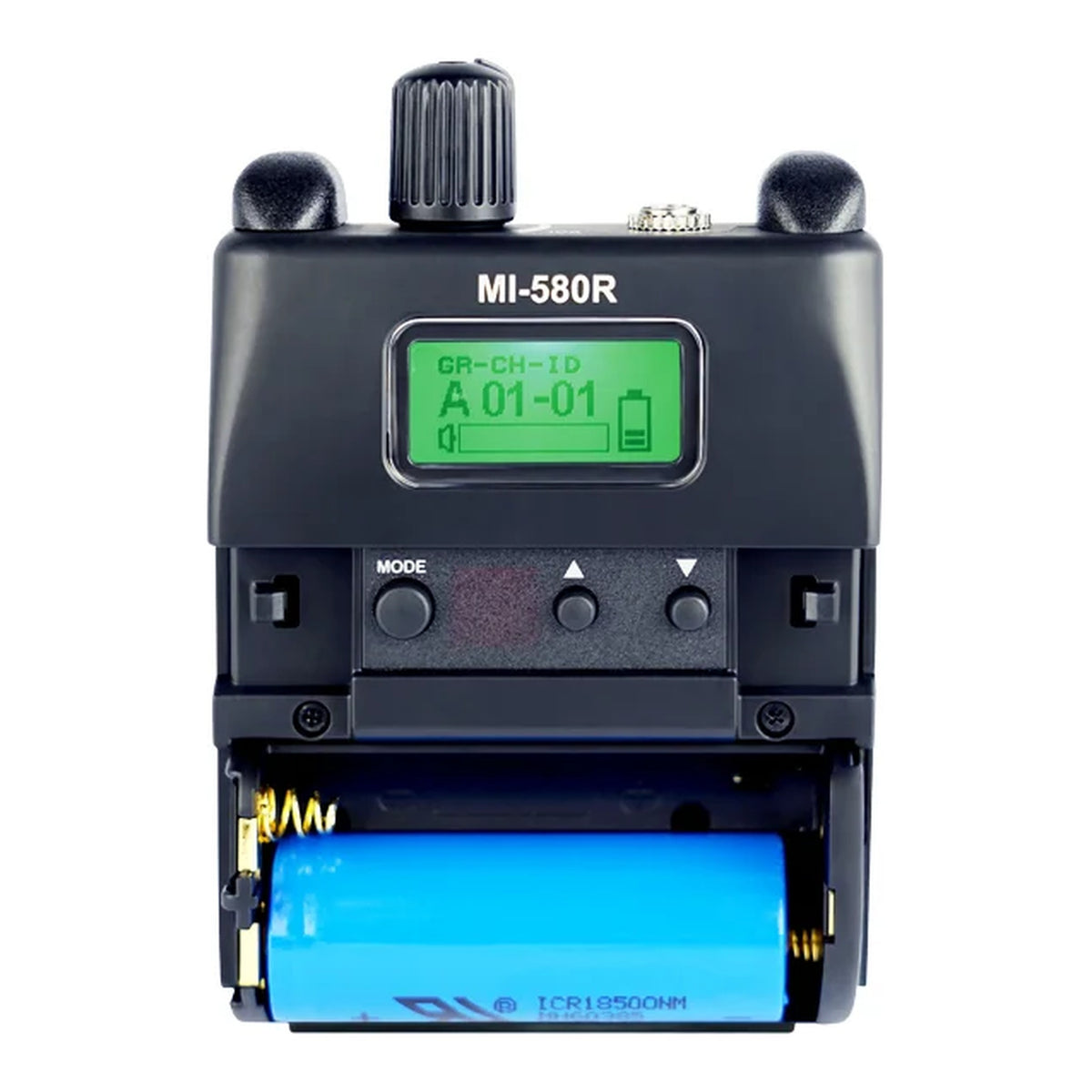

• Patented battery compartment runs on two AA alkaline cells or one 18500 Li-ion battery

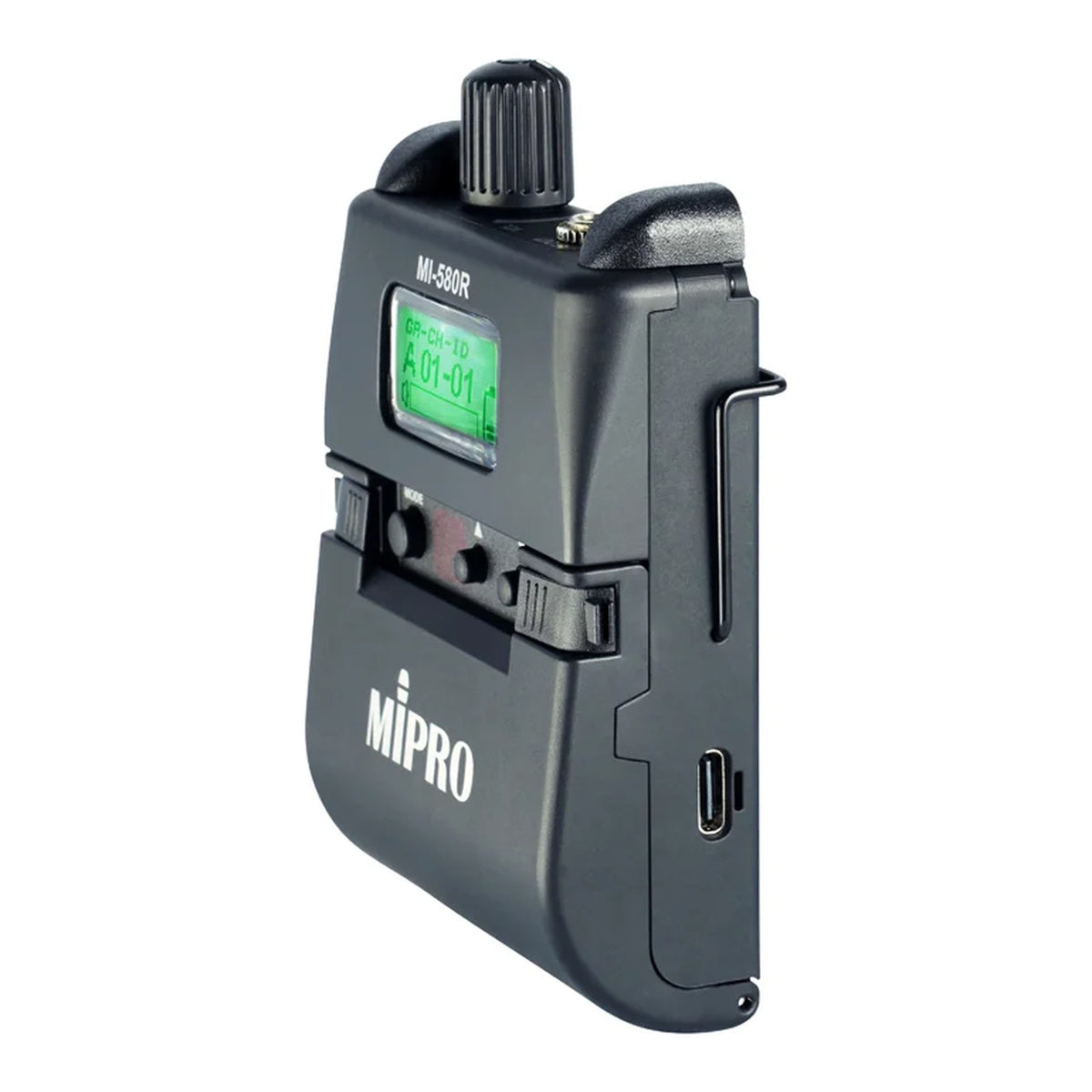

• USB Type-C charging of the Li-ion battery inside the pack, no charging dock required
• More than 8 hours of operating time per charge or set of batteries
• Backlit graphic LCD with ACT sync sensor; ENG mode configures up to 16 receivers
• 3.5 mm TRS earphone output, 100 mW per channel at 16 ohms
• Compact reinforced polymer housing with belt clip

Technical Specifications

• Frequency band: ISM 5.8 GHz
• Receiving mode: True diversity
• Audio modes: Stereo / Mixed
• Frequency response: 20 Hz to 23 kHz (stereo)
• Dynamic range: 109 dBA or better (system)
• Stereo separation: greater than 100 dB
• THD: less than 0.1% at 1 kHz
• Latency: approx. 1.8 ms (Group B)
• Sensitivity: 5 uV (S/N greater than 100 dB)
• Output power: 100 mW per channel (L/R) at 16 ohms
• Earphone jack: 3.5 mm TRS
• EQ: FLAT / LO-CUT / LO-BOT / HI-BOT
• ENG mode: yes, up to 16 sets (requires transmitter setup)
• Display: backlit graphic LCD
• Controls: ACT sync sensor, setting buttons, volume control
• Power: one 18500 Li-ion battery or two AA alkaline batteries
• Charging: USB Type-C
• Operating time: more than 8 hours
• Housing: reinforced plastic
• Dimensions: 2.48 x 3.74 x 0.98 in (63 x 95 x 25 mm, W x H x D)
• Weight: approx. 5.6 oz (160 g)
• Optional accessories: E-8S and E-9 earphones, MB-5 18500 Li-ion battery

What's Included

• 1 x MIPRO MI-580R 5 GHz digital stereo bodypack receiver
