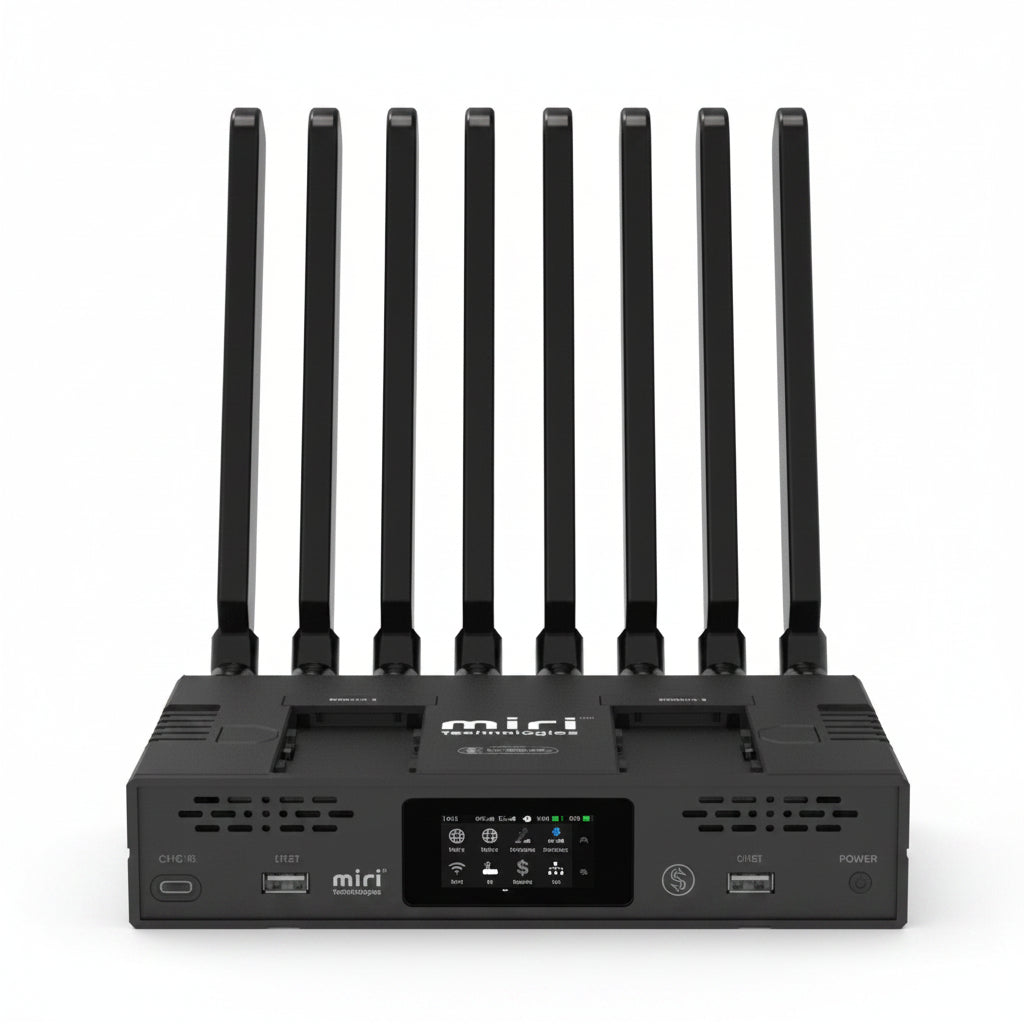

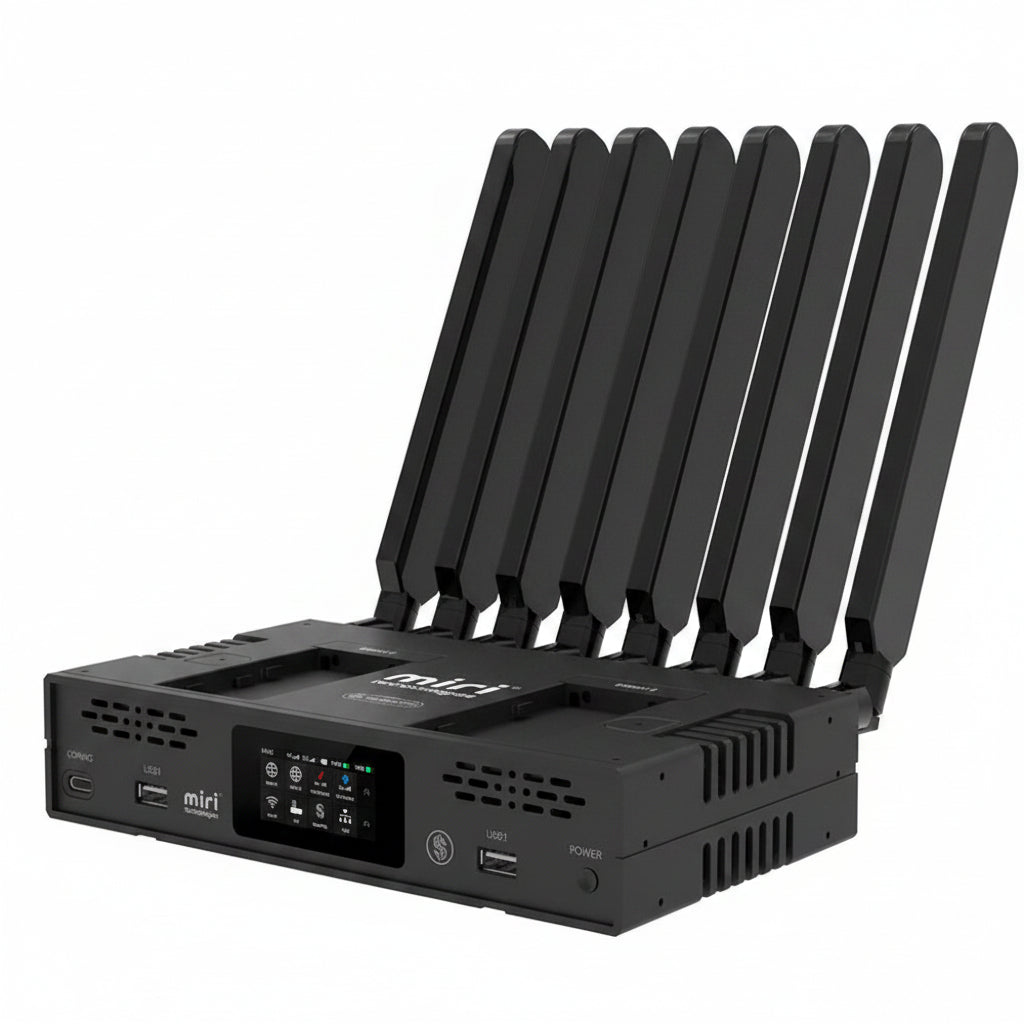

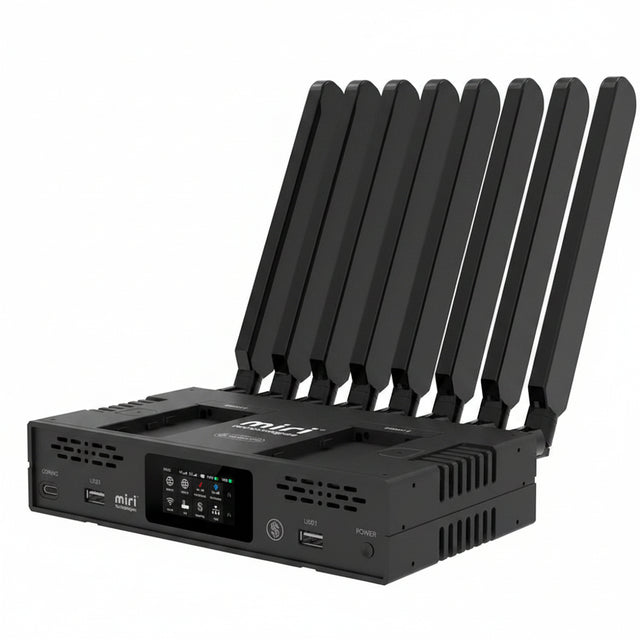

Miri X510 Dual-Cellular Bonding Network Router

Miri X510 Dual-Cellular Bonding Network Router

The Miri X510 Dual-Cellular Bonding Network Router combines multiple internet connections into one resilient link for live production, remote broadcasting, business continuity, and field communications. Powered by Speedify, it can bond up to seven internet sources using integrated 5G and 4G modems, wired Ethernet, Wi-Fi 6, and USB-tethered devices.

The X510 includes separate global 5G and 4G Nano SIM modules, four configurable Gigabit Ethernet ports, dual-band Wi-Fi 6, and two USB-A tethering ports. Its compact half-rack design works equally well in fixed equipment racks or portable production kits, while two hot-swappable NP-F battery plates enable operation away from AC power when compatible batteries are added.

A 1.9-inch touchscreen provides local monitoring and control, while a browser-based interface handles detailed configuration. Speedify supplies channel bonding, automatic failover, encrypted traffic, and Pair & Share connectivity for additional mobile devices. New X510 units include a three-month Speedify subscription with 1TB of monthly data, after which an active subscription is required for Speedify network bonding.

Key Features

• Multi-Connection Bonding: Combines up to seven internet links for increased bandwidth and resilience when individual connections slow down or fail.
• Dual Cellular Modems: Integrates one global 5G/4G Nano SIM modem with 4 x 4 MIMO and one global 4G Nano SIM modem with 2 x 2 MIMO.
• Four Gigabit Ethernet Ports: Each RJ45 connection can be independently configured for WAN or LAN operation.
• Dual-Band Wi-Fi 6: Separate 2.4 and 5 GHz radios can operate in bridge or access-point modes.
• USB Internet Tethering: Two USB-A ports accept compatible USB modems, hotspots, and smartphones as additional internet sources.
• Portable Power Options: Runs from the supplied locking 12V DC adapter or two optional hot-swappable NP-F batteries.
• Integrated Speedify: Provides connection bonding, automatic failover, AES-256 encrypted traffic, load balancing, and Pair & Share functionality.
• Rack or Field Deployment: Half-width 1U metal construction and included rack hardware accommodate permanent installations and mobile production systems.

Technical Specifications

• Brand: Miri Technologies
• Model: X510
• Manufacturer Part Number: 46011
• Product Type: Dual-cellular bonding network router
• Maximum Bonded Internet Connections: Up to 7
• Bonding Platform: Speedify
• Network Modes: Bonding and load balancing
• 5G Cellular Module: Quectel RM520N-GL
• 5G Cellular Configuration: Global 5G/4G Nano SIM, 4 x 4 MIMO
• 4G Cellular Module: Quectel EG25-GL
• 4G Cellular Configuration: Global 4G Nano SIM, 2 x 2 MIMO
• SIM Slots: 2 x Nano SIM
• Cellular Antenna Connections: 6 x SMA
• Ethernet: 4 x 1 Gigabit RJ45
• Ethernet Configuration: Independently configurable WAN or LAN
• Wi-Fi: Wi-Fi 6
• Wi-Fi Bands: 2.4 GHz and 5 GHz
• Wi-Fi Configuration: Independent bridge or access-point operation
• Wi-Fi Antenna Connections: 2 x RP-SMA
• Pair & Share: Supports up to 20 mobile devices on the same network
• USB Tethering: 2 x USB-A
• USB Tethering Devices: Compatible USB modems, hotspots, and smartphones
• Configuration Port: 1 x USB-C
• Management: Web browser interface
• Display: 1.9-inch touchscreen LCD
• Traffic Encryption: AES-256 through Speedify bonding
• Speedify Subscription: Required for network bonding
• Included Speedify Service: 3 months with 1TB of data per month
• DC Power: 12V DC, 3A
• Power Supply Rating: 36W
• Battery Support: 2 x hot-swappable NP-F battery plates
• Rack Format: 1U half-width
• Operating Temperature: 32 to 104°F
• Storage Temperature: -4 to 131°F
• Operating Humidity: 5-90% RH, non-condensing
• Dimensions: 8.5 x 5 x 1.8 inches
• Weight: 2.6 lb without batteries
• Manufacturer Warranty: Limited 1-year warranty on the X510 and matching antennas

What's In the Box

• Miri X510 Dual-Cellular Bonding Network Router
• 6 x Cellular SMA Antennas
• 2 x Wi-Fi RP-SMA Antennas
• Screw-Lock DC Power Adapter with International Adapters
• SIM Card Ejector Tool
• 2 x 1U Long Rack Ears
• 1 x 1U Short Rack Ear
• 1 x Retainer/Join Plate
• 4 x Rack Mounting Screws
• 7 x M2.5 Screws
