MSI Cubi NUC AI 1UMG-023BUS Barebone Mini PC Ultra 7

MSI Cubi NUC AI 1UMG Barebone Mini PC with Intel Core Ultra 7

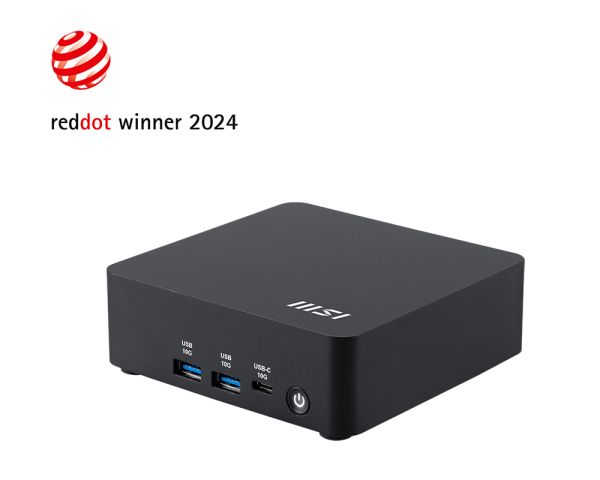

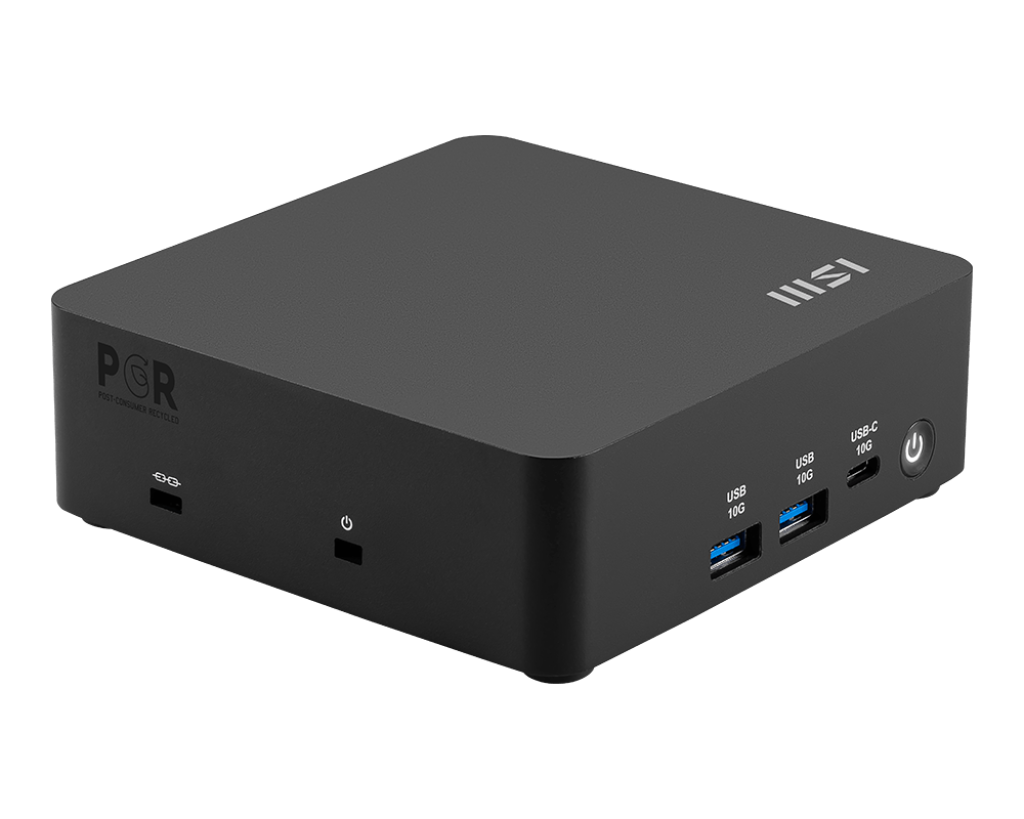

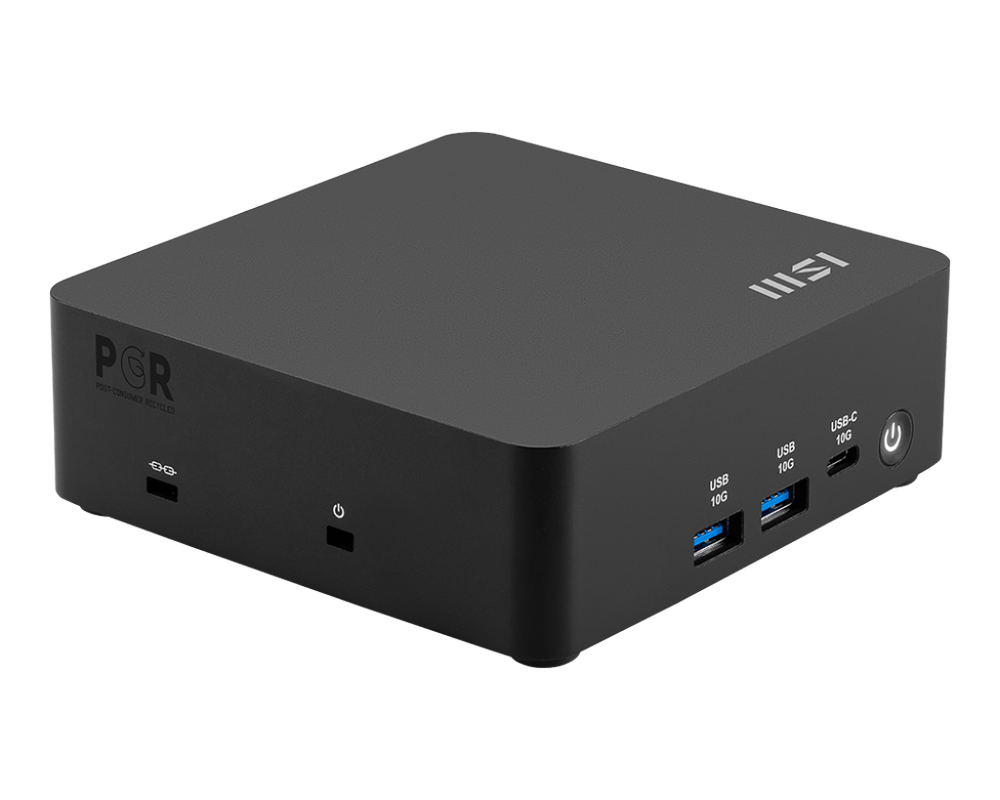

The MSI Cubi NUC AI 1UMG-023BUS is a compact barebone mini PC powered by the Intel Core Ultra 7-155H 16-core processor with integrated Intel Arc Graphics, delivering AI-ready performance in a sleek black chassis measuring just 9 x 9 x 4 inches.

Ideal for business professionals, home office power users, and creative workstation builds, this barebone system supports up to 4K displays across multiple outputs and is perfect for those seeking a customizable, energy-efficient desktop solution with next-generation connectivity including Thunderbolt 4 and WiFi 6E.

Backed by MSI's 3-Year Advanced Replacement warranty, the Cubi NUC AI series represents MSI's commitment to enterprise reliability and sustainability, using environment-friendly materials while delivering powerful performance for demanding business workloads.

Key Features of the MSI Cubi NUC AI 1UMG

• Intel Core Ultra 7-155H Processor: 16-core (22-thread) processor with 24MB cache delivers exceptional multitasking and AI workload performance.
• Intel Arc Integrated Graphics: Built-in Intel Arc GPU supports dual 4K displays at 60Hz via HDMI 2.1 outputs for immersive multi-monitor productivity.
• Thunderbolt 4 Connectivity: Two rear Thunderbolt 4 ports support DisplayPort 1.4 alt-mode (4K at 60Hz) and 15W power delivery for versatile peripheral and display connections.
• WiFi 6E and Dual 2.5G LAN: Intel AX211 WiFi 6E wireless and dual Intel I226-V 2.5 Gigabit Ethernet ports provide ultra-fast wired and wireless networking for demanding environments.
• Expandable and Upgradeable: Features one M.2 2280 PCIe slot for SSD storage and standard SO-DIMM memory slots, allowing full customization to your performance needs.
• Compact VESA-Mountable Design: Ultra-small 9 x 9 x 4 inch footprint with 75x75 and 100x100mm VESA mount support keeps your workspace organized.

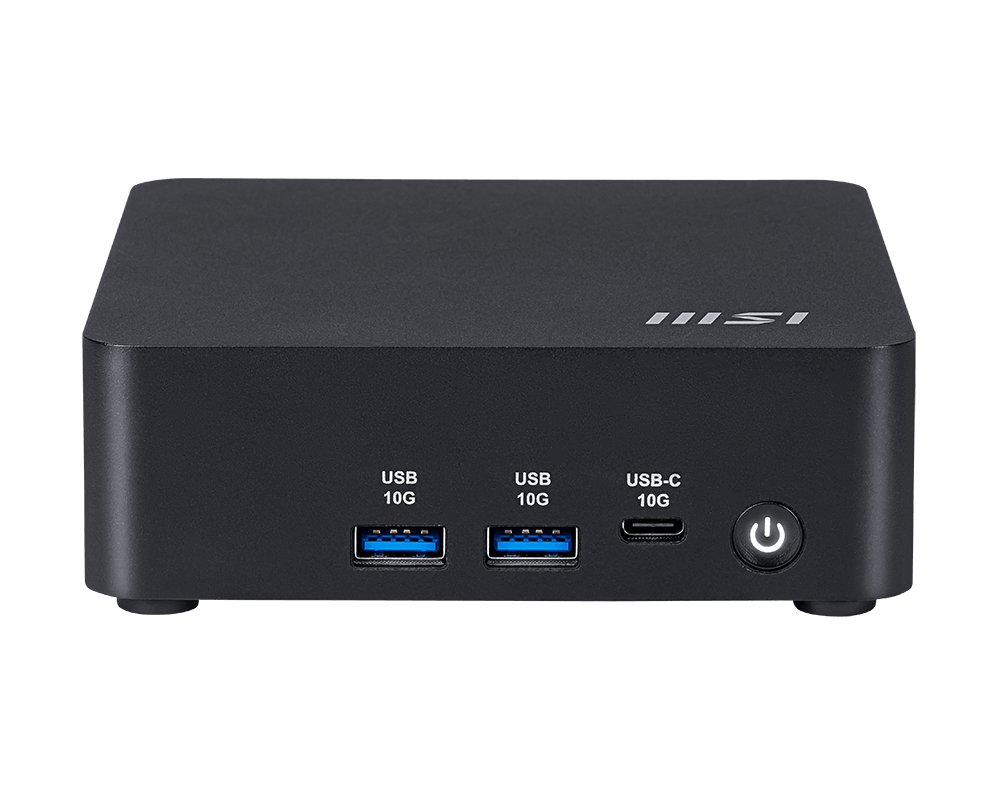

• USB Versatility: Front-panel USB 3.2 Gen2 Type-A and Type-C ports plus rear Thunderbolt 4 ports deliver fast data transfer and broad peripheral compatibility.

Technical Specifications

• CPU: Intel Core Ultra 7-155H, 16 Cores / 22 Threads, 24MB Cache
• Chipset: Intel SoC
• Graphics: Intel Arc Graphics (Integrated)
• Memory: Not included (user-supplied SO-DIMM)
• Storage: Not included (1 x M.2 2280 PCIe slot)
• LAN: 2 x Intel I226-V 2.5 Gigabit Ethernet
• Wireless: Intel AX211 WiFi 6E
• Video Output: 2 x HDMI 2.1 (4K at 60Hz, MSI Power Link supported)
• USB Ports (Front): 2 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C
• USB Ports (Rear): 2 x Thunderbolt 4 (DP 1.4 alt-mode, 4K at 60Hz, PD-out 15W)
• Audio: 1 x Combo Mic-in / Headphone-out jack
• CPU Cooling: Air Cooling
• Power Supply: 120W external AC adapter
• VESA Mount: 75x75 / 100x100mm
• Dimensions: 9 x 9 x 4 inches
• Weight: 3.2 lbs
• Color: Black
• Operating System: Not included (barebone)
• Warranty: 3-Year Advanced Replacement
