MSI MAG A750GL PCIE5 750W 80+ Gold Fully Modular PSU

MSI MAG A750GL PCIE5 750W 80+ Gold Fully Modular ATX 3.1 Power Supply

The MSI MAG A750GL PCIE5 delivers 750W of 80+ Gold certified power in a compact, fully modular ATX 3.1 design with native PCIe 5.1 support, offering up to 200% power excursion headroom for demanding GPU workloads.

Ideal for high-performance gaming rigs, content creation workstations, and enthusiast builds requiring PCIe 5.0 GPU compatibility, this PSU is built for builders who want clean power delivery, minimal cable clutter, and long-term reliability in a mid-tower or full-tower case.

Backed by an industry-leading 10-year warranty and 80 PLUS Gold certification, the MAG A750GL PCIE5 reflects MSI's commitment to durability and efficiency. Active PFC, six comprehensive protection circuits, and military-inspired build quality make this a trusted choice for serious PC builders.

Key Features of the MSI MAG A750GL PCIE5

• ATX 3.1 and PCIe 5.1 Ready: Includes a native 16-pin PCIe 5.0 connector (450W) and supports Intel PSDG ATX 3.1, delivering up to 1500W peak power excursion for modern GPU transient spikes.
• 80+ Gold Efficiency: Up to 90% efficiency under typical loads, reducing heat output and electricity consumption for a quieter, cooler system.
• Fully Modular Design: Attach only the cables your build needs, dramatically reducing internal clutter and improving airflow through the chassis.

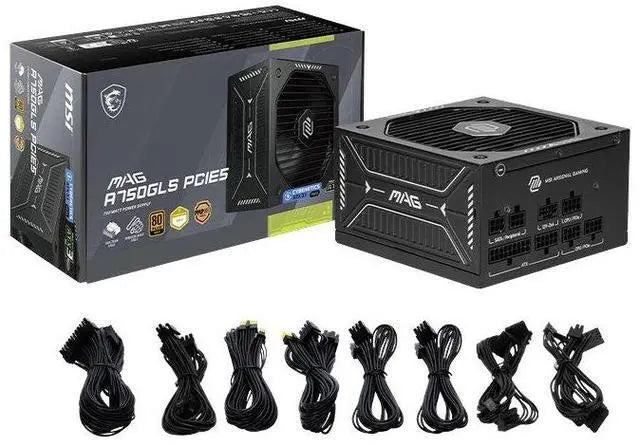

• Flat Cable Kit Included: Flat, low-profile cables simplify routing and cable management, and a storage solution is included for unused cables.
• Compact Form Factor: Smaller footprint than typical ATX PSUs, freeing up valuable space inside your case for better airflow and easier component access.

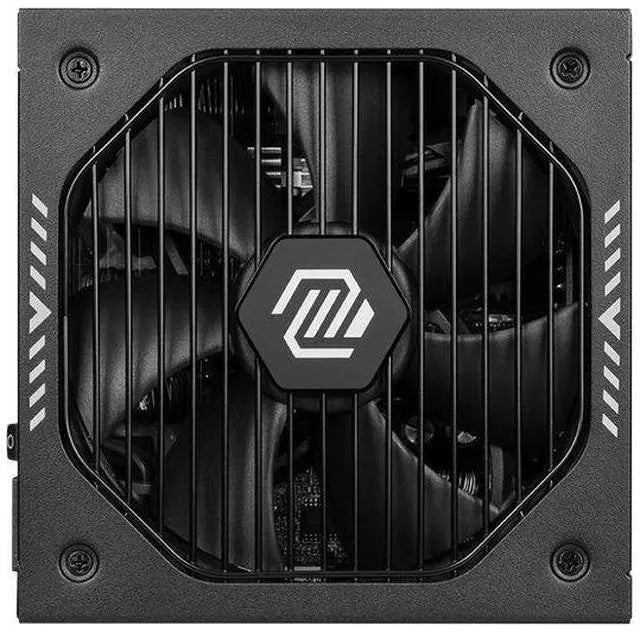

• 120mm Fluid Dynamic Bearing Fan: FDB technology provides quiet, long-lasting operation with efficient heat dissipation.
• Six-Layer Protection: OCP, OVP, OPP, OTP, SCP, and UVP safeguard your entire system against electrical faults.
• 10-Year Warranty: One of the longest warranties in the PSU category, reflecting confidence in long-term build quality.

Technical Specifications

• Wattage: 750W
• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Fully Modular
• ATX Standard: ATX 3.1 / Intel PSDG Compliant
• PCIe Compliance: PCIe 5.1
• Power Excursion: 1500W (up to 200% for 100 microseconds)
• GPU Power Excursion: Up to 3x GPU rated power
• Input Voltage: 100-240 VAC
• Input Frequency: 47-63 Hz
• PFC Type: Active PFC
• Fan Size: 120mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• ATX Connector (24-pin): 1
• EPS Connector (4+4-pin): 2
• PCIe 5.0 Connector (16-pin): 1 (450W)
• PCIe Connector (6+2-pin): 3
• SATA Connector (15-pin): 8
• Peripheral Connector (4-pin): 4
• FDD Connector (4-pin): 1
• Protection: OCP / OVP / OPP / OTP / SCP / UVP
• Dimensions (L x W x H): 12 x 10 x 6 inches
• Weight: 7.54 lbs
• Warranty: 10 Years
• UPC: 824142395820
