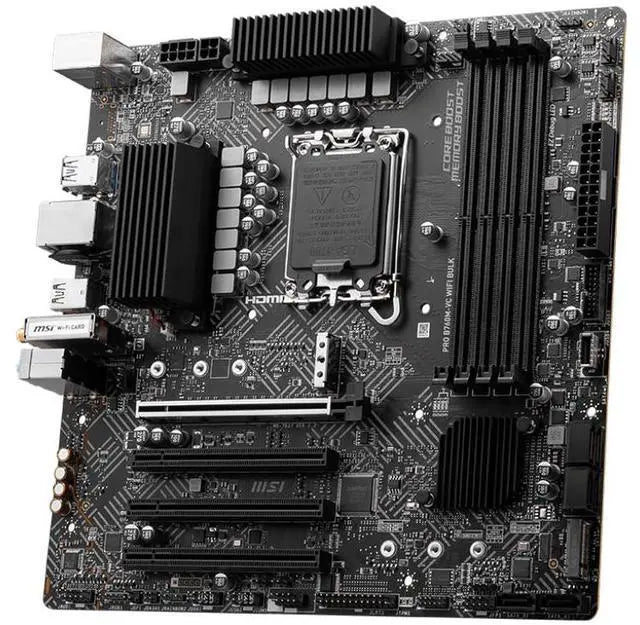

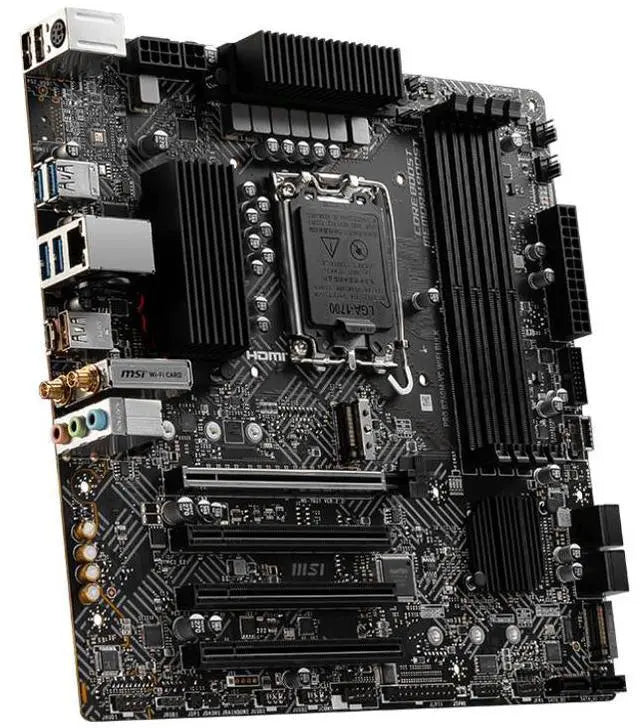

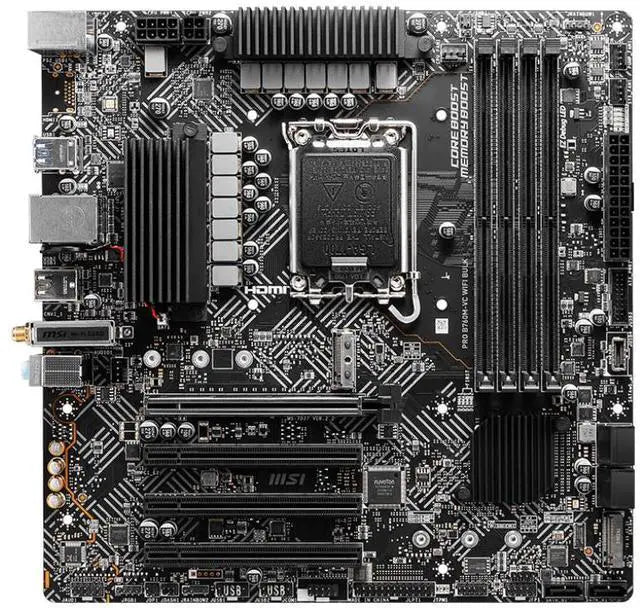

MSI PRO B760M-VC WIFI Intel B760 mATX Motherboard LGA 1700

MSI PRO B760M-VC WIFI mATX Motherboard for Intel 12th-14th Gen Processors

The MSI PRO B760M-VC WIFI is a Micro-ATX motherboard on the Intel B760 chipset with LGA 1700 socket, supporting Intel Core 12th, 13th, and 14th generation processors with DDR5 memory up to 256GB, Wi-Fi 6E wireless, 2.5G LAN, and PCIe 4.0 storage for a complete professional desktop platform.

Ideal for business workstations, home office builds, and performance desktop upgrades, this board suits buyers seeking Intel platform reliability with next-gen connectivity including Wi-Fi 6E for low-latency wireless and dual M.2 NVMe slots for rapid storage expansion.

Backed by MSI's 3-year warranty, the PRO B760M-VC WIFI is part of MSI's professional PRO series, engineered for stability and long-term system reliability with a premium 6-layer, 2oz copper PCB and high-grade MOSFET thermal pads rated at 7W/mK.

Key Features of the MSI PRO B760M-VC WIFI

• Intel B760 Chipset with LGA 1700: Supports Intel Core 12th, 13th, and 14th Gen processors as well as Intel Pentium Gold and Celeron, providing broad CPU compatibility in a compact mATX footprint.
• High-Speed DDR5 Memory: Four DDR5 slots support up to 256GB with overclocking up to 6200+ MHz (1DPC 1R), Intel XMP 3.0, and dual-channel operation for maximum memory bandwidth.
• Wi-Fi 6E and Bluetooth 5.3: Integrated pre-installed wireless module delivers 2.4GHz/5GHz/6GHz tri-band support up to 2.4Gbps with MU-MIMO and Bluetooth 5.3 for versatile wireless connectivity.
• 2.5G LAN: Realtek 8125BG 2.5 Gigabit Ethernet provides a fast, stable wired network connection ideal for professional and multimedia use.
• Dual M.2 PCIe 4.0 Storage: Two M.2 slots both supporting PCIe 4.0 x4 speeds (one from CPU, one from chipset) enable ultra-fast NVMe SSD installations, complemented by six SATA 6Gbps ports.
• Enhanced 12+1 Power Design: Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, and Core Boost technology ensure stable power delivery for demanding workloads.
• Intel Turbo USB 3.2 Gen 2: Powered by a dedicated Intel USB 3.2 Gen 2 controller for uninterrupted, high-speed USB connectivity with up to 10Gbps transfer rates.
• 7.1-Channel HD Audio: Realtek ALC897 codec with Audio Boost delivers studio-grade sound quality for immersive audio experiences.

Technical Specifications

• Chipset: Intel B760
• Socket: LGA 1700
• CPU Support: Intel Core 14th / 13th / 12th Gen, Intel Pentium Gold, Intel Celeron
• Form Factor: Micro-ATX (243.84mm x 243.84mm)
• Memory Slots: 4x DDR5
• Max Memory: 256GB
• Memory Speed: DDR5 4800MHz (JEDEC); up to 6200+ MHz OC (1DPC 1R); XMP 3.0 supported
• PCIe Slots: 1x PCIe 4.0 x16 (CPU), 3x PCIe 3.0 x1 (chipset)
• M.2 Slots: 2x M.2 (PCIe 4.0 x4); supports 2242/2260/2280 devices
• SATA Ports: 6x SATA 6Gbps (SATA7 unavailable when M.2_2 used with SATA SSD)
• RAID: RAID 0, 1, 5, 10 for SATA storage
• USB (Rear): 2x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
• USB (Front Headers): 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
• Wireless: Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2.4GHz/5GHz/6GHz, up to 2.4Gbps, MU-MIMO
• Bluetooth: Bluetooth 5.3
• LAN: Realtek 8125BG 2.5Gbps
• Audio: Realtek ALC897, 7.1-Channel HD Audio
• Fan Headers: 1x CPU Fan, 1x Pump Fan, 2x System Fan
• RGB Headers: 2x Addressable RGB (JRAINBOW), 1x RGB (JRGB)
• Debug LEDs: 4x EZ Debug LED
• TPM: TPM 2.0 pin header
• Operating System: Windows 11 64-bit, Windows 10 64-bit
• PCB: 6-layer, 2oz copper
• Power Connectors: 1x 24-pin ATX, 1x 8-pin + 1x 4-pin CPU
• Dimensions: 12 x 11 x 4 inches
• Weight: 4 lbs
• Warranty: 3 years
