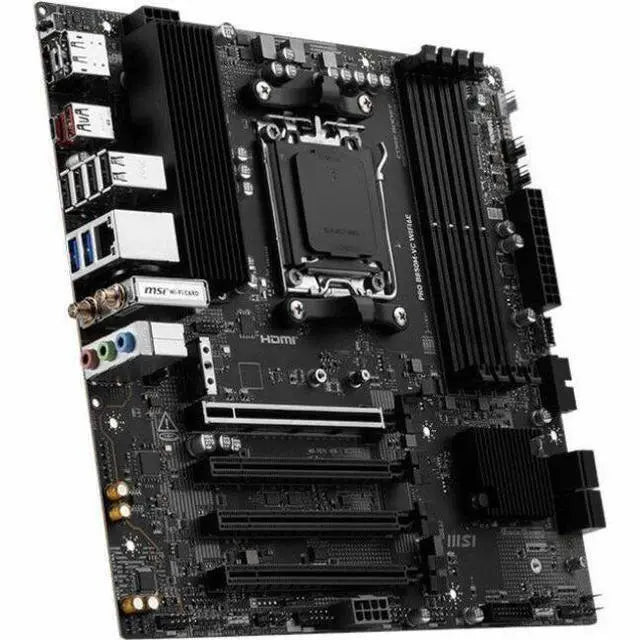

MSI PRO B850M-VC WIFI6E AMD B850 AM5 mATX Motherboard

MSI PRO B850M-VC WIFI6E AMD B850 Socket AM5 mATX Motherboard

The MSI PRO B850M-VC WIFI6E is a compact Micro-ATX motherboard built on the AMD B850 chipset for Socket AM5, supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors with PCIe 5.0, DDR5 memory up to 256GB, and integrated Wi-Fi 6E with 5G LAN.

Ideal for home office power users, content creators, and budget-conscious PC builders seeking a feature-rich AM5 platform, this board suits those looking for a next-generation AMD Ryzen upgrade, a reliable workstation build with fast networking, or a compact high-performance gaming rig with future-proof connectivity.

Backed by a 3-year MSI warranty and constructed with a 6-layer PCB using 2oz thickened copper and server-grade materials, the PRO B850M-VC WIFI6E delivers enterprise-level reliability. MSI's Pro series is engineered for stability and longevity, supporting Windows 11 64-bit and AMD's EXPO memory overclocking standard.

Key Features of the MSI PRO B850M-VC WIFI6E

• PCIe 5.0 Primary Slot: The x16 slot delivers full PCIe 5.0 bandwidth for the latest discrete GPUs, ensuring maximum graphics performance with Ryzen 9000 and 7000 processors.
• Triple M.2 with Lightning Gen 5 x4: The primary M.2 slot supports PCIe 5.0 x4 speeds for next-generation NVMe SSDs, plus two additional PCIe 4.0 M.2 slots for expanded high-speed storage.
• Wi-Fi 6E and 5G LAN: Realtek 8126VB 5G wired LAN combined with Wi-Fi 6E (802.11ax, up to 2.4Gbps, tri-band 2.4/5/6GHz) delivers ultra-fast wired and wireless connectivity.
• DDR5 up to 256GB with EXPO Support: Four DDR5 DIMM slots support speeds from 4800 MT/s (JEDEC) up to 8200+ MT/s (OC), with AMD EXPO and XMP overclocking profiles for enthusiast tuning.
• Robust 7+2+1 Power Delivery: Direct power system with P-PAK technology, 8-pin CPU power connector, and 7W/mK MOSFET thermal pads for sustained performance under heavy workloads.
• Comprehensive USB Connectivity: Rear I/O includes USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps, and USB 2.0 ports, with front-panel headers adding 4x USB 5Gbps and 1x USB 10Gbps Type-C.
• Audio Boost with 7.1-Channel HD Audio: Realtek ALC897 codec delivers studio-grade audio quality for immersive gaming and media playback.
• EZ DIY Features: EZ PCIe Clip II, EZ Debug LED array, EZ Memory Detection LED, Flash BIOS Button, and Clear CMOS Button simplify building and troubleshooting.

Technical Specifications

• Chipset: AMD B850
• Socket: AM5
• CPU Support: AMD Ryzen 9000, 8000, 7000 Series Desktop Processors
• Form Factor: Micro-ATX (mATX), 243.84 x 243.84mm
• Memory Slots: 4x DDR5 UDIMM, Max 256GB
• Memory Speed: DDR5 5600-4800 MT/s (JEDEC); up to 8200+ MT/s (OC/EXPO)
• PCIe Slots: 1x PCIe 5.0 x16 (CPU), 3x PCIe 3.0 x1 (Chipset)
• M.2 Slots: M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (CPU, 2280/2260); M.2_3: PCIe 4.0 x2 (Chipset, 2280)
• SATA Ports: 4x SATA 6Gbps
• RAID: RAID 0/1/10 for SATA; RAID 0/1/5 for M.2 NVMe (RAID 5 requires Ryzen 9000)
• LAN: Realtek 8126VB 5G LAN
• Wi-Fi: Wi-Fi 6E (802.11a/b/g/n/ac/ax), MU-MIMO TX/RX, 2.4/5/6GHz (160MHz), up to 2.4Gbps
• Bluetooth: Bluetooth 5.3
• Audio: Realtek ALC897, 7.1-Channel HD Audio
• Rear USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
• Front Panel USB: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
• Display Output: 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz) - requires CPU with integrated graphics
• Power Connectors: 1x 24-pin ATX, 1x 8-pin CPU, 1x 8-pin PCIe power
• Fan Headers: 1x CPU Fan, 1x Pump/SYS Fan, 3x System Fan
• RGB Headers: 3x Addressable V2 (JARGB_V2), 1x RGB (JRGB)
• OS Support: Windows 11 64-bit
• PCB: 6-layer, 2oz thickened copper, server-grade materials
• Warranty: 3 Years
• Weight: 4 lbs
• Dimensions: 11 x 11 x 4 inches
