MSolutions MS-070PRI 4K HDBaseT HDMI Extender Set

MSolutions MS-070PRI 4K HDBaseT HDMI Extender Set

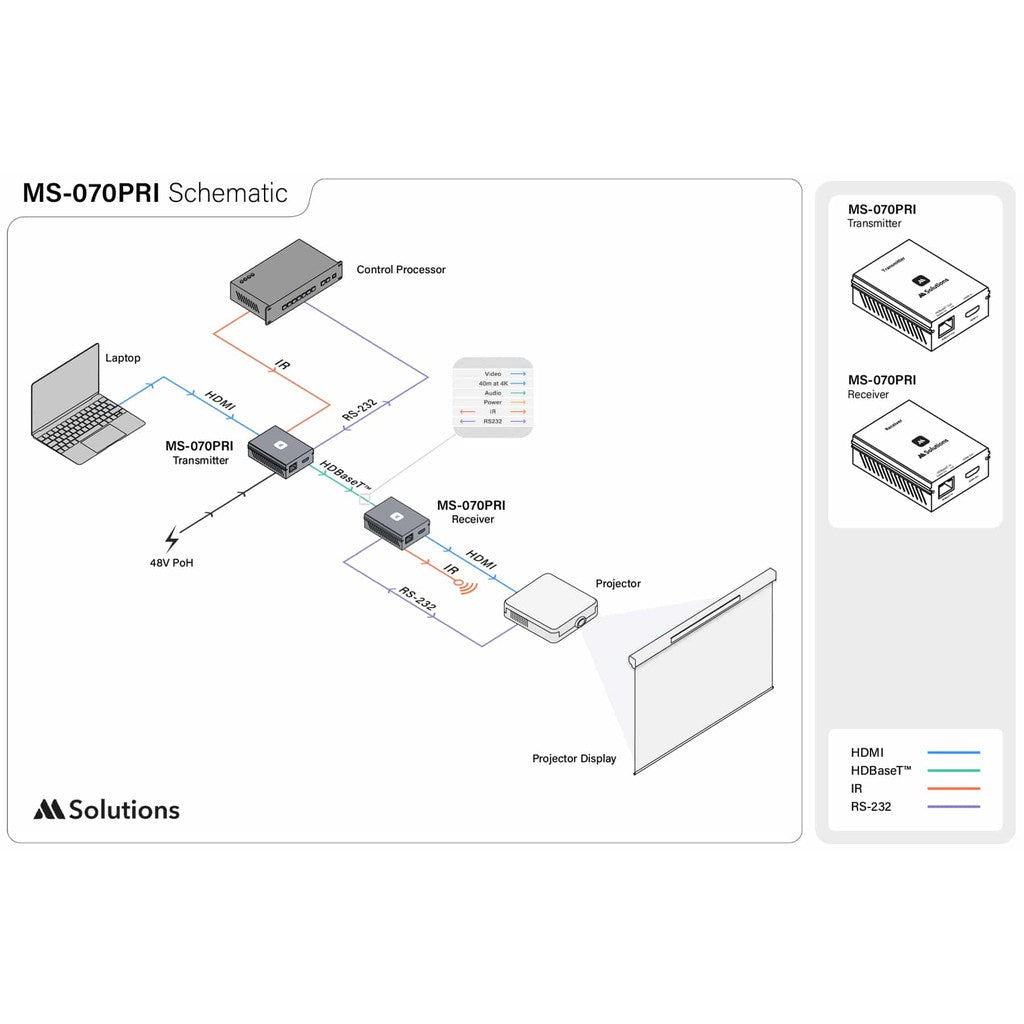

The MSolutions MS-070PRI 4K HDBaseT HDMI Extender Set transmits uncompressed UHD and HDR video up to 131 feet over one CAT cable, while 1080p and lower resolutions reach up to 230 feet. It also carries HDMI audio, bidirectional RS-232, single-channel infrared control, CEC, and 12V Power over Cable between the transmitter and receiver.

Built for conference rooms, classrooms, control environments, and digital signage, this long-distance 4K HDMI extender simplifies source-to-display connections where standard HDMI cables cannot reach. Installers can send 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4 video through category-cable infrastructure while preserving Dolby Atmos, DTS:X, and other HDMI audio formats.

The MS-070PRI supports HDR formats within its 10.2 Gbps bandwidth and remains HDCP 2.2 compliant for protected content. Bidirectional PoC lets the included power supply connect to either endpoint, reducing local power requirements. Supplied IR accessories, Phoenix connector blocks, and surface-mounting brackets support clean, controlled professional AV installation.

Key Features

• Uncompressed 4K Video: Extends HDMI signals up to 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4 using HDBaseT technology.
• Long-Distance Transmission: Carries 4K video up to 131 feet and 1080p or lower resolutions up to 230 feet.
• HDR Compatibility: Supports HDR formats operating within the extender’s 10.2 Gbps bandwidth.
• HDMI Audio Pass-Through: Preserves supported HDMI audio formats, including Dolby Atmos and DTS:X.
• Bidirectional 12V PoC: Powers the link from either the transmitter or receiver endpoint through the CAT cable.
• Integrated Control Extension: Passes bidirectional RS-232 and single-channel 5V infrared control alongside video and audio.
• CEC and HDCP Support: Provides CEC pass-through and HDCP 2.2 compliance for compatible connected equipment.
• Installation Accessories Included: Supplied IR components, mounting brackets, and connector blocks support professional integration.

Technical Specifications

• Product Type: 4K HDMI HDBaseT extender set
• Video Technology: Uncompressed HDBaseT extension
• Maximum Signal Bandwidth: 10.2 Gbps
• Maximum 4K Distance: 131 feet over one CAT cable
• Maximum 1080p Distance: 230 feet over one CAT cable
• Maximum 4K Format: 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4
• DCI and UHD 4K at 50Hz or 60Hz: 4:2:0 chroma, 8-bit color depth
• DCI and UHD 4K at 30Hz: 4:2:0, 4:2:2, 4:4:4, or RGB; 8-bit, 10-bit, or 12-bit color depth
• DCI and UHD 4K at 24Hz: 4:2:0, 4:2:2, 4:4:4, or RGB; 8-bit, 10-bit, or 12-bit color depth
• 1920 x 1080 Support: Up to 60Hz with 4:4:4 or RGB and up to 16-bit color depth
• 1280 x 720 and 1024 x 768 Support: Up to 60Hz with 4:4:4 or RGB and up to 16-bit color depth
• Computer Resolution Support: VGA through WUXGA at up to 60Hz
• HDR Support: Yes, within 10.2 Gbps signal bandwidth
• Audio Support: HDMI audio pass-through, including Dolby Atmos and DTS:X
• HDCP Compliance: HDCP 2.2
• CEC Support: CEC pass-through
• Infrared Control: Single-channel 5V IR pass-through from transmitter to receiver or receiver to transmitter
• RS-232 Control: Bidirectional serial pass-through
• Transmitter Video Connectivity: 1 x HDMI female input and 1 x RJ45 HDBaseT output

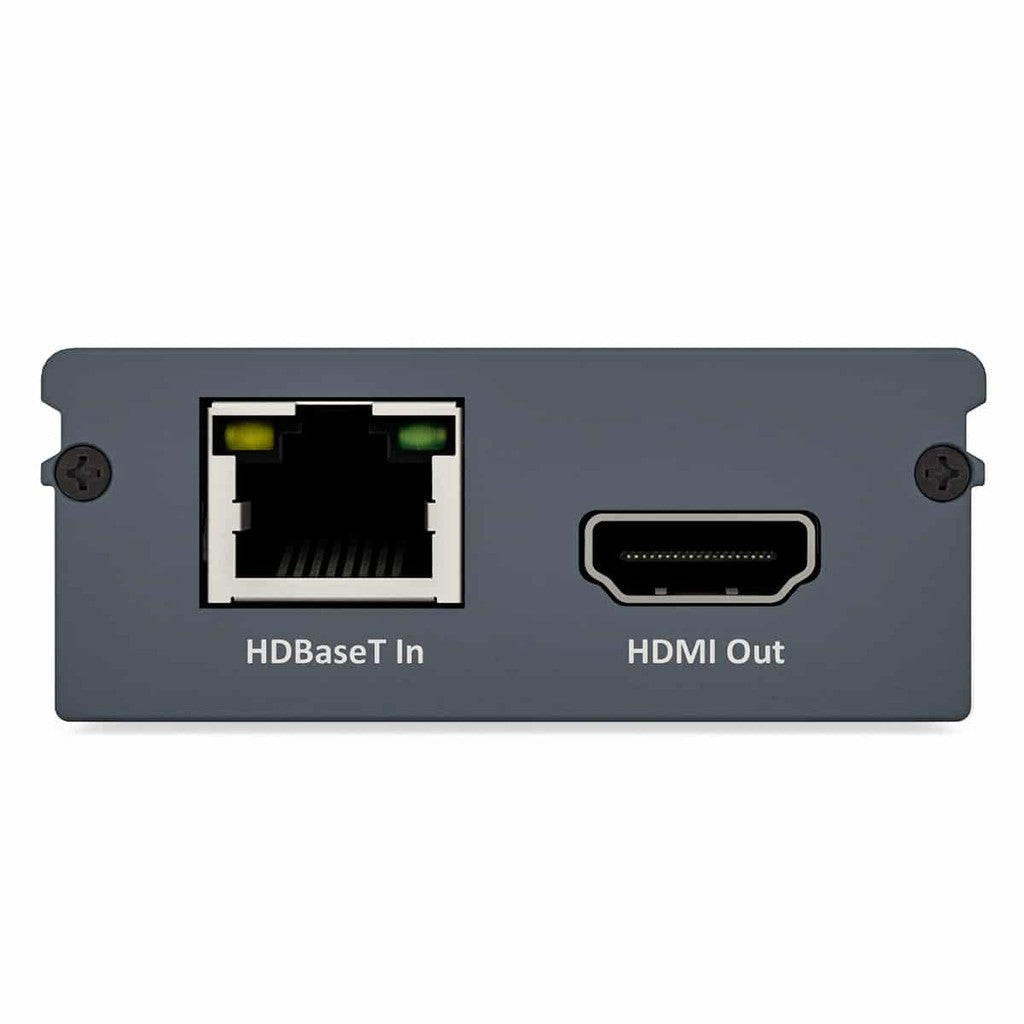

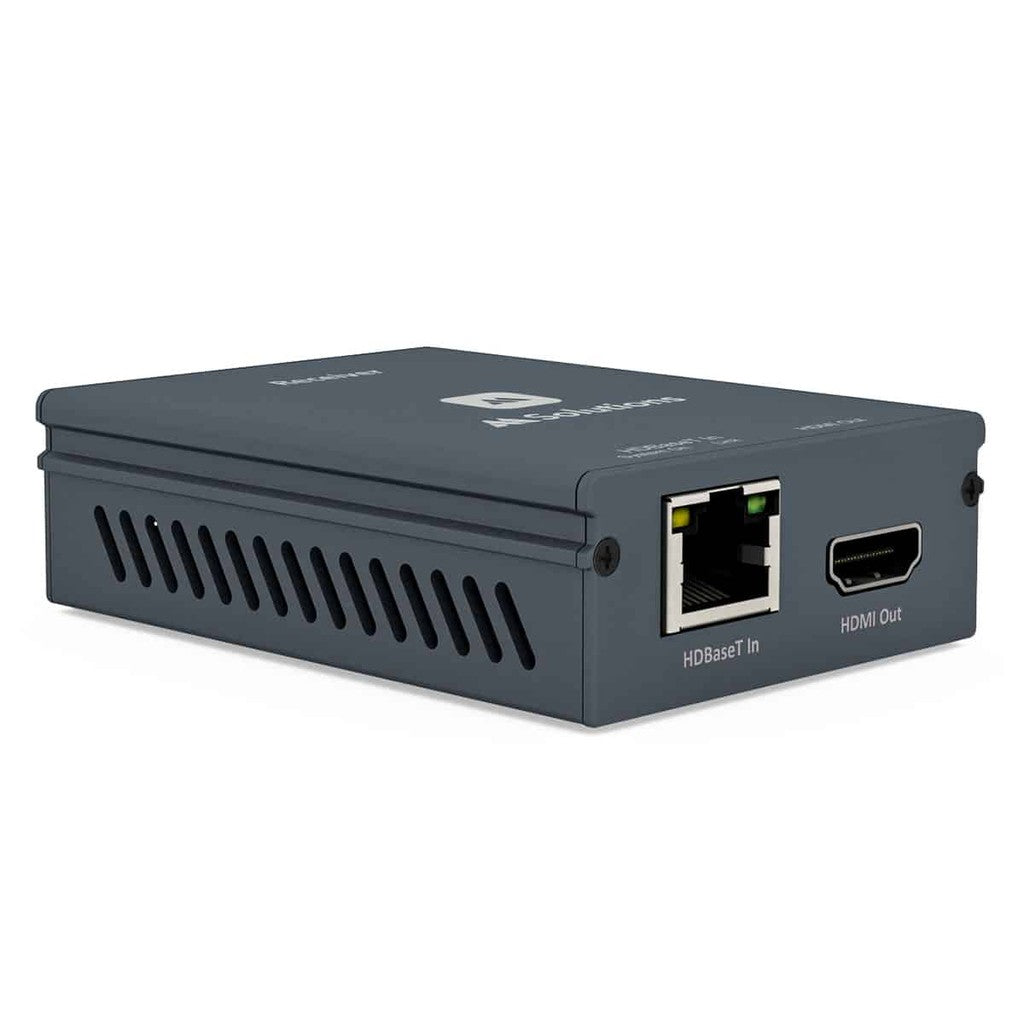

• Receiver Video Connectivity: 1 x RJ45 HDBaseT input and 1 x HDMI female output

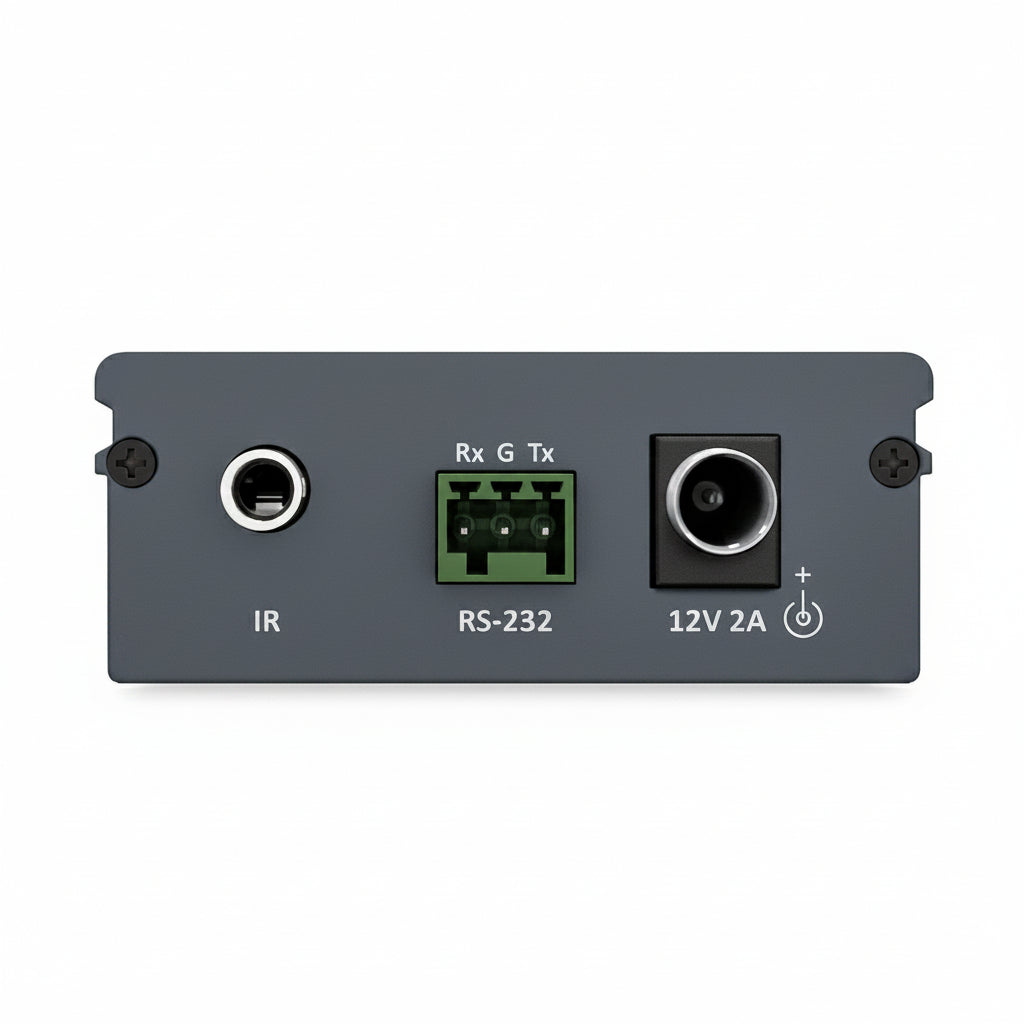

• Transmitter IR Connectivity: 1 x 3.5 mm female stereo jack for IR transmitter or receiver
• Receiver IR Connectivity: 1 x 3.5 mm female stereo jack for IR transmitter or receiver
• Transmitter RS-232 Connectivity: 1 x 3-pin Phoenix connector
• Receiver RS-232 Connectivity: 1 x 3-pin Phoenix connector
• Category Cable Support: CAT5e or higher; CAT6 or higher recommended for longer distances and 4K signals
• Power Supply: 12V DC, 2A
• Power over Cable: Bidirectional 12V PoC
• Power Consumption: 7.5W
• Individual Unit Dimensions: 2.36" W x 3.31" D x 0.98" H
• Individual Unit Weight: 0.22 lbs
• Package Dimensions: 6.42" W x 5.79" D x 3.35" H
• Package Weight: 1.10 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing
• Compliance: CE, FCC, and RoHS

What's In the Box

• 1 x MST-070PRI transmitter
• 1 x MSR-070PRI receiver
• 1 x 12V DC, 2A power supply with US, UK, and EU clips
• 1 x 5V IR transmitter
• 1 x 5V IR receiver
• 2 x 3-pin Phoenix connector blocks
• 2 x Surface-mounting brackets
