MSolutions MS-100PRI 4K HDBaseT HDMI Extender Set

MSolutions MS-100PRI 4K HDBaseT HDMI Extender Set

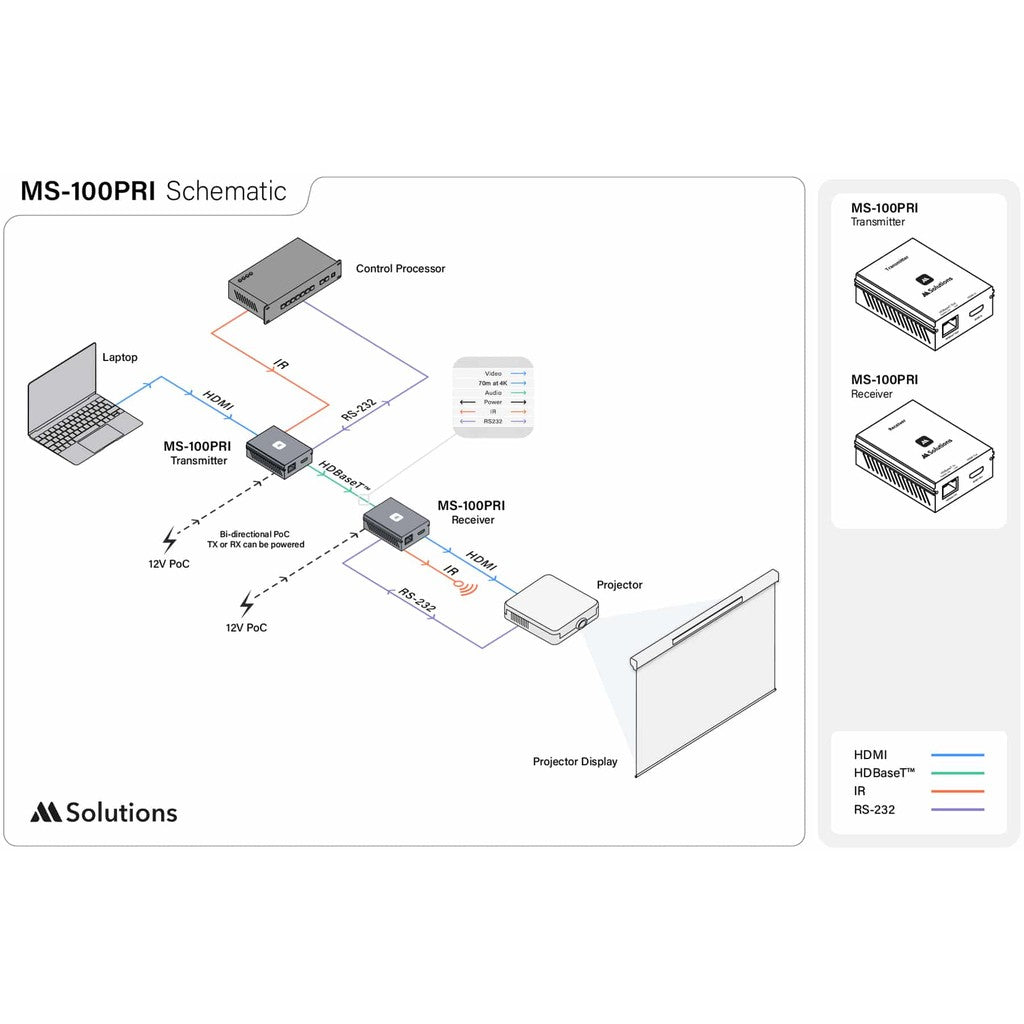

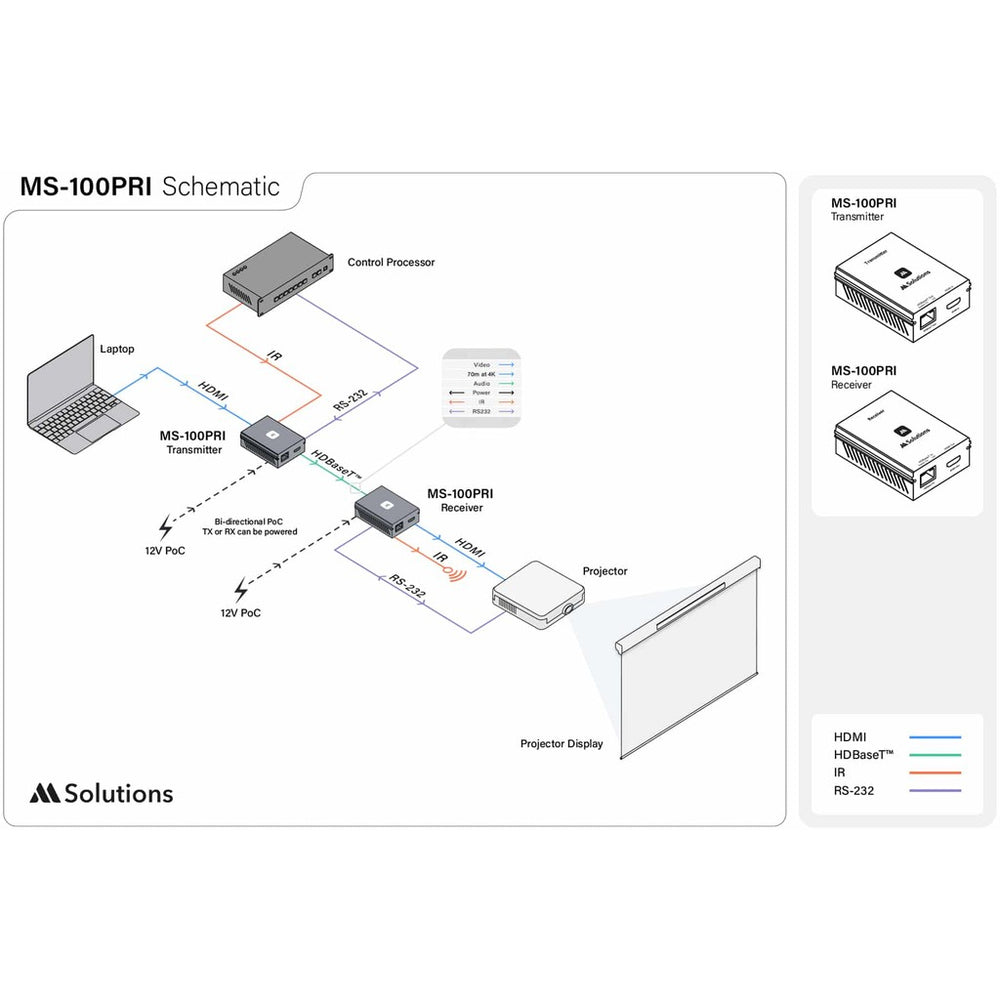

The MSolutions MS-100PRI 4K HDBaseT HDMI Extender Set transmits uncompressed 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4 video up to 230 feet over one category cable. It also extends 1080p and lower resolutions up to 328 feet while carrying HDR, HDMI audio, control, and power.

This long-distance HDMI extender is designed for professional AV installations where sources and displays must be positioned beyond standard HDMI cable limits. Its 10.2 Gbps signal path supports conference rooms, classrooms, digital signage, presentation systems, and control environments requiring reliable 4K HDMI extension without video compression.

HDMI audio pass-through preserves supported formats, including Dolby Atmos and DTS:X. Bidirectional RS-232 and single-channel 5V infrared pass-through simplify remote equipment control, while CEC pass-through supports compatible HDMI devices. Bidirectional 12V Power over Cable allows either the transmitter or receiver to receive local power, reducing power-supply placement restrictions during installation.

Key Features

• Uncompressed 4K Extension: Transmits up to 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4 video using HDBaseT technology.
• Extended Transmission Range: Carries 4K signals up to 230 feet and 1080p signals up to 328 feet.
• HDR Compatibility: Supports HDR formats operating within the 10.2 Gbps signal bandwidth.
• HDMI Audio Pass-Through: Preserves supported audio formats, including Dolby Atmos and DTS:X.
• Bidirectional RS-232: Extends serial control signals between the transmitter and receiver locations.
• Bidirectional Infrared: Passes one channel of 5V IR control from transmitter to receiver or receiver to transmitter.
• Bidirectional Power over Cable: Allows the included 12V power supply to connect at either endpoint.
• HDMI Device Compatibility: Supports CEC pass-through and HDCP 2.2-protected content.

Technical Specifications

• Product Type: 4K HDMI HDBaseT extender set
• Video Transmission: Uncompressed HDBaseT
• Maximum Video Format: 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4
• Maximum Signal Bandwidth: 10.2 Gbps
• Maximum 4K Extension Distance: 230 feet over one category cable
• Maximum 1080p Extension Distance: 328 feet over one category cable
• HDR Support: HDR formats within 10.2 Gbps
• Audio Support: HDMI audio pass-through, including Dolby Atmos and DTS:X
• HDCP Compliance: HDCP 2.2
• CEC Support: CEC pass-through
• Infrared Control: Single-channel 5V bidirectional IR pass-through
• RS-232 Control: Bidirectional serial pass-through

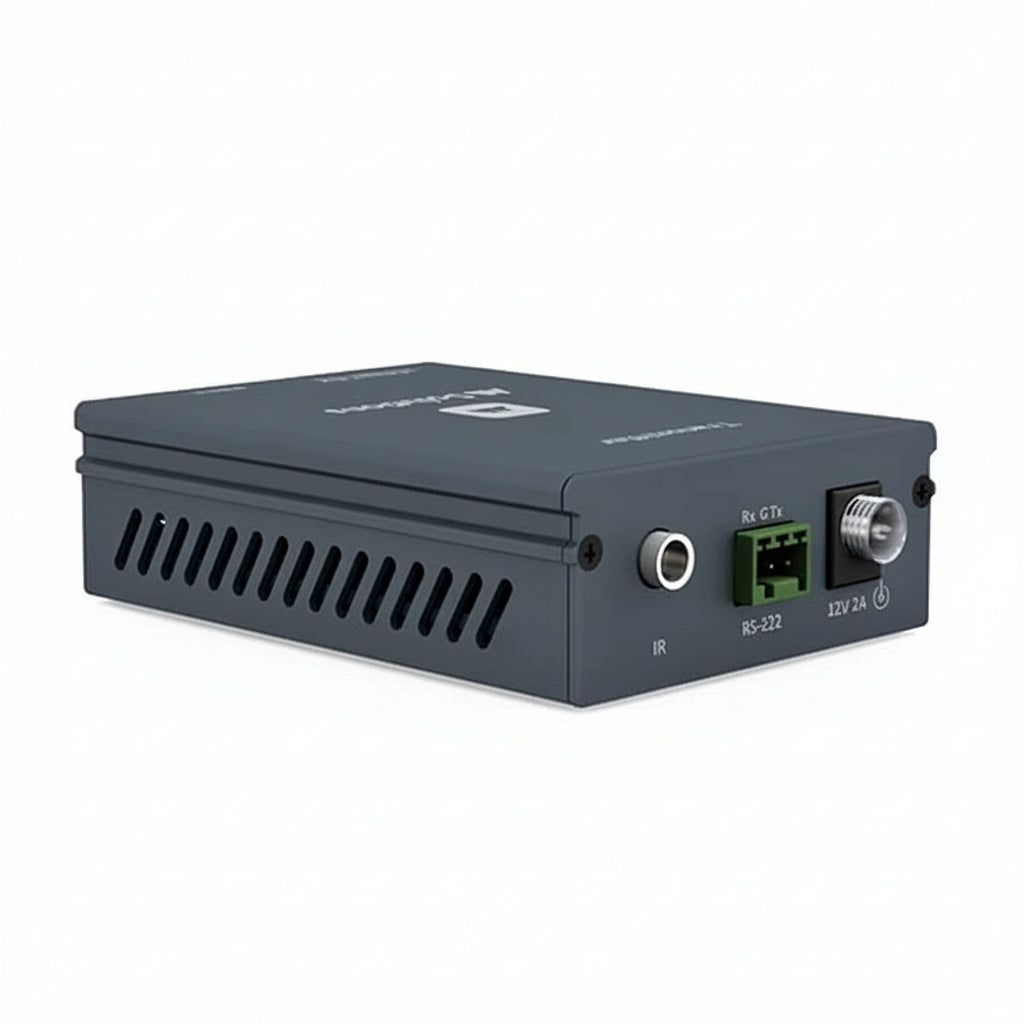

• Transmitter Video Connections: 1 x HDMI female input and 1 x RJ45 HDBaseT output

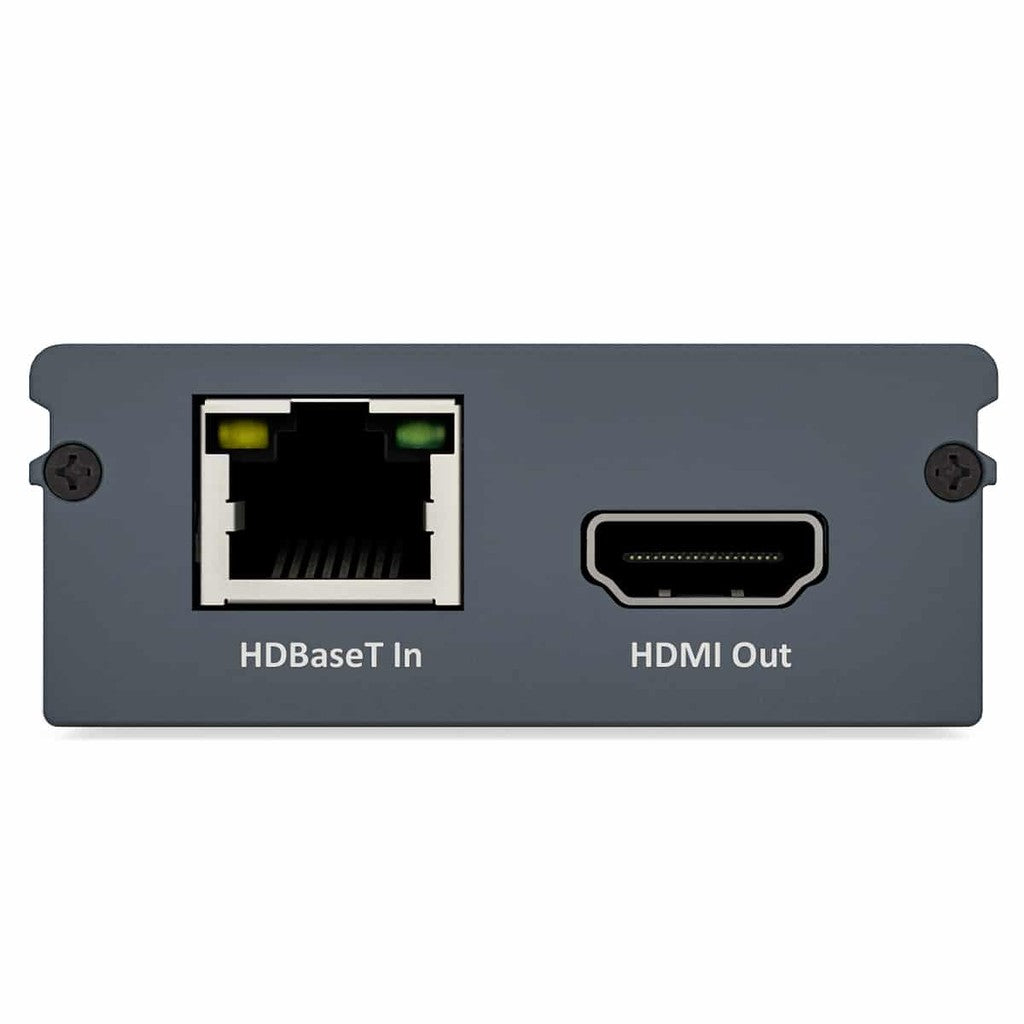

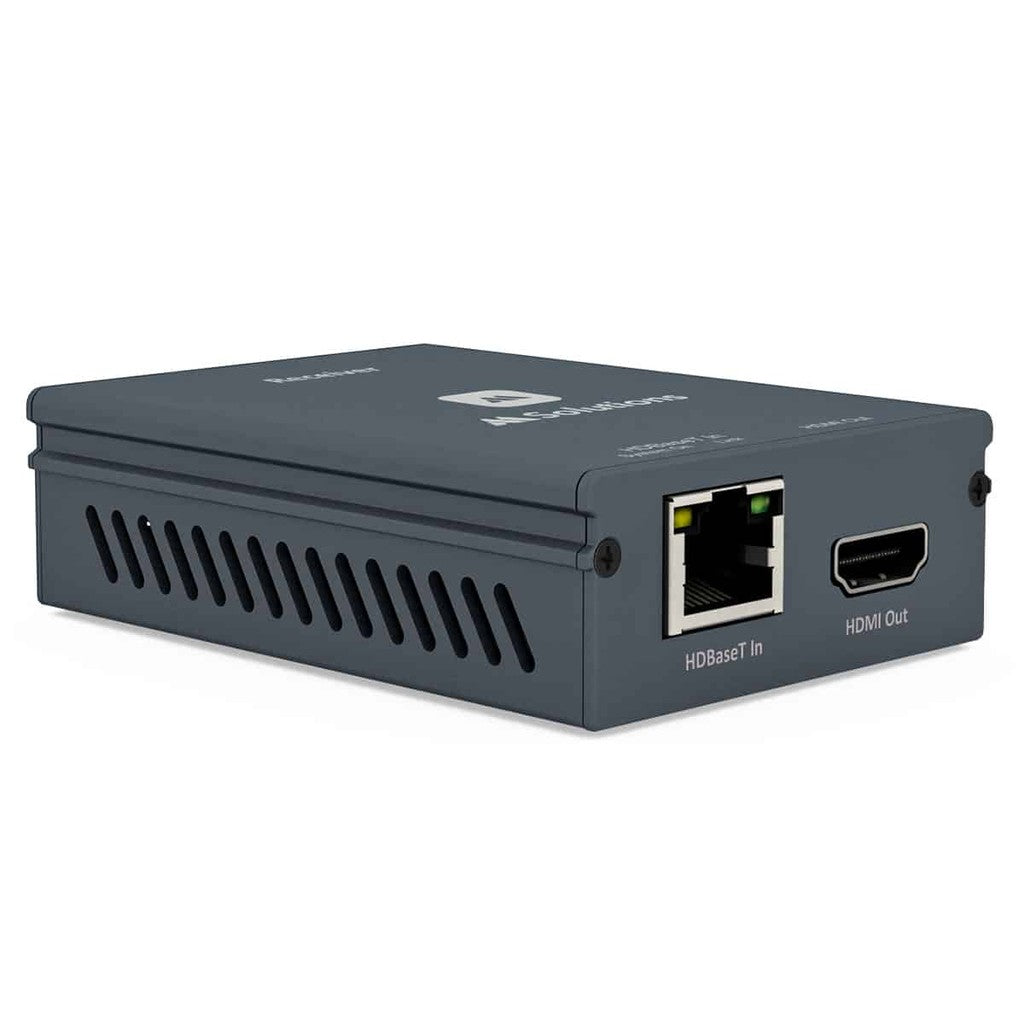

• Receiver Video Connections: 1 x RJ45 HDBaseT input and 1 x HDMI female output

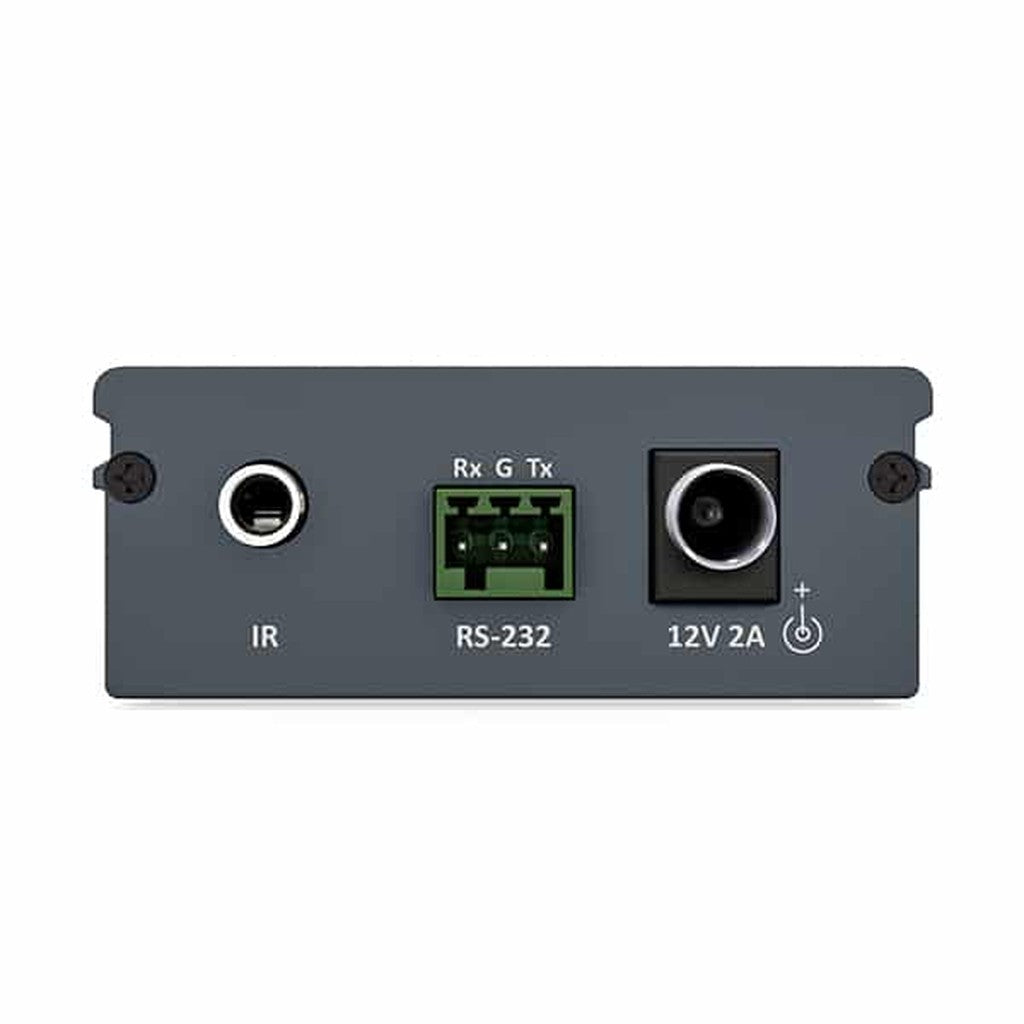

• Infrared Connections: 1 x 3.5 mm female stereo jack on the transmitter and receiver
• RS-232 Connections: 1 x 3-pin Phoenix connection on the transmitter and receiver; connector block included
• Power Supply: 12V DC, 2A
• Power over Cable: Bidirectional 12V PoC
• Power Consumption: 13W
• Individual Unit Dimensions: 2.36" W x 3.31" D x 0.98" H
• Individual Unit Weight: 0.22 lbs
• Package Dimensions: 6.42" W x 5.79" D x 3.35" H
• Package Weight: 1.10 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing
• Compliance: CE, FCC, and RoHS

What's In the Box

• 1 x MS-100PRI transmitter
• 1 x MS-100PRI receiver
• 1 x 12V DC, 2A power supply with US, UK, and EU territory clips
• 1 x 5V IR receiver with 3.28-foot cable
• 1 x 5V IR transmitter with 3.28-foot cable
• 2 x Surface-mounting brackets
• 1 x User guide
