MSolutions MS-210SP 4K HDBaseT HDMI Extender Set with S/PDIF

MSolutions MS-210SP 4K HDBaseT HDMI Extender Set with S/PDIF

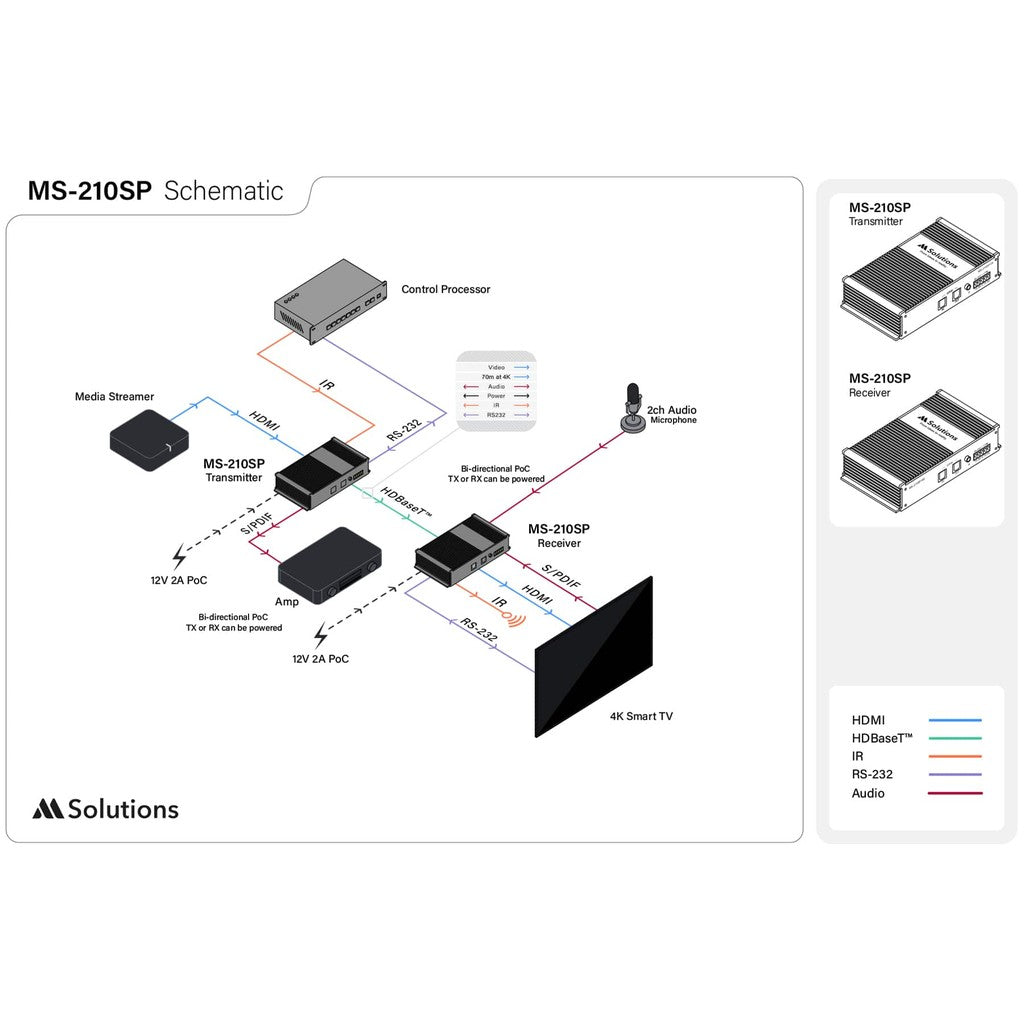

The MSolutions MS-210SP 4K HDBaseT HDMI extender set transmits uncompressed 4K UHD and HDR video up to 131 feet, plus 1080p up to 230 feet, over one CAT cable. It also carries HDMI audio, bidirectional S/PDIF, one-way analog audio, RS-232, IR, CEC, and 12V Power over Cable.

Designed for conference rooms, classrooms, digital signage, and integrated AV systems, this professional HDMI-over-CAT extender connects sources and displays beyond standard HDMI cable limits. It supports 4K 60Hz 4:2:0 and 4K 30Hz 4:4:4 video within a 10.2 Gbps bandwidth, making it suitable for reliable long-distance 4K HDMI extension.

Bidirectional optical audio connectivity sends S/PDIF signals in either direction, while an independent analog return path carries audio from the receiver to the transmitter. HDMI audio pass-through supports Dolby Atmos, DTS:X, and other recognized formats. Bidirectional PoC permits power at either endpoint, while HDCP 2.2 and CEC support simplify professional system integration.

Key Features

• Uncompressed 4K Extension: Transmits HDMI video up to 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4 using HDBaseT technology.
• Extended Transmission Range: Carries 4K and HDR signals up to 131 feet and 1080p video up to 230 feet.
• Bidirectional S/PDIF: Sends digital optical audio from transmitter to receiver or receiver to transmitter.
• Independent Analog Audio Return: Carries a separate analog audio signal from the receiver back to the transmitter.
• HDMI Audio Pass-Through: Supports recognized HDMI formats, including Dolby Atmos and DTS:X.
• Integrated Equipment Control: Extends bidirectional RS-232 and a single selectable channel of 5V infrared control.
• Bidirectional 12V PoC: Allows the included power supply to connect at either the transmitter or receiver.
• HDMI System Compatibility: Supports CEC pass-through and HDCP 2.2-protected content.

Technical Specifications

• Product Type: 4K HDMI HDBaseT extender set
• Video Transmission: Uncompressed HDMI over HDBaseT
• Maximum 4K Video Format: 4K 60Hz 4:2:0 or 4K 30Hz 4:4:4
• Maximum Signal Bandwidth: 10.2 Gbps
• Maximum 4K Extension Distance: 131 feet over one CAT cable
• Maximum 1080p Extension Distance: 230 feet over one CAT cable
• HDR Support: HDR formats within the 10.2 Gbps bandwidth
• HDMI Audio Support: Recognized HDMI audio formats, including Dolby Atmos and DTS:X
• Digital Audio Direction: Bidirectional S/PDIF from transmitter to receiver or receiver to transmitter
• Analog Audio Direction: One-way pass-through from receiver to transmitter
• RS-232 Control: Bidirectional serial pass-through
• Infrared Control: Single-channel 5V IR pass-through from transmitter to receiver or receiver to transmitter
• CEC Support: CEC pass-through
• HDCP Compliance: HDCP 2.2

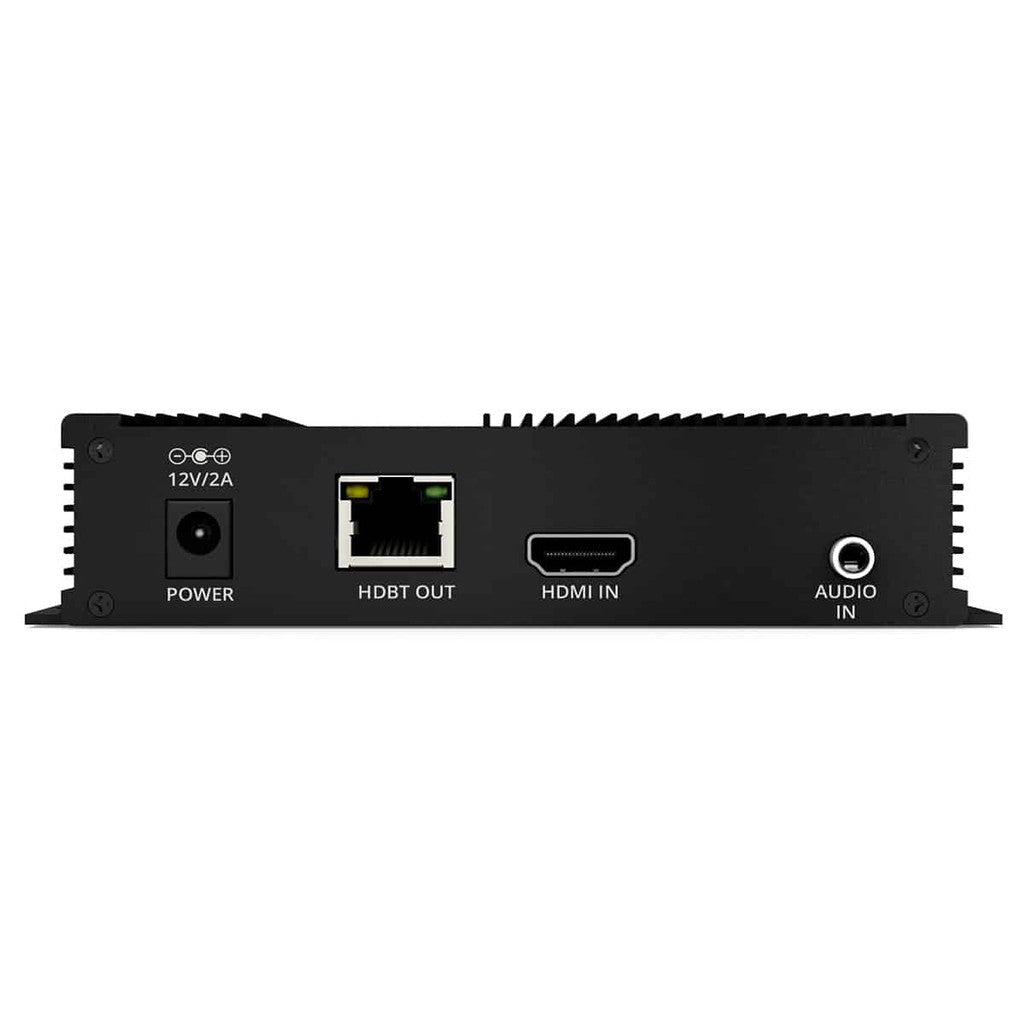

• Transmitter Video Connectivity: 1 x HDMI female input and 1 x RJ45 HDBaseT output

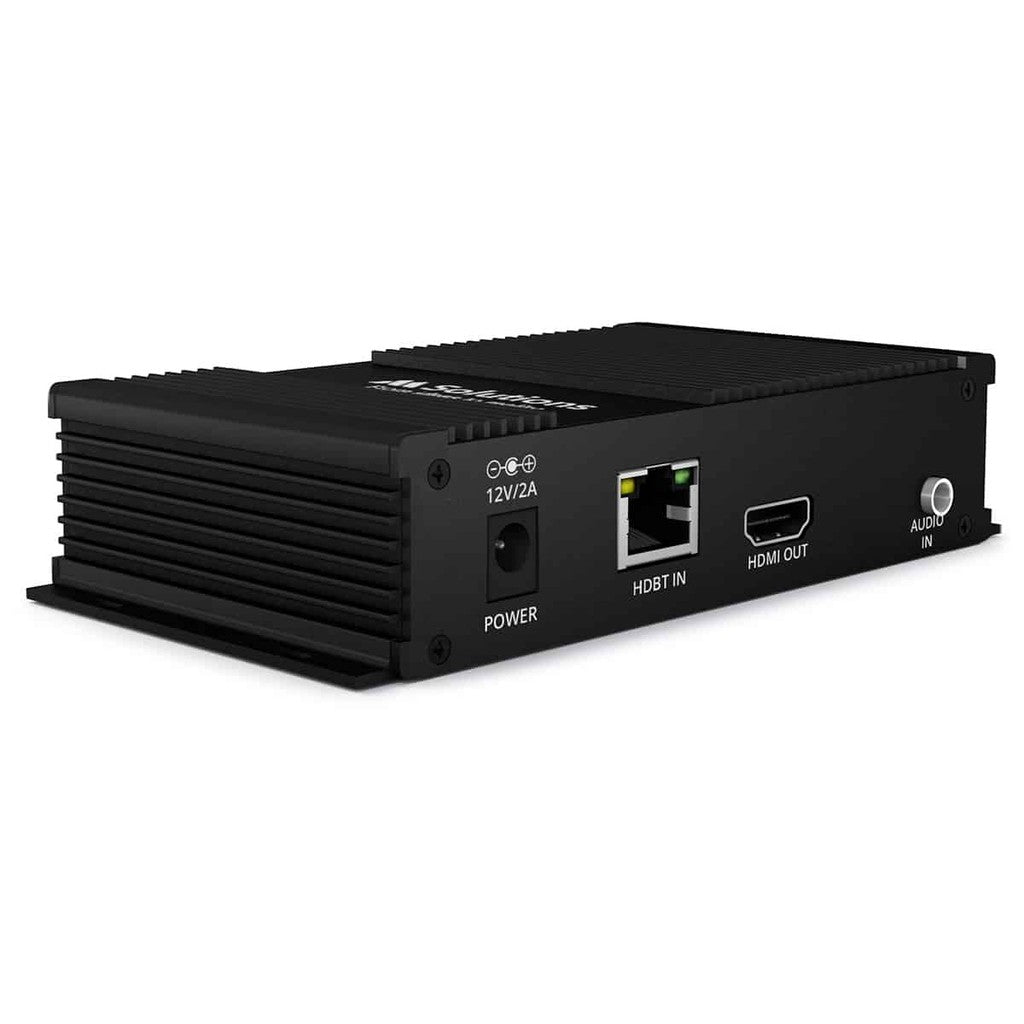

• Receiver Video Connectivity: 1 x RJ45 HDBaseT input and 1 x HDMI female output

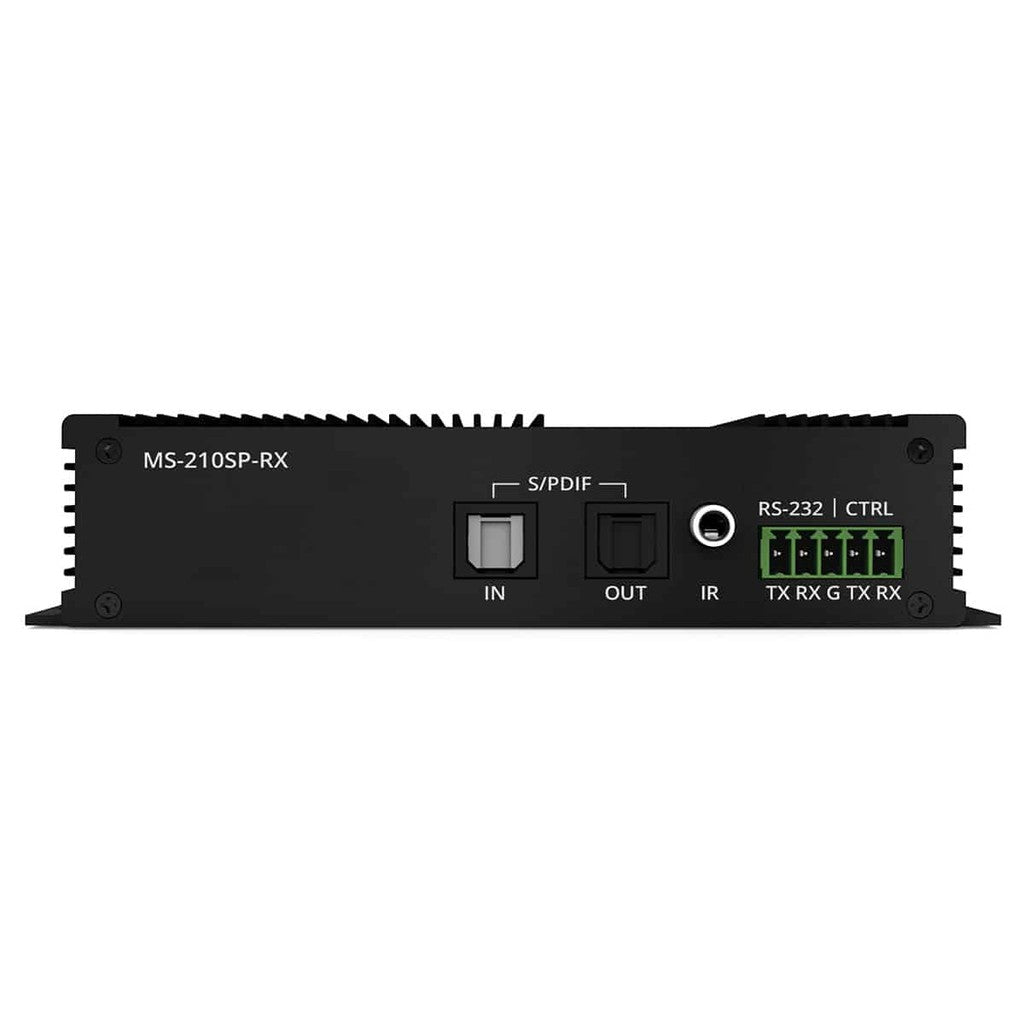

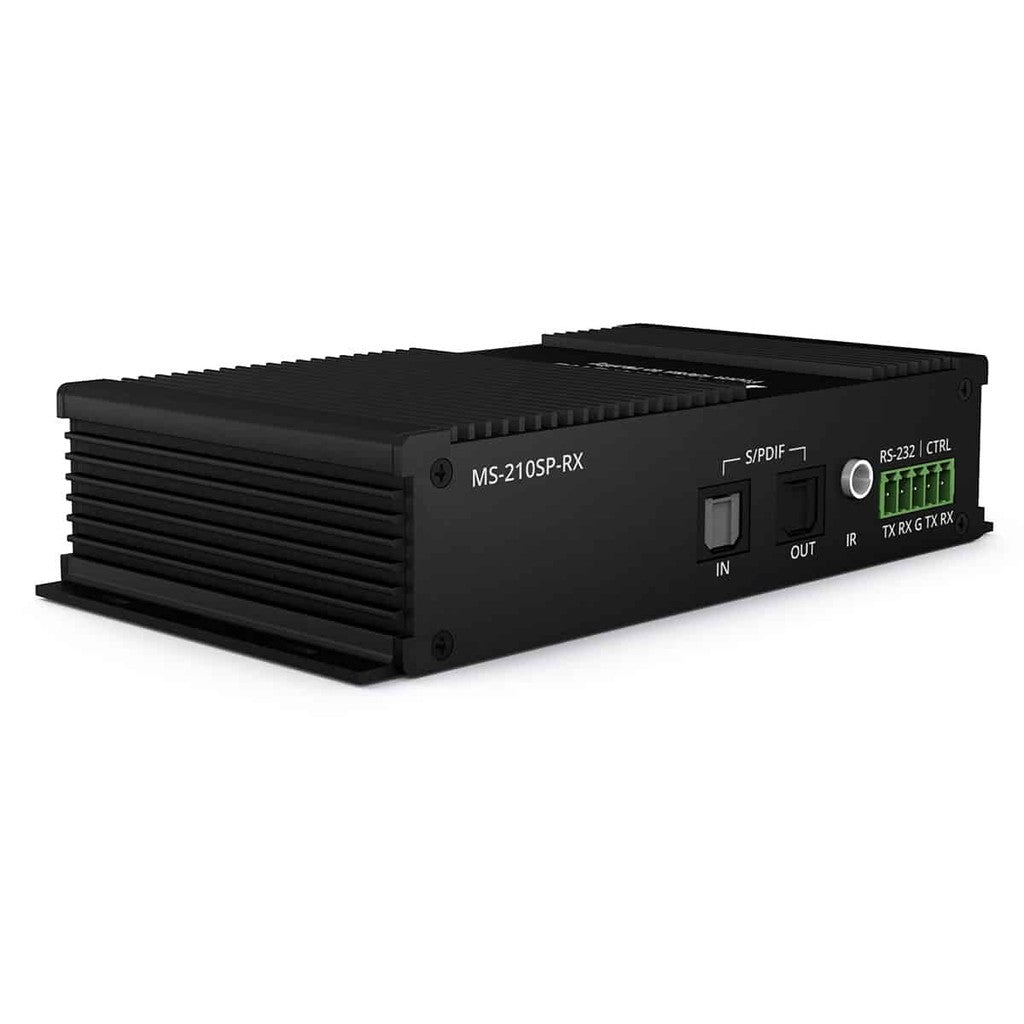

• Digital Audio Connectivity: 2 x S/PDIF Toslink optical connections on the transmitter and receiver for sending and receiving audio
• Analog Audio Connectivity: 1 x 3.5 mm female analog input on the receiver and 1 x 3.5 mm female analog output on the transmitter
• Infrared Connectivity: 1 x 3.5 mm female stereo jack on the transmitter and receiver for an IR transmitter or receiver
• RS-232 Connectivity: 1 x 5-pin Phoenix connection on the transmitter and receiver for serial pass-through and firmware upgrades; connector block included
• Power Supply: 12V DC, 2A
• Power over Cable: Bidirectional 12V PoC
• Power Consumption: 13W
• Individual Unit Dimensions: 5.31" W x 2.76" D x 1.22" H
• Individual Unit Weight: 0.44 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing

What's In the Box

• 1 x MS-210SP transmitter
• 1 x MS-210SP receiver
• 1 x 12V DC, 2A power supply with US, UK, and EU territory clips
• 1 x 5V IR receiver with 3.28-foot cable
• 1 x 5V IR transmitter with 3.28-foot cable
• 2 x Optical S/PDIF cables, 4.92 feet each
• 1 x User guide
