MSolutions MS-6U1C USB-C CATx Extender Set with PoC and RS-232

MSolutions MS-6U1C USB-C CATx Extender Set with PoC and RS-232

The MSolutions MS-6U1C USB-C CATx extender set carries one uncompressed USB-C data channel up to 328 feet over a single category cable. It supports data rates up to 320 Mbps while adding bidirectional RS-232 pass-through and 12V Power over Cable for streamlined commercial AV installations.

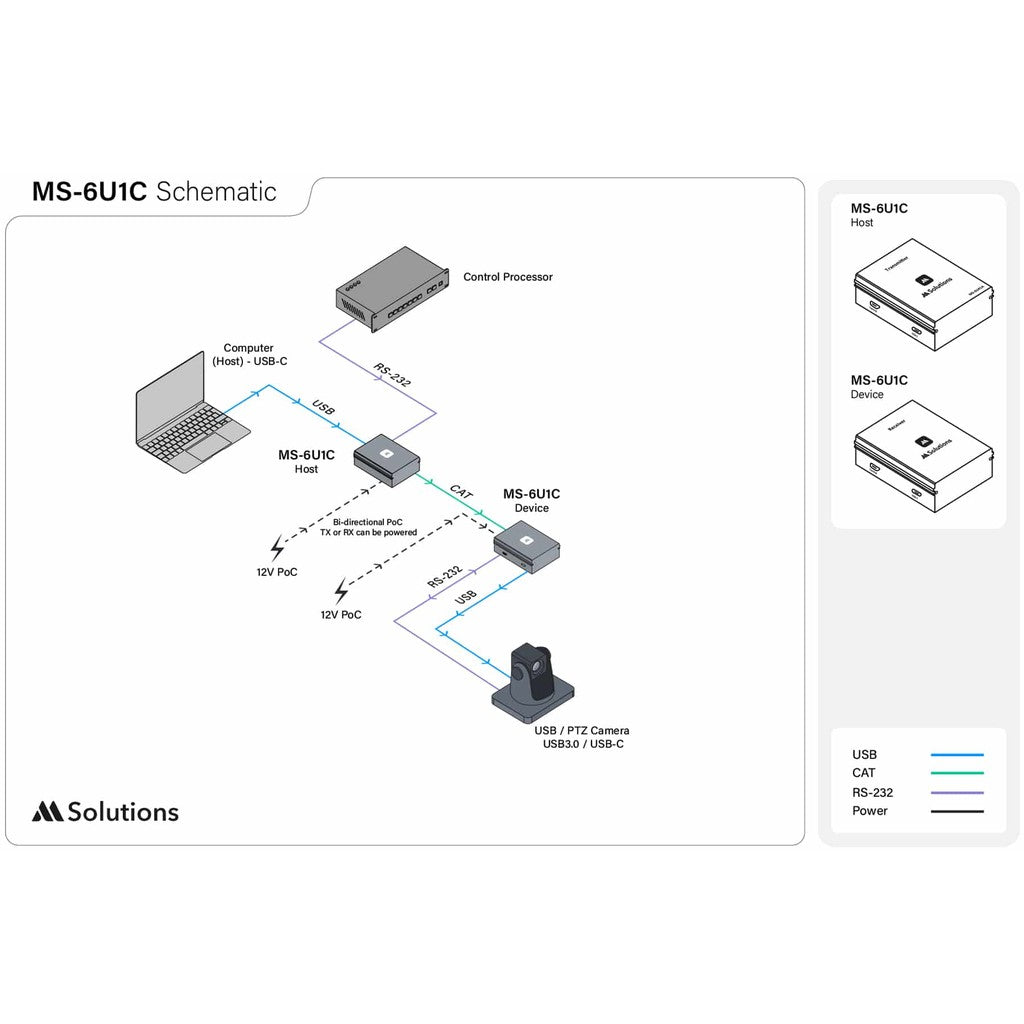

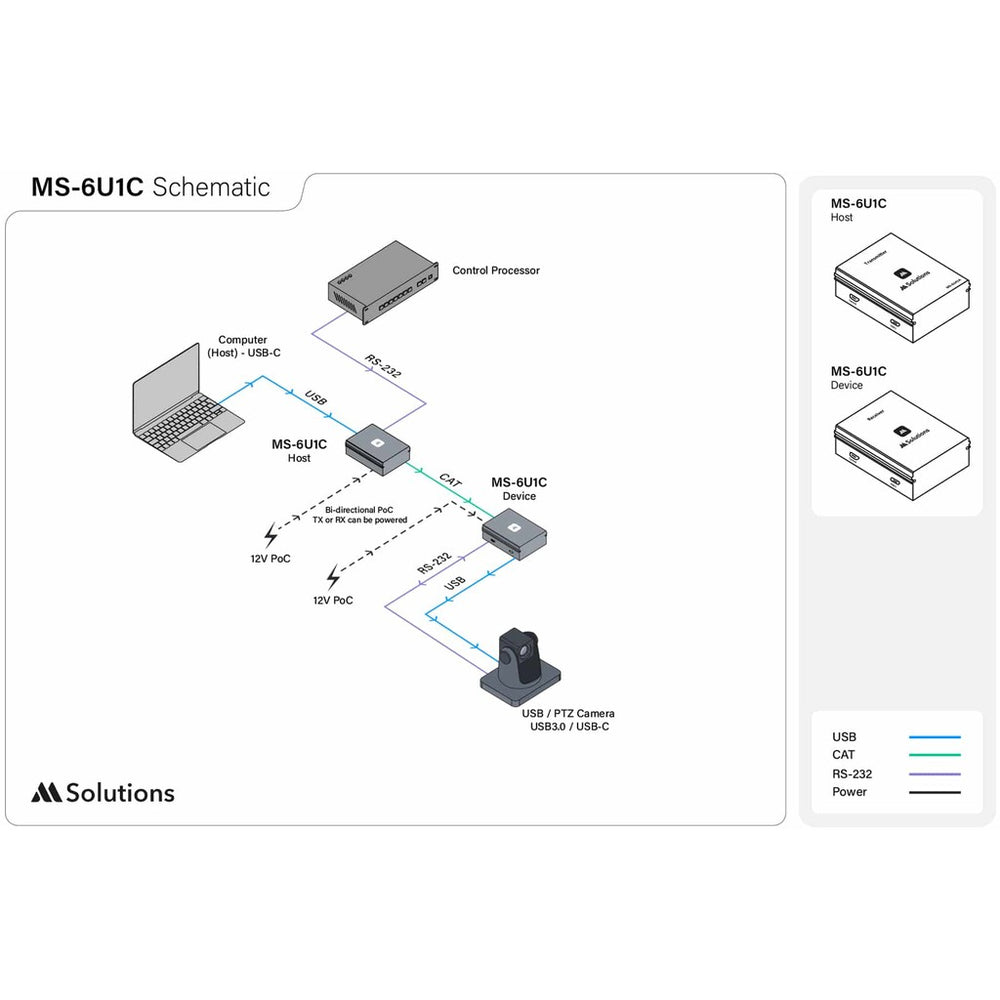

Designed for conference rooms, classrooms, control spaces, and collaborative environments, the MS-6U1C provides flexible USB-C extension for PTZ cameras, hard drives, laptops, and other USB-C peripherals. Professionals looking to extend a USB-C camera over CATx can place equipment farther from the host system without relying on short direct-connect USB cables.

Bidirectional 12V PoC allows the included power supply to connect at either the transmitter or receiver endpoint, reducing local power requirements. Dedicated three-pin Phoenix connections carry serial control between locations, while Micro-USB ports support product updates and future cloud-control functionality. Compact enclosures and included surface-mounting brackets simplify integration behind displays, beneath tables, or inside equipment racks.

Key Features

• 328-Foot USB-C Extension: Carries uncompressed USB data over one CATx cable for flexible equipment placement.
• 320 Mbps Data Connectivity: Extends one USB-C channel with up to 320 Mbps data throughput.
• Broad Peripheral Support: Connects USB-C PTZ cameras, hard drives, laptops, and other compatible peripherals.
• Bidirectional RS-232: Passes serial control signals between the transmitter and receiver endpoints.
• Bidirectional 12V PoC: Allows the included power supply to connect at either end of the extension link.

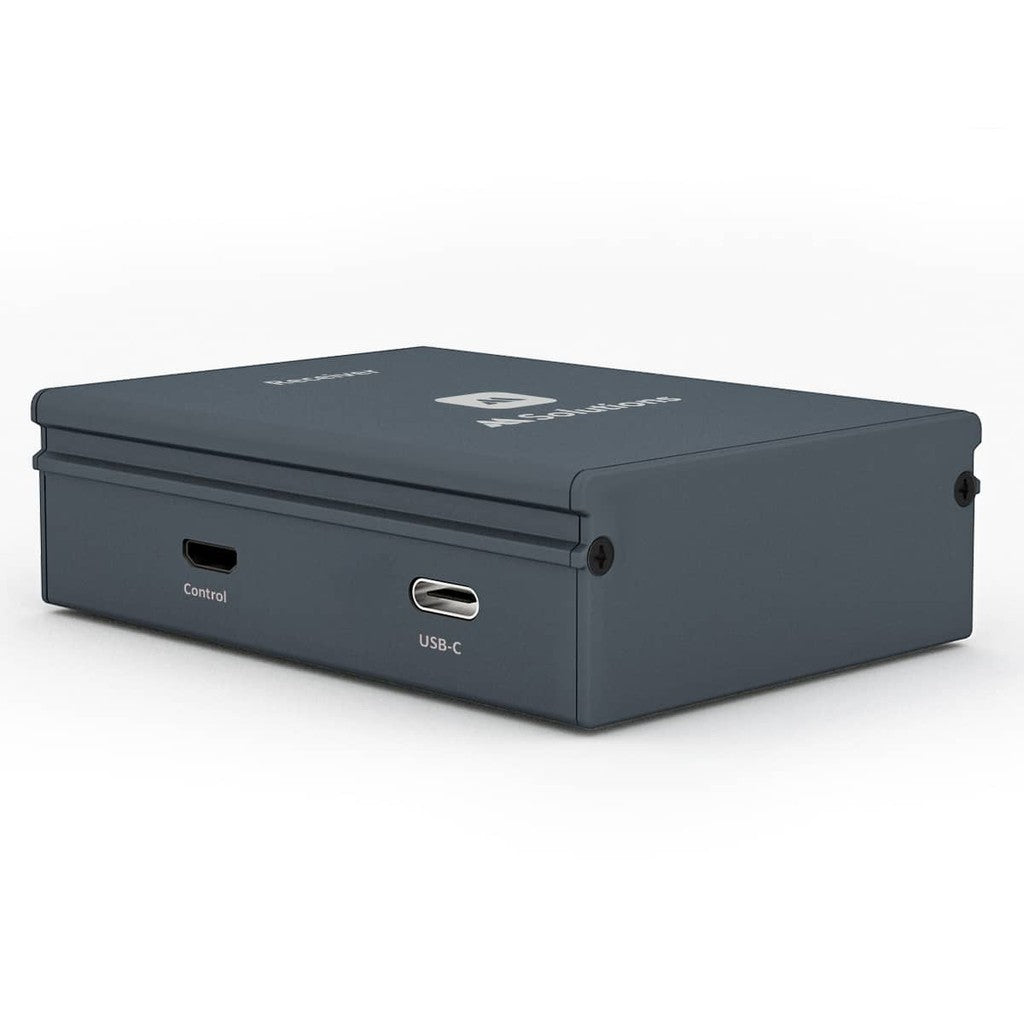

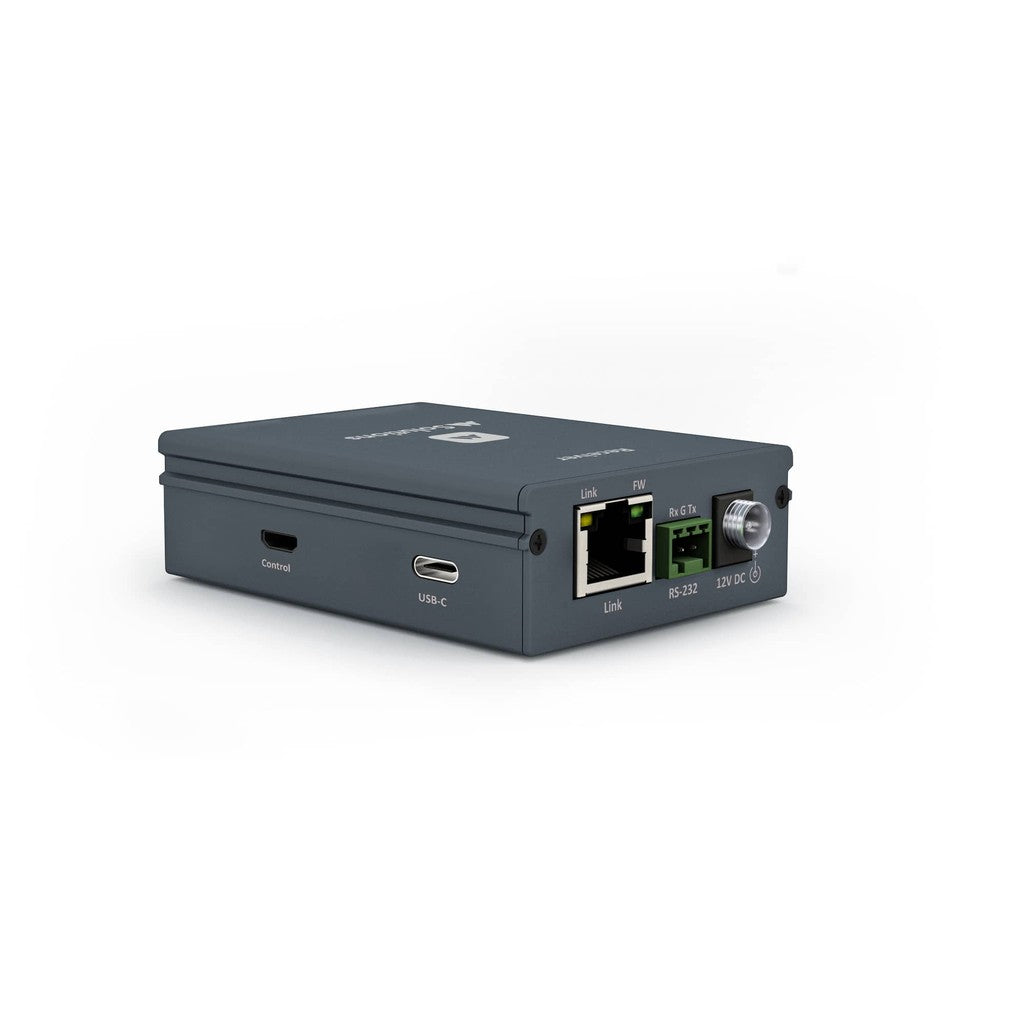

• Compact Installation: Small enclosures and included brackets support discreet surface mounting.
• Single-Cable Infrastructure: Uses one category cable to simplify long-distance commercial USB installations.

Technical Specifications

• Product Type: USB-C CATx extender set
• Maximum Extension Distance: 328 feet
• Transmission Cable: Single CATx cable
• USB Data Channels: 1
• Maximum Data Rate: 320 Mbps
• Transmitter USB Connectivity: 1 x USB-C female, data only
• Receiver USB Connectivity: 1 x USB-C female, data only

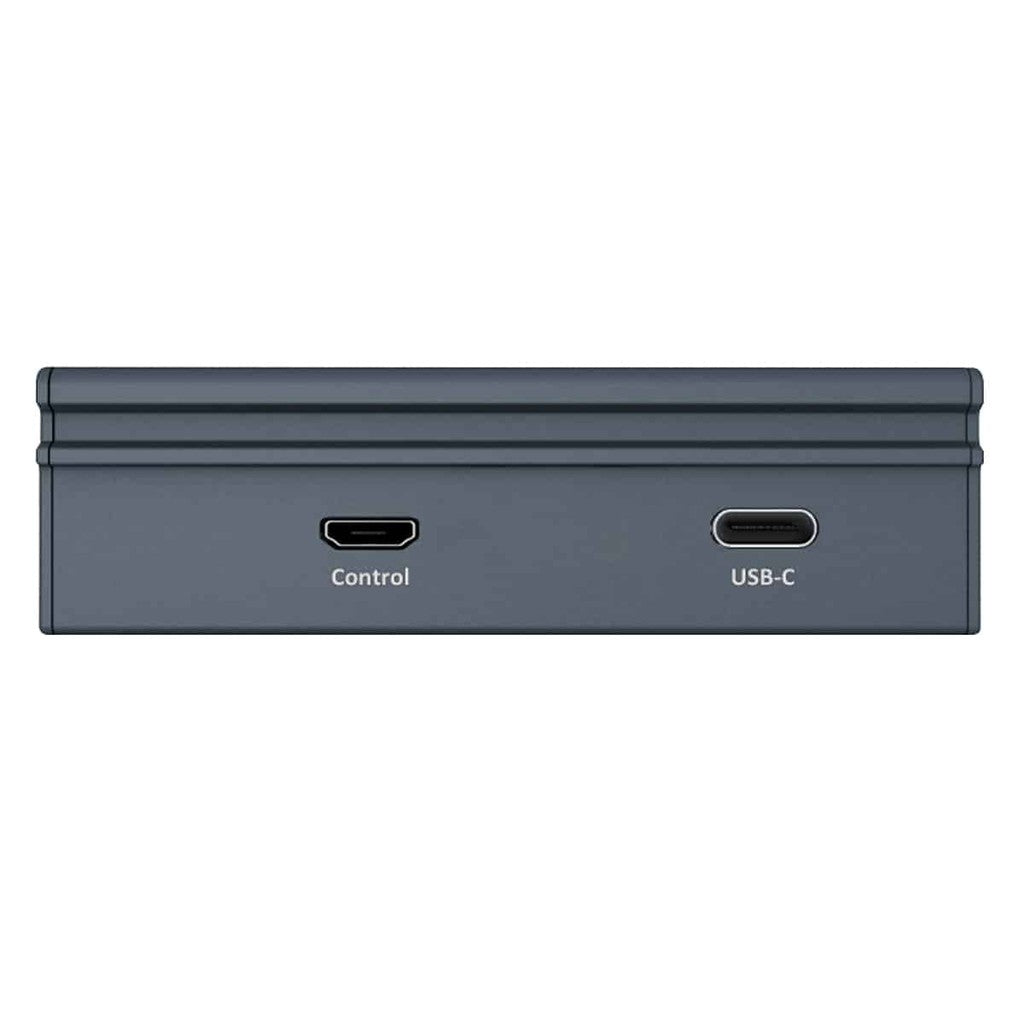

• Micro-USB Connectivity: Micro-USB ports on transmitter and receiver for product updates and future cloud control

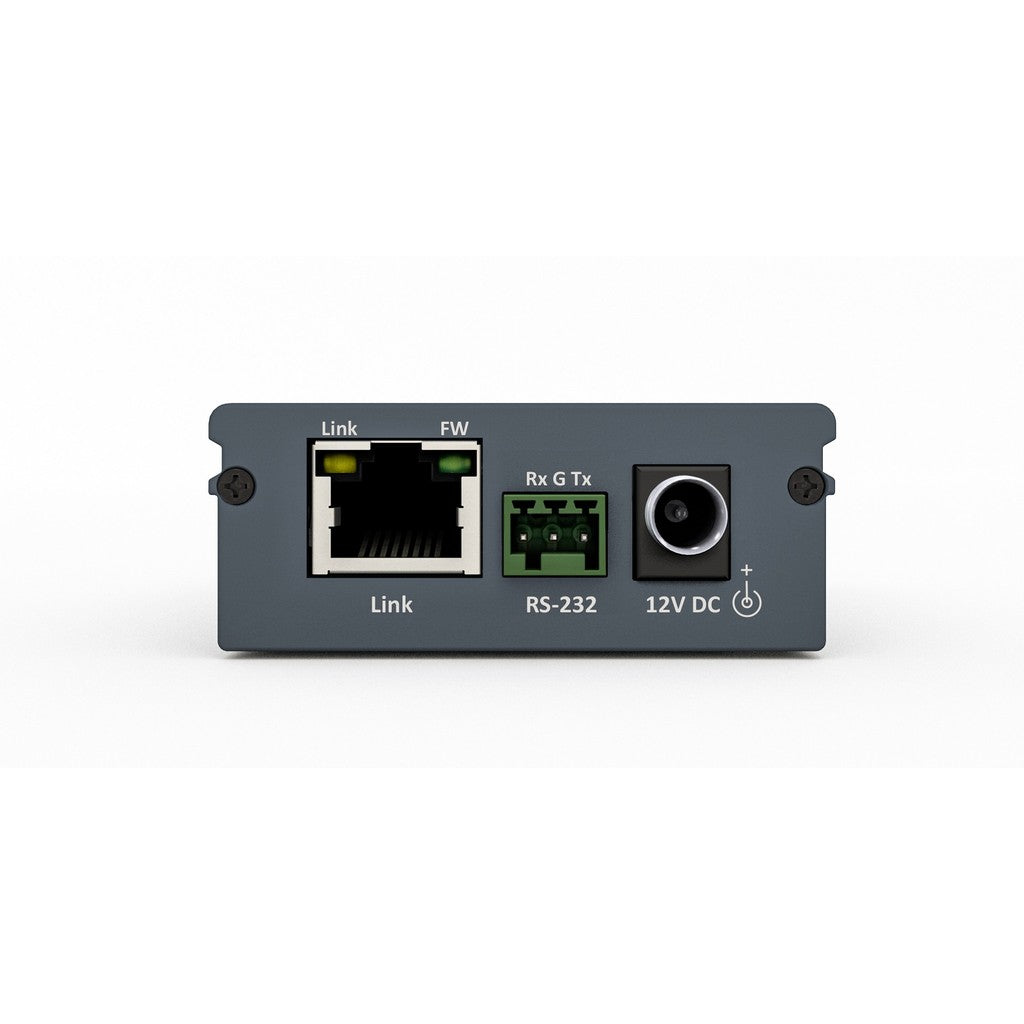

• RS-232 Connectivity: 1 x three-pin Phoenix connector on transmitter and receiver; connector block included
• RS-232 Direction: Bidirectional serial pass-through
• Power Supply: 12V DC, 2A
• Power Supply Connection: Connects at either the transmitter or receiver
• Power over Cable: Bidirectional 12V PoC
• Power Consumption: 4.5W
• Individual Unit Dimensions: 2.36" W x 3.31" D x 0.98" H
• Individual Unit Weight: 0.22 lbs
• Package Dimensions: 6.42" W x 5.79" D x 3.35" H
• Package Weight: 1.10 lbs
• Master Carton Quantity: 18 sets
• Master Carton Dimensions: 21.26" W x 10.63" D x 10.24" H
• Master Carton Weight: 22.05 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing

What's In the Box

• 1 x MS-6U1C host unit
• 1 x MS-6U1C device unit
• 1 x 12V DC, 2A power supply with US, UK, and EU territory clips
• 2 x Surface-mounting brackets
• 1 x USB-C to USB Type-A female cable
• 1 x USB-C to USB-C cable, 4.92 feet
