MSolutions MS-6U1CP USB-C and 12V Power Extender Set

MSolutions MS-6U1CP USB-C and 12V Power Extender Set

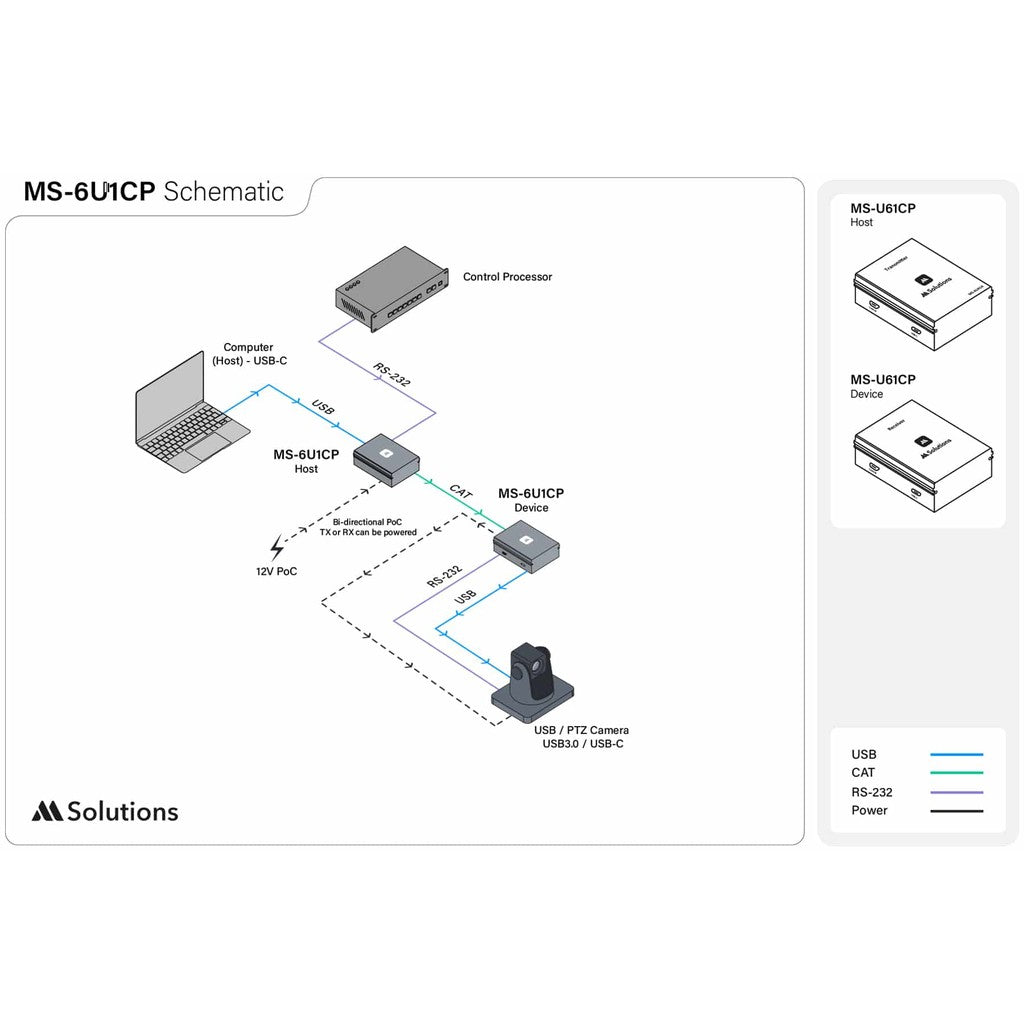

The MSolutions MS-6U1CP USB-C extender set transports one USB-C data channel, RS-232 control, and 12V Power over Cable across a single CATx cable up to 328 feet. It provides up to 320 Mbps data connectivity while delivering remote 12V power for compatible video conferencing equipment at the device location.

Designed for conference rooms, classrooms, and professional collaboration spaces, this long-distance USB-C extender supports PTZ cameras, hard drives, laptops, and other USB-C peripherals. Installers can extend USB camera data and power over one category cable, reducing cable requirements between host equipment and remotely positioned video conferencing devices.

Bidirectional RS-232 pass-through supports integrated control systems, while bidirectional PoC allows the included power supply to connect at either endpoint. The device-side output can provide up to 12V DC at 1.5A when power originates from the host side. CE, FCC, and RoHS compliance supports deployment within professional AV environments.

Key Features

• 328-Foot USB-C Extension: Carries USB camera data over one CATx cable for flexible equipment placement.
• Remote Equipment Power: Supplies 12V power at the device endpoint for compatible video conferencing hardware.
• 320 Mbps Data Connectivity: Extends one USB-C channel with up to 320 Mbps throughput across the link.
• USB Peripheral Support: Connects USB-C PTZ cameras, laptops, hard drives, and other compatible devices.
• Bidirectional RS-232: Passes serial control signals between host and device locations.
• Bidirectional Power over Cable: Allows the 12V power supply to connect at the host or device unit.

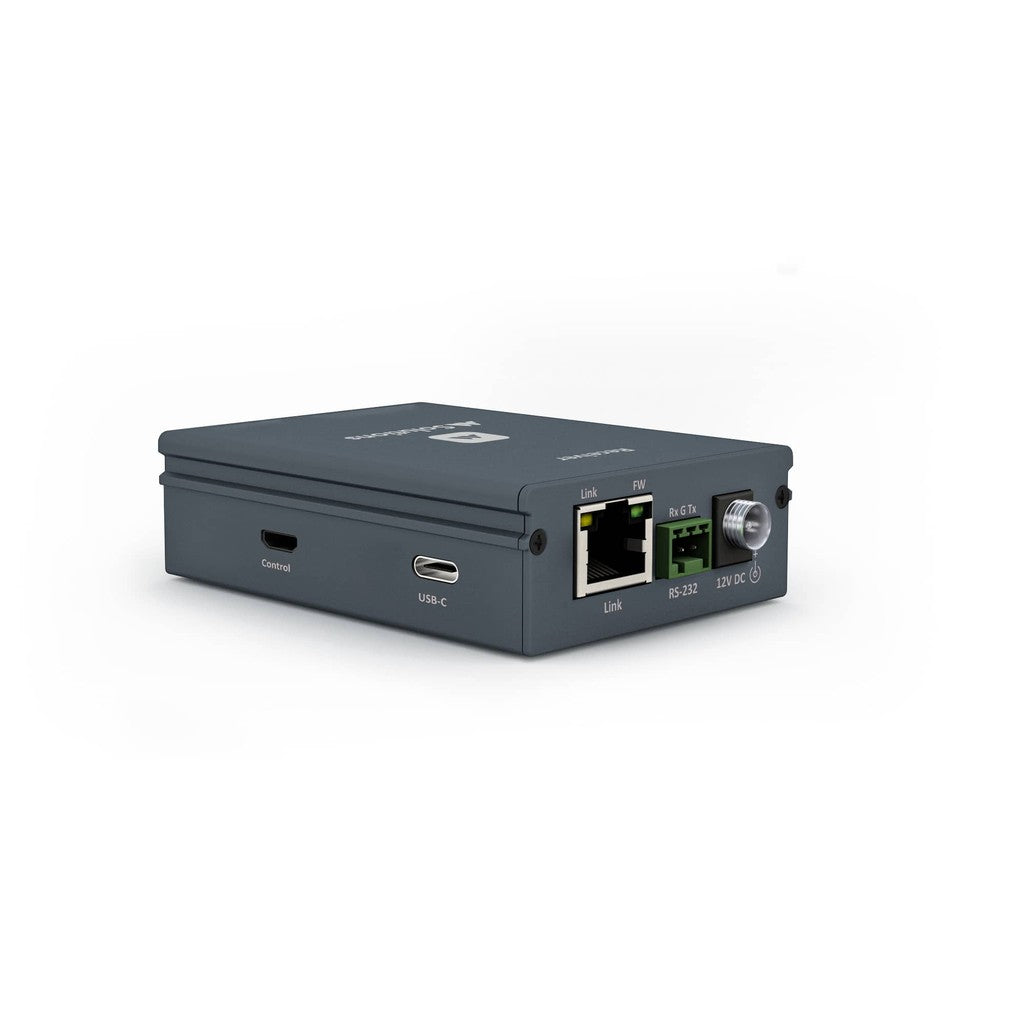

• Surface-Mountable Design: Includes mounting brackets for secure installation behind displays or conferencing equipment.

Technical Specifications

• Product Type: USB-C and 12V power extender set
• Maximum Extension Distance: 328 feet
• Transmission Cable: Single CATx cable
• USB Data Channels: 1
• Maximum Data Rate: 320 Mbps
• USB Device Compatibility: USB 3.0-compatible

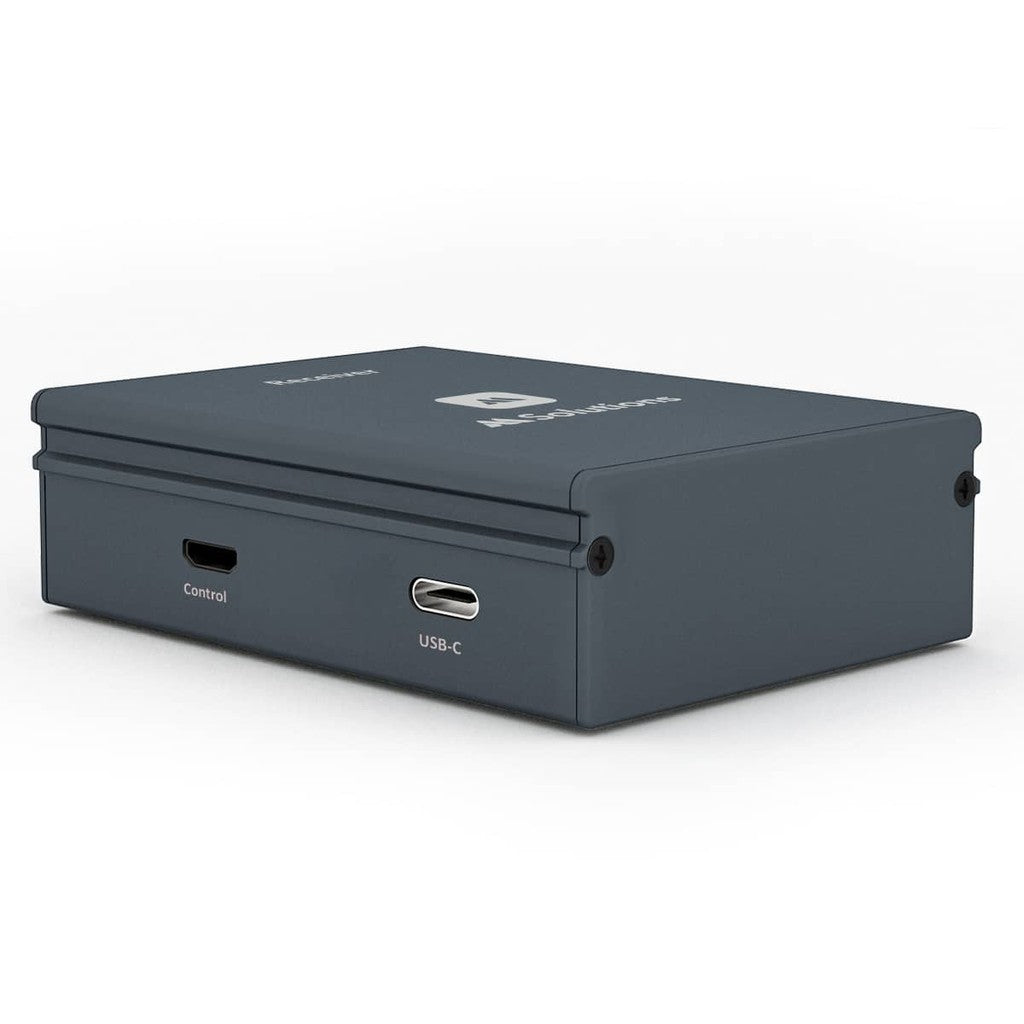

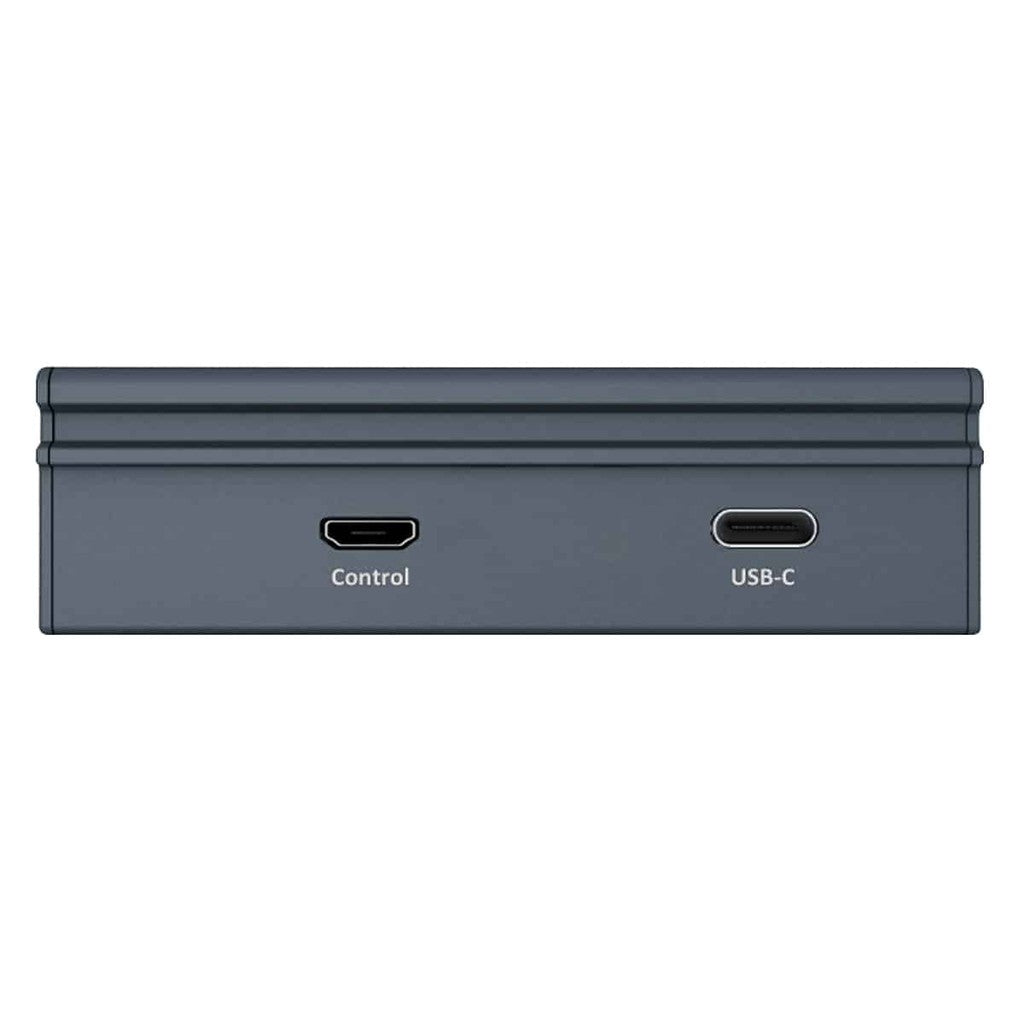

• Host/TX USB Connectivity: 1 x USB-C female, data only
• Device/RX USB Connectivity: 1 x USB-C female, data only
• Micro-USB Connectivity: 1 x Micro-USB on each unit for product updates and future cloud control

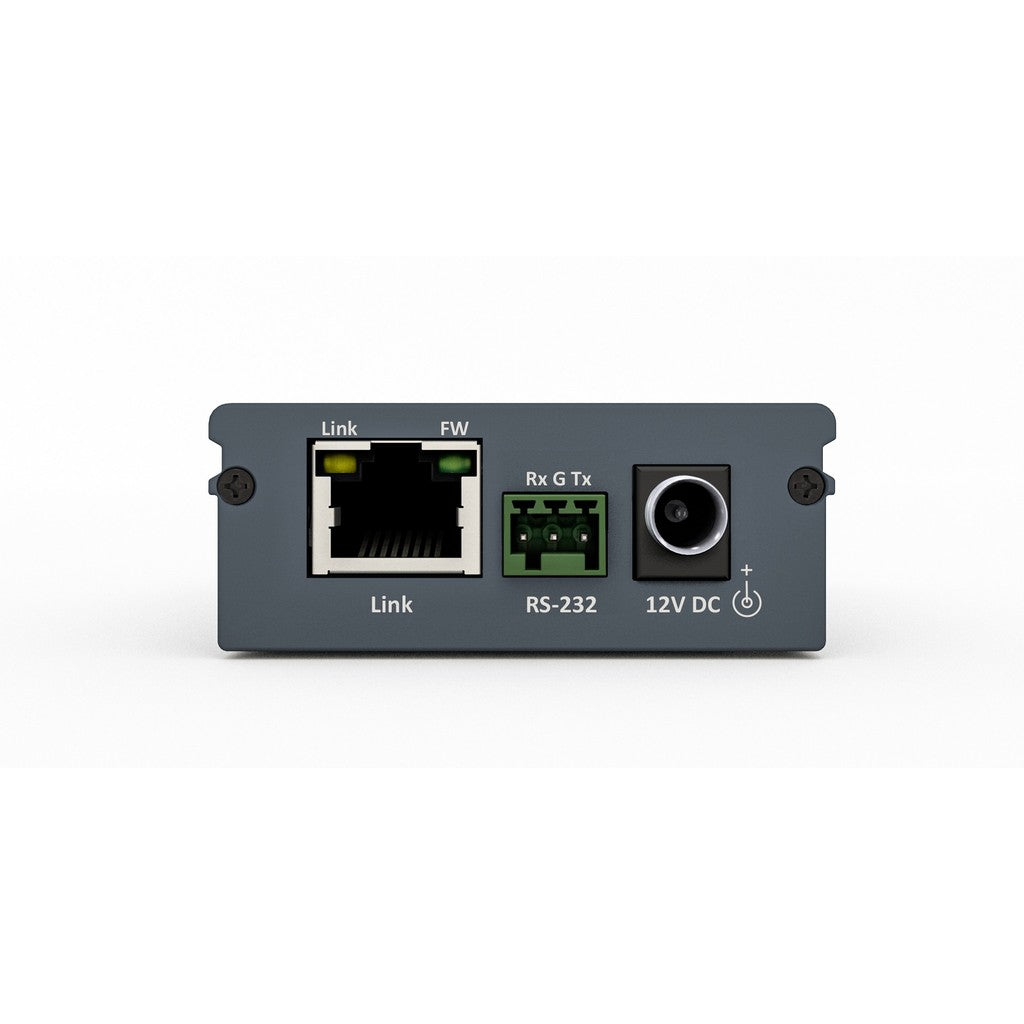

• RS-232 Connectivity: 1 x 3-pin Phoenix connector on each unit; connector block included
• RS-232 Direction: Bidirectional serial pass-through
• Power Supply: 12V DC, 2A
• Power Supply Connection: Connects at either the host/TX or device/RX unit
• Device/RX Power Output: 12V DC, 1.5A maximum when PoC originates from the host/TX unit
• Power over Cable: Bidirectional 12V PoC
• Power Consumption: 4.5W
• Individual Unit Dimensions: 2.36" W x 3.31" D x 0.98" H
• Individual Unit Weight: 0.22 lbs
• Package Dimensions: 6.42" W x 5.79" D x 3.35" H
• Package Weight: 1.10 lbs
• Master Carton Quantity: 18 sets
• Master Carton Dimensions: 21.26" W x 10.63" D x 10.24" H
• Master Carton Weight: 22.05 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing
• Compliance: CE, FCC, and RoHS

What's In the Box

• 1 x MS-6U1CP host unit
• 1 x MS-6U1CP device unit
• 1 x 12V DC, 2A power supply with US, UK, and EU territory clips
• 2 x Surface-mounting brackets
• 1 x USB-C to USB Type-A female cable
• 1 x USB-C to USB-C cable, 4.92 feet
