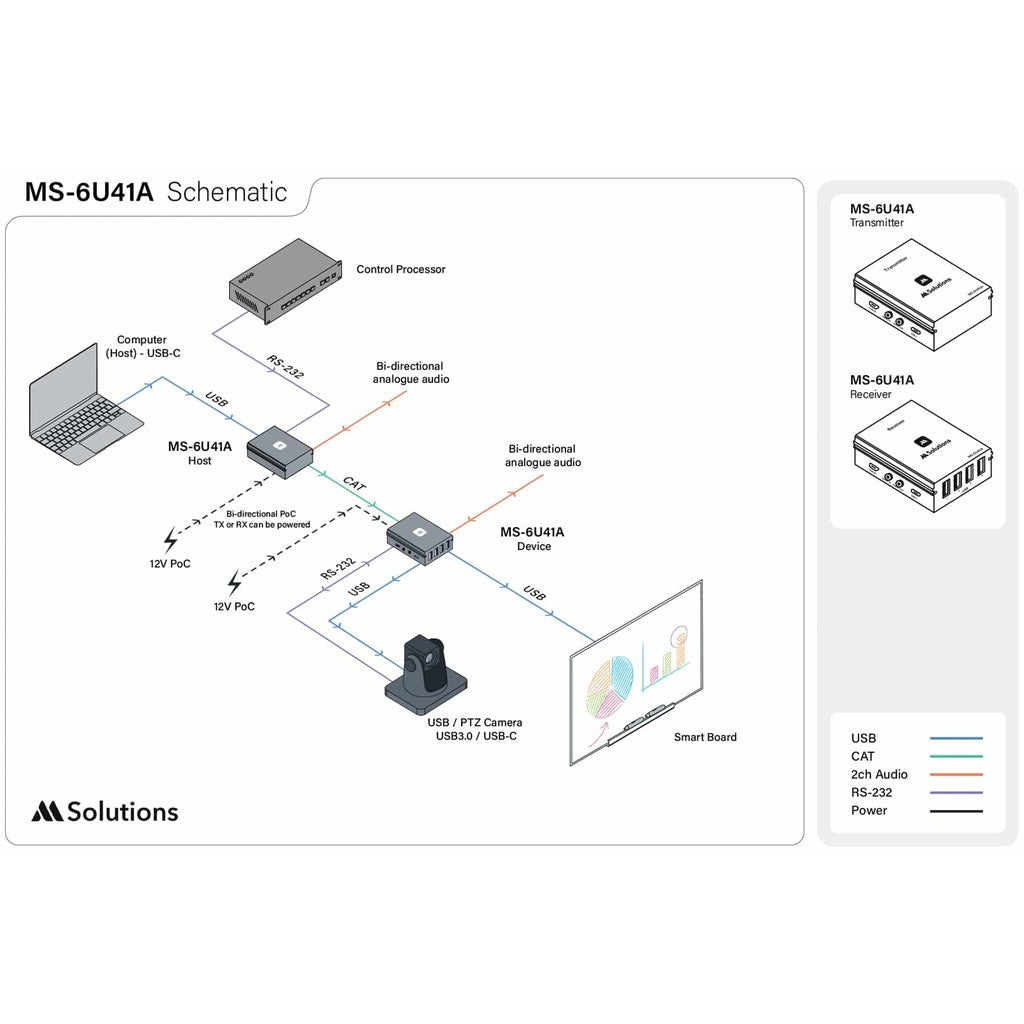

The MSolutions MS-6U41A USB Extender Set carries uncompressed USB data and two-channel analog audio up to 328 feet over one CATx cable. It combines one USB-C data channel, four USB Type-A device connections, RS-232 pass-through, and bidirectional 12V power-over-cable support for streamlined commercial AV and remote peripheral installations.

Designed for conference rooms, classrooms, control spaces, and collaborative work areas, this USB-over-CATx extender supports remote USB cameras, touchscreens, smart boards, hard drives, game controllers, USB audio equipment, printers, scanners, keyboards, and mice. Buyers seeking a long-distance USB-C extender or commercial USB peripheral extension kit gain flexible host-to-device placement without installing software or drivers.

The system transports transparent USB 2.0 signals while maintaining USB 3.0 device compatibility and a combined pass-through data rate up to 320 Mbps. Bidirectional analog audio lets installers send stereo sound from transmitter to receiver or in the opposite direction. The included host and device units, mounting brackets, connection cables, terminal block, and multi-region power supply support professional installation workflows.

Key Features

• 328-Foot CATx Extension: Extends uncompressed USB data and analog audio over one CATx cable for flexible equipment placement.
• USB-C Data Channel: Carries data from compatible USB-C equipment across the extended connection.

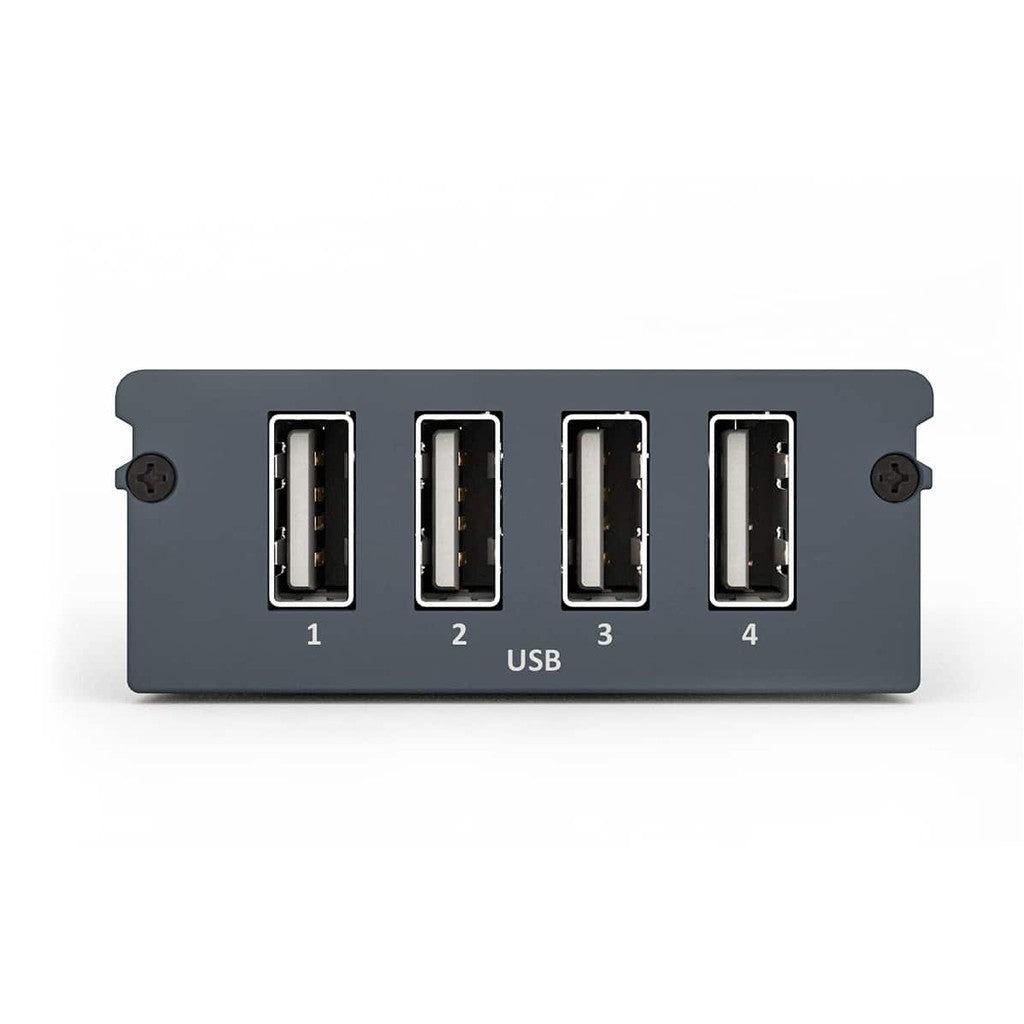

• Four USB Type-A Ports: Connects multiple remote peripherals through four USB 2.0 channels with USB 3.0 device compatibility.
• 320 Mbps Combined Data Rate: Supports connected USB devices with a maximum combined pass-through rate of 320 Mbps.
• Bidirectional Stereo Audio: Sends two-channel unbalanced analog audio from the host to device unit or in the reverse direction.
• RS-232 Pass-Through: Extends serial control signals through three-pin terminal connections on both units.
• Bidirectional Power over Cable: Allows the included 12V power supply to connect at either end of the extender system.
• Plug-and-Play Operation: Transports transparent USB 2.0 signals without requiring additional software or drivers.

Technical Specifications

• Product Type: USB-C and USB Type-A extender set
• Maximum Extension Distance: 328 feet over one CATx cable
• USB Data Format: Transparent USB 2.0 with USB 3.0 device compatibility
• Maximum Combined Data Rate: 320 Mbps
• Host Unit USB Connectivity: 1 x USB-C female, data only

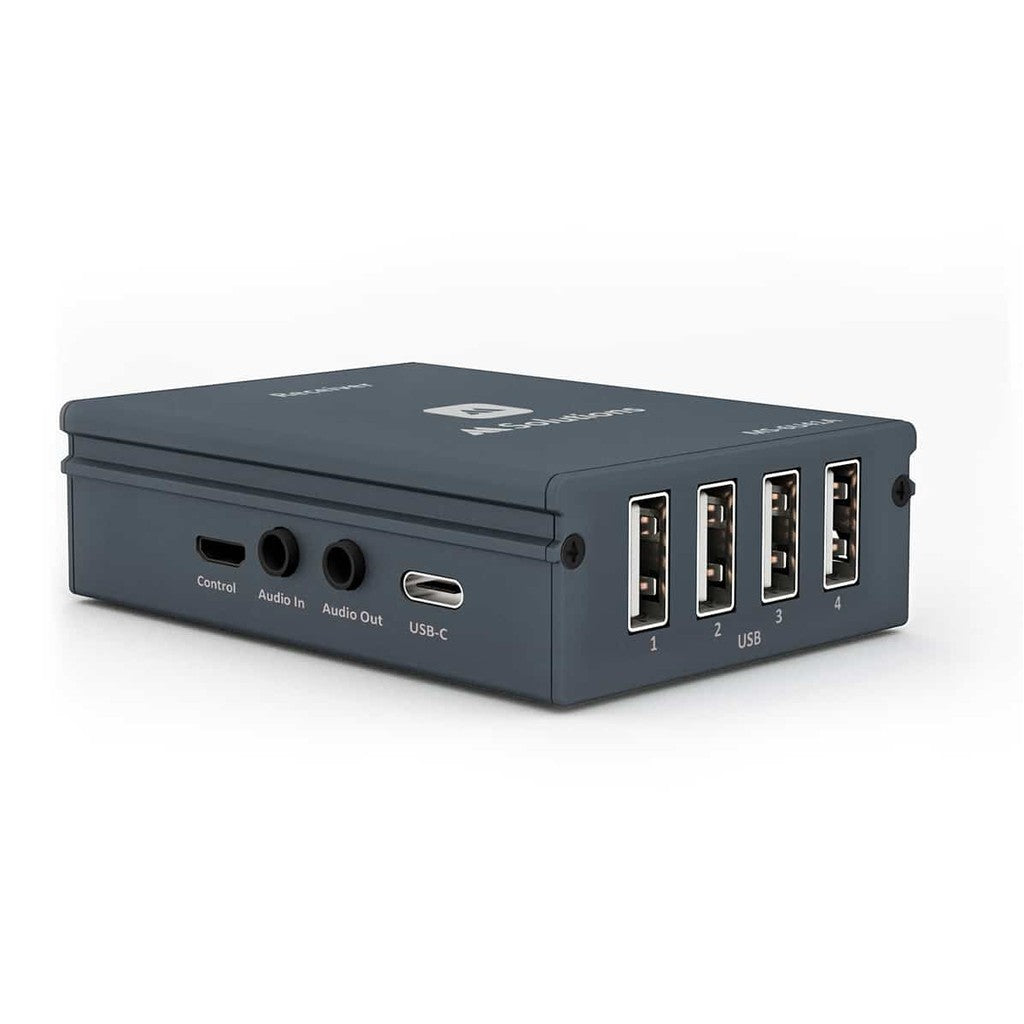

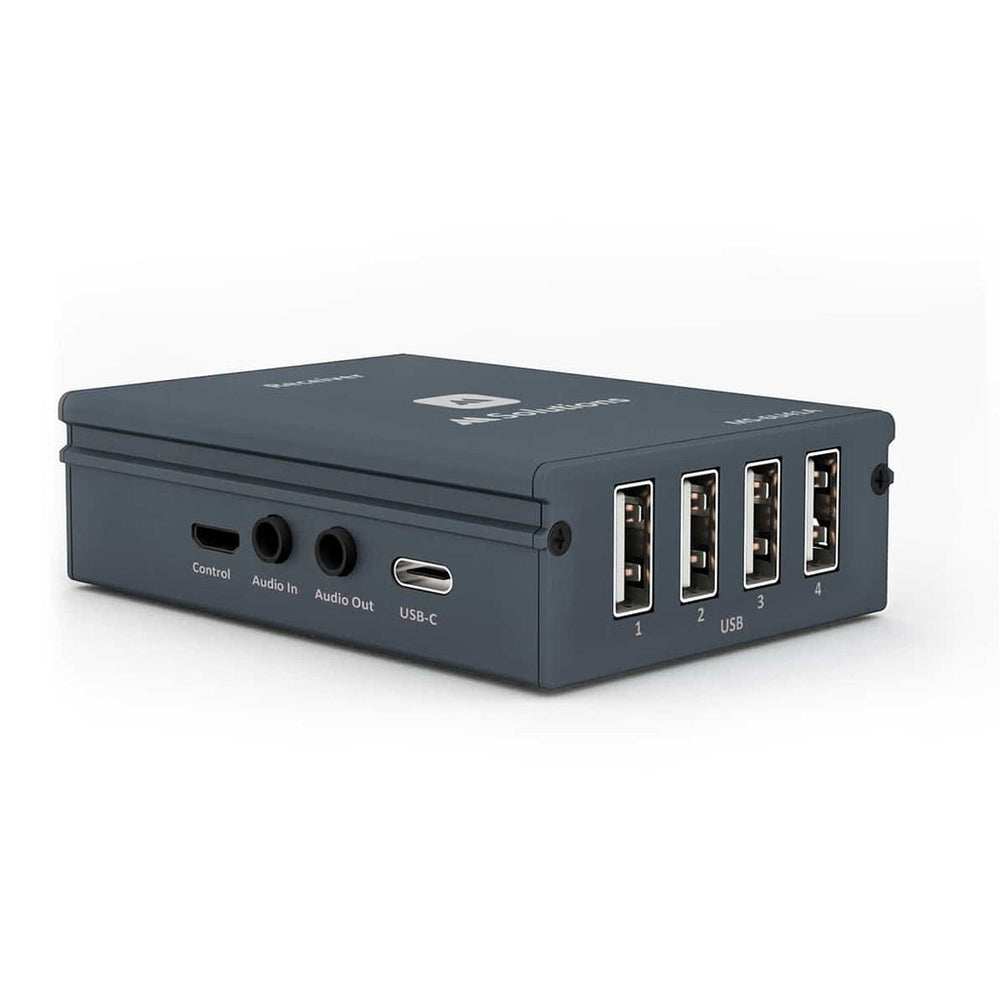

• Device Unit USB Connectivity: 1 x USB-C female and 4 x USB Type-A female, data only
• Service and Control Connectivity: Micro-USB ports on host and device units
• Audio Connectivity: 1 x 3.5 mm female stereo jack on each unit for sending or receiving audio
• Audio Format: Two-channel unbalanced analog audio

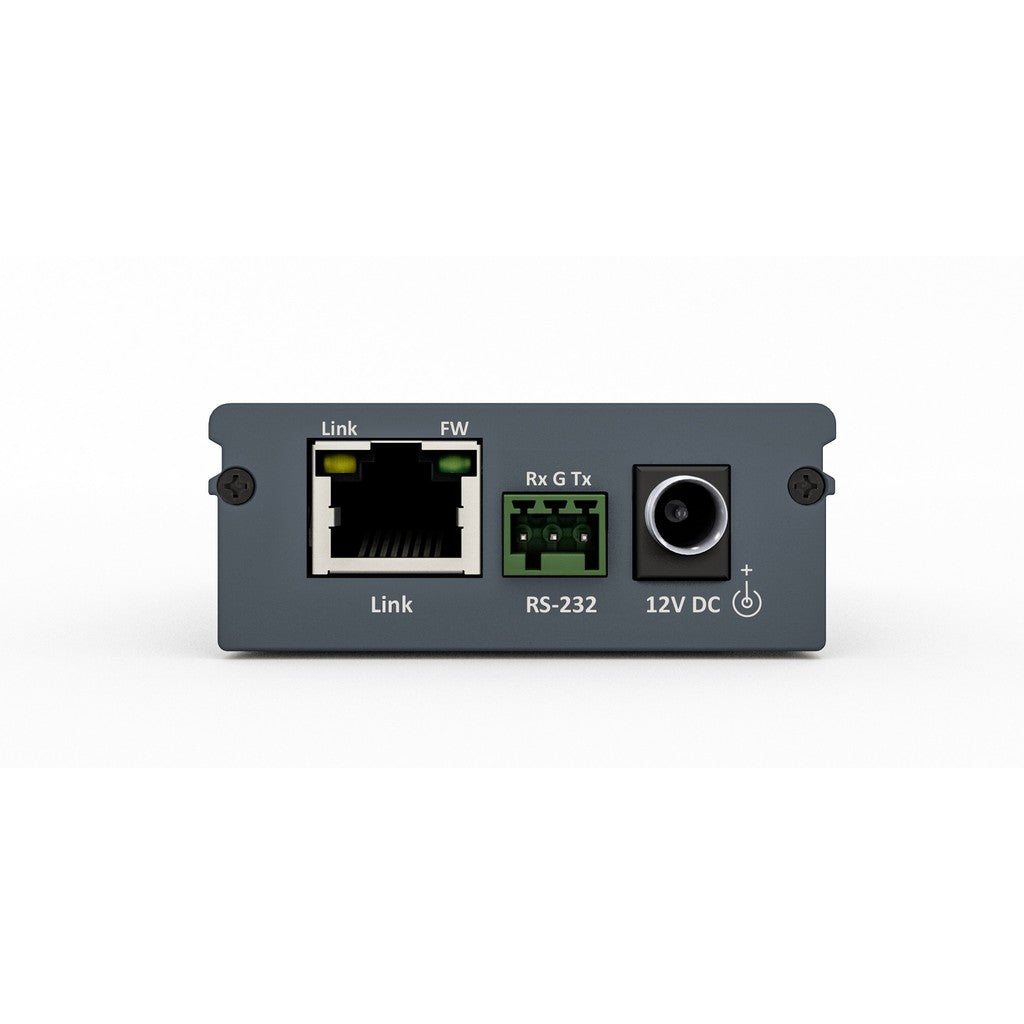

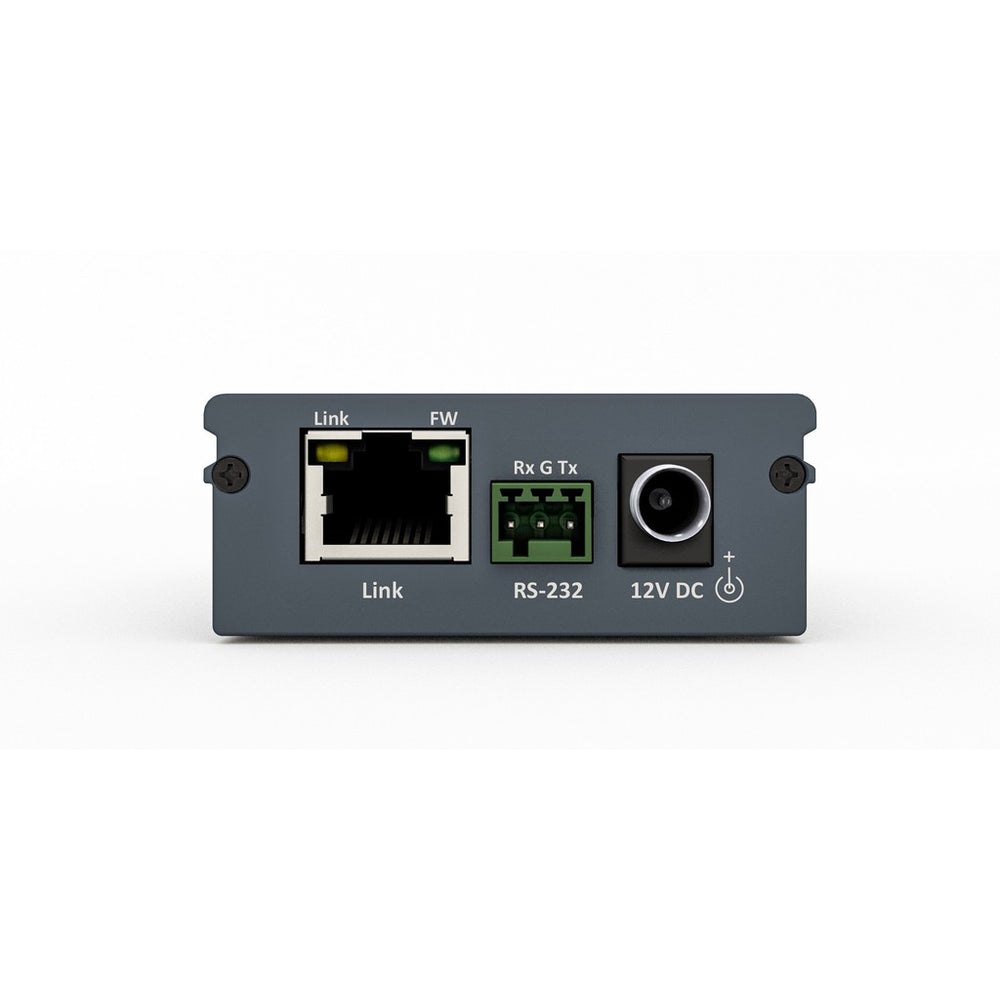

• RS-232 Connectivity: 1 x three-pin terminal connection on each unit; connector block included
• Power Supply: 12V, 2A DC
• Power Connection: Connects to either the host or device unit
• Power Consumption: 4.5W
• Power over Cable: Bidirectional 12V PoC
• Individual Unit Dimensions: 2.36" W x 3.31" D x 0.98" H
• Individual Unit Weight: 0.22 lbs
• Package Dimensions: 6.42" W x 5.79" D x 3.35" H
• Package Weight: 1.10 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing

What's In the Box

• 1 x MS-6U41A host unit
• 1 x MS-6U41A device unit
• 1 x 12V, 2A power supply with US, UK, and EU territory clips
• 2 x Surface-mounting brackets
• 1 x USB-C to USB Type-A female cable
• 1 x USB-C to USB-C cable, 4.92 feet
• 1 x Three-pin terminal connector block
