MuxLab 500408 HDMI 2.0 Extender Kit

MuxLab 500408 HDMI 2.0 Extender Kit

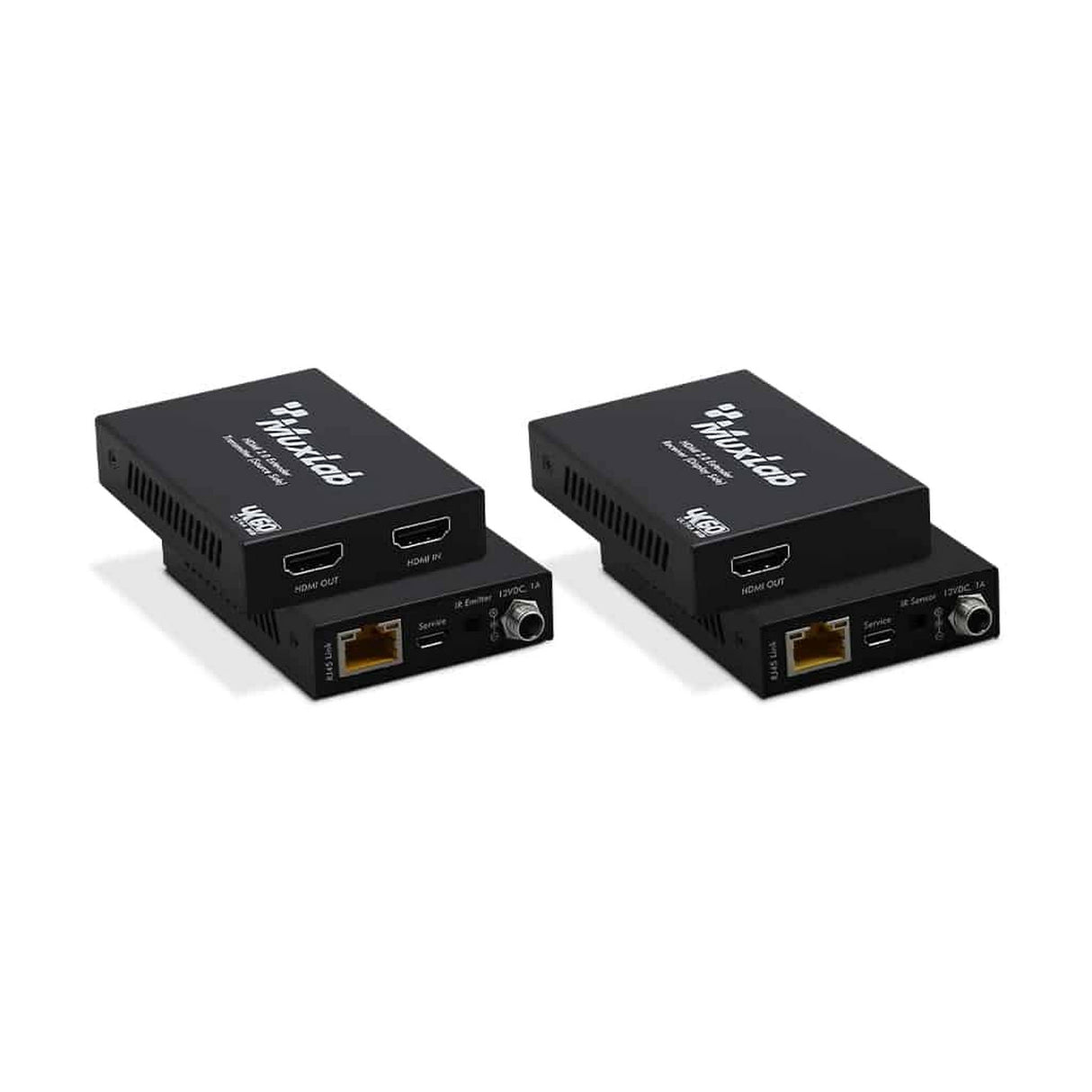

The MuxLab HDMI 2.0 Extender Kit 50m is designed to extend high-definition HDMI video and audio signals over a single Cat5e or Cat6 cable. This extender kit supports reliable point-to-point signal transmission for professional AV and commercial installations. It is well suited for applications requiring long-distance HDMI signal delivery.

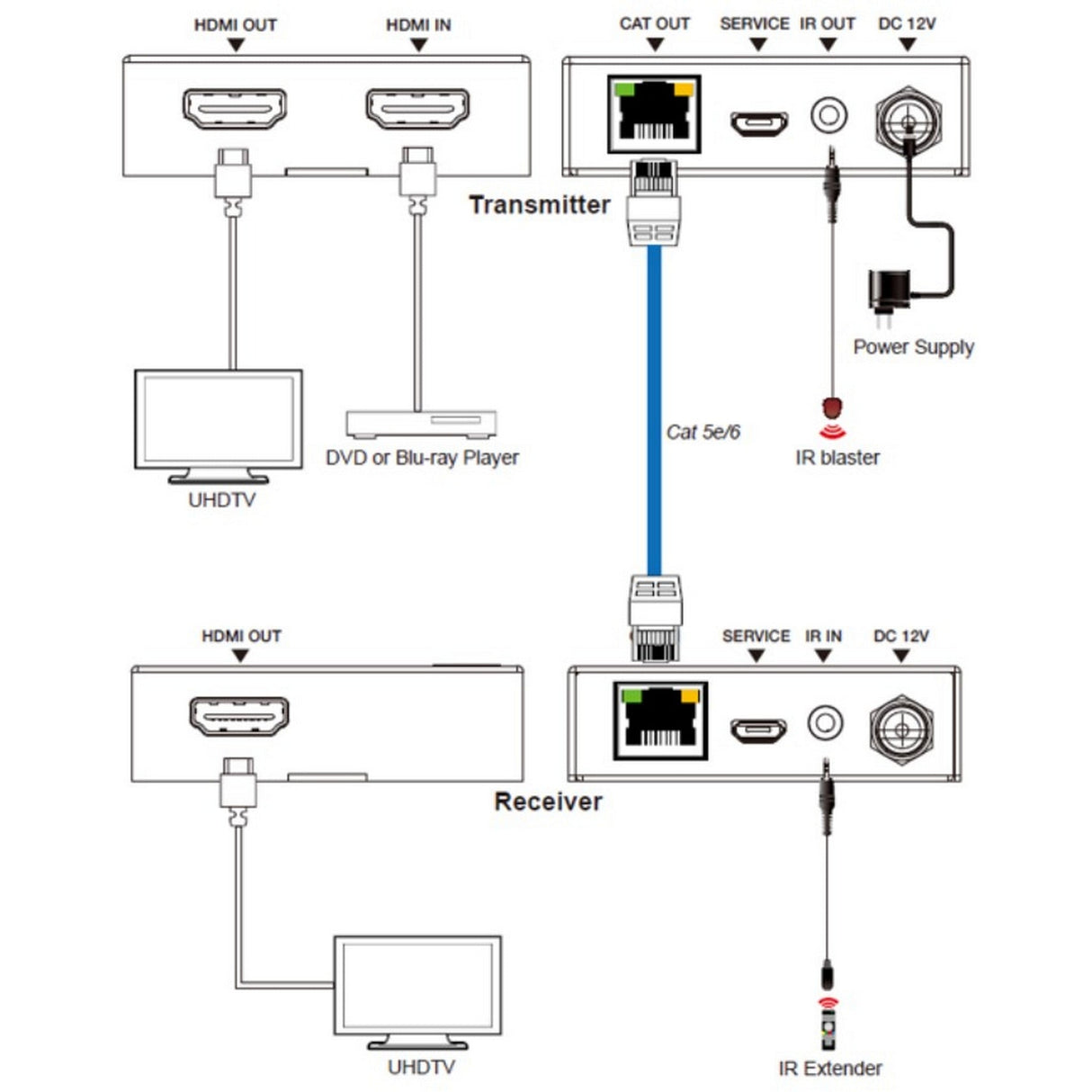

Supporting HDMI 2.0 and HDCP 2.2 compliance, the extender delivers video resolutions up to 4K at 60Hz with 4:4:4 color sampling. The system supports 18Gbps bandwidth and includes HDMI loop-out functionality on the transmitter for local display monitoring. One-way IR pass-through enables remote source control.

The HDMI 2.0 Extender Kit 50m is ideal for digital signage, boardrooms, classrooms, and collaborative AV environments. Power over Cable functionality allows either the transmitter or receiver to power the system, reducing installation complexity. Its compact design supports flexible and clean installation in space-constrained environments.

Key Features

• HDMI 2.0 Support: Compliant with HDMI 2.0, HDCP 2.2, HDCP 1.4, and DVI 1.0 standards.
• 4K Video Extension: Supports video resolutions up to 4K at 60Hz with 4:4:4 chroma sampling.
• Long Distance Transmission: Extends HDMI signals up to 164 ft over a single Cat5e or Cat6 cable.
• HDMI Loop Output: Includes HDMI loop-out on the transmitter for local display connection.
• Power over Cable Function: Allows transmitter or receiver to power the system using a 12VDC 1A power adapter.

Technical Specifications

HDMI Standard
HDMI 2.0

HDCP Compliance
HDCP 2.2 and HDCP 1.4

Maximum Resolution
4K at 60Hz 4:4:4

Maximum Bandwidth
18Gbps

Maximum Extension Distance
164 ft over Cat5e or Cat6 cable

IR Support
One-way IR pass-through

What’s in the Box

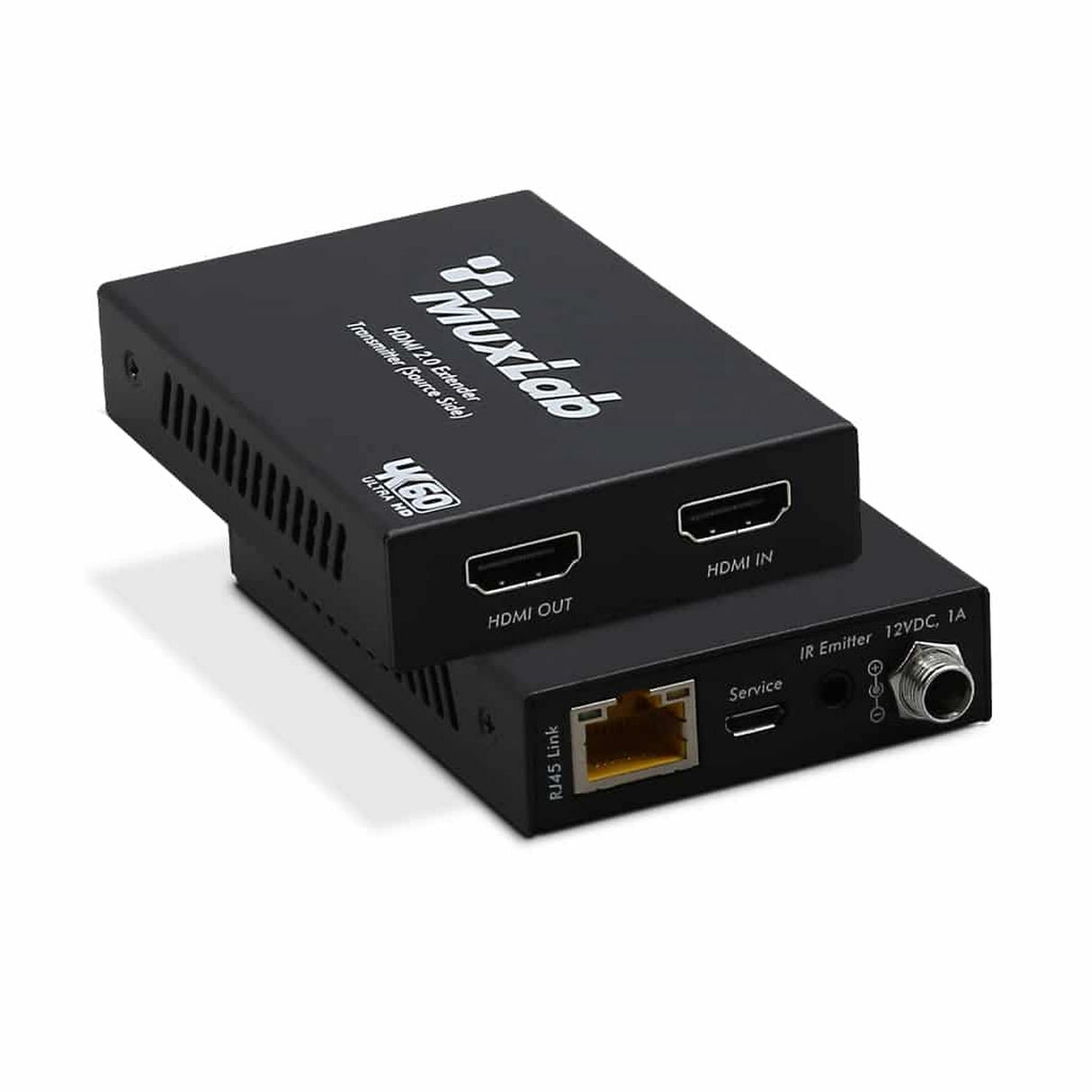

HDMI Transmitter Unit

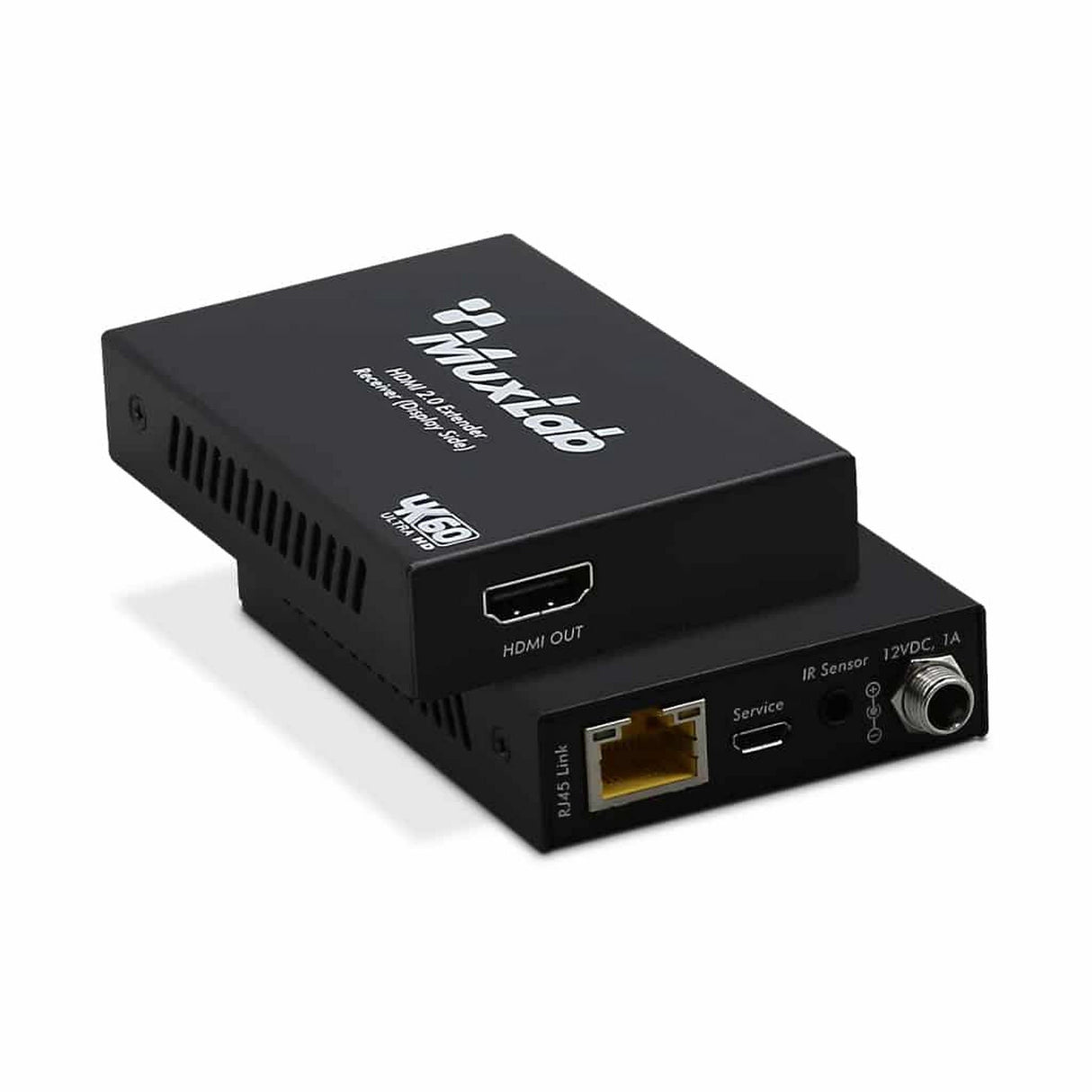

HDMI Receiver Unit
