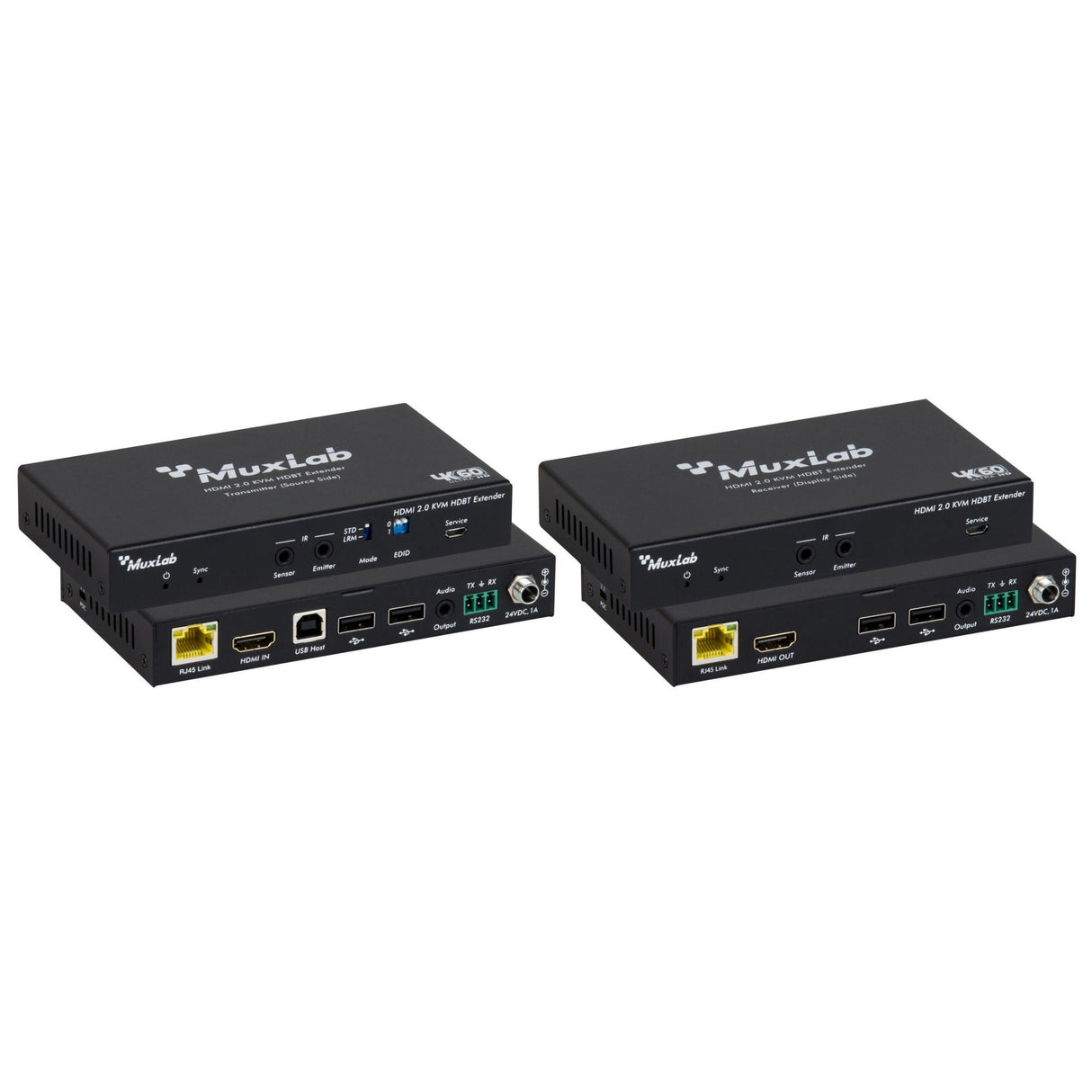

MuxLab 500449 HDMI 2.0 KVM HDBT Extender Kit
The MuxLab HDMI 2.0 KVM HDBT Extender Kit 100m is designed to extend HDMI video, USB, RS-232, and IR signals over long distances using a single CAT cable. This solution supports point-to-point HDMI transmission for professional AV, KVM, and control system applications. It is ideal for environments requiring reliable signal extension with centralized equipment control.
This extender kit supports HDMI 2.0b video up to 4K/60Hz 4:4:4 and enables bi-directional PoC functionality for simplified installation. It supports both HDBT Standard Mode and HDBT Long Reach Mode, allowing flexible deployment based on distance requirements. Integrated USB hub functionality enables keyboard and mouse control at the receiver location.
Built for commercial and mission-critical environments, this extender ensures stable long-distance signal delivery with support for HDR formats and high-quality audio pass-through. Its durable metal enclosure and wide compatibility make it suitable for classrooms, boardrooms, medical facilities, and KVM-based control rooms.
Key Features
- HDMI 2.0b Support: Supports video resolutions up to 4K/60Hz 4:4:4 with HDCP 2.2 compliance
- Long Distance Extension: Extends HDMI signals up to 328ft over single CAT6A or CAT7 cable
- KVM Functionality: Integrated USB hub supports keyboard and mouse control at the receiver
- Bi-directional PoC: Supports Power over Cable to simplify power deployment
- Multi-Signal Support: Transmits HDMI, USB, RS-232, IR, and analog audio signals
Technical Specifications
HDMI ComplianceHDMI 2.0b
HDCP Compliance
HDCP 2.2
Video Bandwidth
18Gbps
Video Resolution
Up to 4K/60Hz
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit
Audio Formats
LPCM, Dolby Digital Plus, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
IR Level
12Vp-p
Transmission Distance
HDBT Standard Mode: 4K60/100m, 1080p/100m (CAT6A/7 cable)
HDBT Long Reach Mode: 1080p/150m (CAT6/6A/7 cable)

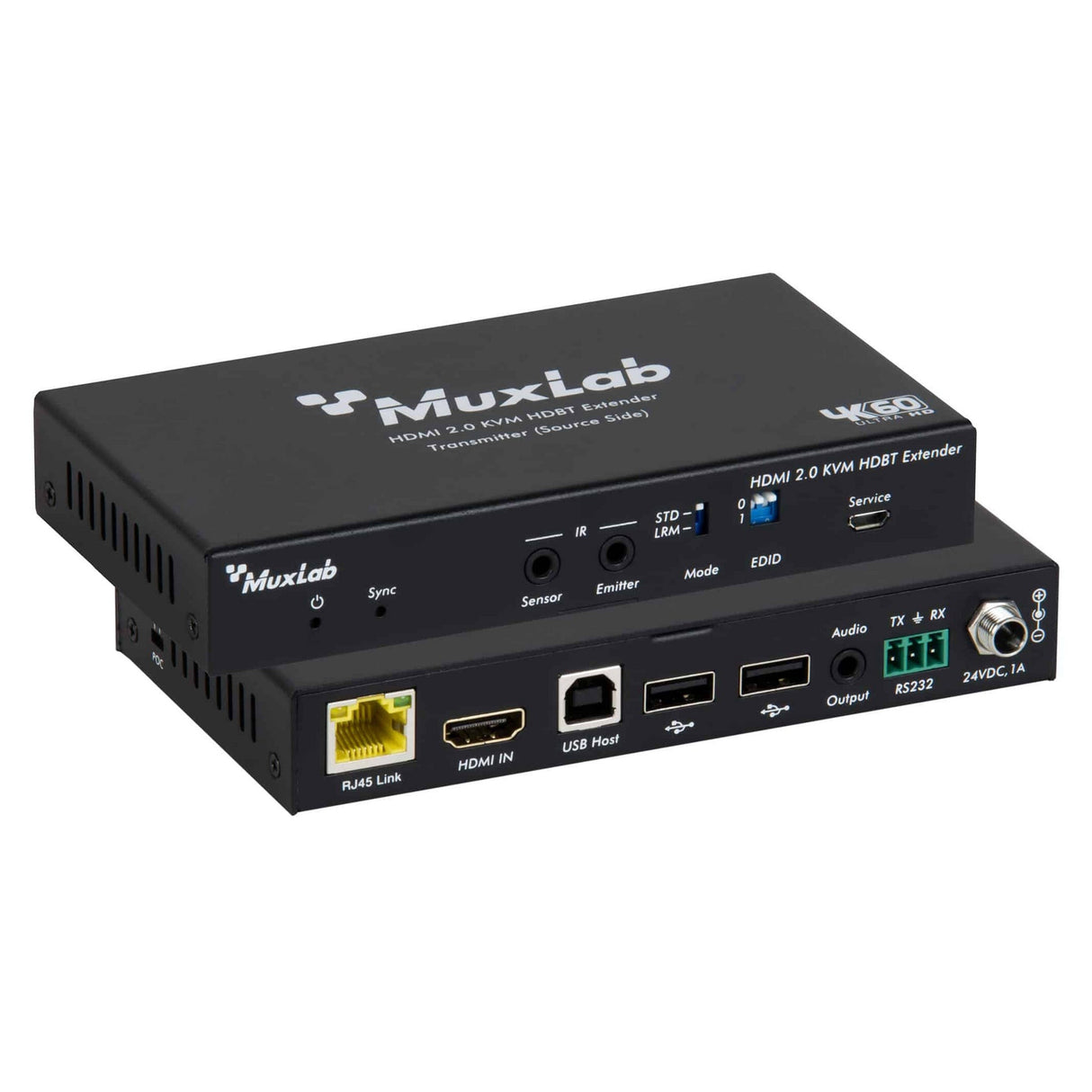

Transmitter Input
1 x HDMI IN (Type A, 19-pin female)
Transmitter Output
1 x HDBT OUT (RJ45 connector)

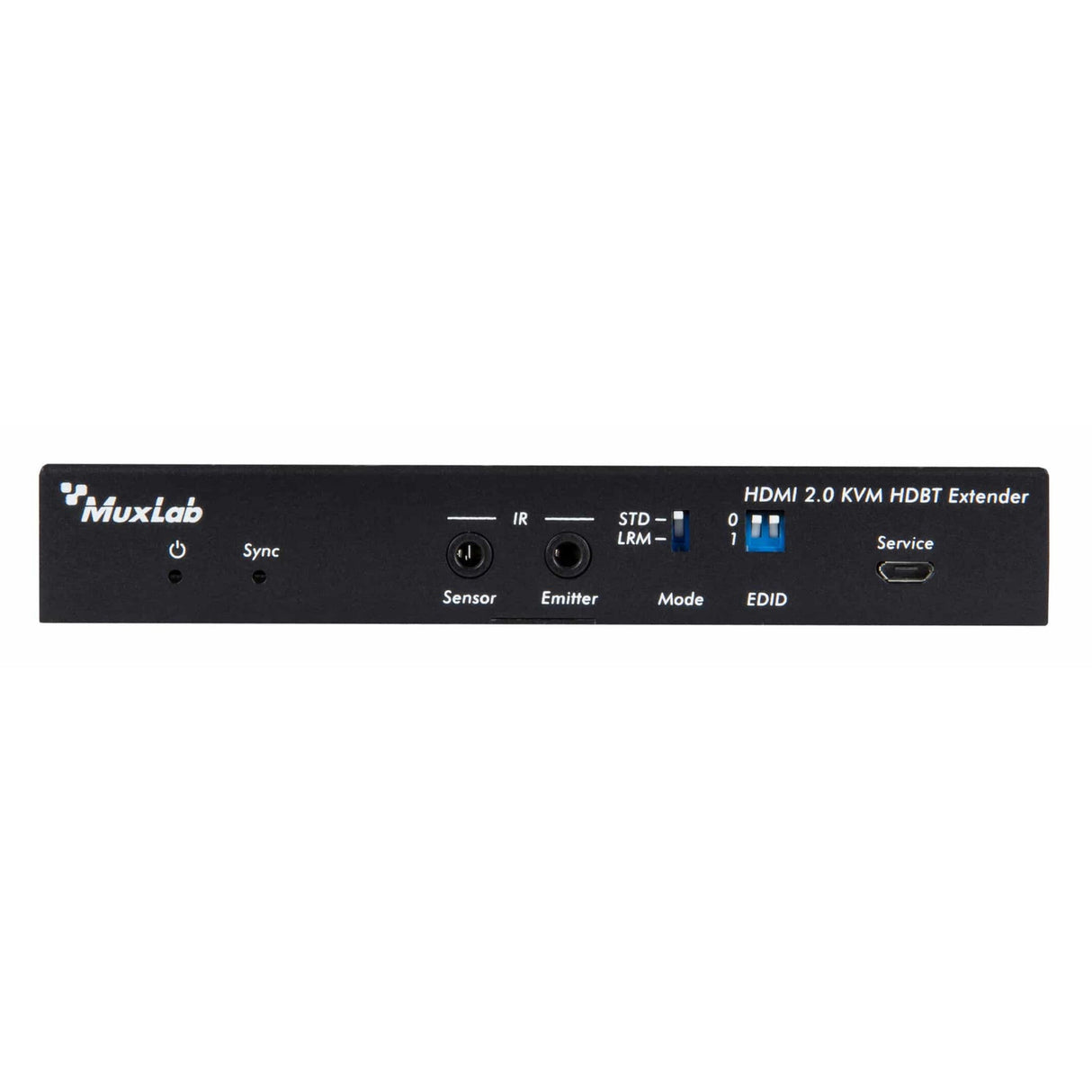

Transmitter Controls
1 x IR IN (3.5mm Stereo Mini-jack)
1 x IR OUT (3.5mm Stereo Mini-jack)
1 x RS-232 (3pin-3.81mm Phoenix jack)
1 x SERVICE (Micro USB, 5-pin female)
1 x USB HOST (USB Type B)
2 x USB DEVICES (USB Type A)

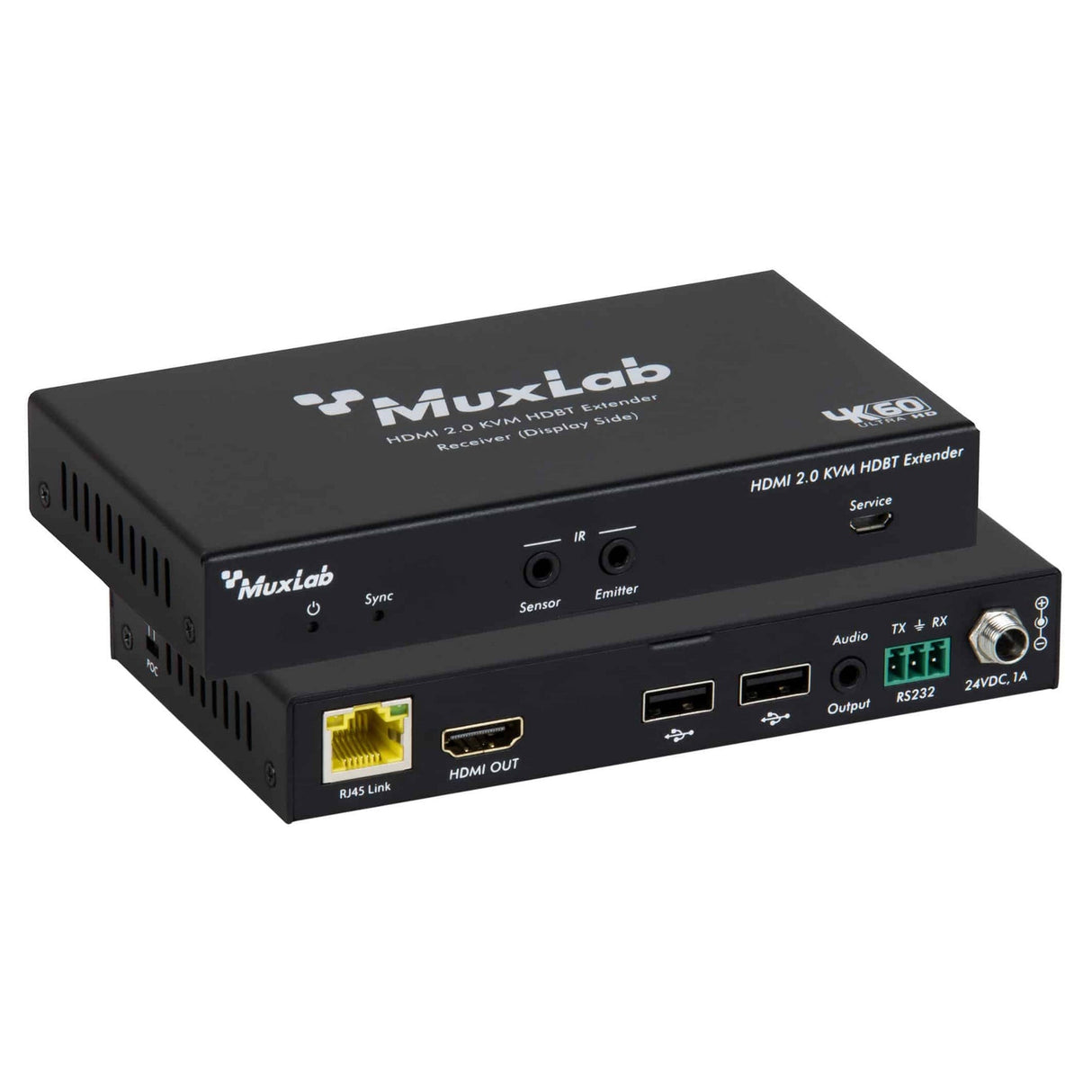

Receiver Input
1 x HDBT IN (RJ45, 8-pin female)
Receiver Output
1 x HDMI OUT (Type A, 19-pin female)
1 x L and R OUT (3.5mm Stereo Mini-jack)

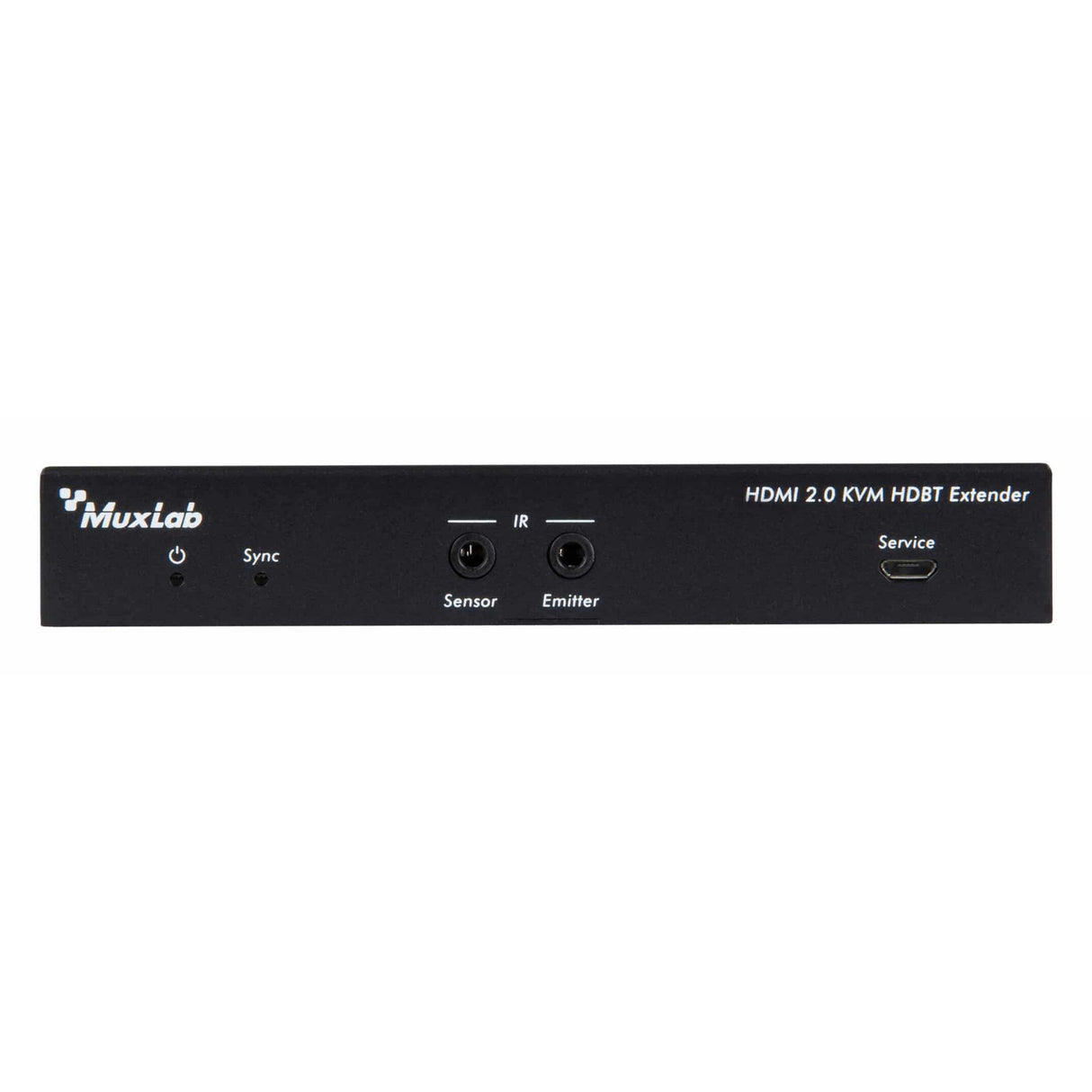

Receiver Controls
1 x IR IN (3.5mm Stereo Mini-jack)
1 x IR OUT (3.5mm Stereo Mini-jack)
1 x RS-232 (3pin-3.81mm Phoenix jack)
1 x SERVICE (Micro USB, 5-pin female)
2 x USB DEVICES (USB Type A)
Housing
Metal Enclosure
Color
Black
Dimensions (WxDxH)
Transmitter and Receiver: 144mm x 78mm x 23mm
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A
Power Consumption
14.28W PoC
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Relative Humidity
20 to 90 percent RH non-condensing
Warranty
2 years
What’s in the Box
(1) HDMI 2.0 KVM HDBT Transmitter(1) HDMI 2.0 KVM HDBT Receiver
