Description
MuxLab 500452 HDMI USB-C KVM HDBT/4K60 Extender Kit
The MuxLab HDMI USB-C KVM Extender Kit HDBT 4K60 allows HDMI and USB-C video signals to be extended over long distances using a single CAT cable. It is designed for professional AV and KVM applications requiring reliable 4K video transmission and USB data extension. This kit supports point-to-point extension with a compact transmitter wall plate and receiver.
This extender supports HDMI 2.0b and DisplayPort 1.2a signals with video resolutions up to 4K60Hz 4:4:4. It enables extension up to 131ft over CAT6A or CAT7 cable for 4K signals and up to 230ft for 1080p. The receiver includes a built-in USB hub for USB 2.0 data transmission and analog audio output.
Designed for classrooms, control rooms, and collaborative environments, this KVM extender ensures stable performance and flexible installation. The HDMI and USB-C selectable input supports modern laptops and AV sources, while Power over Cable simplifies deployment.
Key Features
- Dual Input Support: Supports HDMI and USB-C video sources with selectable input modes
- 4K Video Extension: Extends 4K60Hz video up to 131ft over single CAT6A or CAT7 cable
- KVM Functionality: Built-in USB hub supports USB 2.0 data transmission
- Power over Cable: Receiver powered via PoC from the transmitter

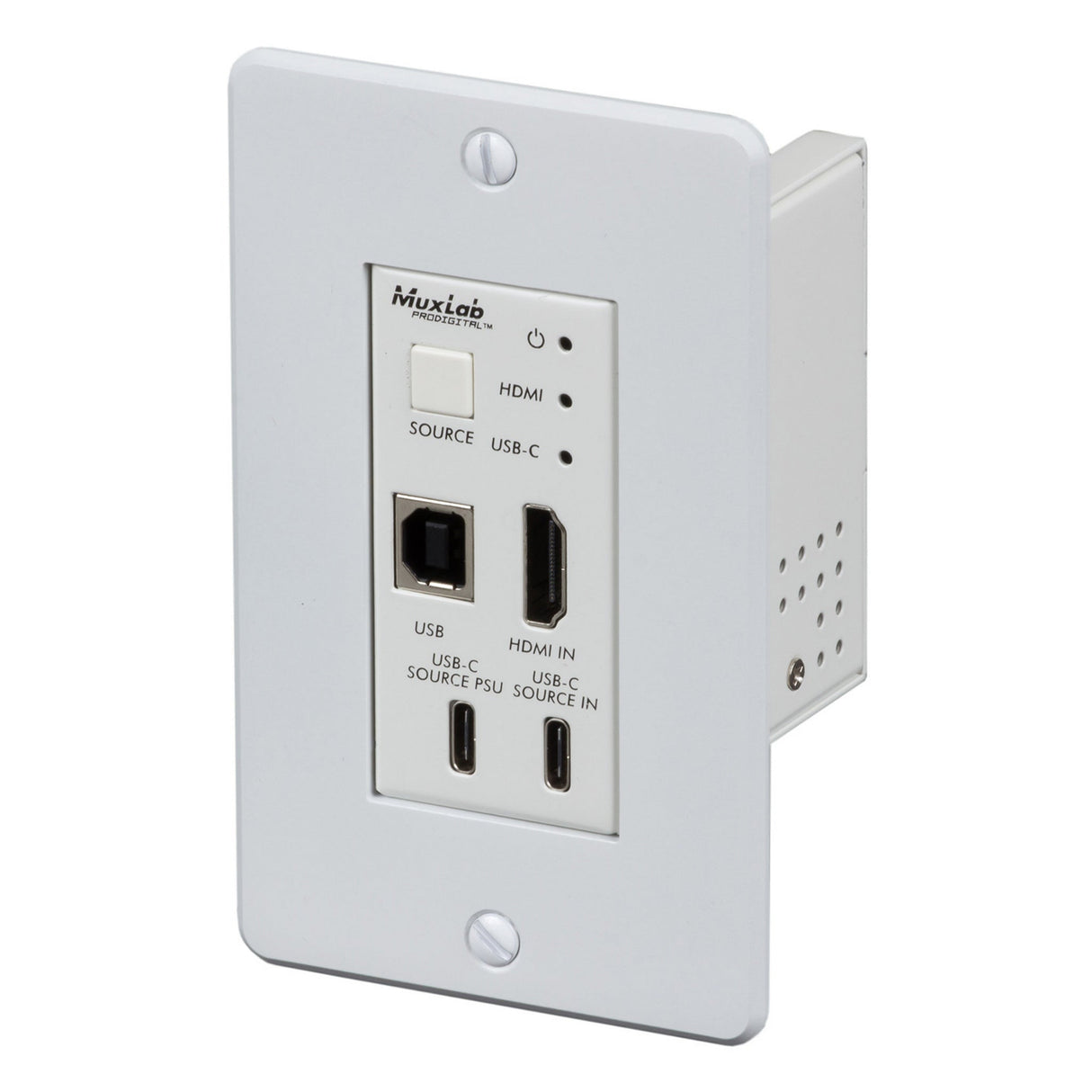

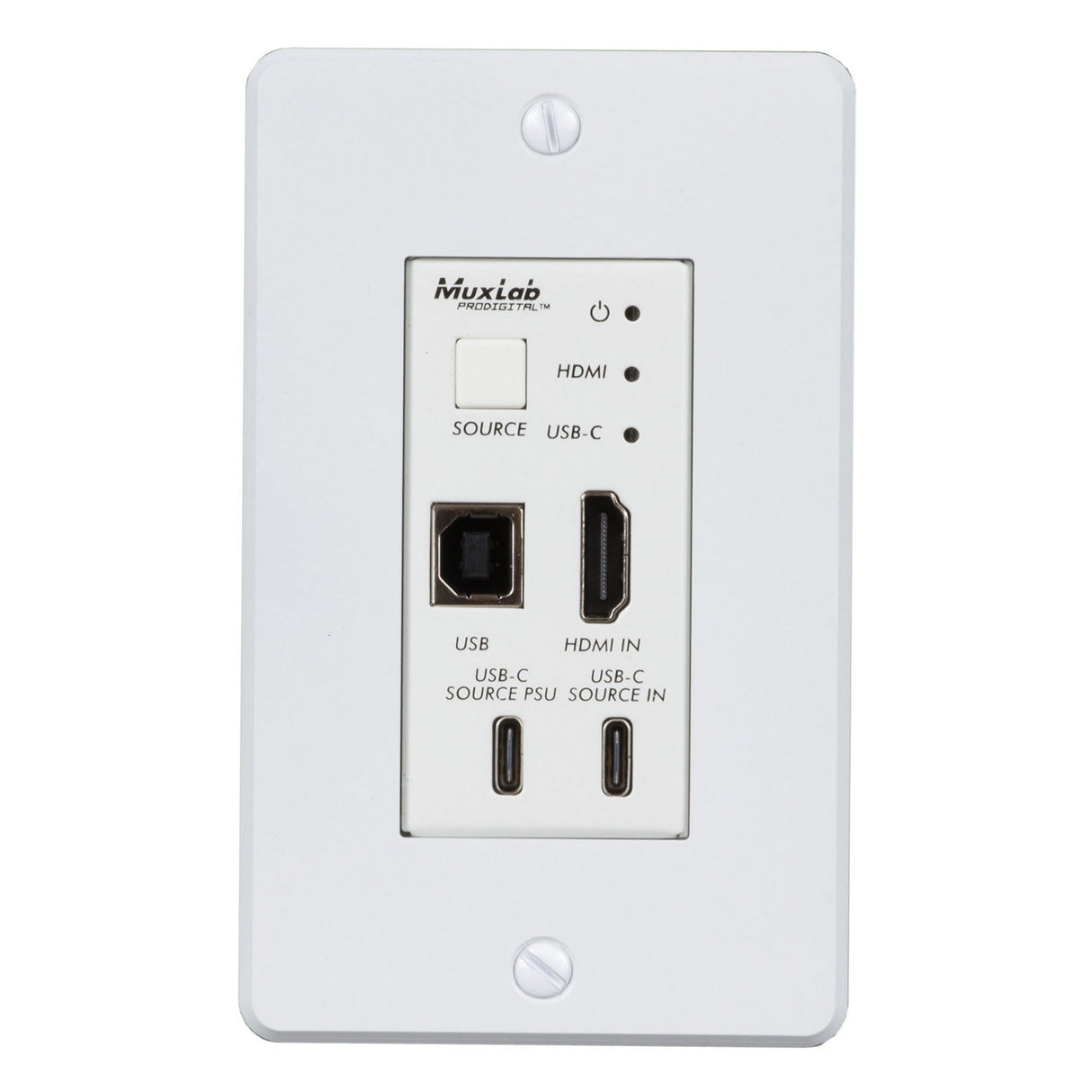

- Compact Design: Wall plate transmitter supports clean and professional installations
Technical Specifications
HDMI ComplianceHDMI 2.0b, DisplayPort 1.2a
HDCP Compliance
HDCP 2.2
Video Bandwidth
18Gbps
Video Resolution
4096x2160p24/25/30/50/60Hz, 3840x2160p24/25/30/50/60Hz
2048x1080p24/25/30Hz, 2560x1440p60Hz, 1920x1080p50/59.94/60Hz
720p50/59.94/60Hz, 576p, 576i, 480p, 480i
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit
HDR
HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats
Dolby Atmos, Dolby Digital Plus, Dolby True HD, DTS, DTS-HD Master Audio, HD High Resolution Audio, 5.1, PCM2
Transmission Distance
Max distance (1080p): 230ft/70m over CAT6A/7
Max distance (4K60): 131ft/40m over CAT6A/7
ESD Protection
Human body model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Transmitter Input
1 x HDMI Type A (19-pin female)
1 x USB-C
Transmitter Output

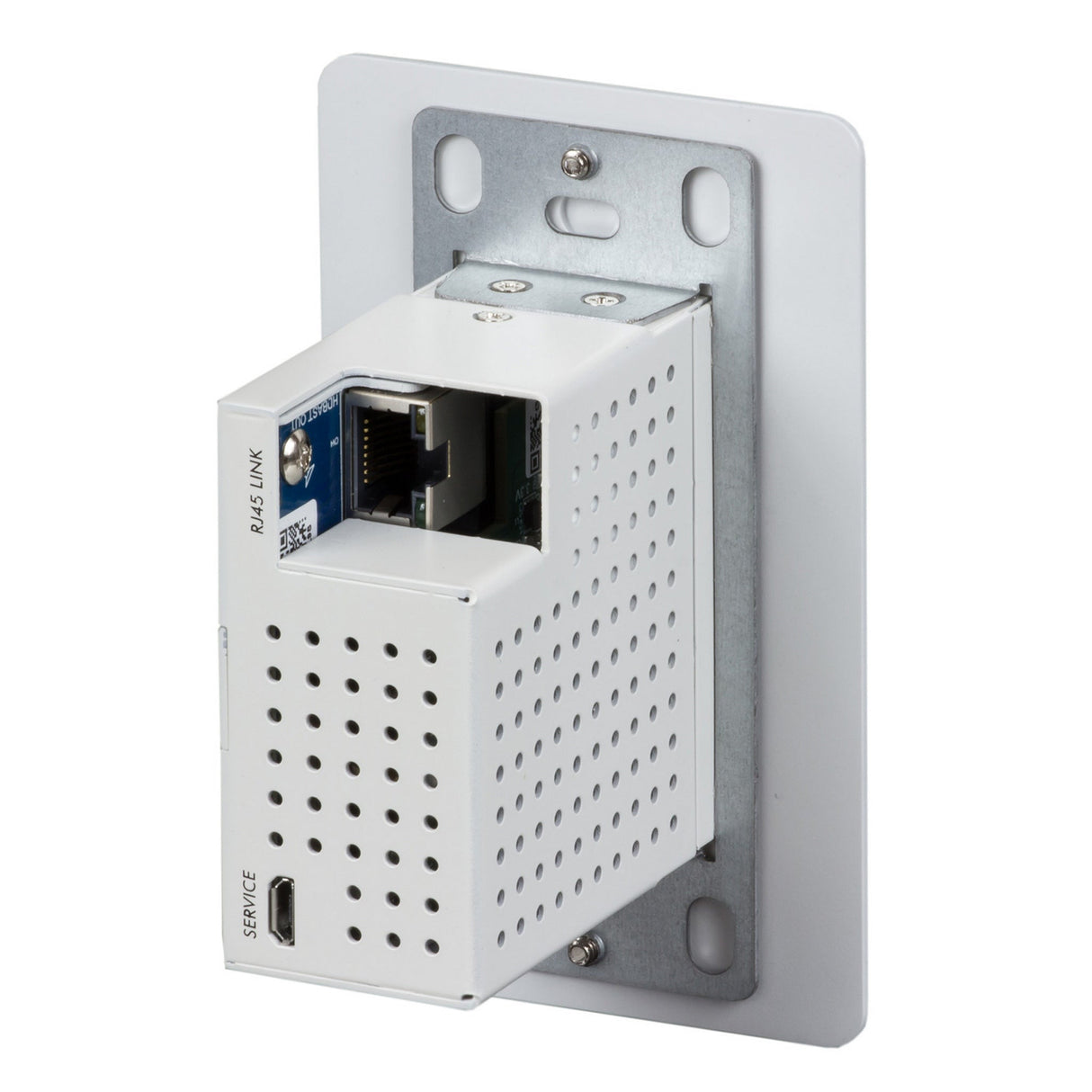

1 x HDBT OUT (RJ45, 8-pin female)
Receiver Input
1 x HDBT IN (RJ45, 8-pin female)
Receiver Output
1 x HDMI OUT (Type A, 19-pin female)
1 x AUDIO OUT (Phoenix jack)
Power Supply
Receiver: PoC (110-240VAC power supply with interchangeable blades)
Housing
Metal enclosure
Dimensions (WxDxH)
Wall Plate: 85.7mm x 45.7mm x 39.9mm
Receiver: 200mm x 98mm x 23mm
Weight
Wall Plate: 0.51kg
Receiver: 0.83kg
Warranty
2 years

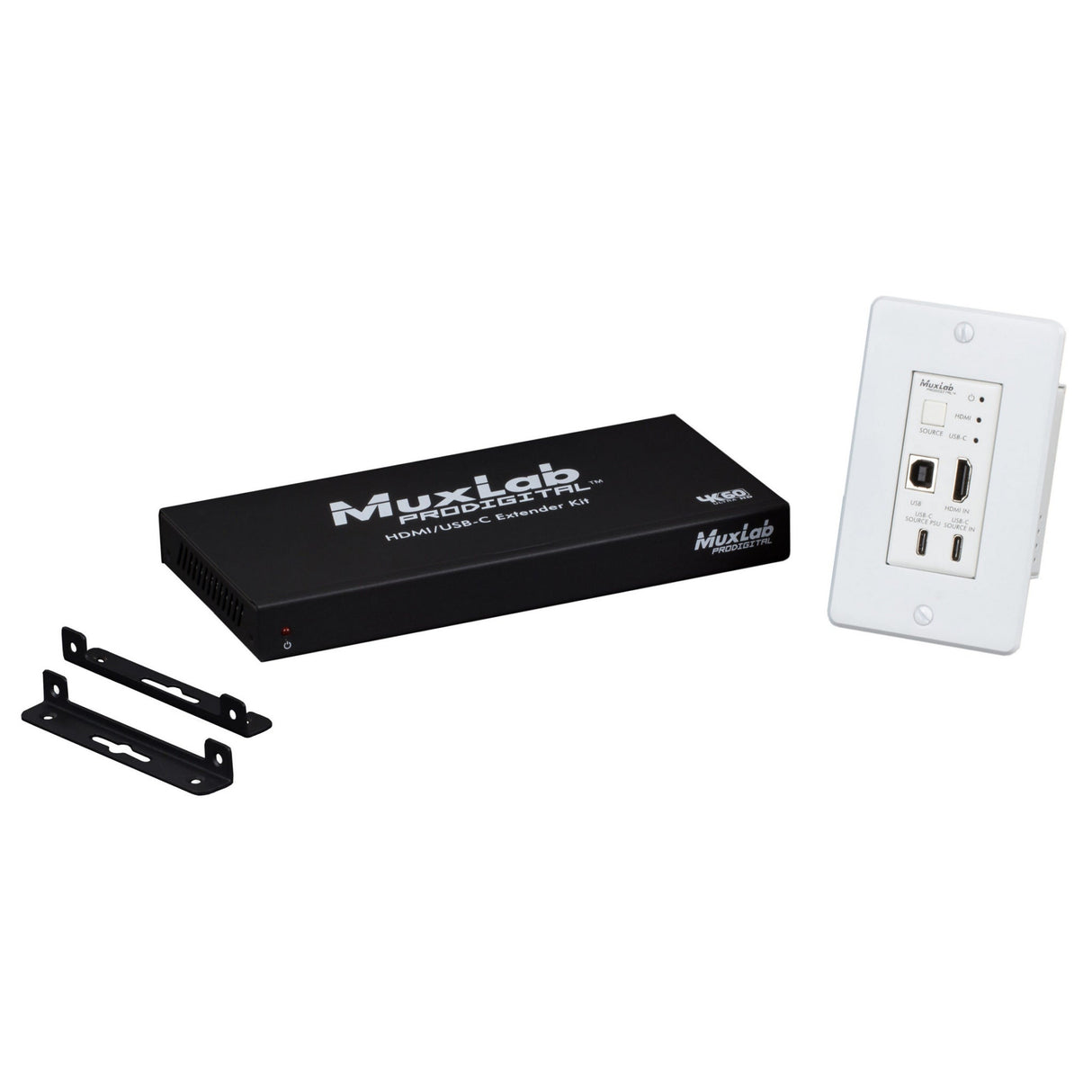

What’s in the Box
(1) HDMI USB-C KVM Wall Plate Transmitter(1) HDMI USB-C KVM Receiver
