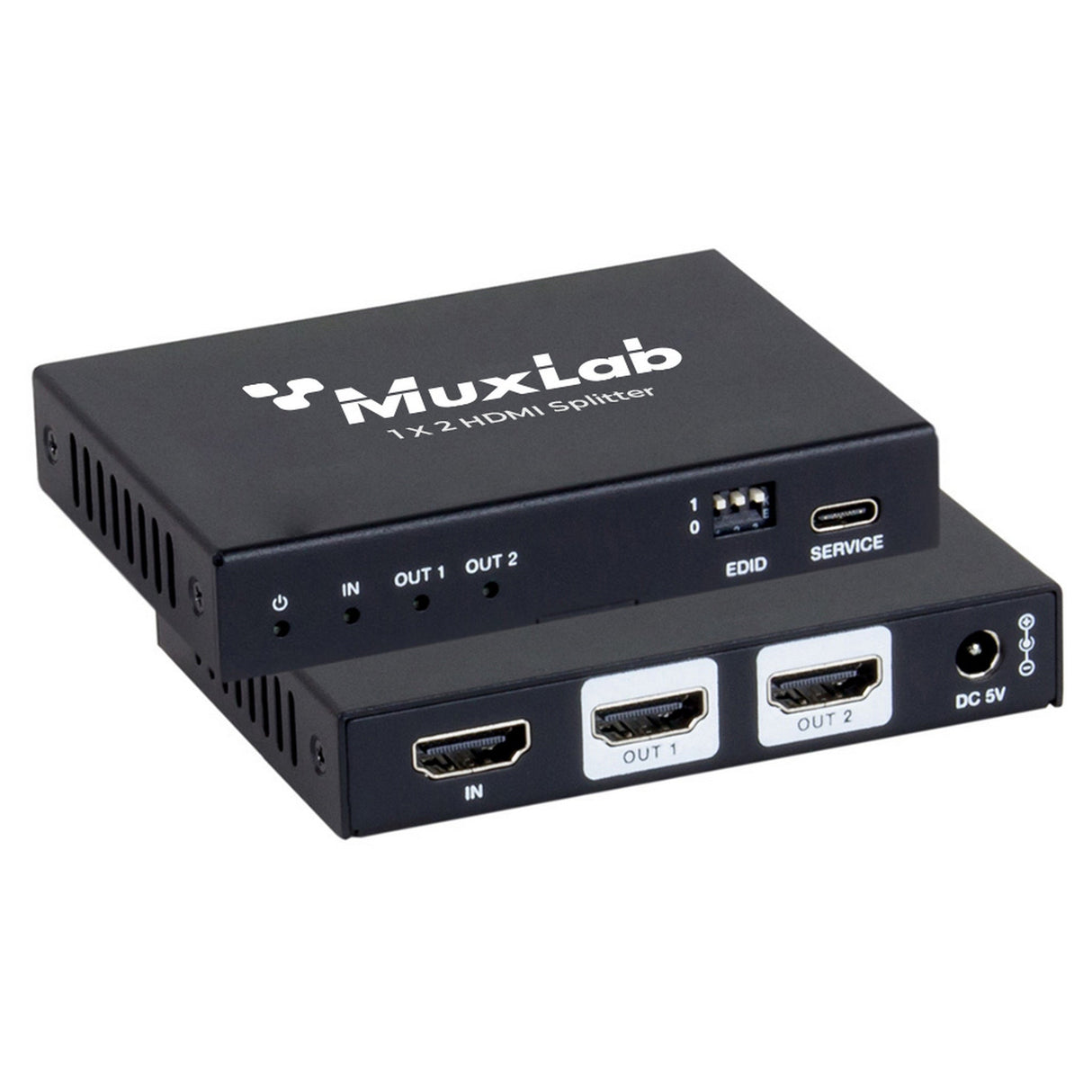

MuxLab 500510 HDMI 2.1 48Gbps 1x2 Splitter
The MuxLab HDMI 2.1 48Gbps 1x2 Splitter is designed to distribute a single HDMI source to two displays while maintaining high bandwidth performance. It supports advanced HDMI 2.1 features and is suitable for professional AV, residential, and commercial environments. This splitter enables reliable signal distribution for high resolution video applications.
Supporting video bandwidth up to 48Gbps, the splitter handles resolutions up to 8K/60Hz and 4K/120Hz with advanced color formats. It supports HDR formats, advanced EDID management, and automatic scaling for flexible system integration. The device is compliant with HDMI 2.1 and HDCP 2.3 standards.
With a compact metal housing and robust signal handling, the splitter delivers stable and dependable performance. It is ideal for digital signage, gaming setups, broadcasting, and professional AV installations. The design ensures compatibility with modern high performance HDMI sources and displays.
Key Features
- High Bandwidth HDMI Distribution: Supports HDMI 2.1 with video bandwidth up to 48Gbps
- 8K and 4K Video Support: Delivers resolutions up to 8K/60Hz and 4K/120Hz
- Advanced HDR Compatibility: Supports HDR10, HDR10+, Dolby Vision, and HLG
- Audio Pass-Through Support: Supports advanced HDMI audio formats for immersive sound
- Compact Metal Design: Provides durability and easy integration in AV systems
Technical Specifications
HDMI VersionSupport HDMI 2.1 and HDCP 2.3
Video Bandwidth
48Gbps
Video Resolution
Up to 8K/60Hz 4:2:0 12bit, 4K/120Hz 4:4:4 12bit
Color Depth
8/10/12 bit
Color Space
RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Audio formats
HDMI input/output: LPCM, Dolby Digital Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS 96/24, DTS High Res, DTS-HD Master Audio, DSD
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection
Human body model: ±8kV (Air-gap discharge) and ±4kV (Contact discharge)
Input
1 x HDMI IN (Type A, 19-pin female)
Output
2 x HDMI OUT (Type A, 19-pin female)
Control
1 x SERVICE (USB Type C, Update port)
Housing
Black Metal Housing
Dimensions
95mm (W) x 68mm (D) x 18mm (H)
Weight
177g
Power Supply
Input: 100-240VAC 50/60Hz, Output: 5VDC/2A
Power Consumption
4.3W Max
Operating Temperature
0°C to 40°C
Storage Temperature
-25°C to +70°C
Warranty
2 years
