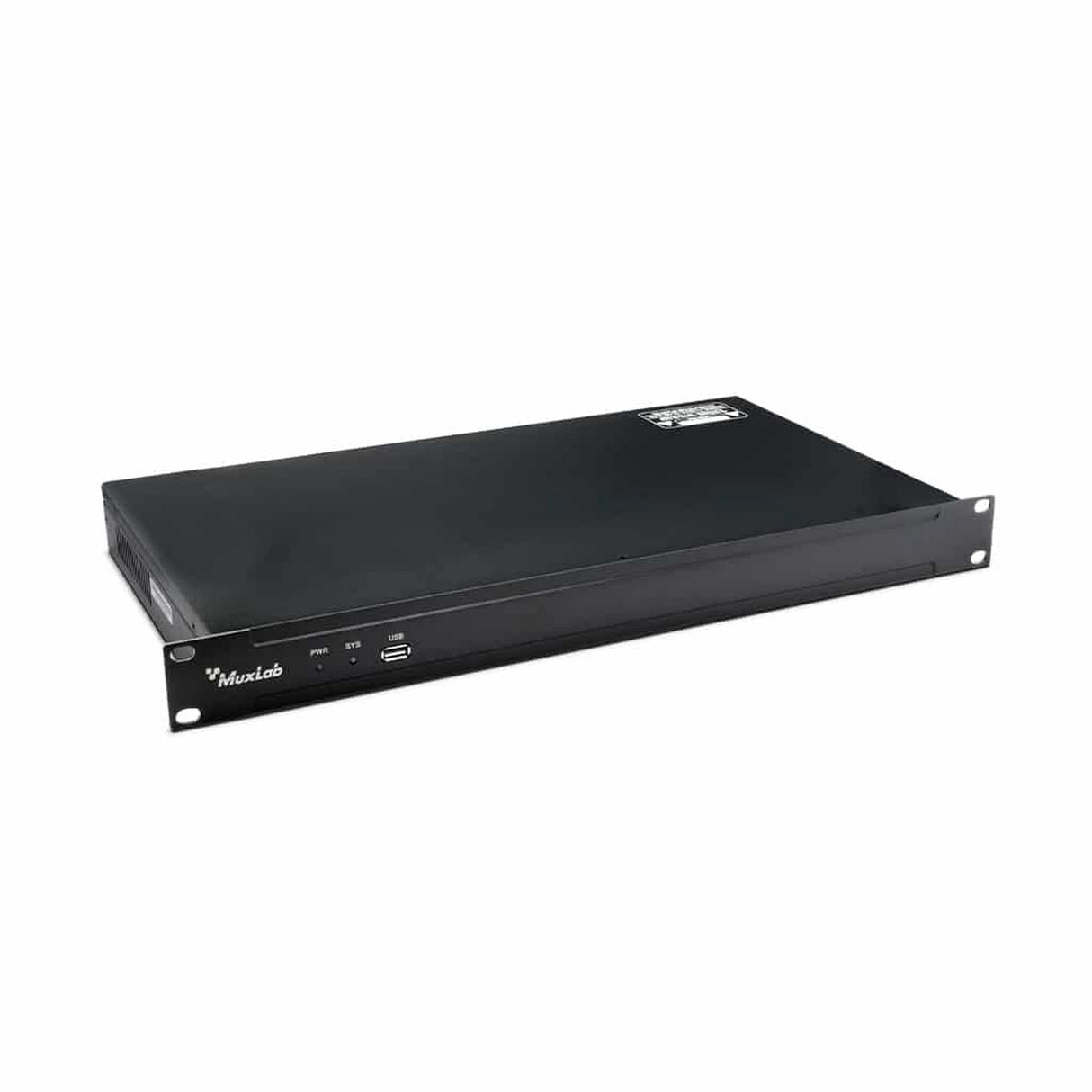

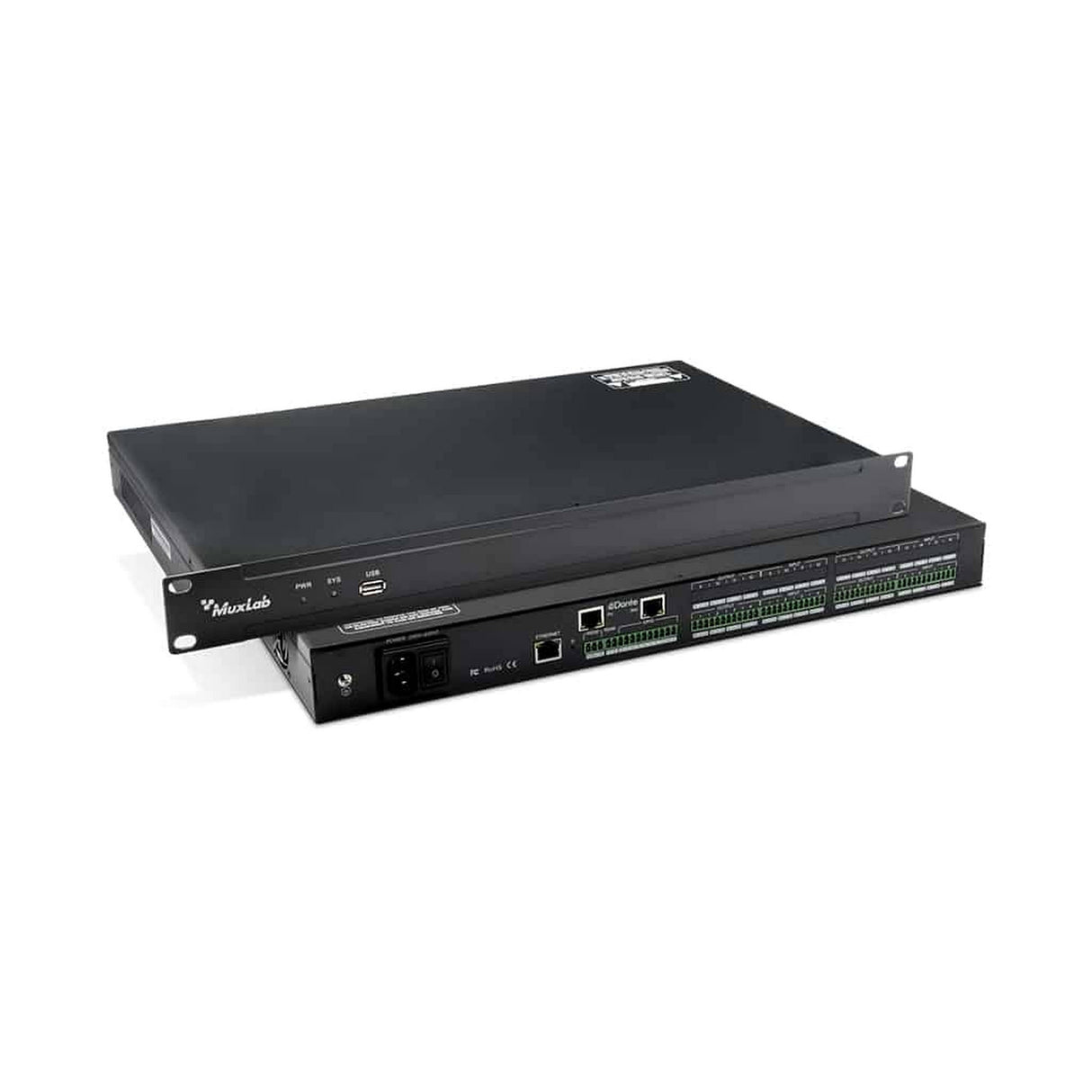

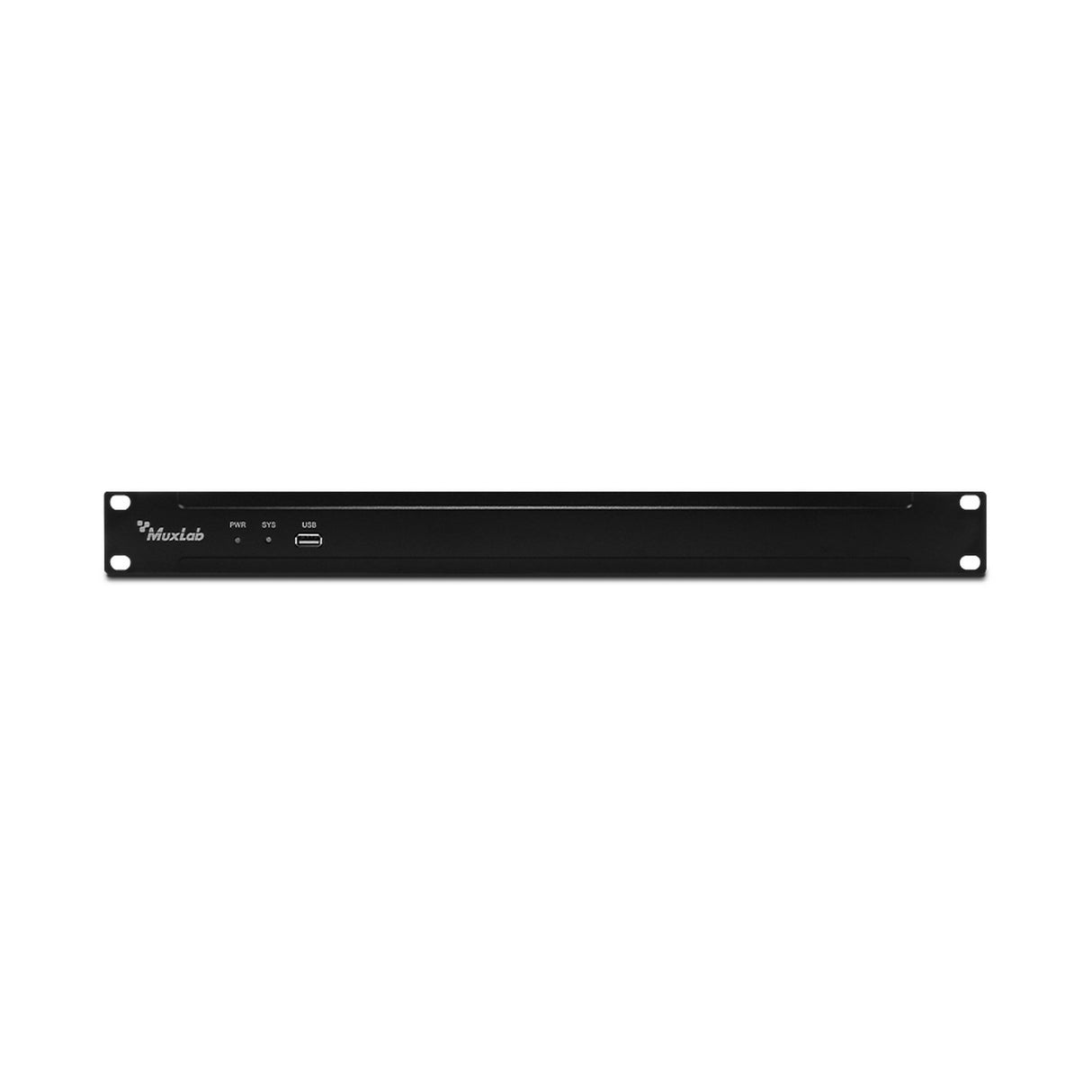

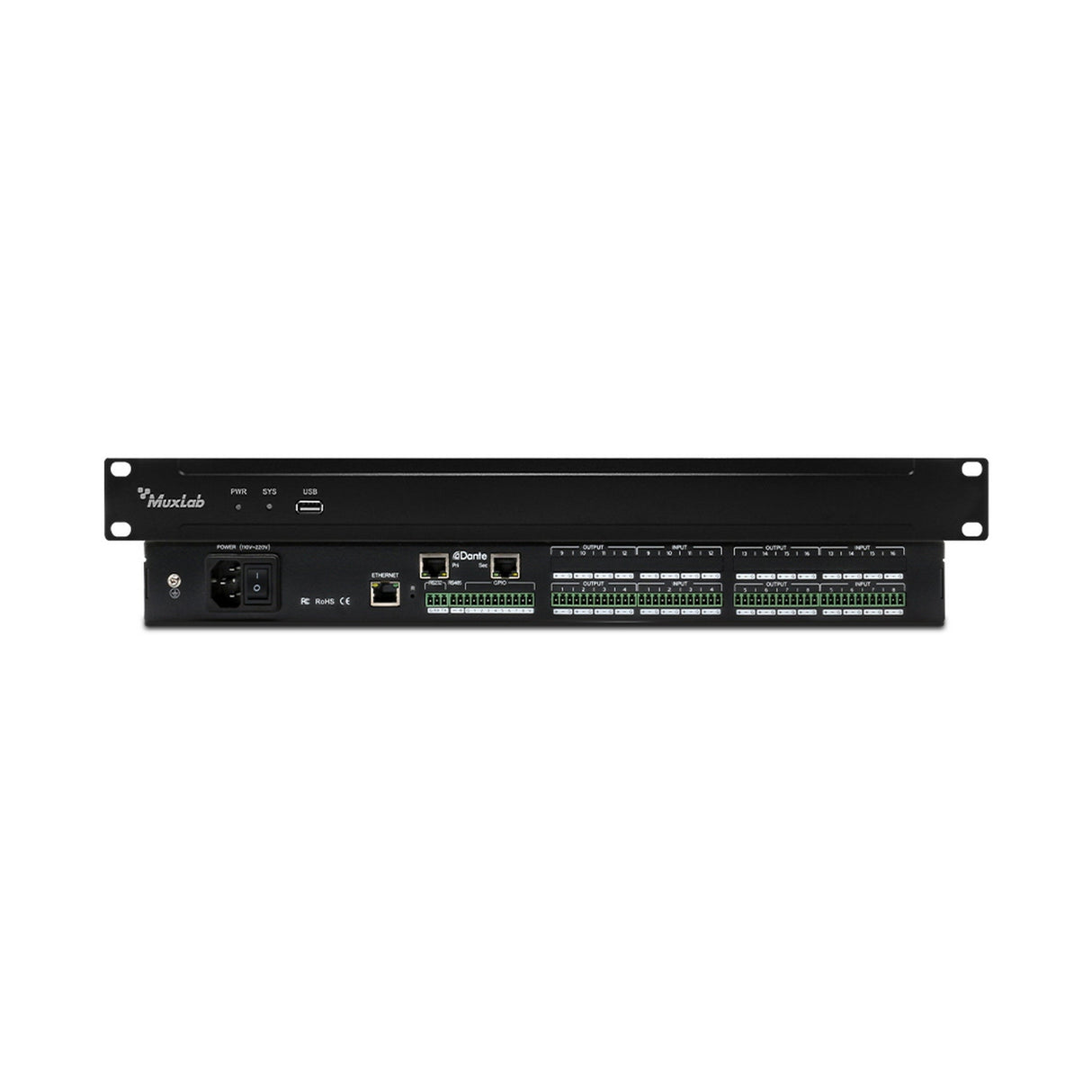

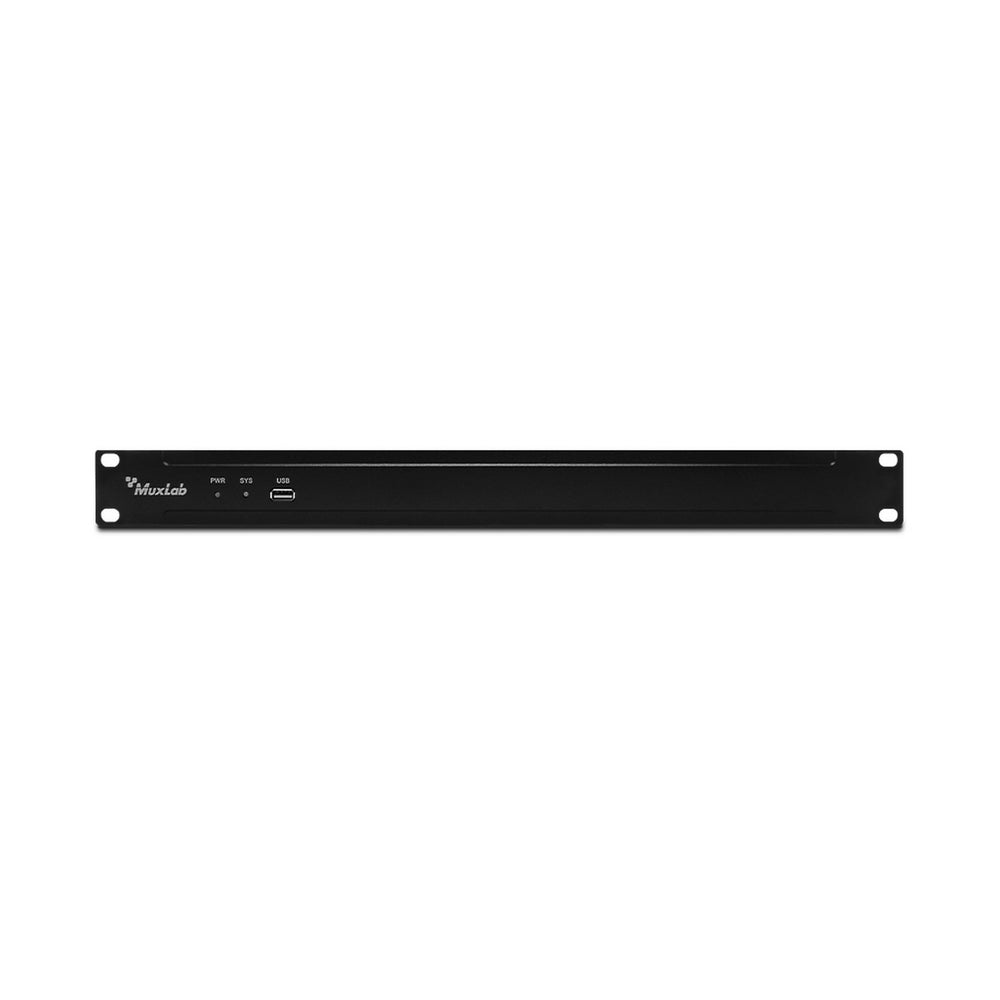

MuxLab 500601 Dante 8-Channel Audio DSP
MuxLab 500601 is a Dante-enabled audio digital signal processor designed for the transmission, routing, and processing of audio signals in Dante network environments. It enables low-latency audio transport with support for balanced analog and Dante digital audio inputs and outputs for professional AV systems. This makes it ideal for installations where scalable networked audio control is required.
The processor supports analog, Dante, and USB audio interfaces to accommodate flexible system integration. It includes advanced DSP processing algorithms and supports system automation through API-based control interfaces.
In real-world deployments, the DSP allows centralized audio management across conference rooms, education facilities, hospitality venues, and commercial environments. Its wide input and output capacity supports complex audio routing and processing workflows.
Key Features
- Dante Audio Networking: Built-in Dante module supports networked digital audio transmission.

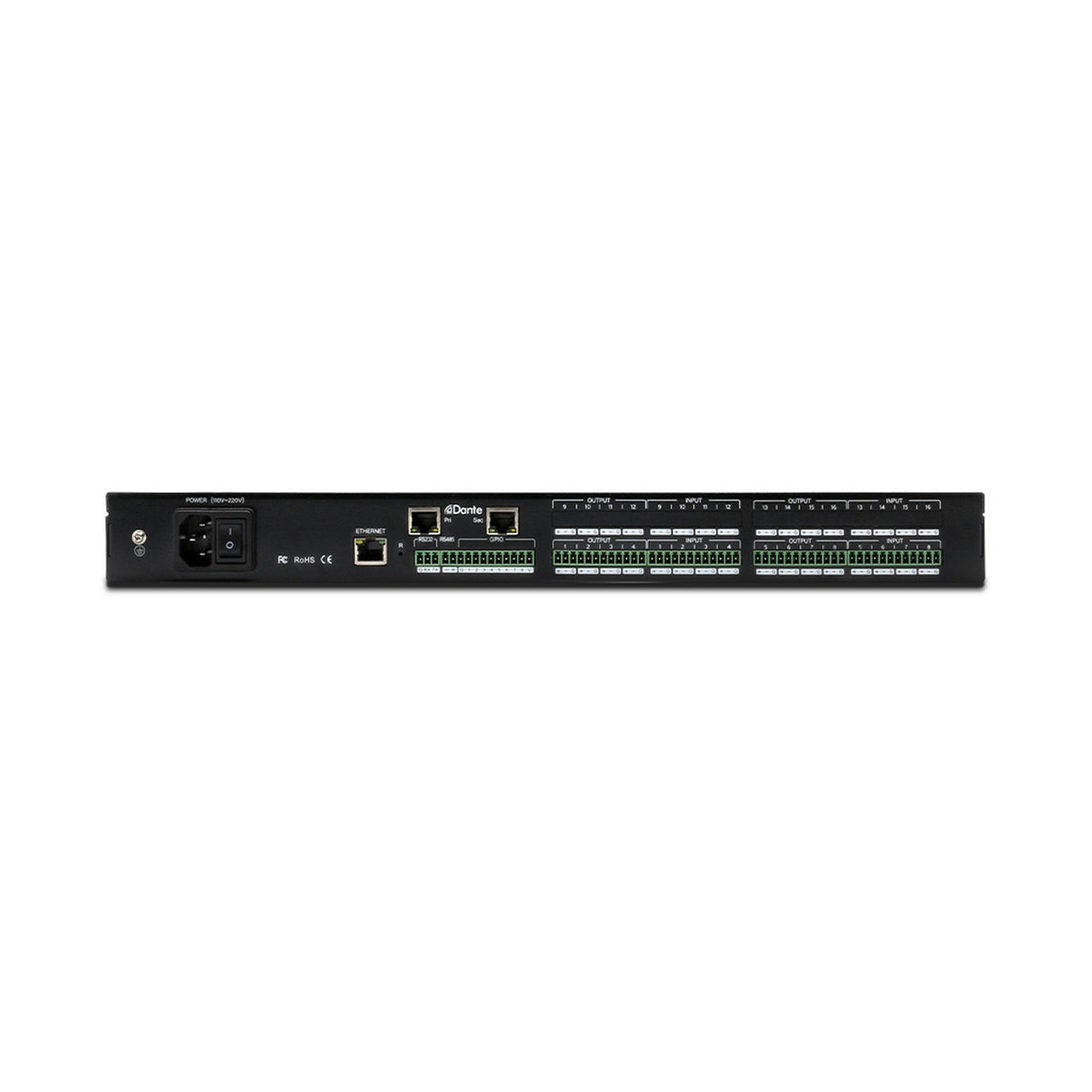

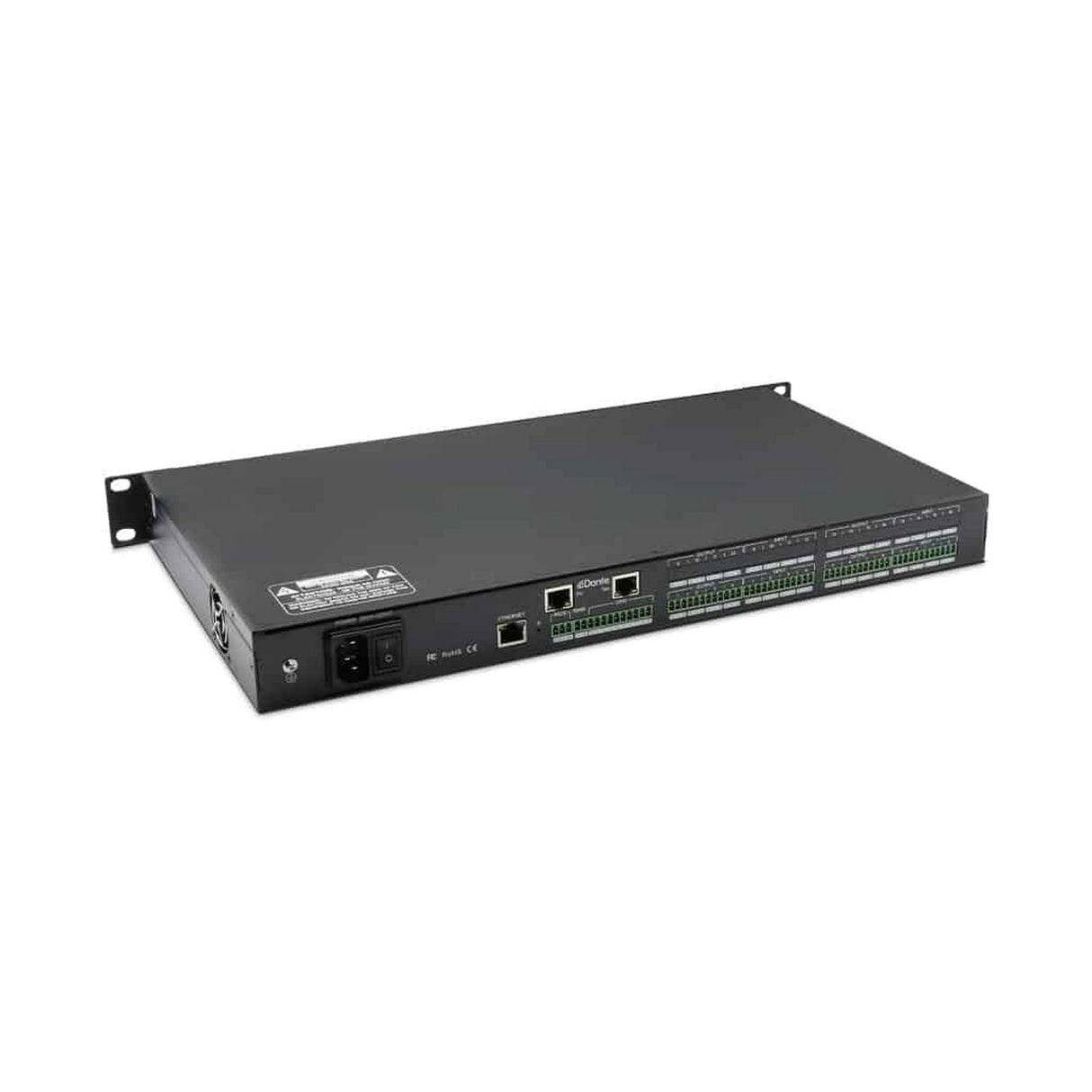

- Balanced Analog I/O: Provides eight balanced audio inputs and eight balanced audio outputs.
- USB Audio Interface: Includes a USB sound card with one input and one output.
- Phantom Power: Inputs support 48VDC phantom power.
- Advanced DSP Processing: Supports gain adjustment, equalization, compressor, ducker, mixer, limiter, and graphic EQ.
- Automation Support: API support for RS232, RS485, and TCP/IP control.
- AES67 Compatibility: Supports AES67 RTP audio transport.
- GPIO Expansion: Supports GPIO for additional interface expansion.
Technical Specifications
Analog Audio8 balanced inputs + 8 balanced outputs
Dante Audio
8 inputs + 8 outputs
USB Sound Card
1 input + 1 output
Analog Maximum Gain
51dB
Quantization Bits
24bit
Sample Rate
48k
Phantom Power
48VDC
Frequency Response
20Hz~20KHz±0.25dB
THD+N
≤0.003% @ 1KHz, +4dBu
Digital/Analog Dynamic Range
114dB
Analog/Digital Dynamic Range
120dB
Input Impedance
20kΩ Balanced, 10kΩ Unbalanced
Output Impedance
100Ω Balanced, 50Ω Unbalanced
Maximum Input Level
18dBu, Balanced
Maximum Output Level
18dBu, Balanced
Input Common Mode Rejection
84dB @ +24dBu @60Hz
Channel Isolation
>104dB
Number of GPIO
8 ports, can be configure as input and output
Number of RS485 Serial Ports
1
Number of RS232 Serial Ports
1
Number of USB Sound Cards
1
Operating Temperature
0°C - 40°C
Working Power Supply
110-220VAC, 50/60Hz
Warranty
2 years
