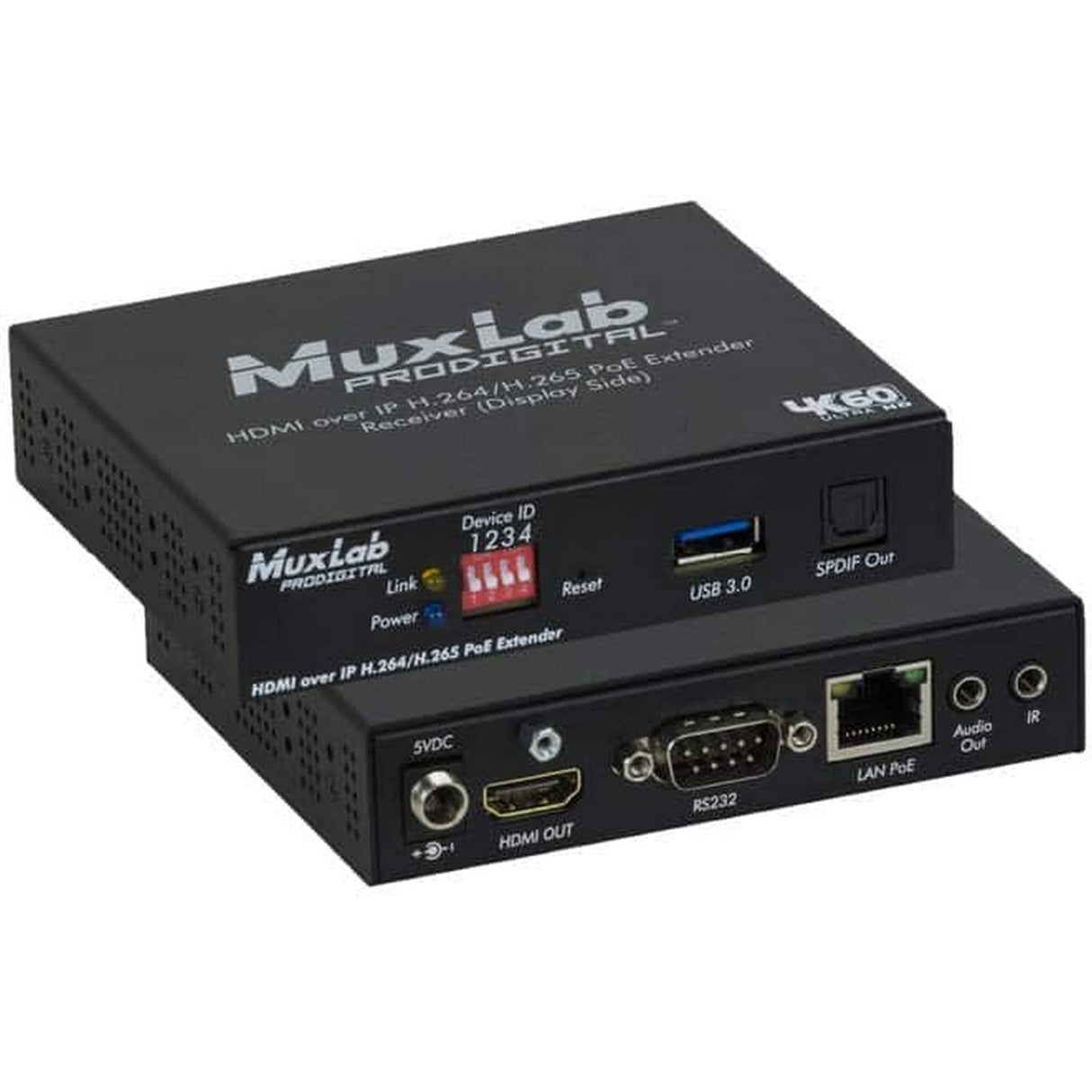

MuxLab 500762-RX-V2 HDMI Over IP H264/H265 PoE Receiver 4K60 for AV Over IP Systems
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
MuxLab 500762-RX-V2 HDMI Over IP H264/H265 PoE Receiver 4K60 for AV over IP Systems
The MuxLab HDMI over IP H264 H265 PoE Receiver 4K60 enables HDMI video and audio content to be received over a standard Ethernet network from compatible transmitters. It supports point to point, point to multipoint, and multipoint to multipoint configurations over Cat5e or Cat6 cabling. This receiver is designed for scalable and flexible AV over IP deployments.
The receiver supports up to 4K at 60Hz video streams and up scales 1080p sources to 4K for display on UHD monitors. It supports H.264 and H.265 video codecs for efficient low bandwidth transmission over LAN and Internet networks. The unit also supports Video Wall and Multiview capabilities for advanced display layouts.
Designed for professional AV environments, this receiver supports PoE powered operation and integrates RS232 and directional IR for remote device control. It includes SPDIF digital audio output for flexible audio integration. This makes it well suited for digital signage, control rooms, and distributed AV applications.
Key Features
- 4K60 Video Support: Supports up to 4K at 60Hz video streams.
- Video Upscaling: Supports up scales 1080p video streams to 4K at 60Hz.
- Advanced AV Capabilities: Supports Video Wall and Multiview capabilities.
- Efficient Video Compression: Supports H.264 and H.265 video codecs for LAN and Internet transmission.
- PoE Powered: Supports PoE powered operation via a PoE Ethernet switch.
Technical Specifications
EnvironmentHDMI 2.0
Devices
Blu-Ray, Set Top Boxes, projectors, monitors, TVs, PCs, supporting HDMI.
Signal Protocol Standard
HDMI 2.0 and HDCP 2.2
Video Bandwidth
594MHz
Network Bandwidth
32Mbps
Latency
less than 200ms in low latency mode with H.265
Protocols
RX Supports Multicast, RTSP, HLS, FLV and TS
Connectors
(1) HDMI connector for AV Output
(1) RJ45s for Ethernet connection
(1) USB 3.0 connector for future capabilities
(1) TosLink optical connector for digital audio extraction
(1) 3.5mm connector for audio extraction
(1) 3.5mm connector for directional IR direction controllable via software
(1) RS232 DB9 connector for controlling end devices
(1) 2.1mm locking power connector
Maximum Distance
Cat5e 330ft 100m from Ethernet Switch Unlimited over the Internet
Note When installed in an electrically noisy environment an STP cable must be used Also cross connection reduces the effective distance depending on the grade of twisted cable used
Power Source
This device supports PoE PD an external power supply is not included It is intended to be powered via a PoE PSE Ethernet Switch If required an optional power supply 500993 may be purchased separately
PoE
IEEE 802.3af
Power Consumption
4.5W
Temperature
Operating 0 to 40 C
Storage minus 20 to 85 C
Humidity Up to 95 percent non condensing
Dimensions
4.4" x 3.6" x 1.0"
111mm x 92mm x 25mm
Weight
0.9lbs
0.4kg
Compliance
Regulatory FCC CE RoHS
Flammability 94V0
Warranty
2 years
What's in the Box
(1) 500762-RX-V2 HDMI Over IP H264/H265 PoE Receiver
