MuxLab 500774 HDMI 4K/ST2110 Over IP UTP - Receiver

MuxLab 500774 HDMI 4K/ST2110 Over IP UTP Gateway

The MuxLab 500774 HDMI 4K/ST2110 Over IP UTP Gateway connects HDMI equipment with SMPTE ST 2110 broadcast networks using separate transmitter and receiver variants. It carries uncompressed HDMI video up to 4K30, supports redundant 10G media paths, and provides zero-latency transport for professional broadcast and production environments.

Choose the 500774-TX-UTP transmitter to bring an HDMI source onto the IP network or the 500774-RX-UTP receiver to deliver the network stream to an HDMI display. The platform suits broadcast facilities, sports and television production, media networks, and installations requiring point-to-point, point-to-multipoint, or multipoint-to-multipoint HDMI over IP distribution.

Both variants support SMPTE ST 2022-7 Class D redundancy across two independent 10G Ethernet media paths. A separate 1G Ethernet connection handles management through REST API and NMOS IS-04 discovery and IS-05 connection management. The system supports HDMI 1.4 signals including 4K30 4:4:4 8-bit and 4:2:2 10-bit video, with OM4 fiber distances reaching 1,300 ft.

Key Features

• Transmitter and Receiver Variants: Select 500774-TX-UTP for HDMI source transmission or 500774-RX-UTP for HDMI display reception.
• Uncompressed 4K Video: Supports HDMI video up to 4K30 without compression for broadcast-quality signal transport.
• SMPTE ST 2110: Integrates HDMI sources and displays into standards-based professional AV-over-IP workflows.
• Redundant 10G Networking: Two media interfaces support SMPTE ST 2022-7 Class D redundancy for fail-safe signal paths.
• Flexible Distribution: Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint system designs.
• Long-Distance Transport: Supports transmission up to 1,300 ft over duplex OM4 multimode fiber or 985 ft over OM3 fiber.
• Network Management: A dedicated 1G Ethernet port supports REST API and NMOS IS-04 and IS-05 management.
• Future Audio Connectivity: A 3.5 mm connection is provided for future TX audio insertion and RX audio extraction functionality.

Variant Options

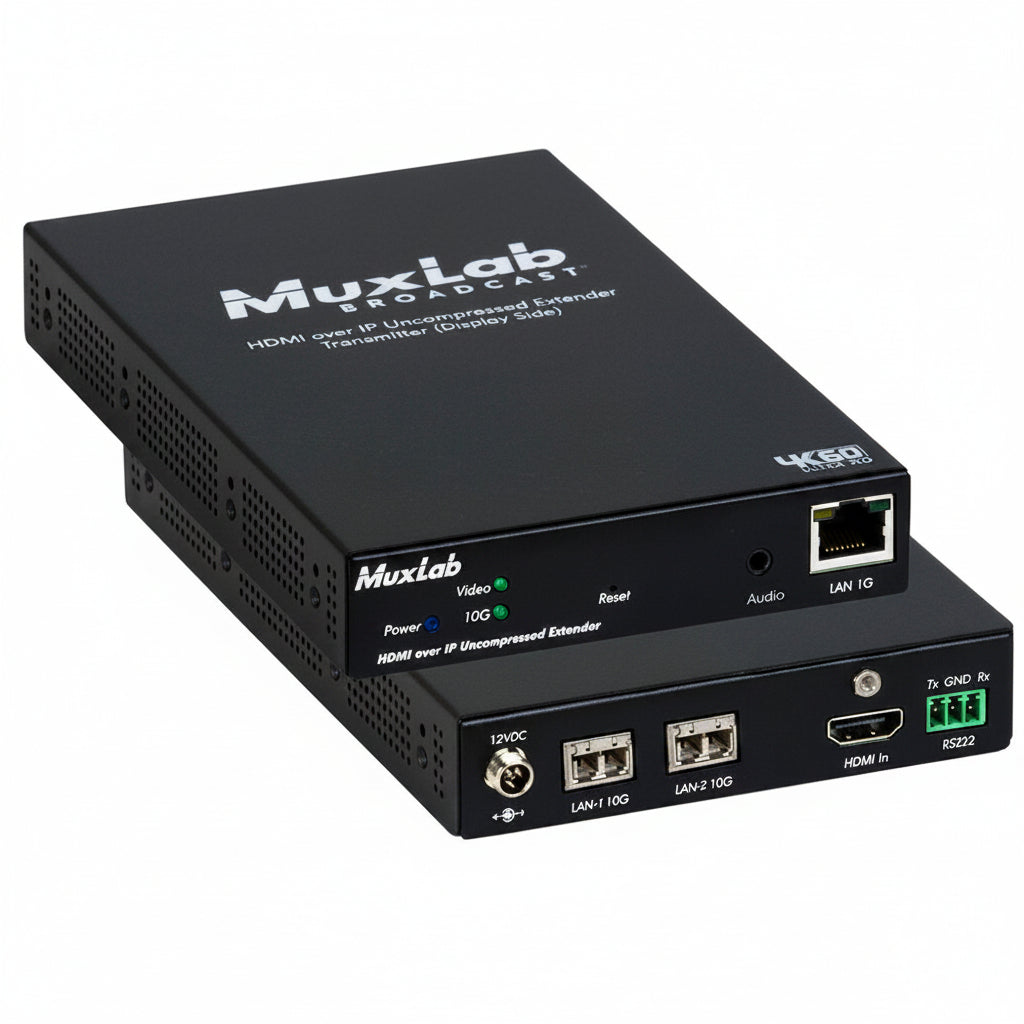

• 500774-TX-UTP: HDMI 4K/ST2110 over IP uncompressed transmitter with HDMI source input.

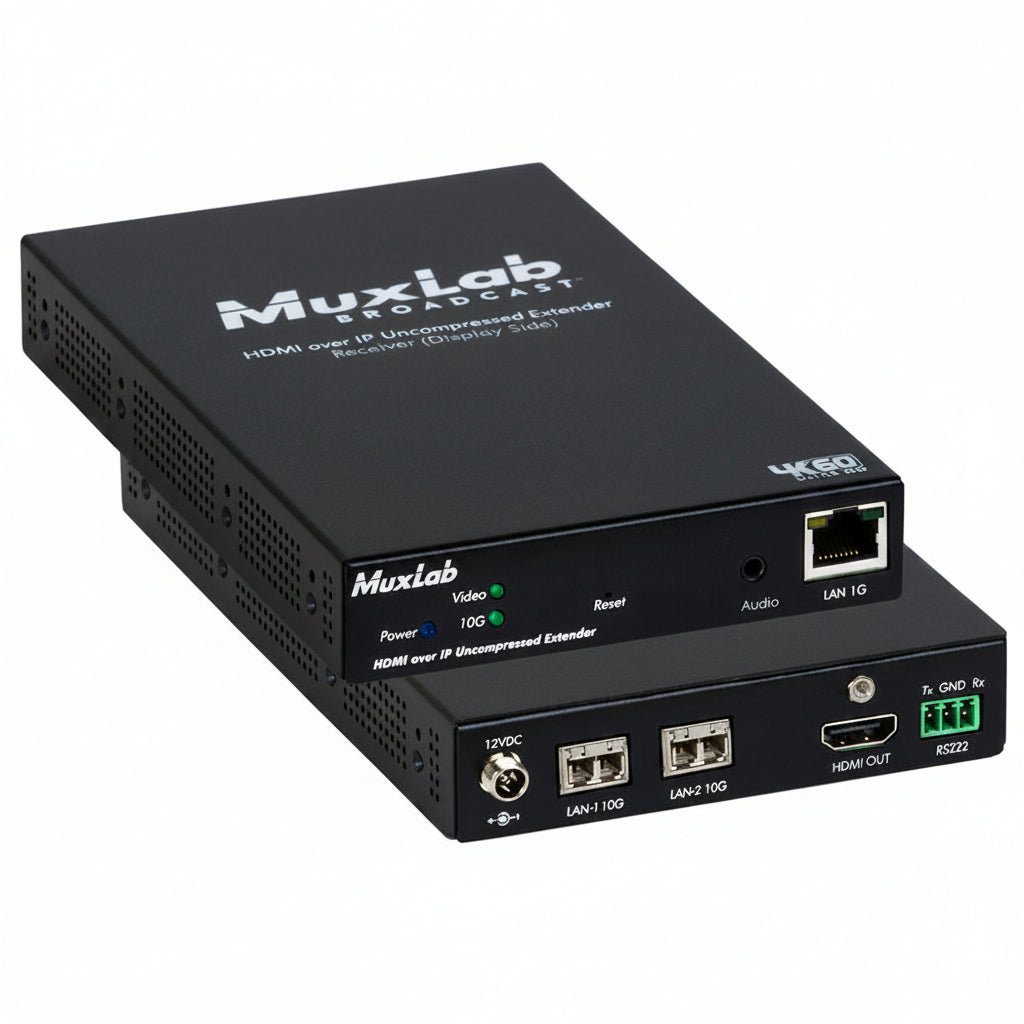

• 500774-RX-UTP: HDMI 4K/ST2110 over IP uncompressed receiver with HDMI output for connection to a display.

Technical Specifications

• Environment: HDMI
• Compatible Devices: Cameras, mixers, media players, monitors, TVs, PCs, laptops, and servers supporting HDMI
• Signal Standard: Up to HDMI 1.4
• Maximum Video Resolution: 4K at 30 Hz
• 4K Video Formats: 4:4:4 8-bit and 4:2:2 10-bit
• AV-over-IP Standard: SMPTE ST 2110
• Redundancy: SMPTE ST 2022-7 Class D
• 500774-TX-UTP HDMI Connection: HDMI input for source connection
• 500774-RX-UTP HDMI Connection: HDMI output for display connection
• Media Network Connections: 2 SFP connectors for redundant 10G Ethernet AV transmission
• Management Connection: 1 RJ45 connector for 1G Ethernet control
• Audio Connection: 1 3.5 mm connector for future audio insertion or extraction functionality
• Power Connection: 1 locking 2.1 mm connector
• Maximum OM4 Distance: 1,300 ft
• Maximum OM3 Distance: 985 ft
• Latency: Zero latency
• Compression: None; uncompressed transmission
• Network Bandwidth: Up to 10 Gbps
• AV Network Requirement: 10G Ethernet LAN
• Management Network Requirement: 1G Ethernet LAN
• Third-Party Control: REST API and NMOS IS-04 discovery with IS-05 connectivity management
• AV Cabling: Two dual multimode fiber cables
• Control Cabling: Cat 5e/6 UTP
• Power Consumption: 15 W
• Operating Temperature: 0 to 40 degrees C
• Storage Temperature: -20 to 85 degrees C
• Humidity: Up to 95% non-condensing
• Enclosure: Aluminum
• Dimensions: 7 x 4.4 x 1 inches
• Weight: 1.5 lb
• Regulatory Compliance: FCC, CE, RoHS
• Flammability Rating: 94V0
• Warranty: 3 years
• 500774-TX-UTP UPC: 627699927748
• 500774-RX-UTP UPC: 627699827741
• Compatible Rackmount Chassis: 500920 16-Port Rackmount Transceiver Chassis, sold separately
• Compatible Wall Mount: 500917 Wall Mount Transceiver Bracket Kit, sold separately

What's In the Box

• Selected MuxLab 500774-TX-UTP Transmitter or 500774-RX-UTP Receiver
• Power Adapter
