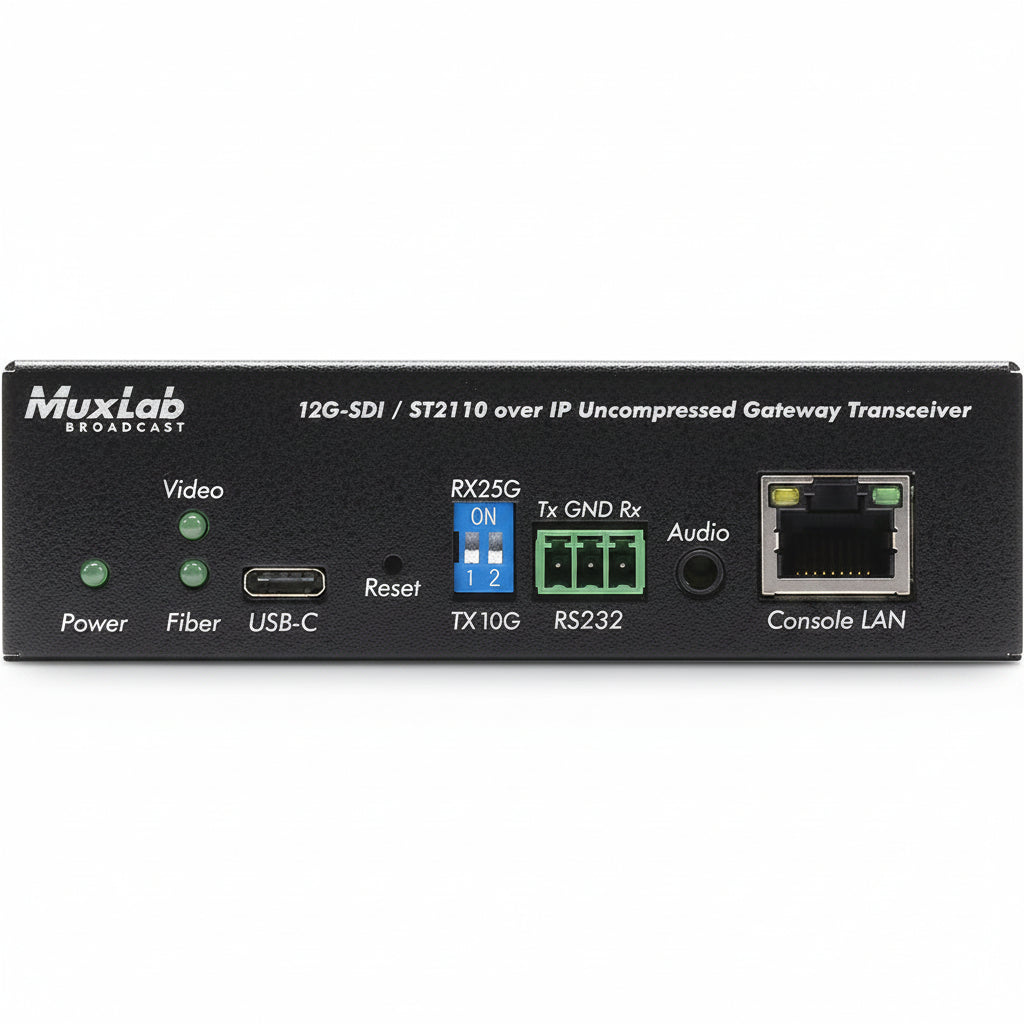

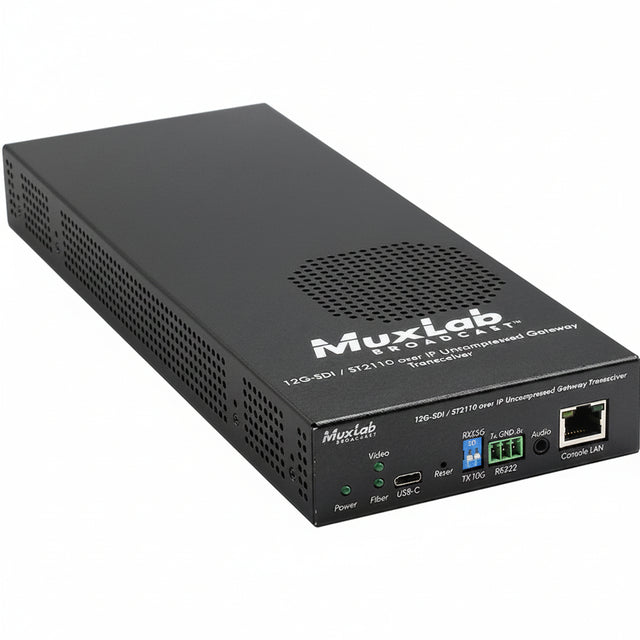

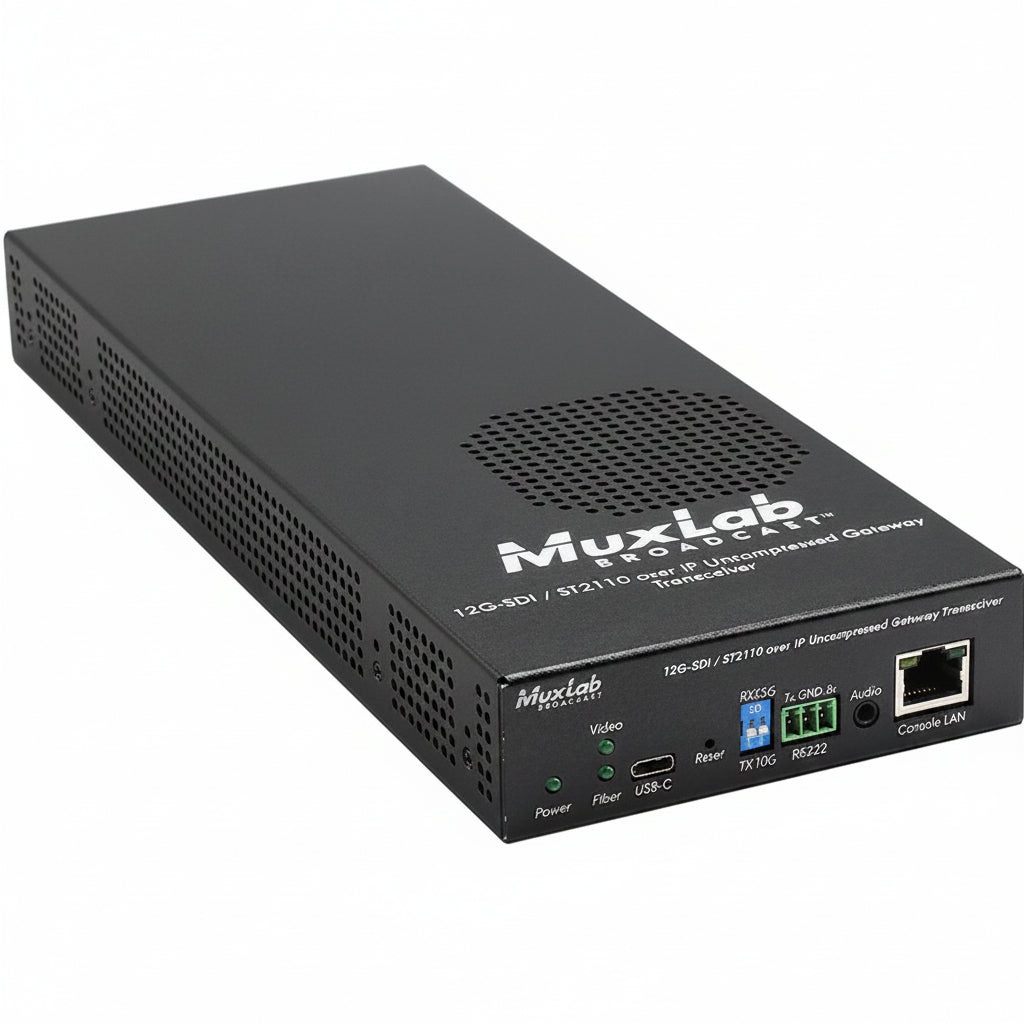

The MuxLab 500775-2110 12G-SDI/ST2110 over IP Gateway Transceiver is a bidirectional broadcast AV-over-IP gateway for transporting uncompressed SDI across IP networks. It supports video up to 4K60 on a 25GbE network, carries up to 16 audio channels, and can operate as either a transmitter or receiver.

Built for broadcast studios, television production, sports facilities, and professional media networks, the transceiver integrates 12G-SDI equipment into SMPTE ST 2110 infrastructure without video compression. Installers can build point-to-point, point-to-multipoint, or multipoint-to-multipoint systems while selecting 25G networking for 4K60 workflows or 10G networking for uncompressed video up to 4K30.

For resilient broadcast environments, SMPTE ST 2022-7 Class D redundancy enables media to travel across two independent Ethernet network paths. Dual 25G/10G SFP cages support fiber configurations, while a dedicated 1G Ethernet management port provides access to the web interface, REST API, and NMOS IS-04 discovery and IS-05 connection management. SFP modules and fiber cables are selected separately to match the required network and transmission distance.

Key Features

• Configurable Transceiver: Operates as either an SDI transmitter or receiver to simplify deployment and inventory planning.
• Uncompressed 4K60 Video: Supports up to 12G-SDI 4K at 60 Hz over a 25G ST 2110 network.
• 10G Network Support: Runs up to 6G-SDI 4K at 30 Hz when deployed on a 10G Ethernet infrastructure.
• Redundant Media Paths: SMPTE ST 2022-7 Class D seamless protection switching supports mission-critical broadcast workflows.
• Flexible Network Topologies: Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations.
• Dual Media Interfaces: Two 25G/10G SFP cages provide network connectivity for redundant AV transmission.
• Professional Management: Dedicated 1G Ethernet enables web-based control, REST API integration, and NMOS management.
• Fiber Distance Options: Compatible SFP configurations support multimode and single-mode links for short- and long-distance installations.

Technical Specifications

• Environment: Up to 12G-SDI
• Compatible Devices: Cameras, mixers, media players, monitors, TVs, PCs, laptops, and servers supporting up to 12G-SDI
• 25G Video Signal: Up to 12G-SDI, 4K at 60 Hz, using ST 2110
• 10G Video Signal: Up to 6G-SDI, 4K at 30 Hz, using ST 2110
• SDI Video Format: 10-bit YCbCr 4:2:2
• Audio Channels: Up to 16 channels
• SDI Connectors: 2 BNC connectors
• Media Network Ports: 2 SFP cages supporting 25G/10G Ethernet for redundant AV transmission
• Management Port: 1 RJ45 connector for 1G Ethernet management
• Power Connector: 1 locking 2.1 mm connector
• Operating Mode Control: Switch for selecting transmitter or receiver operation
• Network Mode Control: Switch for selecting 25G or 10G media networking
• USB-C: 1 connector reserved for future use
• RS-232: 1 three-position Phoenix connector reserved for future use
• Audio Connector: 1 3.5 mm connector reserved for future audio insertion and extraction
• Fiber Cable Requirement: Two dual multimode fiber cables with MM SFPs or two dual single-mode fiber cables with SM SFPs; cables not included
• SFP Modules: Two compatible 25G or 10G SFP modules required; not included
• Maximum Distance with 25G MM SFP: 330 ft
• Maximum Distance with 25G SM10 SFP: 6.2 mi
• Maximum Distance with 25G SM40 SFP: 25 mi
• Latency: Zero latency
• Compression: None; uncompressed transmission
• 25G Network Bandwidth: Up to 12 Gbps
• 10G Network Bandwidth: Up to 6 Gbps
• AV Network Requirement: 25G or 10G Ethernet LAN
• Management Network Requirement: 1G LAN
• Third-Party Control: REST API and NMOS IS-04 discovery with IS-05 connectivity management
• Power Supply: 12 V / 3 A
• Power Consumption: 23 W in receiver mode; 21 W in transmitter mode
• Operating Temperature: 0 to 40 degrees C
• Storage Temperature: -20 to 85 degrees C
• Humidity: Up to 95% non-condensing
• Enclosure: Aluminum
• Dimensions: 4.4 x 12 x 1.3 inches
• Weight: 1.4 lb
• Regulatory Compliance: FCC, CE, RoHS
• Flammability Rating: 94V0
• Warranty: 2 years
• UPC: 627699007754
• Compatible Rackmount Chassis: 500920 16-Port Rackmount Transceiver Chassis, sold separately
• Compatible Wall Mount: 500917 Wall Mount Transceiver Bracket Kit, sold separately
• Compatible 25G Multimode SFP: 500971-25G-MM, 25G multimode, 328 ft
• Compatible 25G Single-Mode SFP: 500971-25G-SM10, 25G single-mode, 6.2 mi
• Compatible 10G Multimode SFP: 500970-MM, 10G multimode, 984 ft
• Compatible 10G UTP SFP: 500970-UTP, 10G UTP, 98 ft
• Compatible 10G Single-Mode SFP: 500970-SM10, 10G single-mode, 6.2 mi
• Compatible 10G Long-Range SFP: 500970-SM40, 10G single-mode, 24.9 mi

What's In the Box

• MuxLab 500775-2110 ST2110 SDI Transceiver
• Power Supply Unit
• 3-Pin Connection Plug
• User Manual, available digitally
