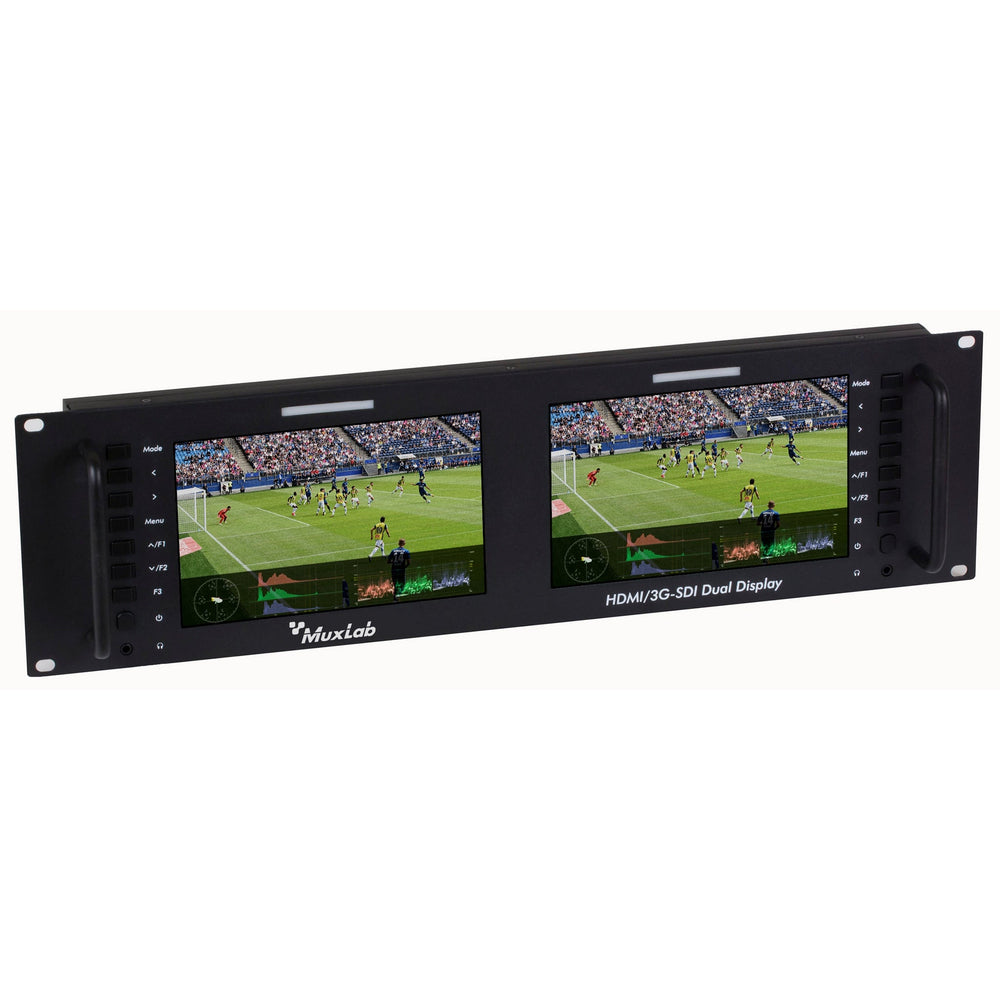

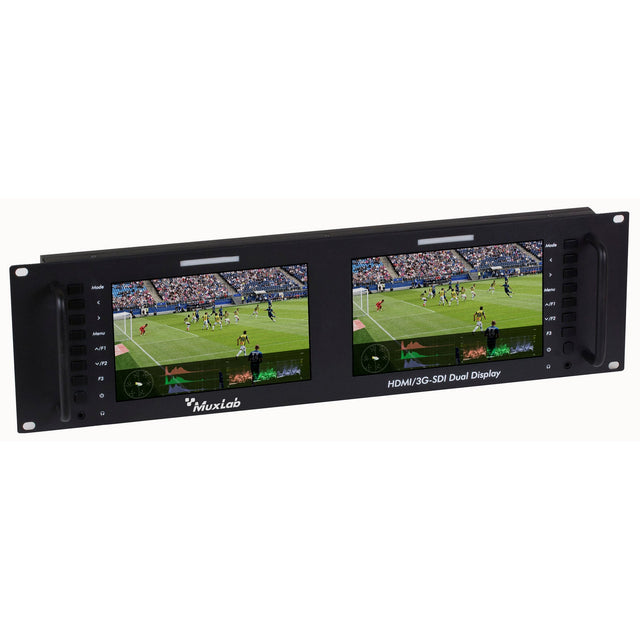

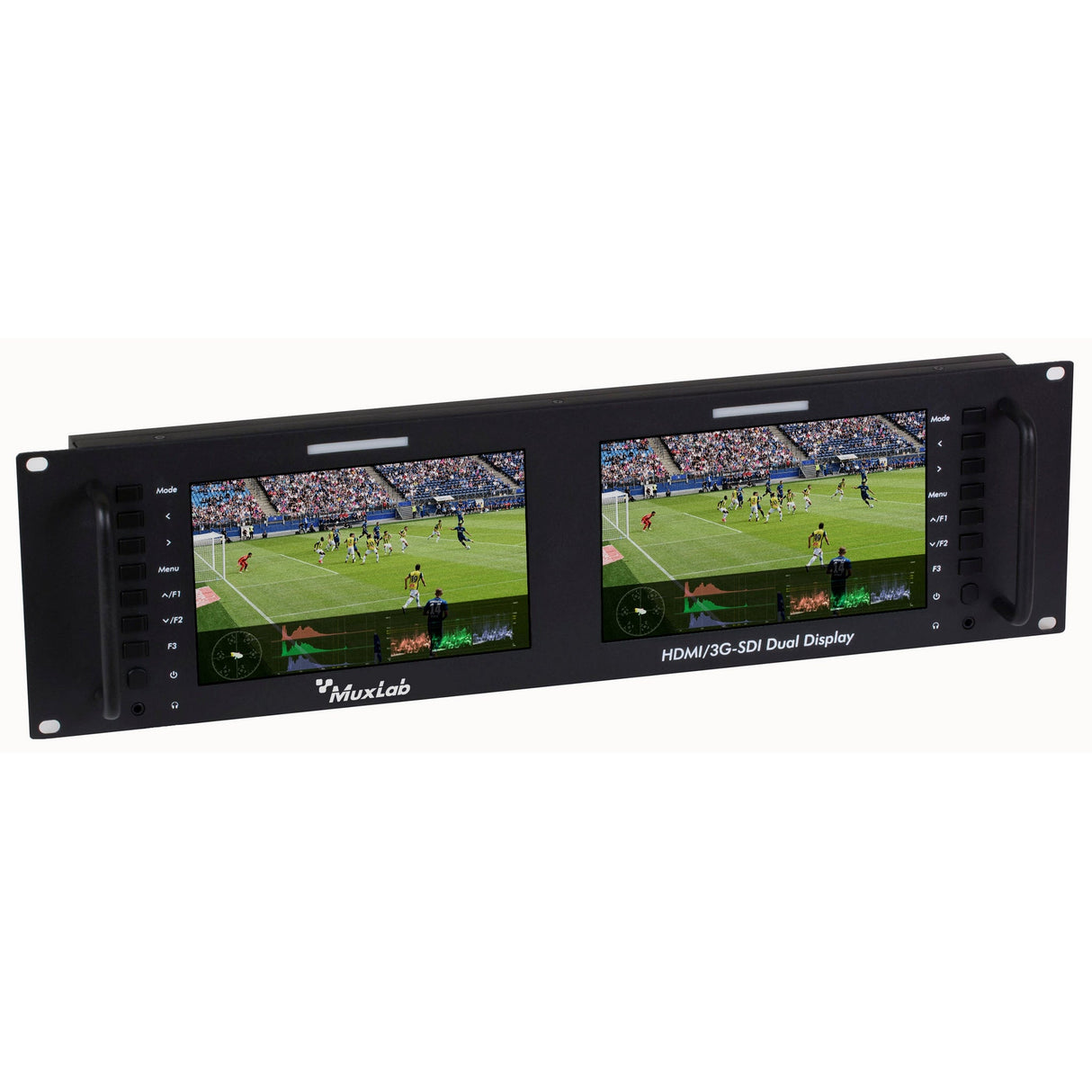

MuxLab 500841-V2 HDMI 4K/30 and 3G-SDI Dual Display
The MuxLab HDMI 3G-SDI Dual Display 4K/30 is a professional rack-mounted monitoring solution designed for broadcast and AV testing environments. It integrates two independent 7-inch IPS LCD displays into a single 3 RU 19-inch rack unit, saving valuable rack space while enabling multi-source monitoring.
This unit supports HDMI input and loop-out up to 4K/30, SDI signals up to 3G-SDI, and CVBS signals with audio. Each display includes a tri-color tally light indicator and supports advanced monitoring tools such as waveform, vectorscope, histogram, and image freeze.
Engineered for reliability in production and testing workflows, the dual display offers customizable buttons and professional analysis features. It is ideal for broadcast studios, television studios, and AV testing environments requiring accurate signal monitoring.
Key Features
- Dual IPS Displays: Two independent 7-inch IPS LCD screens in a single rack-mounted unit
- Multi-Format Support: Supports HDMI 4K/30, 3G-SDI, and CVBS signals
- Rack-Mount Design: Fits 19-inch rackmount at 3 RU height
- Advanced Monitoring Tools: Includes waveform, RGB, YUV, histogram, and vectorscope
- Tally Indicators: Tri-color tally light indicator per display
Technical Specifications
Screen SizeTwo 7" screens
Resolution
1920x1200 pixel
Dot Pitch
0.07875 (W) x 0.07875 (H) mm
Aspect Ratio
16:10
Brightness
450cd/m2
Contrast
1000:1
Backlight
LED
Viewing Angle
80Ā°/80Ā° (L/R) 80Ā°/80Ā° (U/D)
Inputs
HDMI, 3G/HD/SD-SDI, HDMI, Audio (L/R), Video
Outputs
HDMI, 3G/HD/SD-SDI, Video, 3.5mm Audio Jack
Control Inputs
Ethernet
SDI Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98/23.98sf)
HDMI Support Format
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K 3840x2160p (30/29.97/25/24/23.98Hz)
4096x2160p (24Hz)
Power Consumption
ā¤21W
Input Voltage
9.0 to 24VDC
Power Source
100-240VAC to 12VDC 3A power supply
Working Temperature
-10Ā°C to 50Ā°C
Storage Temperature
-20Ā°C to 60Ā°C
Install Way
Rack Mount
Dimensions
482.6mm x 132mm x 60.5mm
Weight
1.89kg
Warranty
2 years
